Toyota Glanza
2019-04 → present · chassis K12M,K12N · catalogue 132310 · General
Supported model
Data version 2019-11

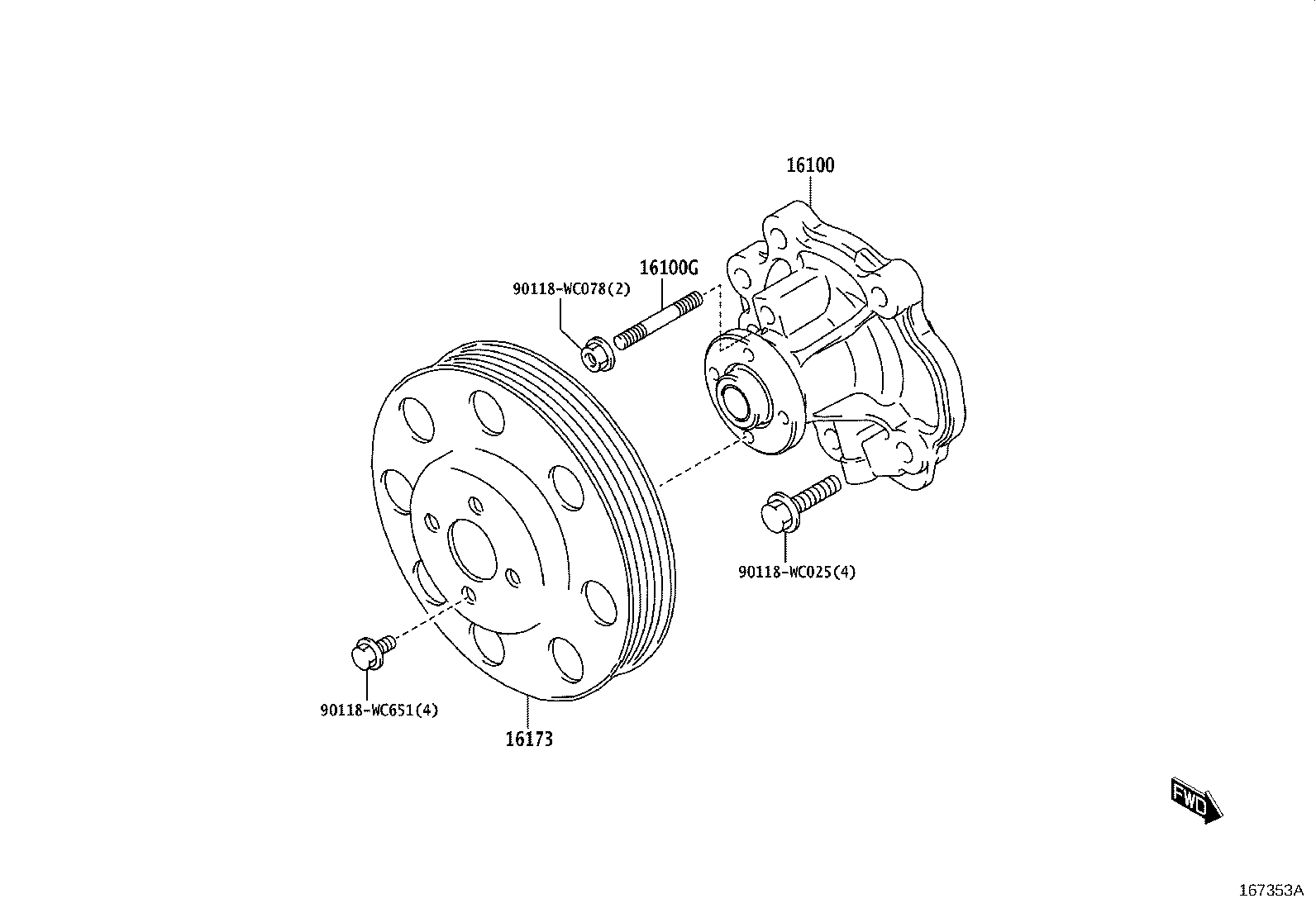

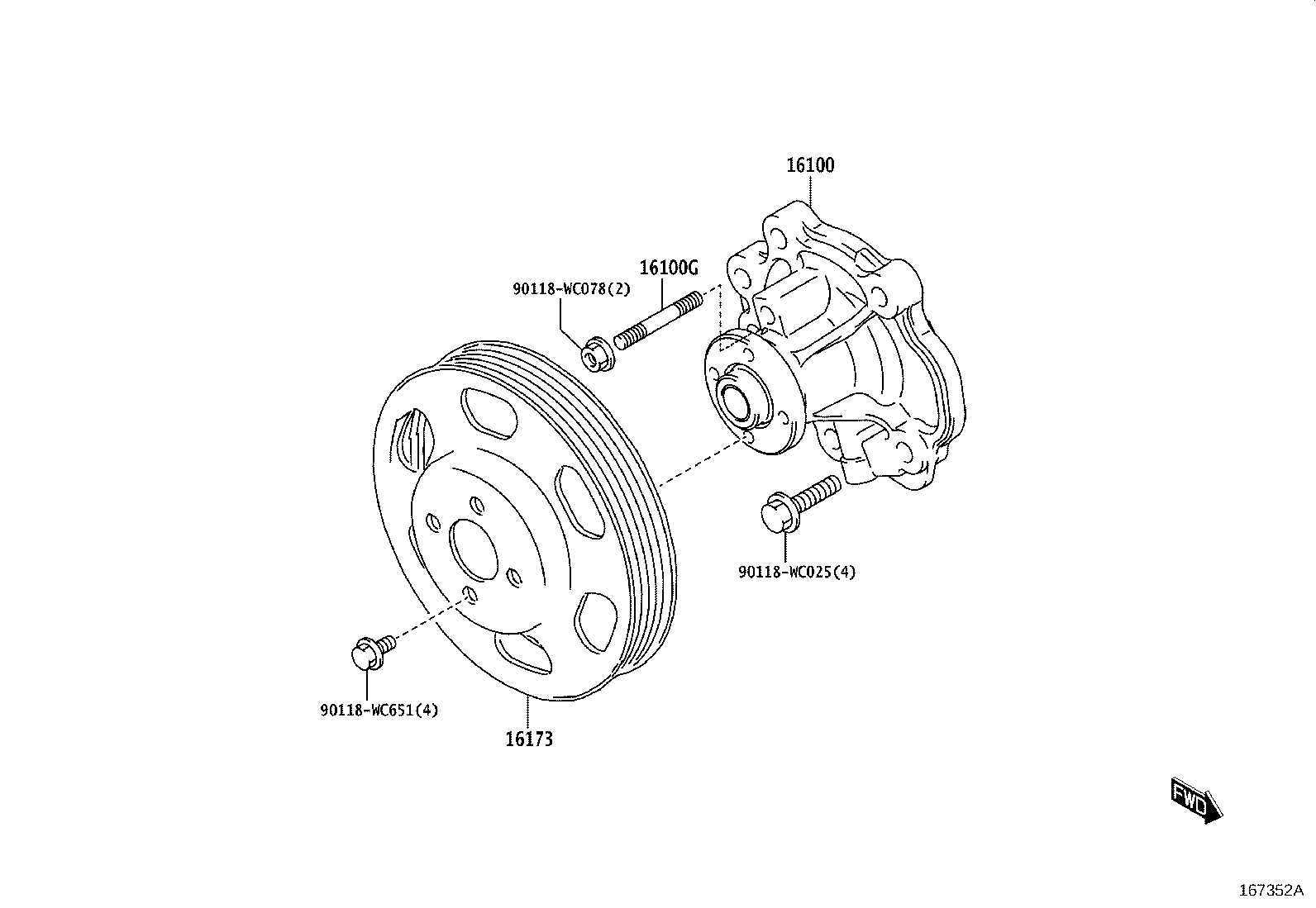

Water Pump
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16601 | Tensioner Sub-assy, V-ribbed Belt |
| 16603H | Bolt(FOR IDLER PULLEY) |
| 16630G | Pulley Assy, Idler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
