Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Pedal & Bracket

3 part groups · 3 illustrations

Illustrations

Figure 47B834

47B834 2019-04 → —

Figure 47B835

47B835 2019-04 → —

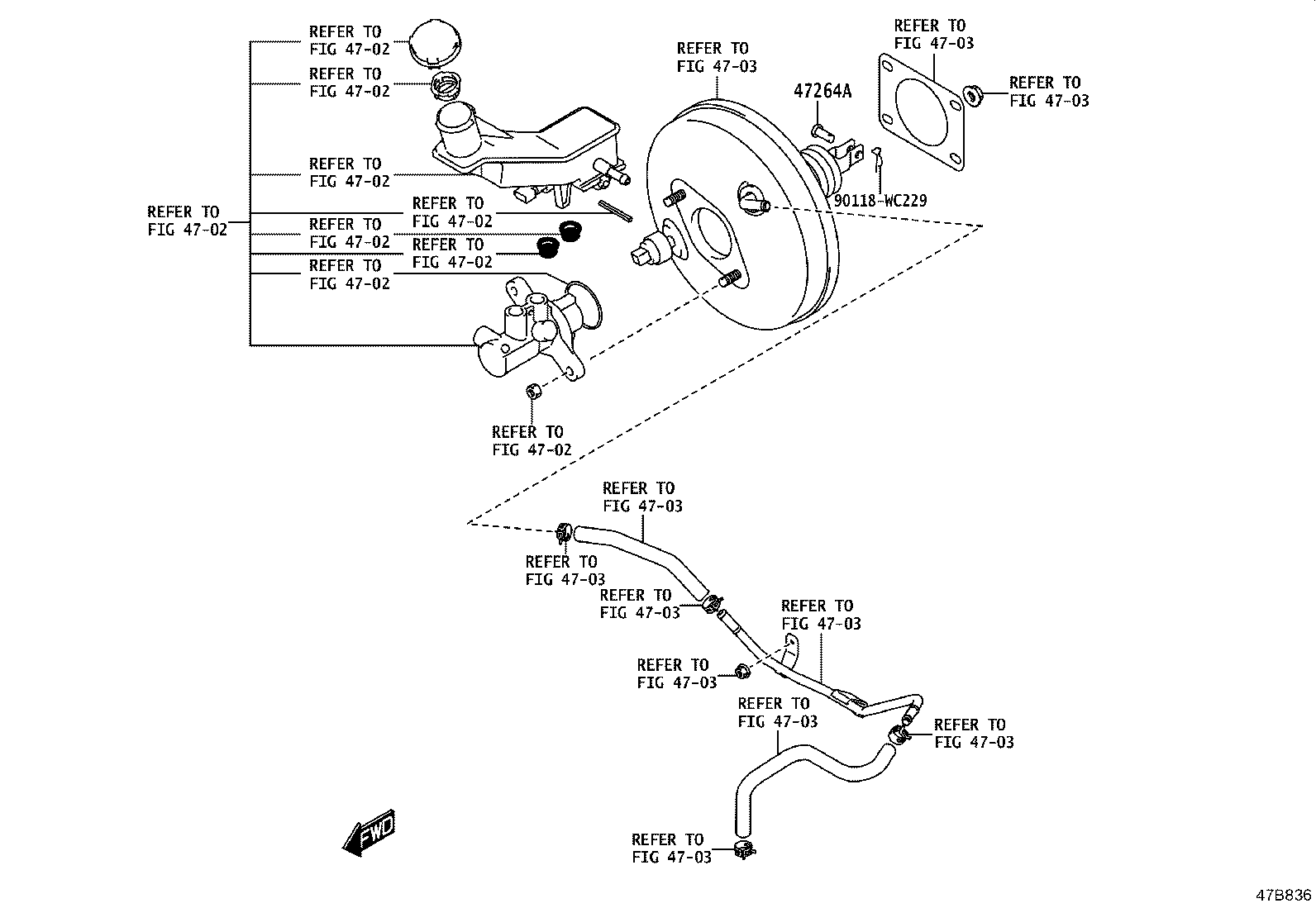

Figure 47B836

47B836 2019-04 → —

Part groups

PNC	Description
47101	Pedal Sub-assy, Brake
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
