Toyota Glanza
2019-04 → present · chassis K12M,K12N · catalogue 132310 · General
Supported model
Data version 2019-11
Deck Board & Deck Trim Cover
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62648 | Cap, Side Trim |

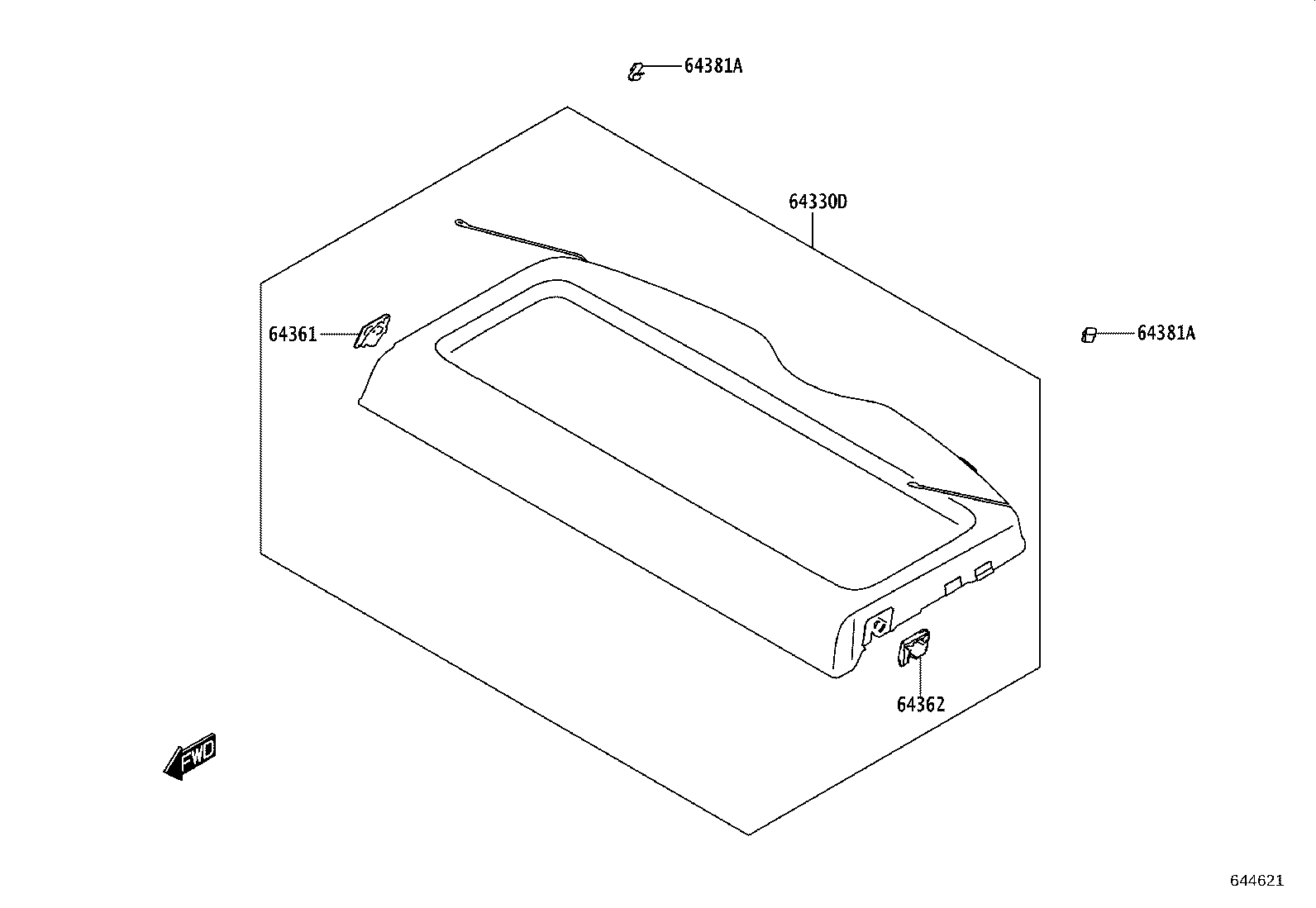

| 64330D | Panel Assy, Package Tray Trim |
| 64361 | Hinge, Package Tray Trim, RH |
| 64362 | Hinge, Package Tray Trim, LH |
| 64381A | Hanger, Package Tray Trim |

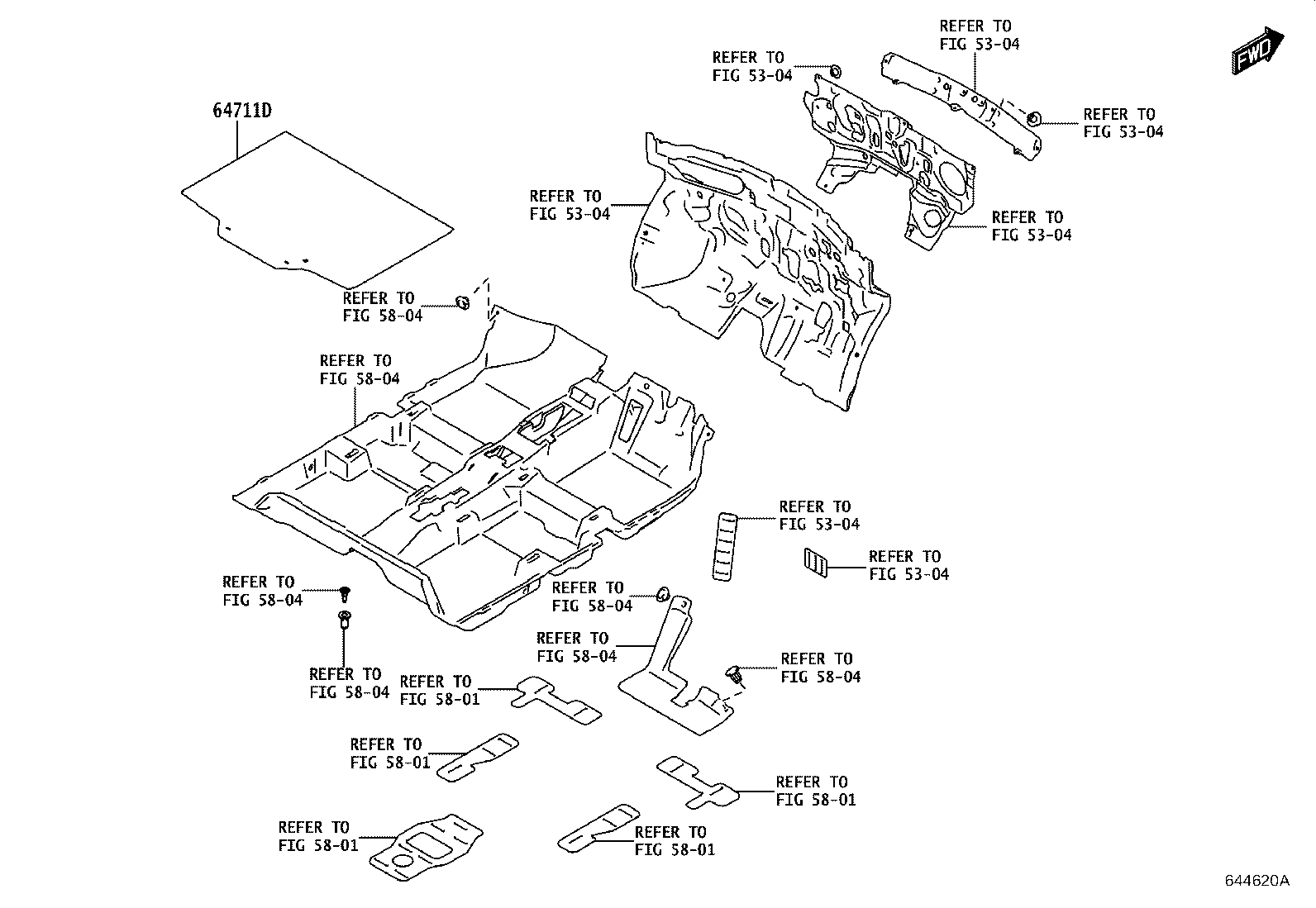

| 64711D | Carpet, Luggage Compartment Floor |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730C | Board, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
