Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

18 part groups · 2 illustrations

Illustrations

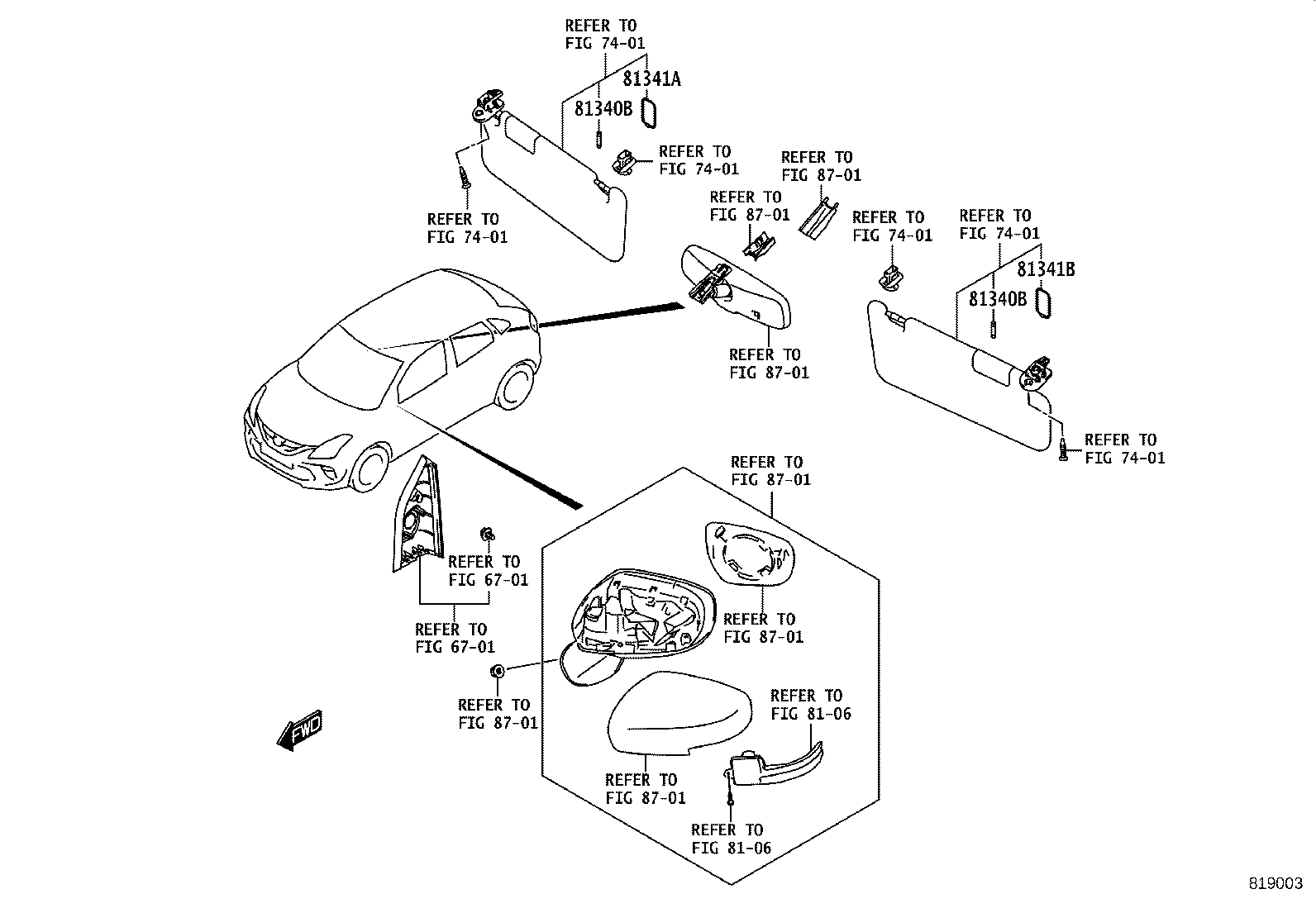

Figure 819002B 819002B 2019-04 → — Figure 819003 819003 2019-04 → —

Part groups

PNCDescription
81080J Lamp Assy, Interior Illumination, NO.1
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080P Lamp Assy, Interior Illumination, NO.1 RH
81080V Lamp Assy, Interior Illumination, NO.2
81080Z Bulb, Interior Illumination Lamp, NO.1
81081F Bulb, Interior Illumination Lamp, NO.2
81250C Bulb, Spot Lamp
81260A Lamp Assy, Map
81260C Bulb(FOR MAP LAMP)
81265C Lens, Map Lamp, NO.1
81266D Lens, Map Lamp, NO.2
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340B Bulb (FOR VANITY LAMP)
81341A Lens, Vanity Lamp RH
81341B Lens, Vanity Lamp LH
81360T Lamp Assy, Spot
81361D Lens, Spot Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
