Toyota Glanza
2019-04 → present · chassis K12M,K12N · catalogue 132310 · General
Supported model
Data version 2019-11

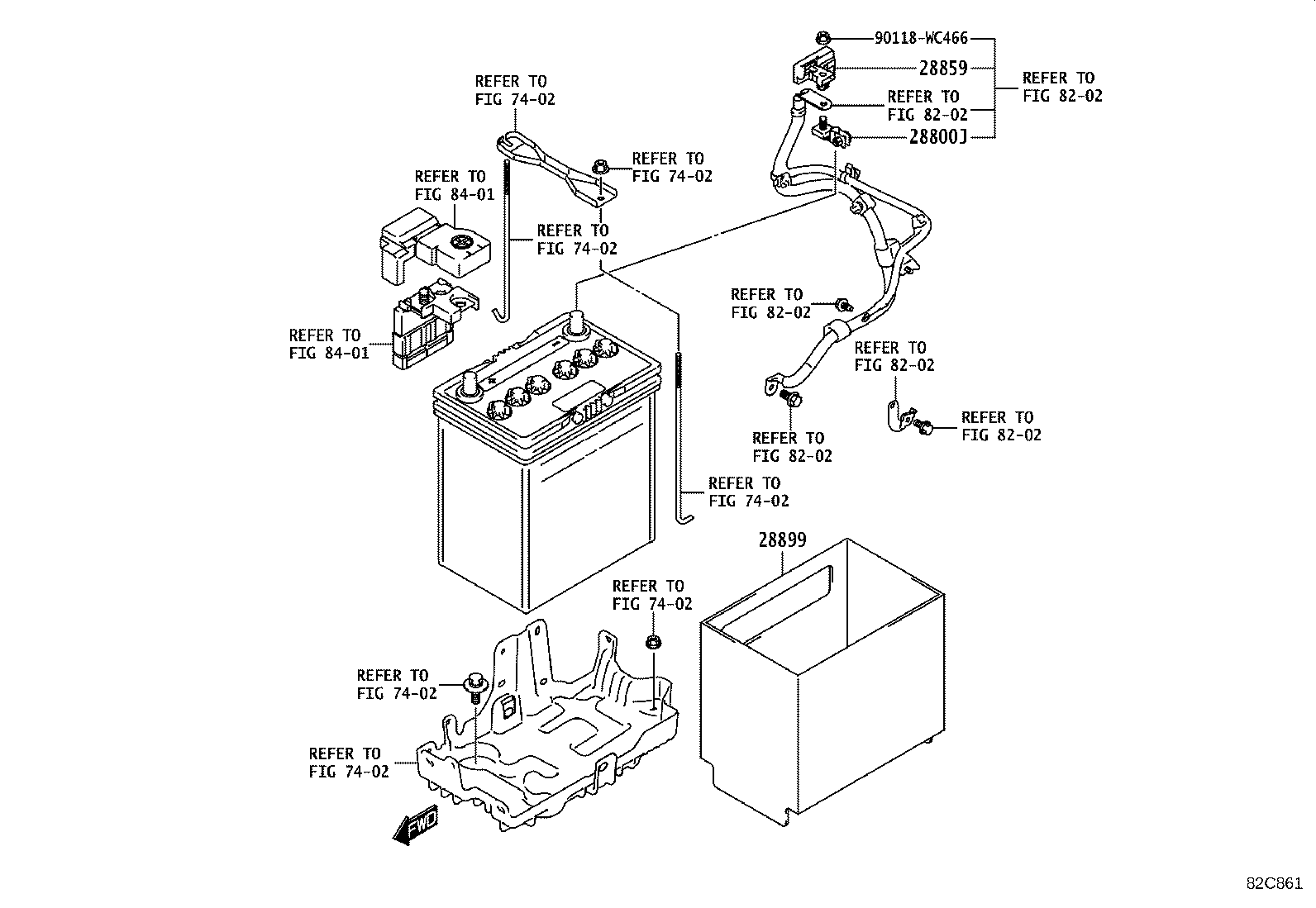

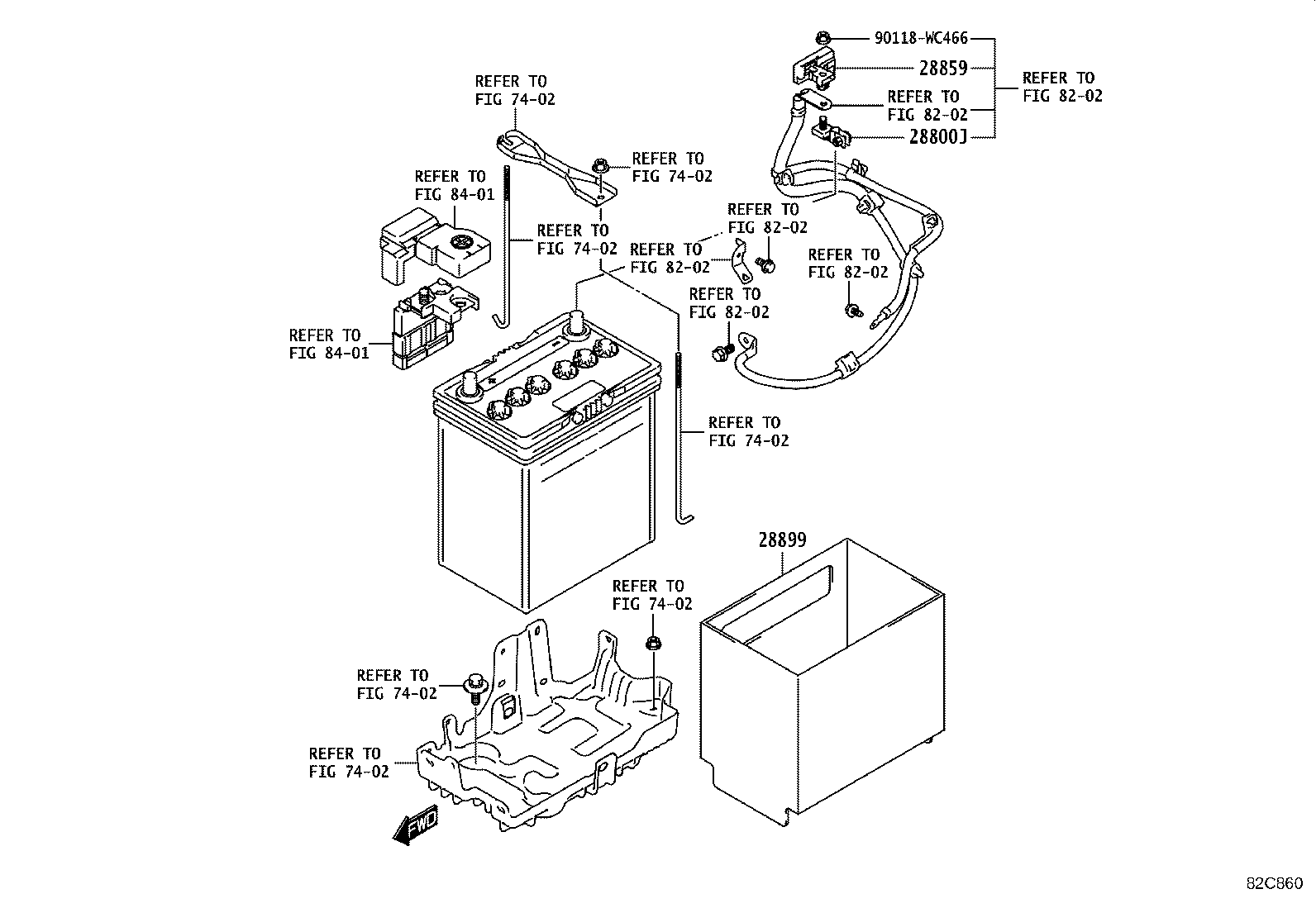

Battery & Battery Cable
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 28800J | Terminal, Battery Negative |
| 28859 | Holder, Battery Current Sensor |
| 28897 | Plate, Battery Caution |
| 28899 | Insulator, Battery |
| 74461C | Cover, Battery |
| G920QC | Cover, Battery Pack |
| G920RA | Cover, Battery Pack, NO.2 |
| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
