Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 11 illustrations

Illustrations

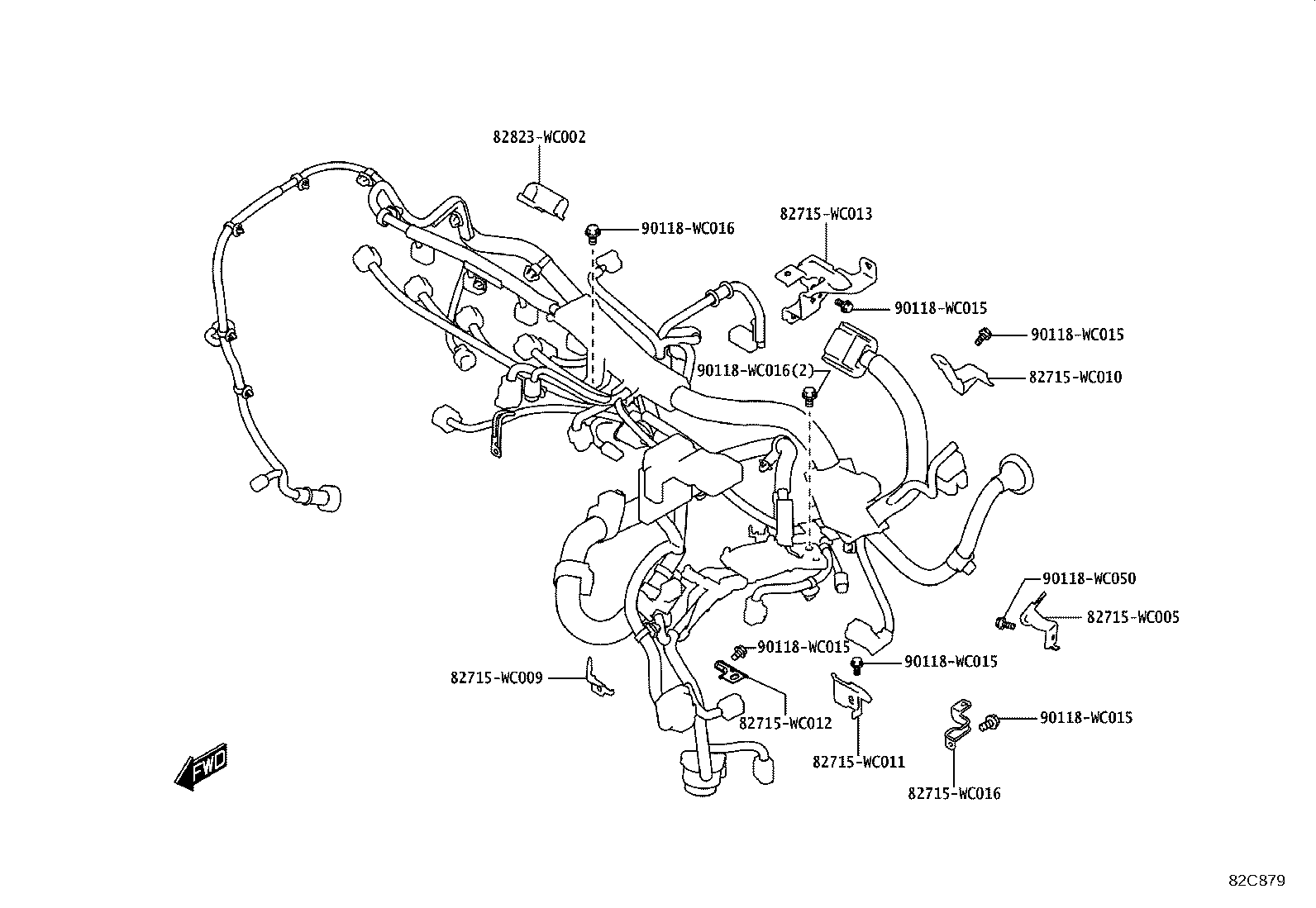

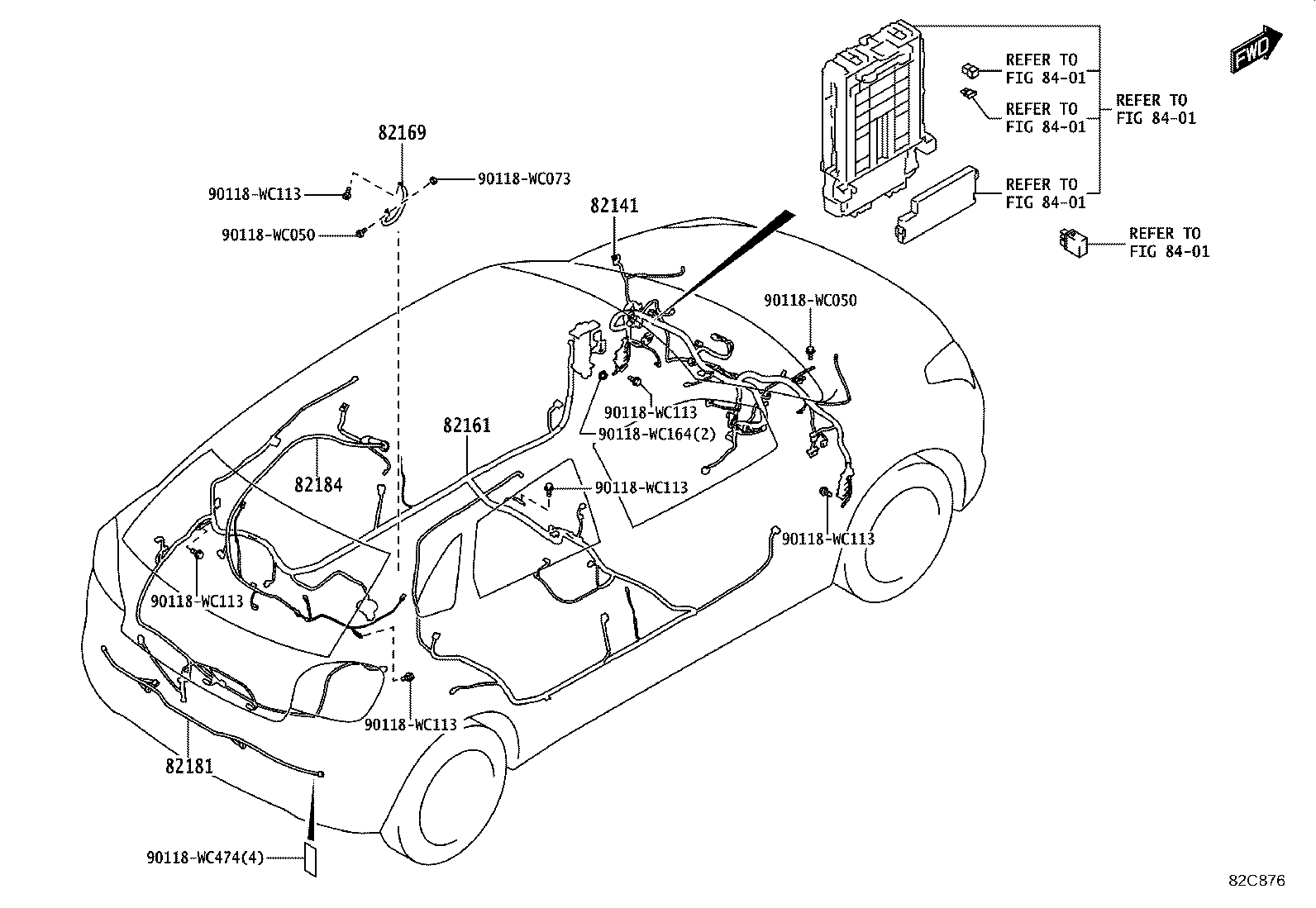

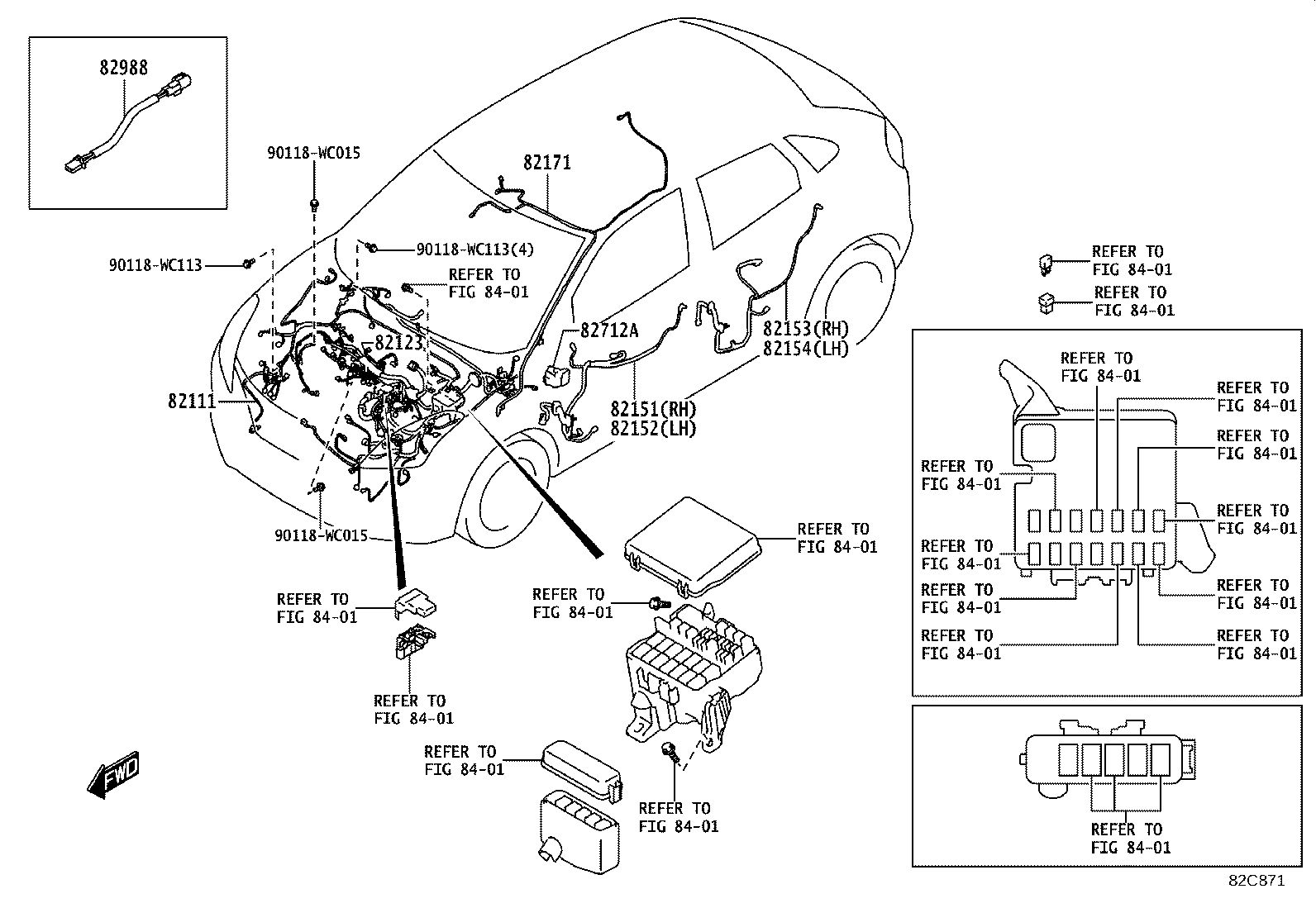

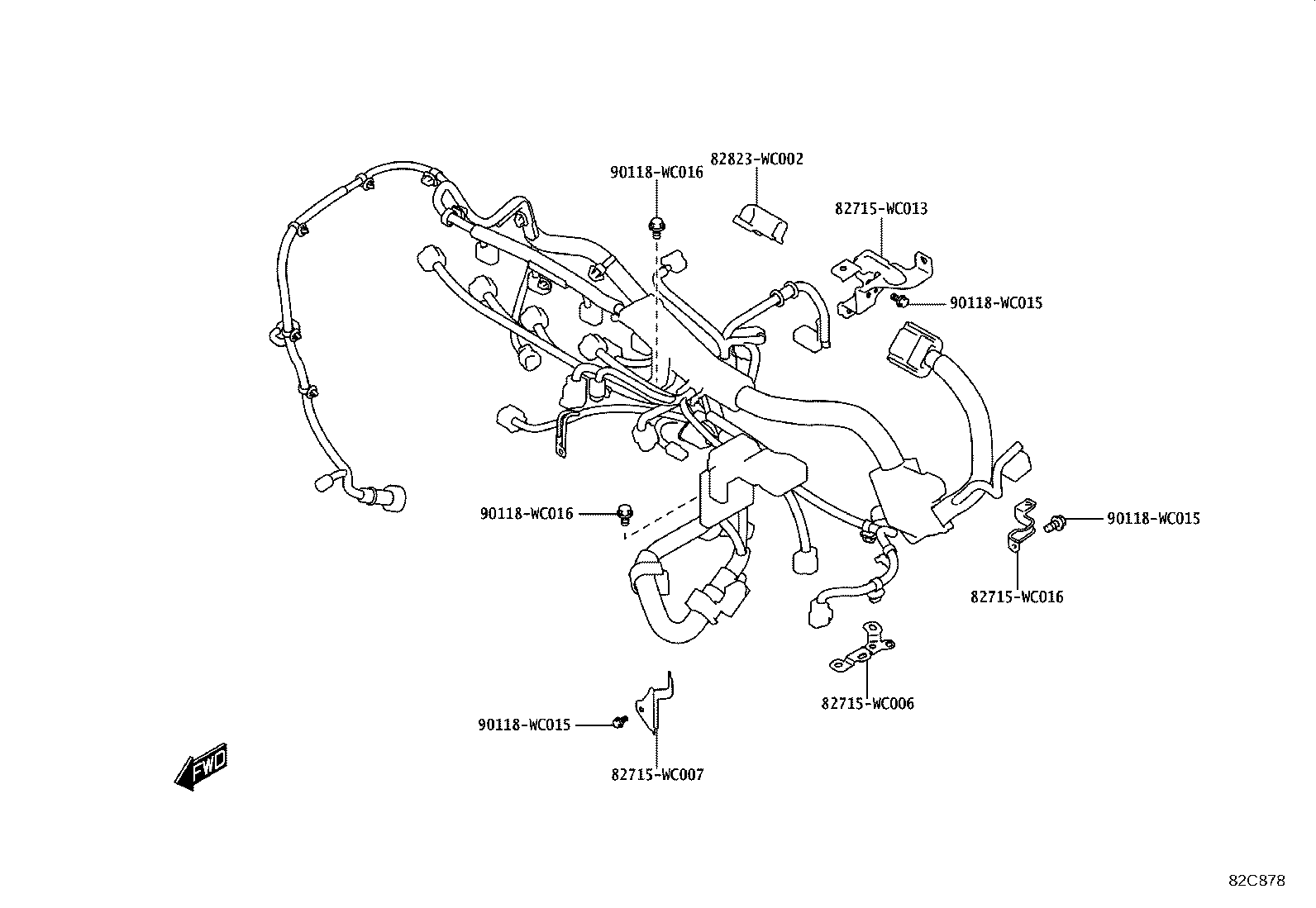

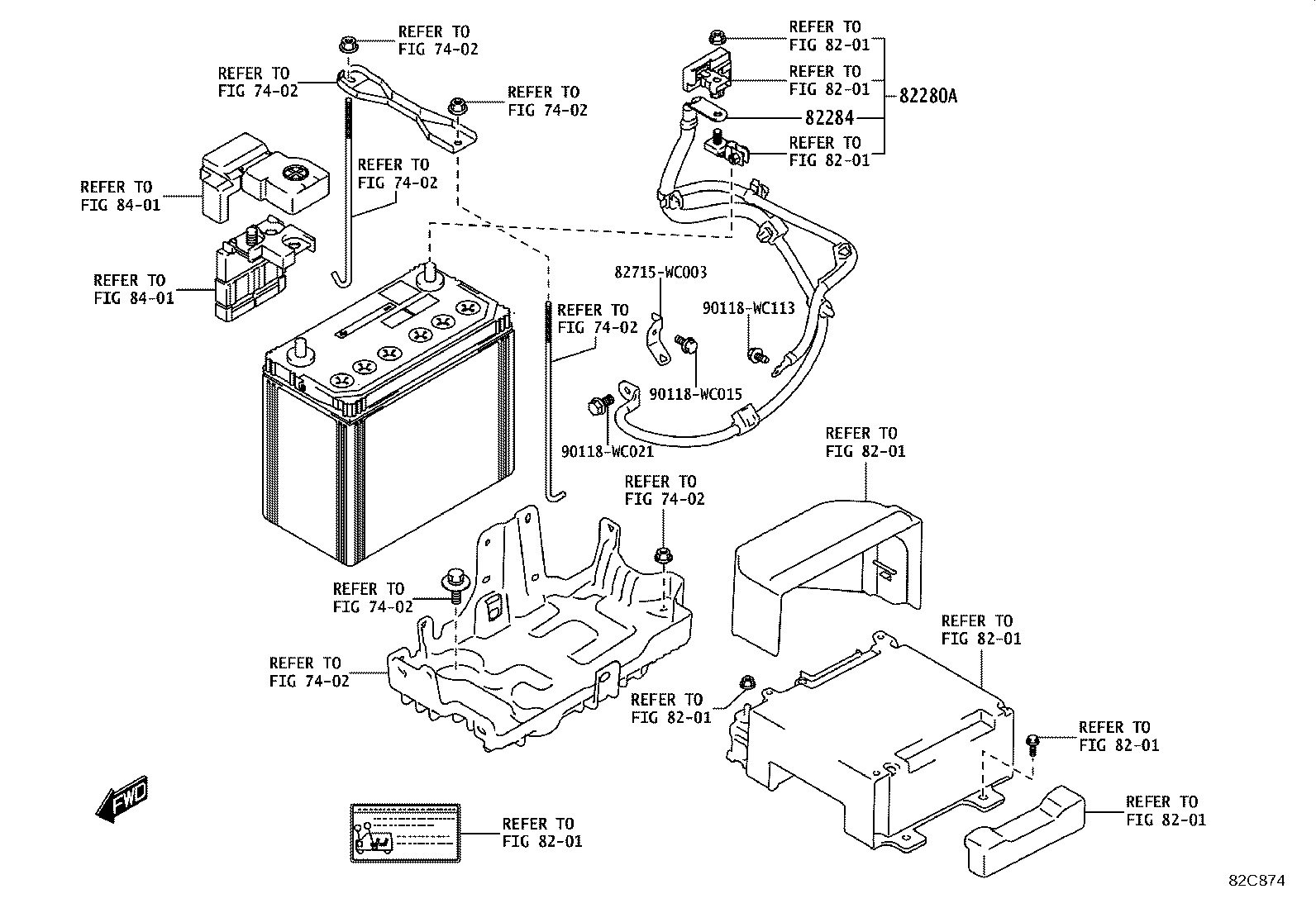

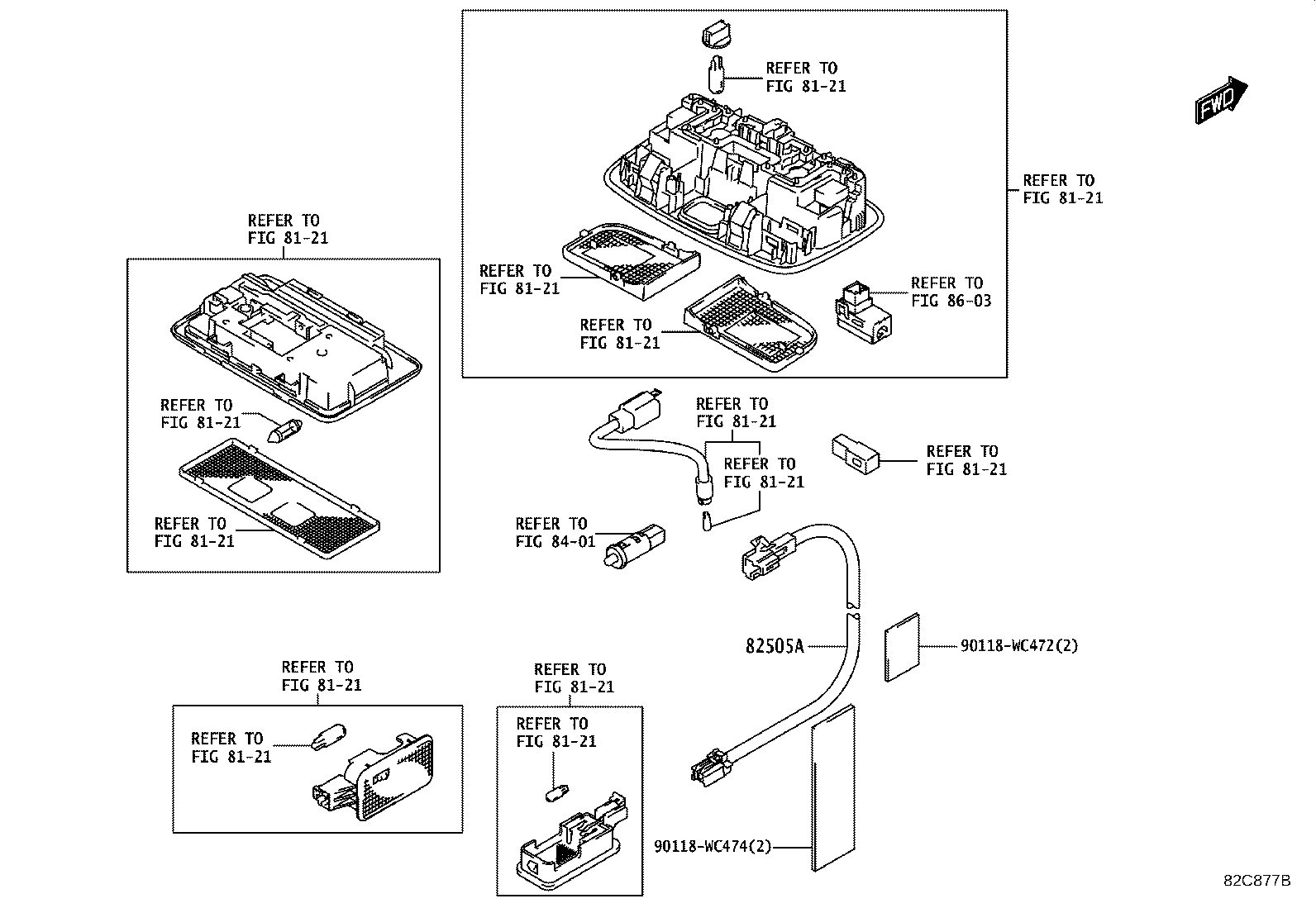

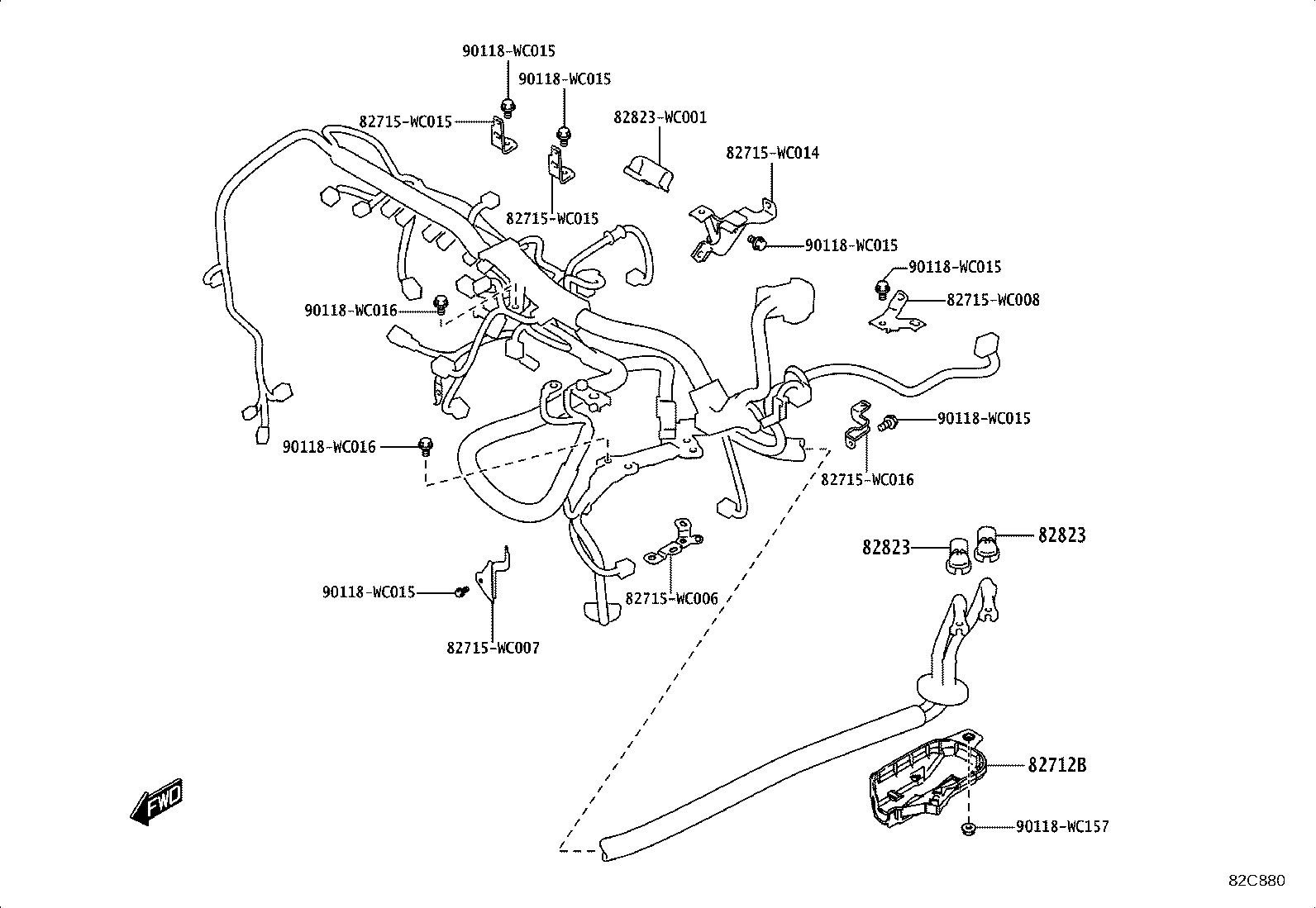

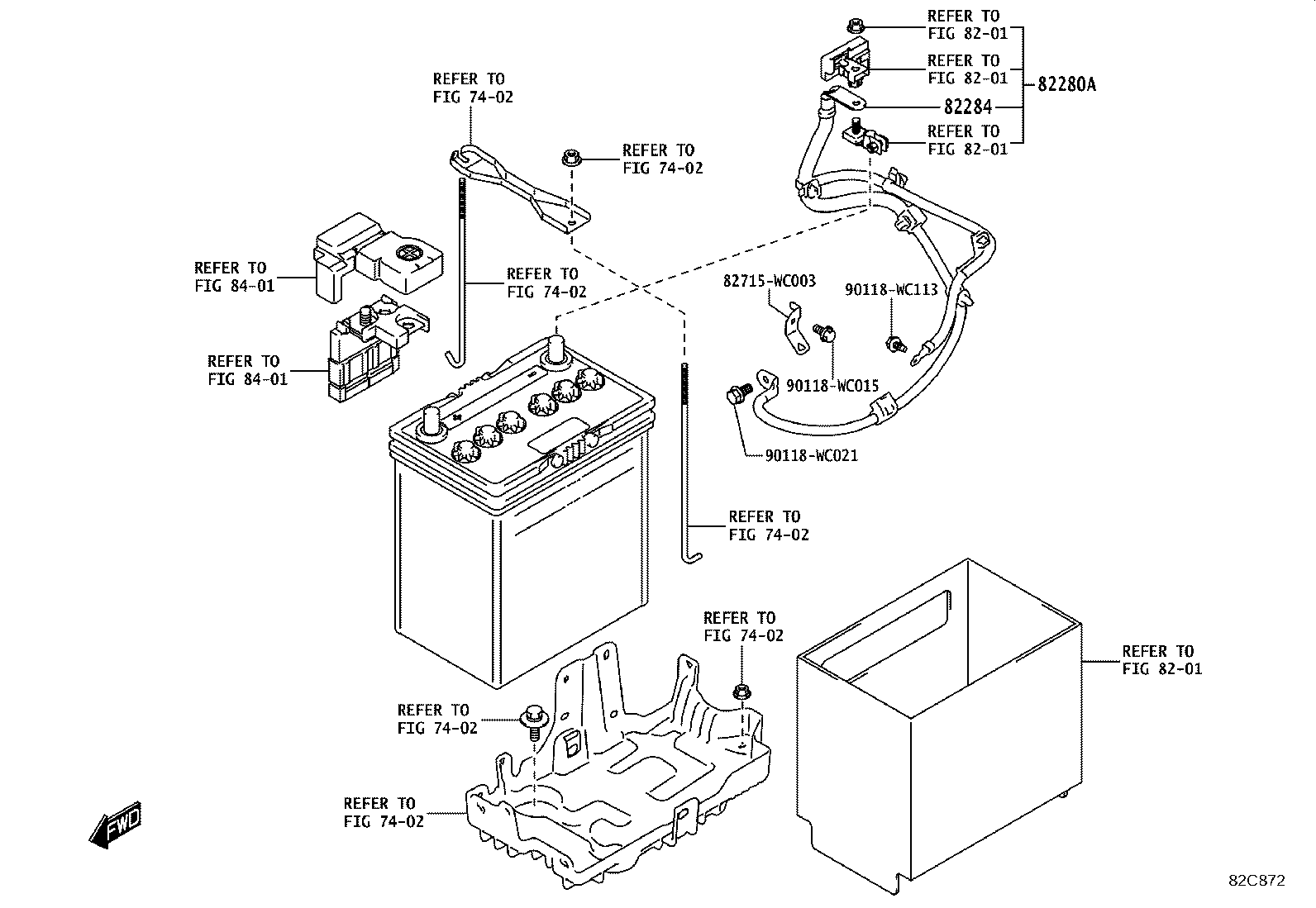

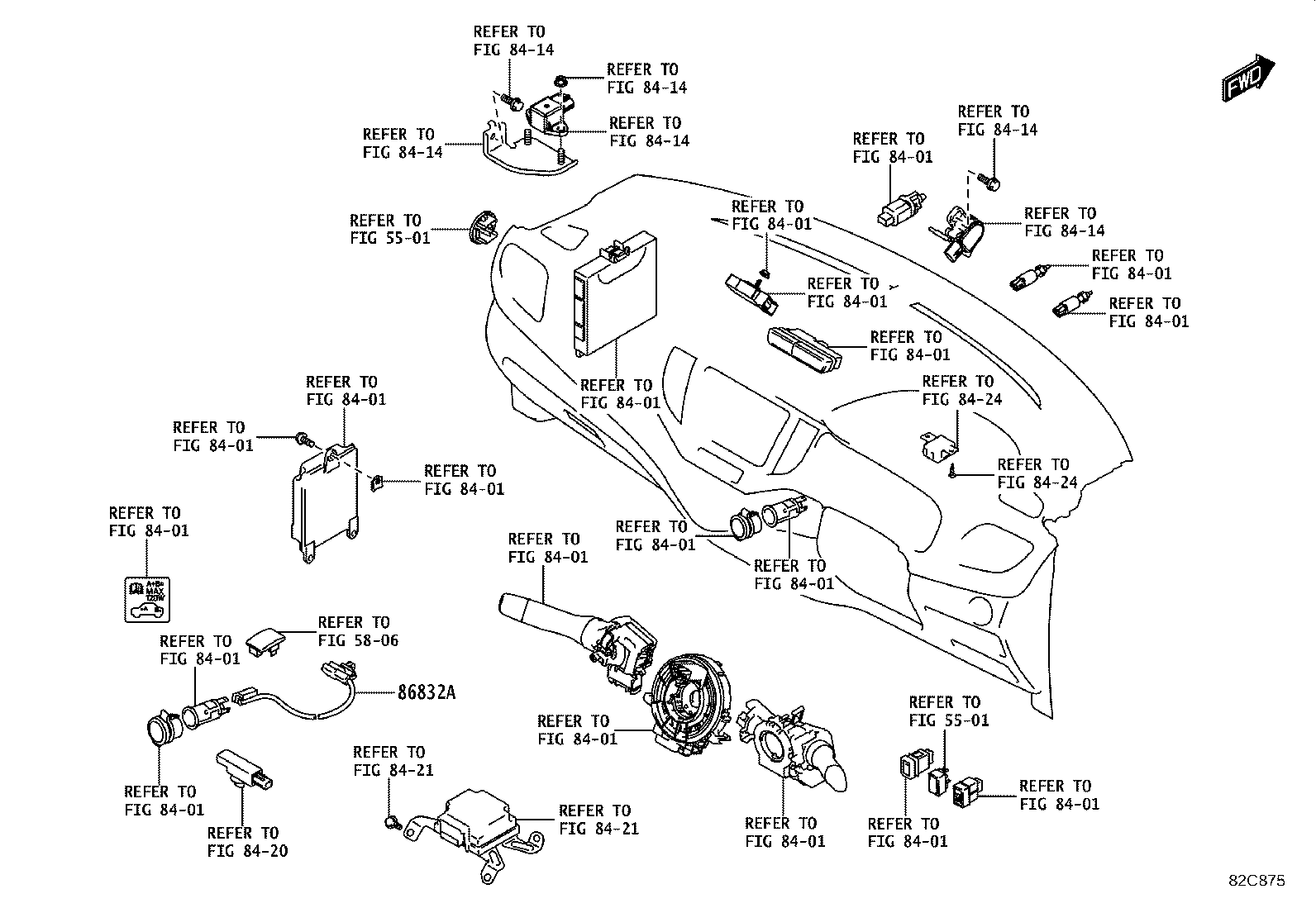

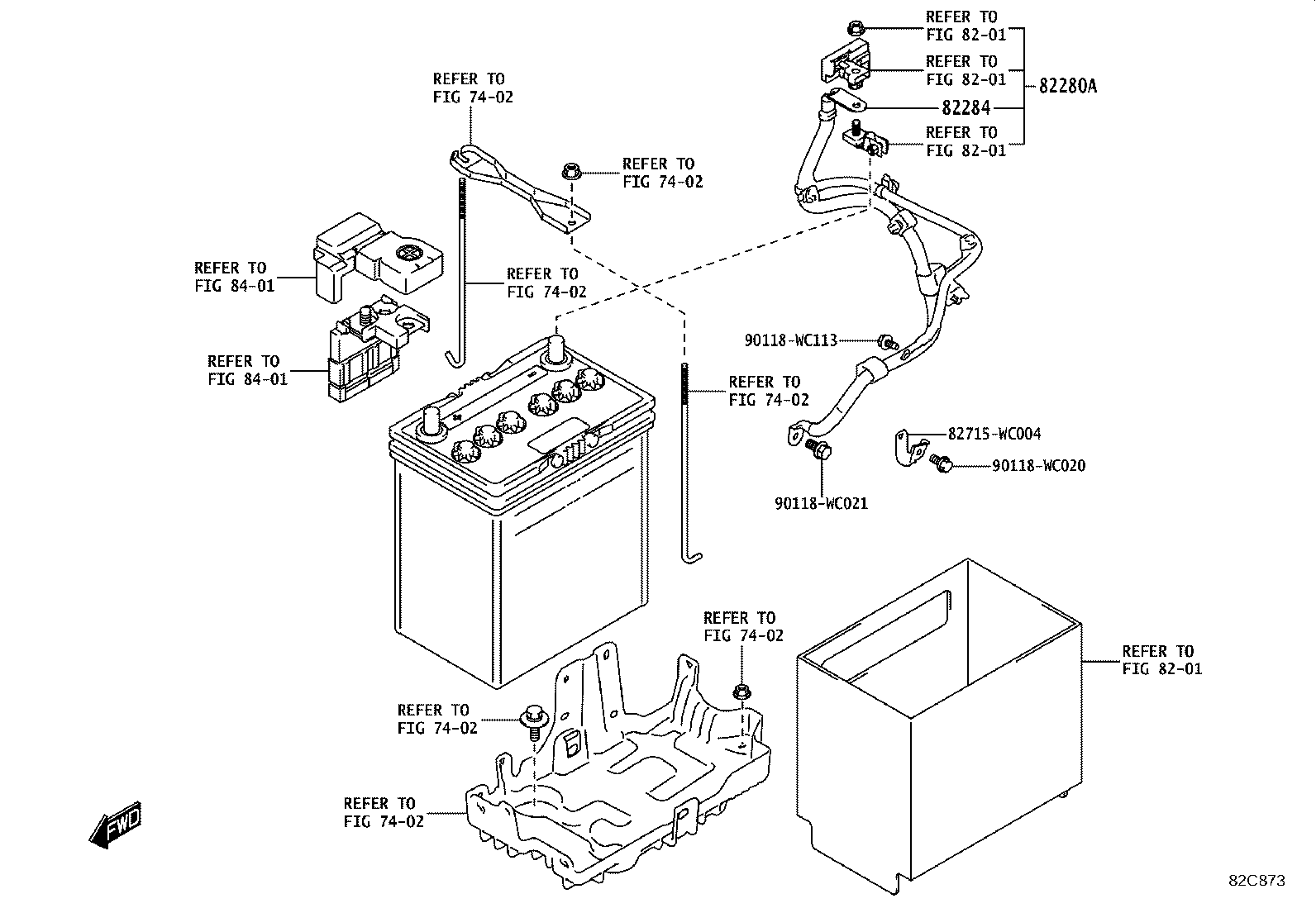

Figure 82C870 82C870 2019-04 → — Figure 82C871 82C871 2019-04 → — Figure 82C872 82C872 2019-04 → — Figure 82C873 82C873 2019-04 → — Figure 82C874 82C874 2019-04 → — Figure 82C875 82C875 2019-04 → — Figure 82C876 82C876 2019-04 → — Figure 82C877B 82C877B 2019-04 → — Figure 82C878 82C878 2019-04 → — Figure 82C879 82C879 2019-04 → — Figure 82C880 82C880 2019-04 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82280A Wire Assy, Battery TO Cowl Top Side
82284 Wire, Earth
82505A Wiring Sub-assy, Front Door
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82823 Cap, Terminal, NO.1
82988 Wire, Airbag Repair
86832A Wire, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
