Toyota Glanza

2019-04 → present · chassis K12M,K12N · catalogue 132310 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

60 part groups · 27 illustrations

Illustrations

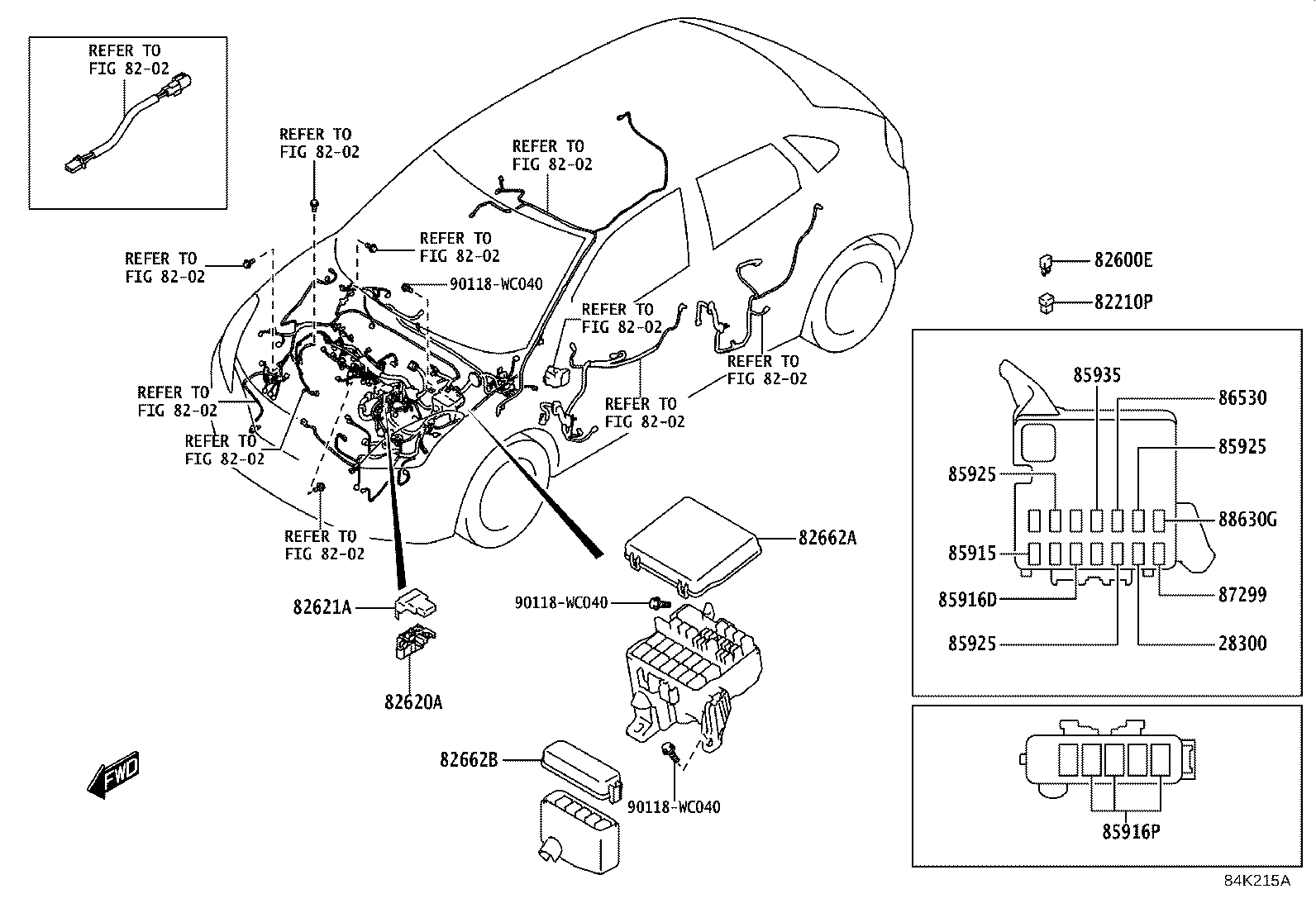

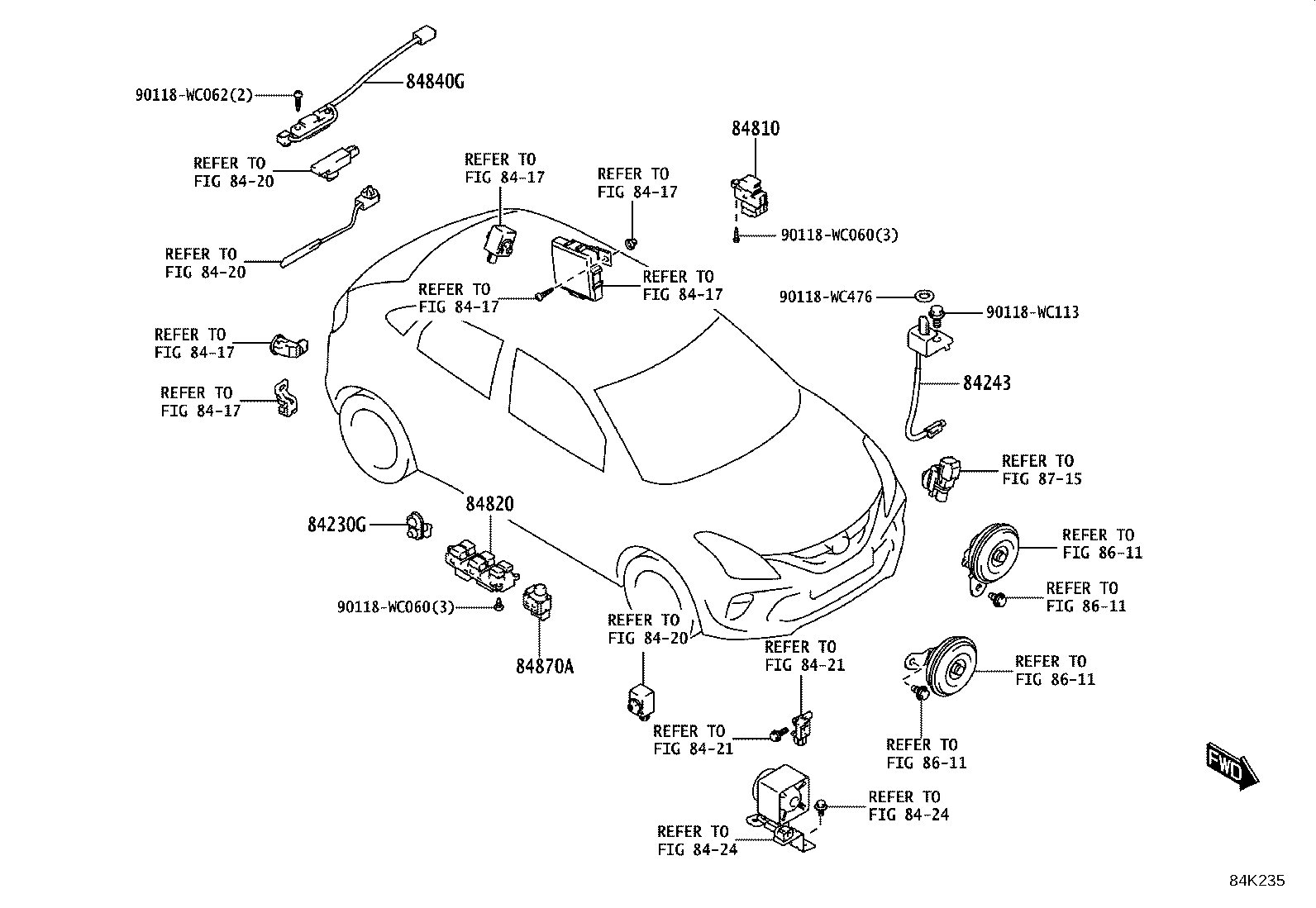

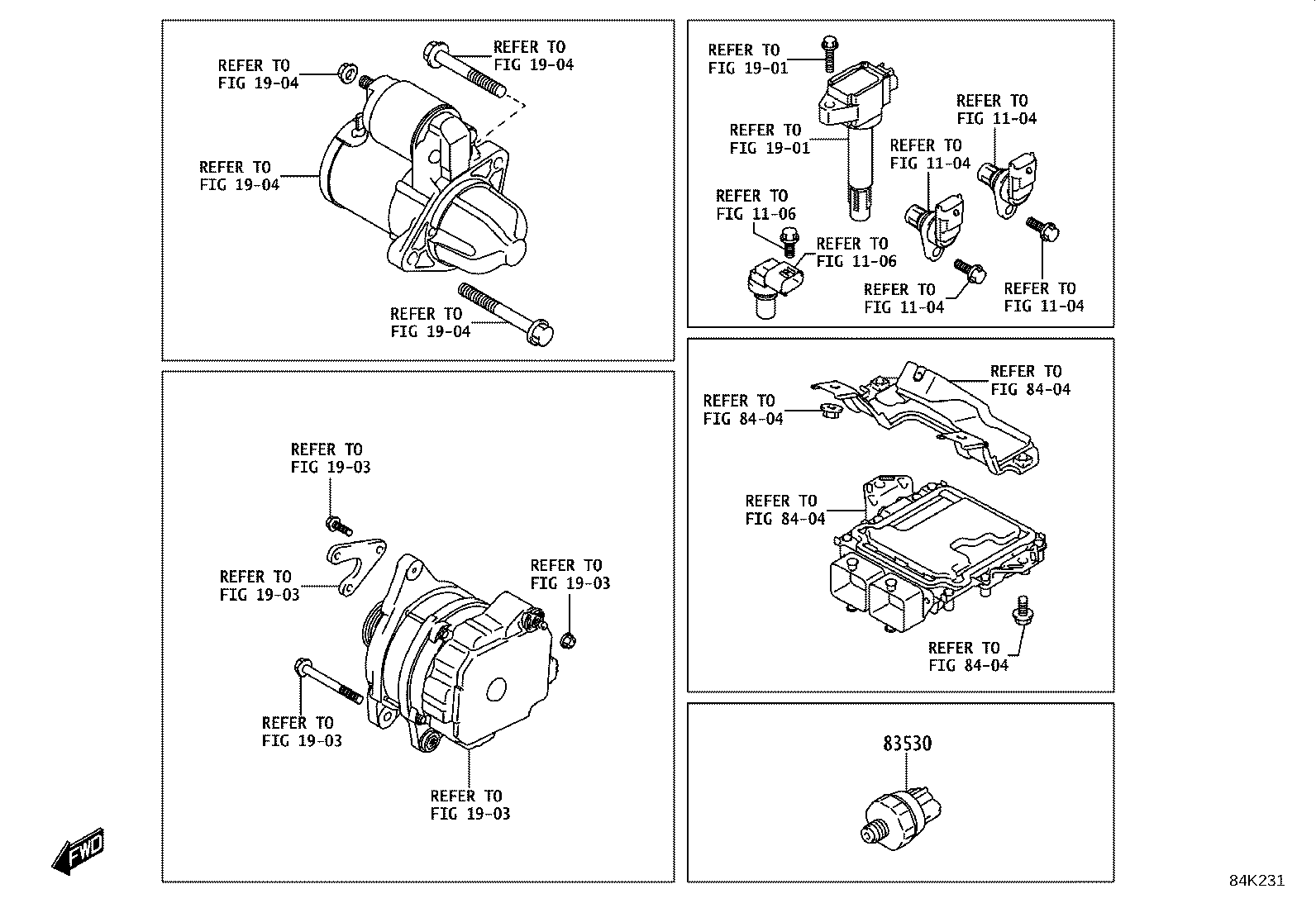

Figure 84K214A 84K214A 2019-04 → — Figure 84K215A 84K215A 2019-04 → — Figure 84K216 84K216 2019-04 → — Figure 84K217 84K217 2019-04 → — Figure 84K218 84K218 2019-04 → — Figure 84K219 84K219 2019-04 → — Figure 84K220 84K220 2019-04 → — Figure 84K221 84K221 2019-04 → — Figure 84K222 84K222 2019-04 → — Figure 84K223 84K223 2019-04 → — Figure 84K224 84K224 2019-04 → — Figure 84K225 84K225 2019-04 → — Figure 84K226 84K226 2019-04 → — Figure 84K227 84K227 2019-04 → — Figure 84K228 84K228 2019-04 → — Figure 84K229A 84K229A 2019-04 → — Figure 84K230 84K230 2019-04 → — Figure 84K231 84K231 2019-04 → — Figure 84K232 84K232 2019-04 → — Figure 84K233A 84K233A 2019-04 → — Figure 84K234A 84K234A 2019-04 → — Figure 84K235 84K235 2019-04 → — Figure 84K236A 84K236A 2019-04 → — Figure 84K237 84K237 2019-04 → — Figure 84K238 84K238 2019-04 → — Figure 84K239 84K239 2019-04 → — Figure 84K240 84K240 2019-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse

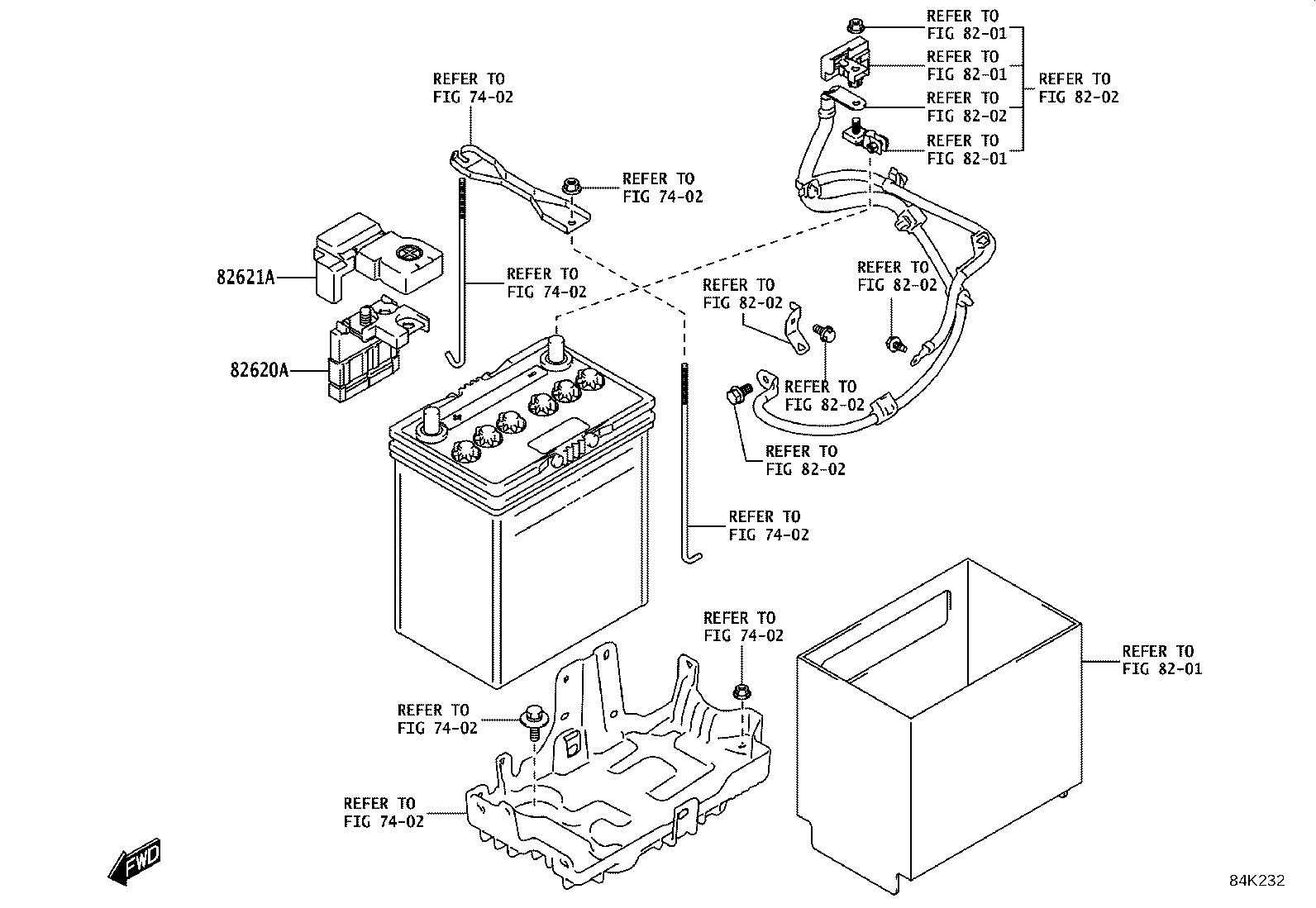

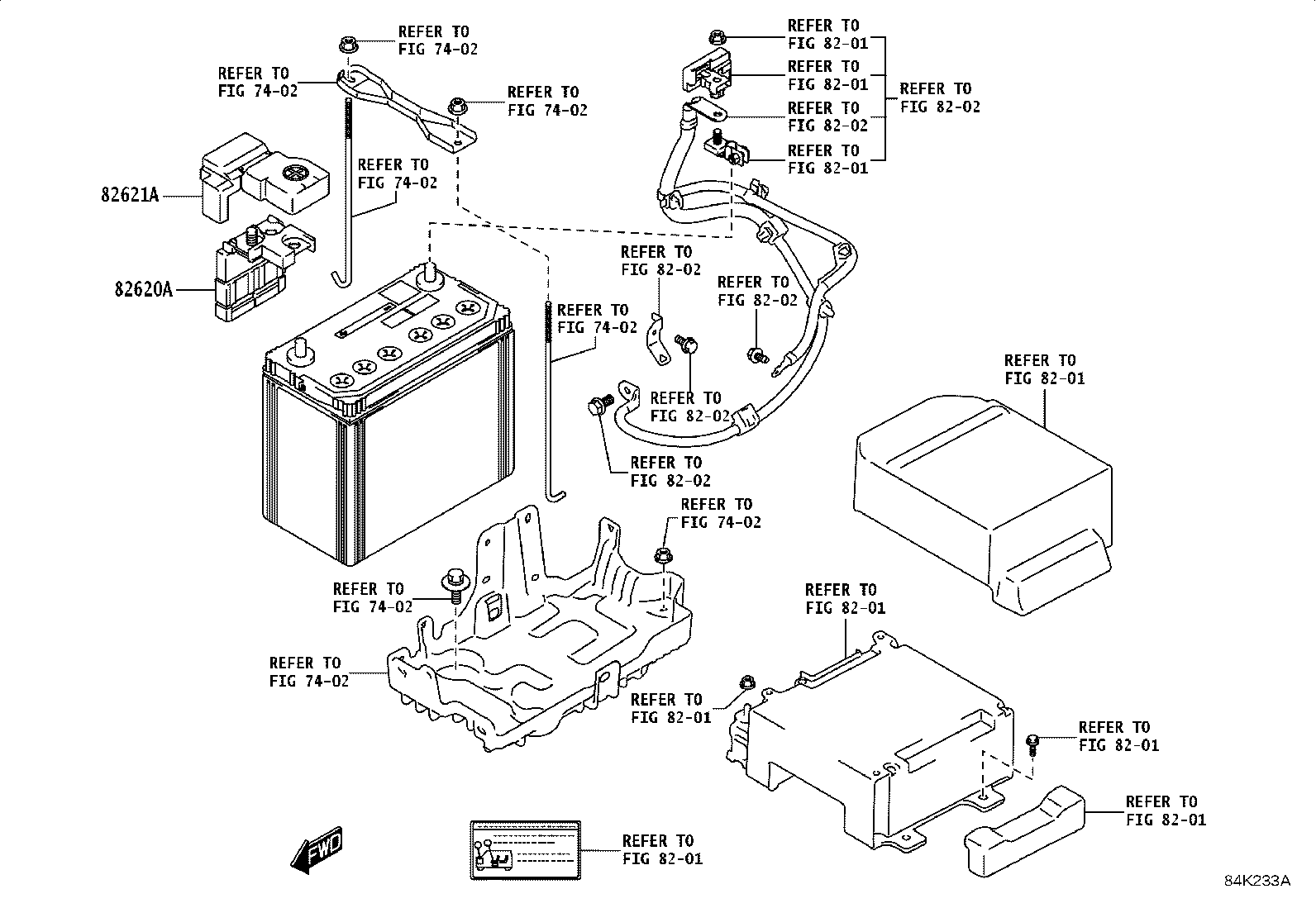

82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82672A Cover, Junction Block

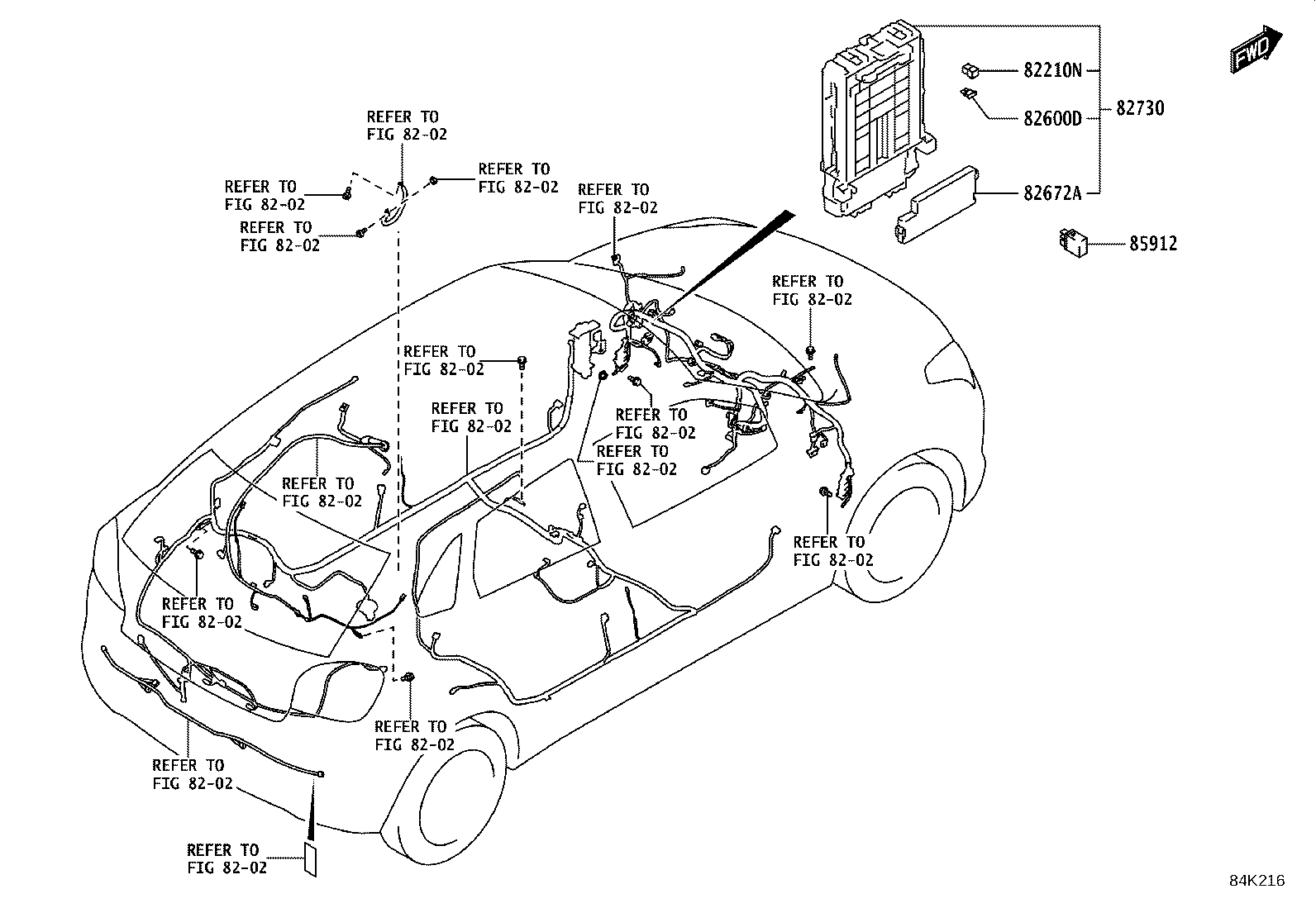

82730 Block Assy, Instrument Panel Junction

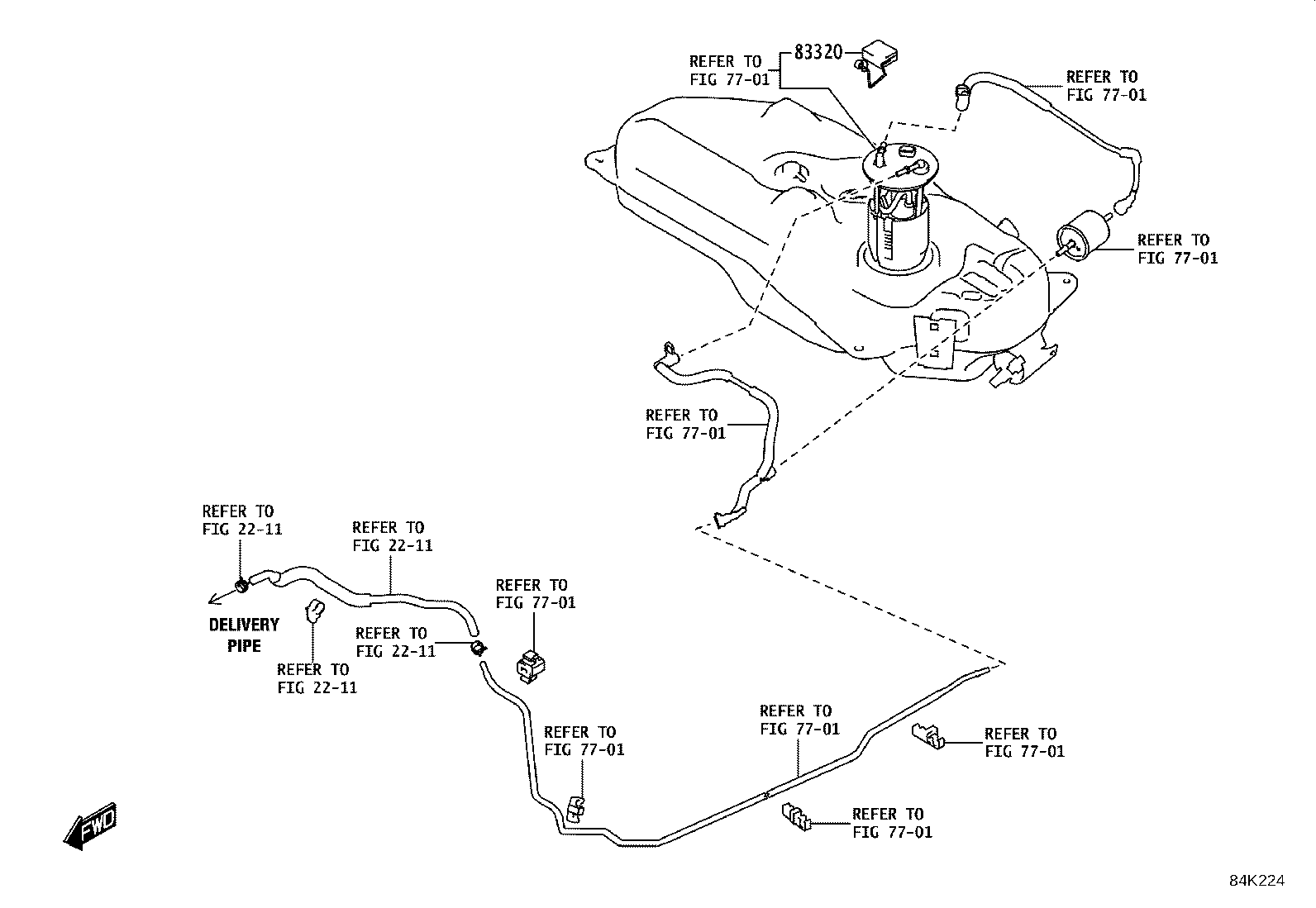

83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling

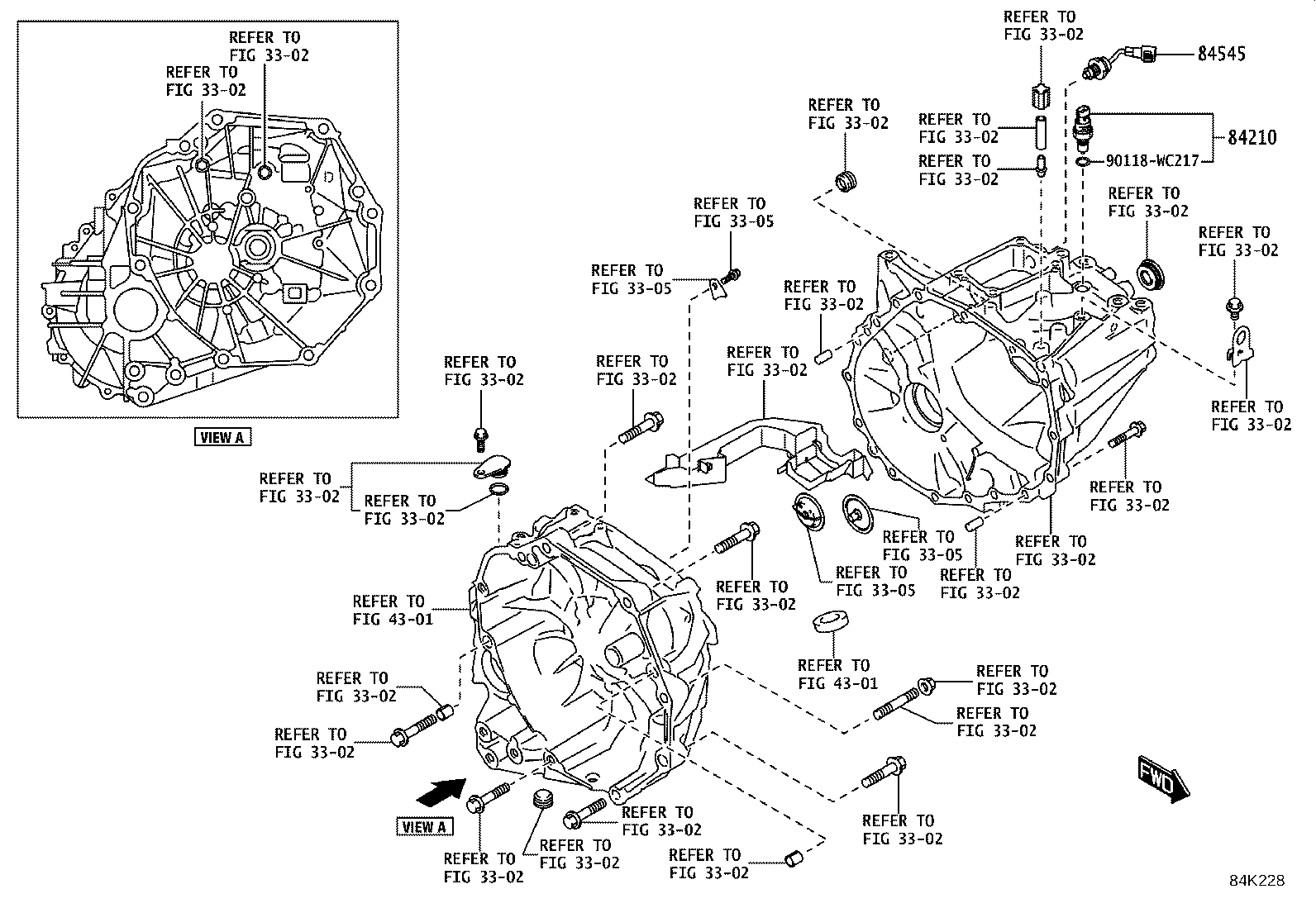

84210 Switch Assy, Back-up Lamp
84230G Switch Assy, Courtesy Lamp

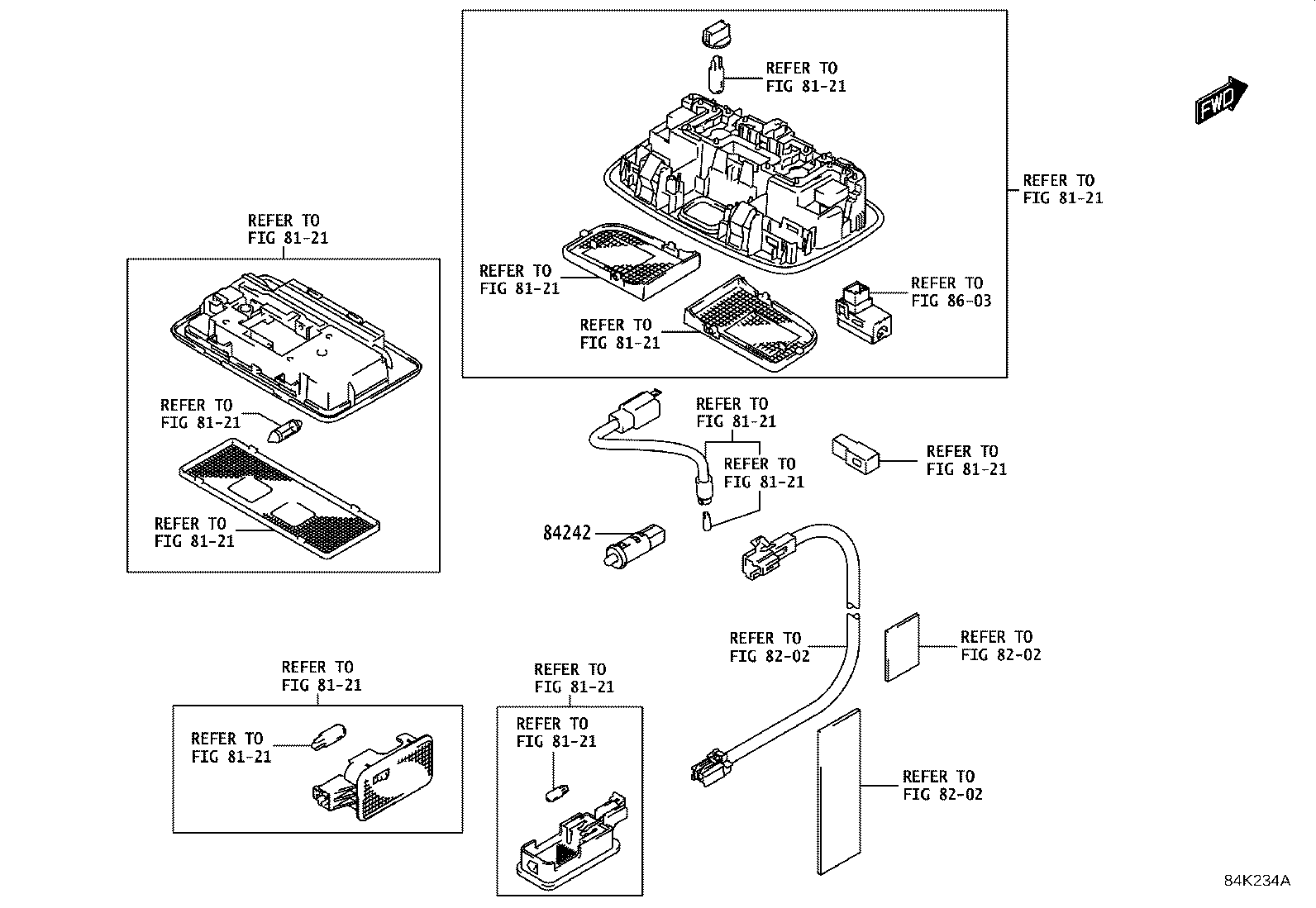

84242 Switch, Glove Box Lamp
84243 Switch, Engine Hood
84270L Switch Assy, Idle Stop
84306 Cable Sub-assy, Spiral
84310 Switch Assy, Turn Signal
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84520 Switch Assy, Clutch Start

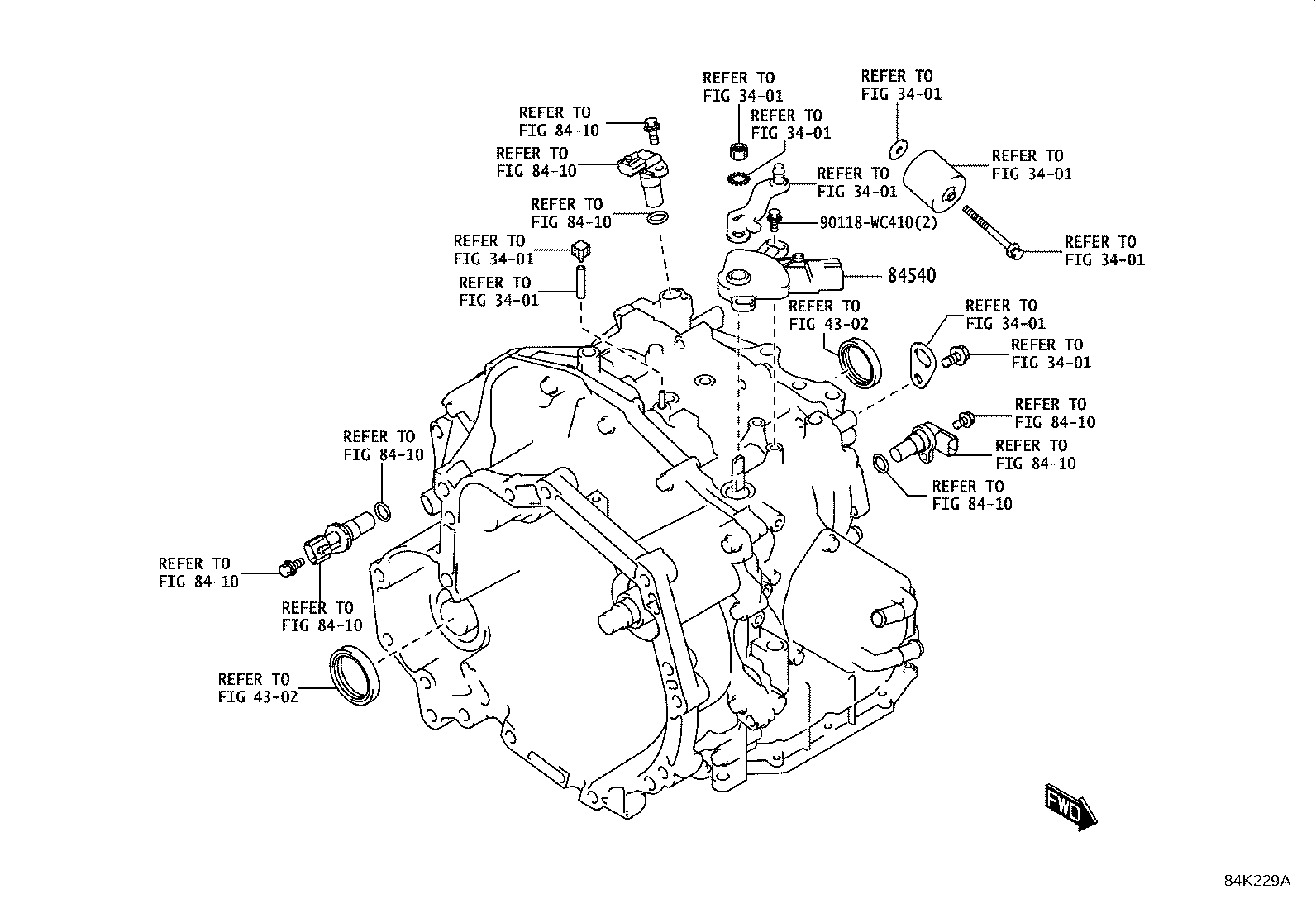

84540 Switch Assy, Neutral Start
84545 Switch, Neutral Position
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85539 Label, Power Outlet Notice
85912 Relay, Defogger
85915 Relay, Main
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85925 Relay, Radiator Fan
85935 Relay, Fuel Pump
86530 Relay Assy, Horn
87299 Relay, Heater
88280A Switch Assy, Clutch
88630G Relay Assy, Cooler

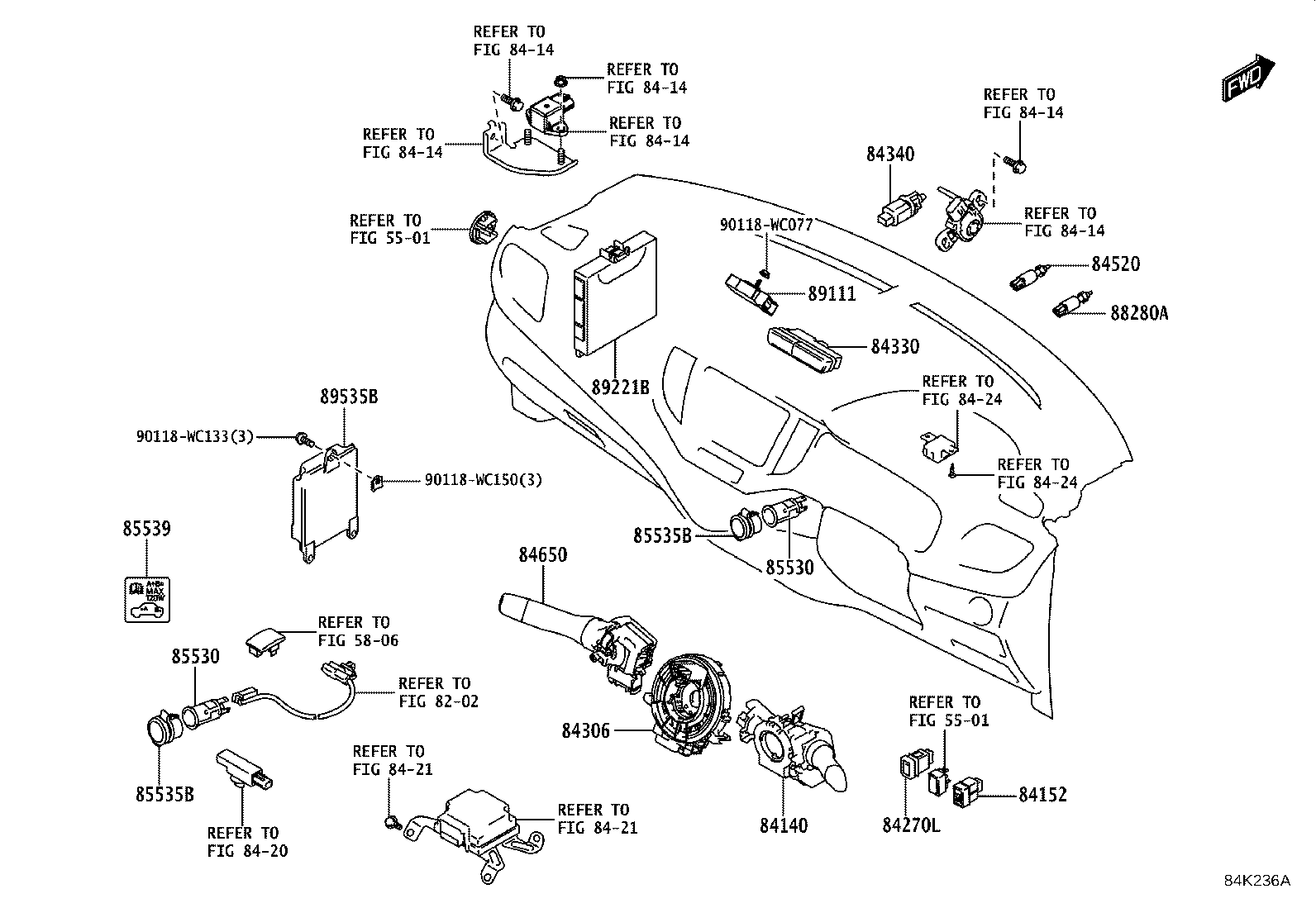

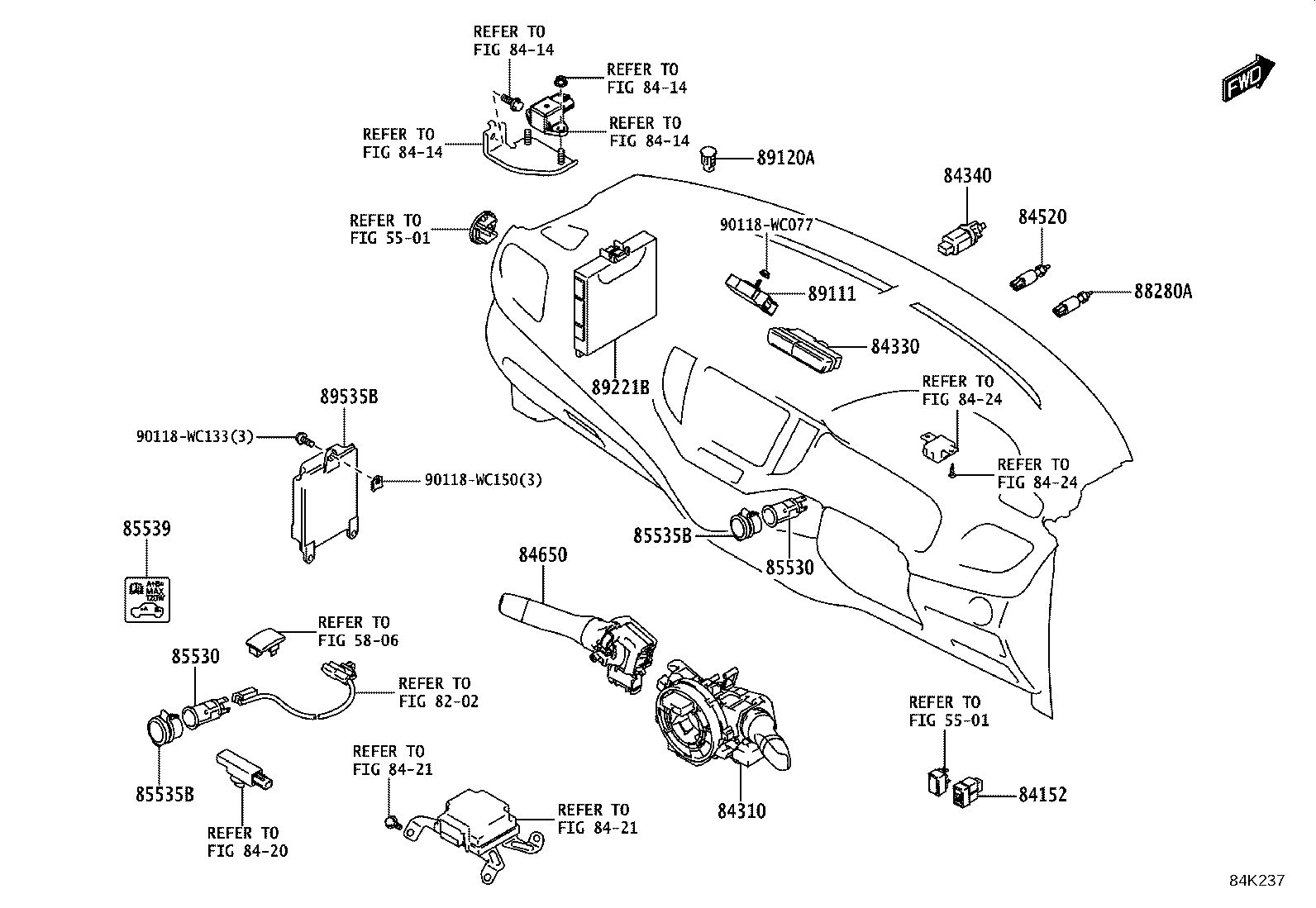

89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221B Computer, Body

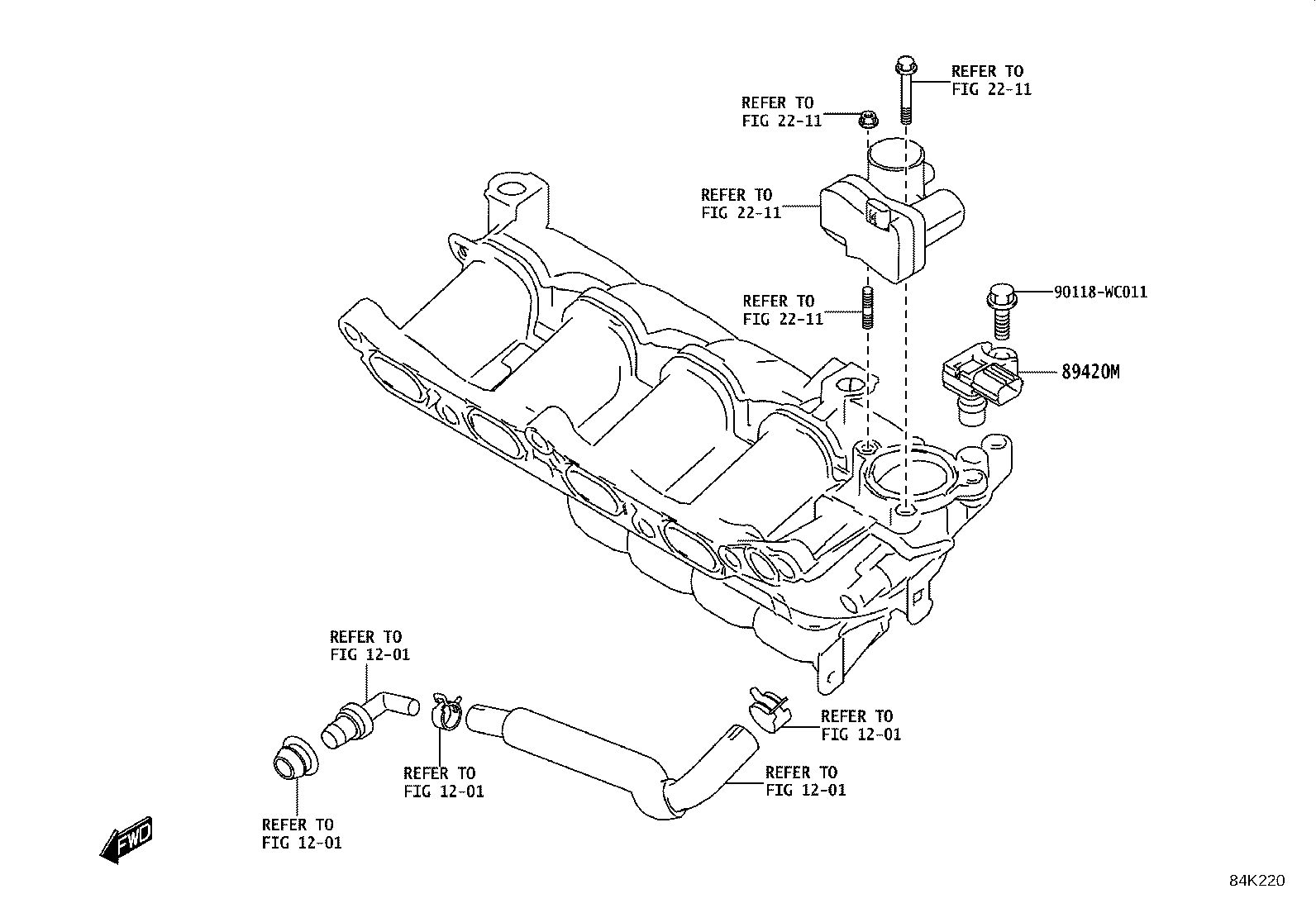

89420M Sensor Assy, Air Pressure

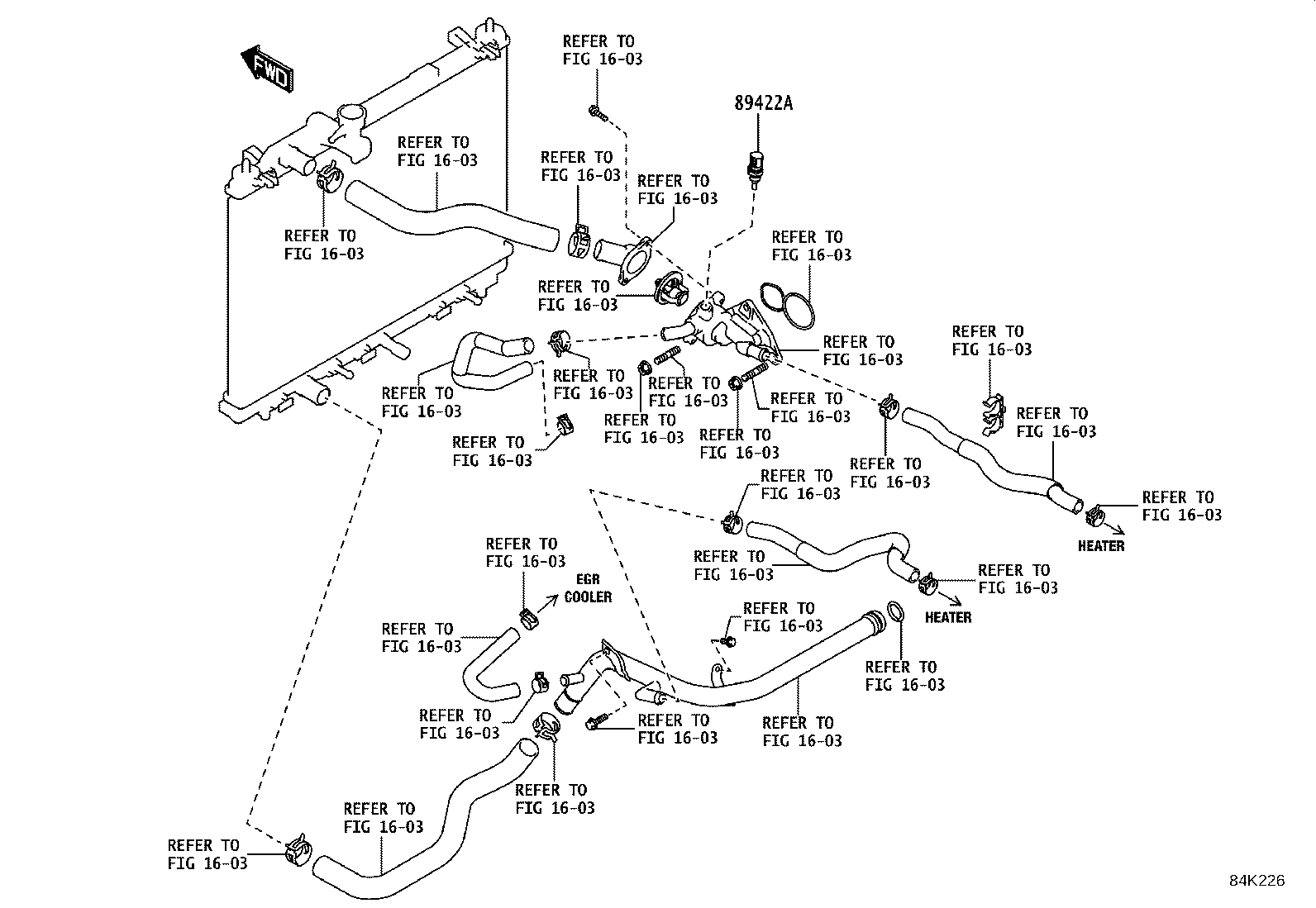

89422A Sensor, Water Temperature

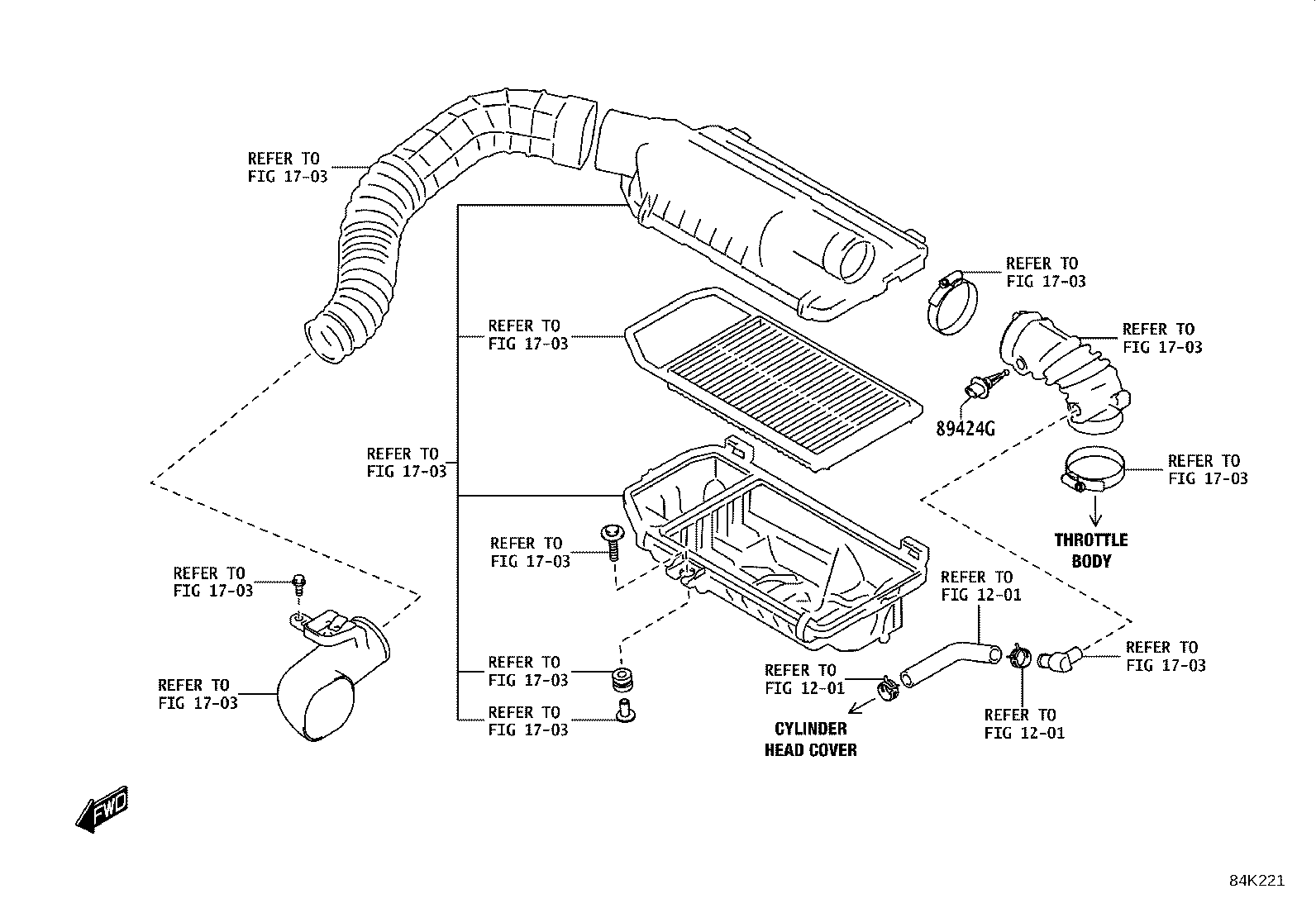

89424G Sensor, Inlet Air Temperature
89429 Sensor, Oil Temperature
89439 Bracket, Sensor

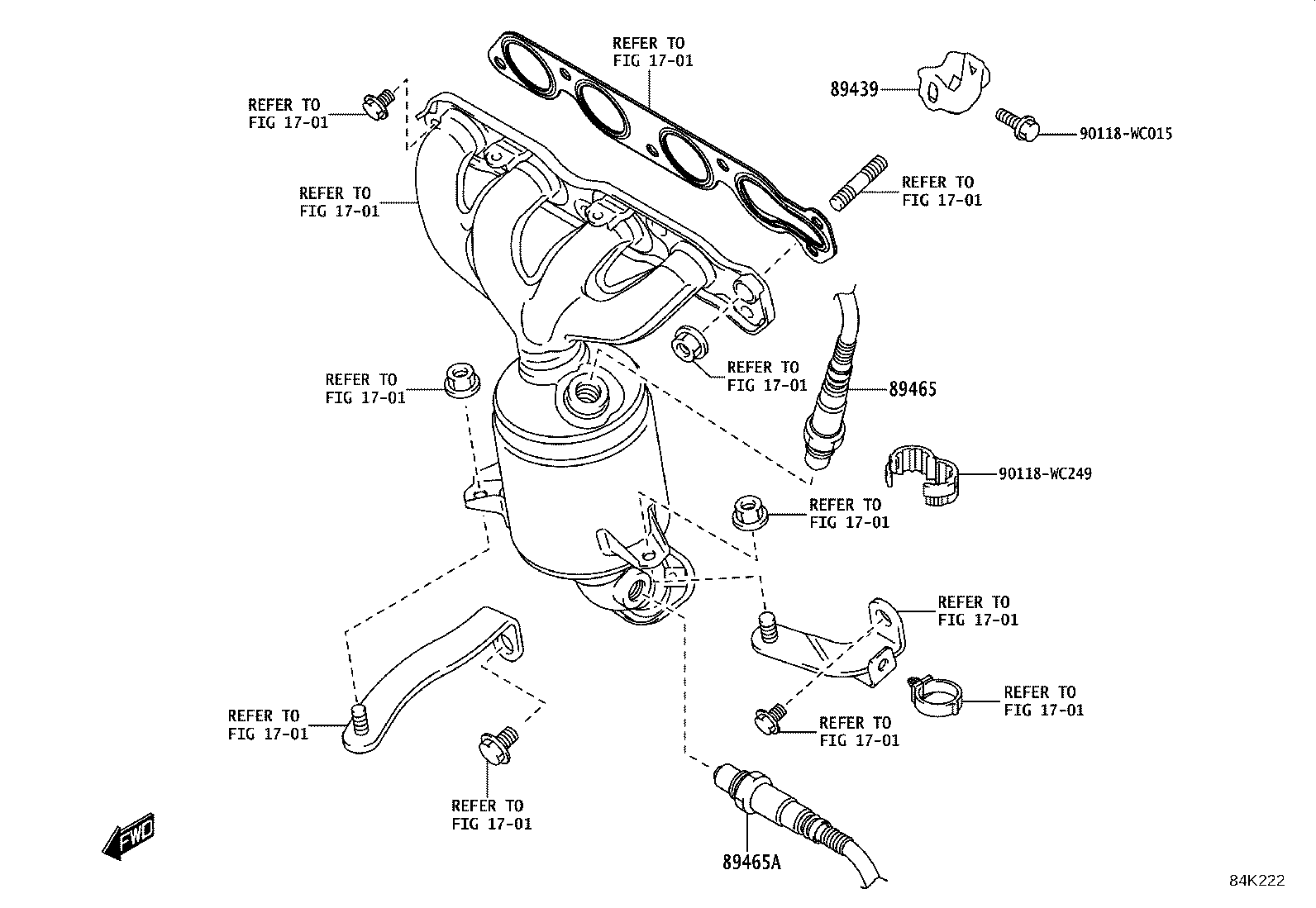

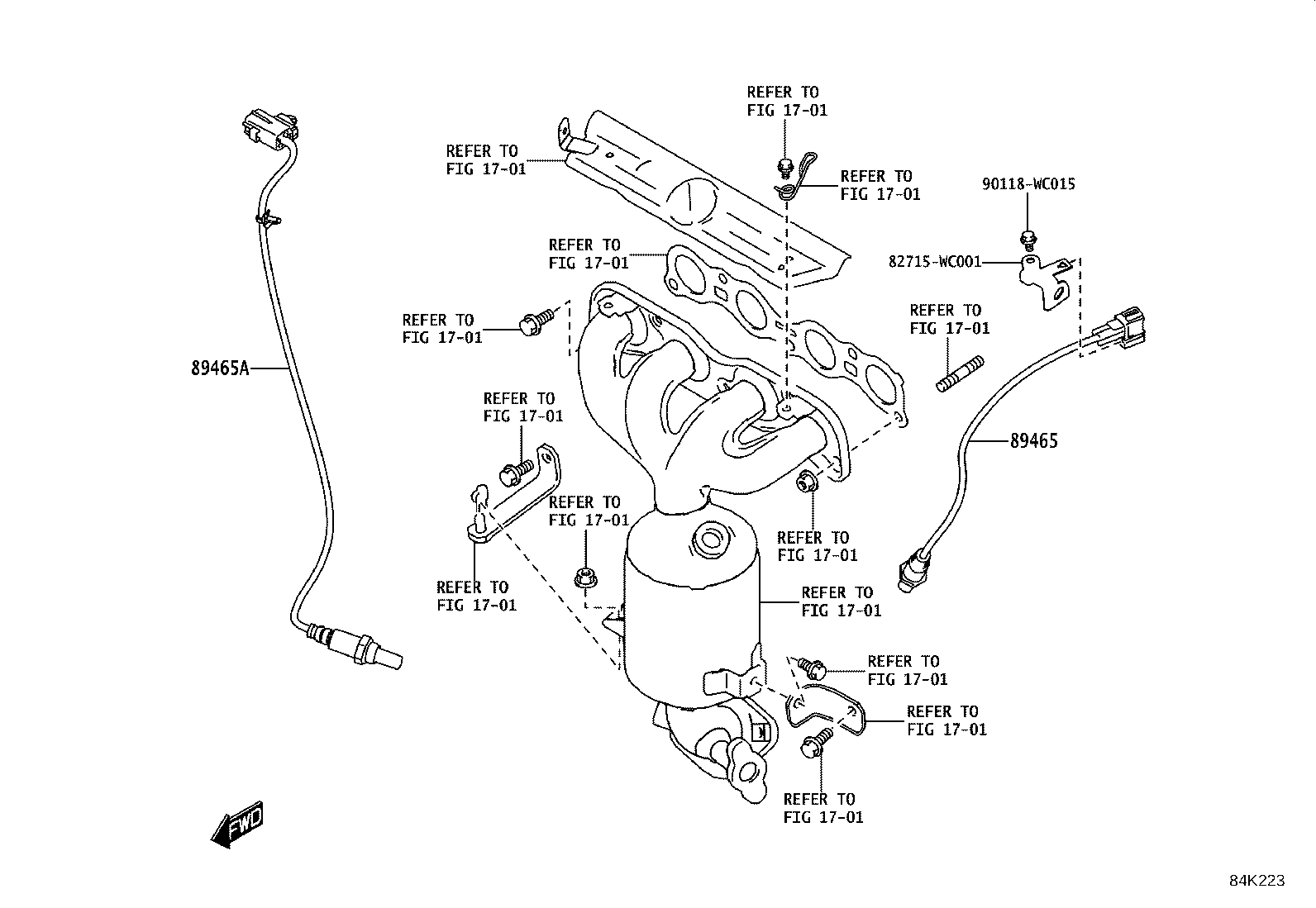

89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89531A Relay, Transmission Control
89535B Computer, Transmission Control

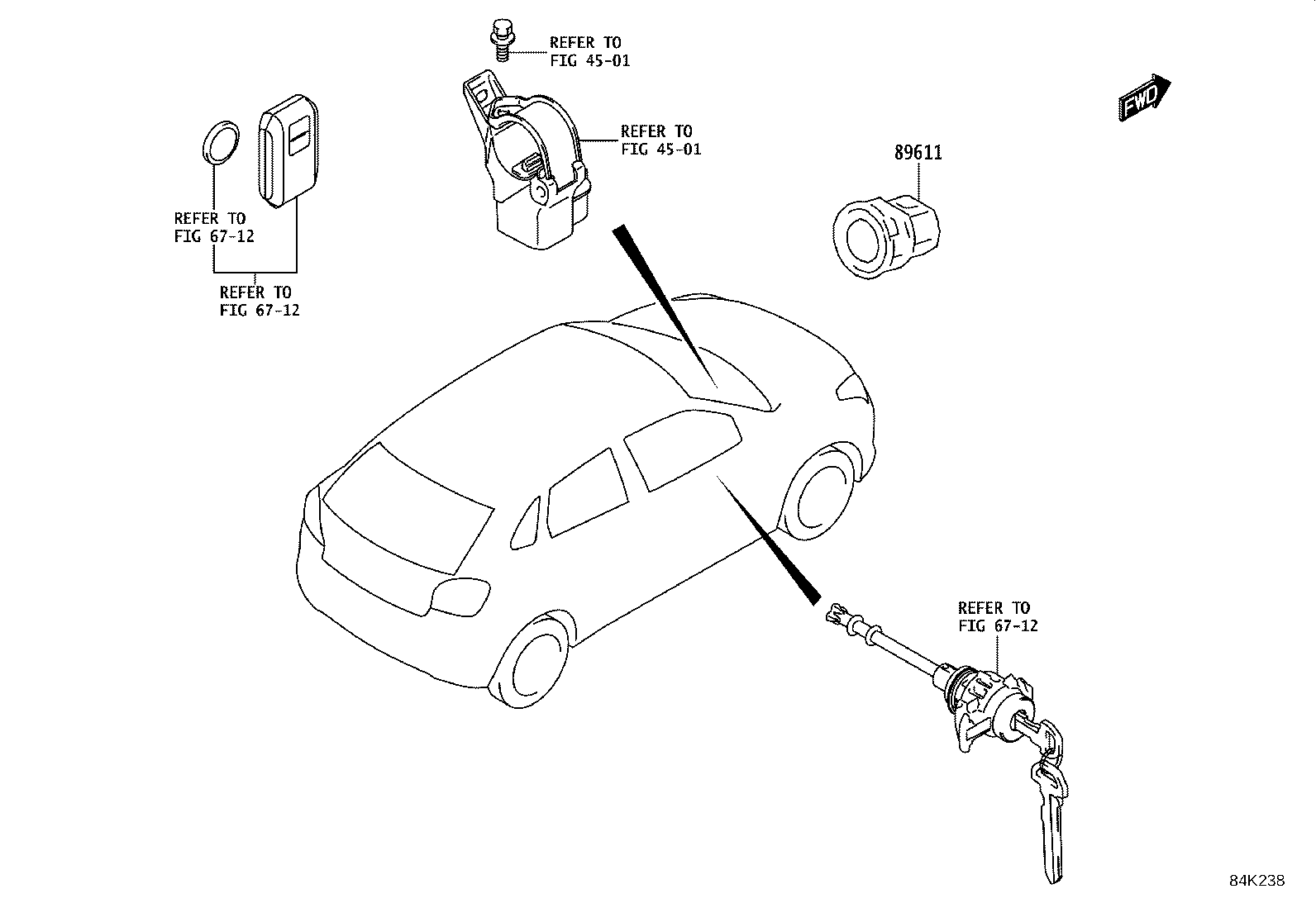

89611 Switch, Push Start

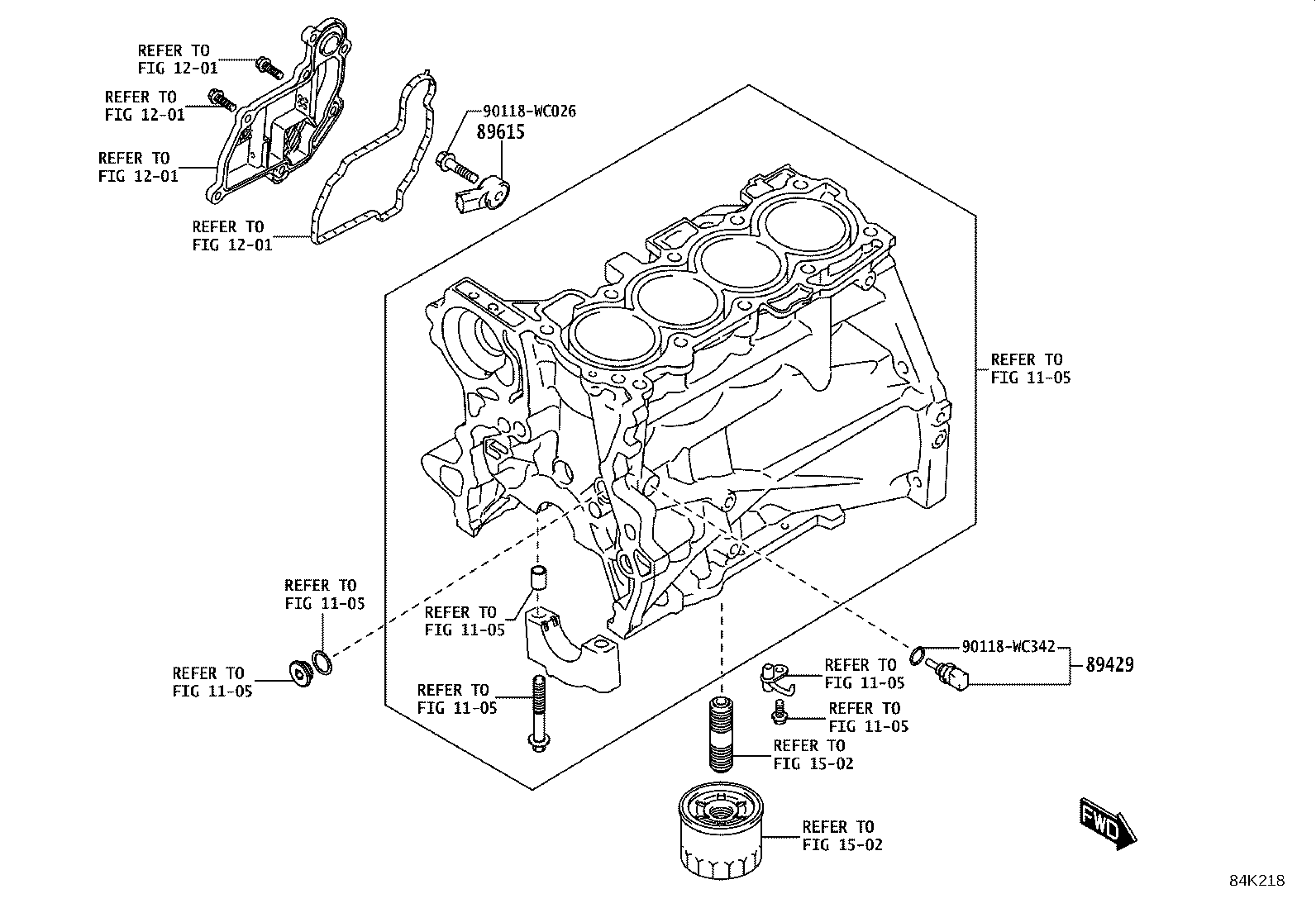

89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
