Toyota Glanza
2022-02 → present · chassis K12N24 · catalogue 132320 · General
Supported model
Data version 2022-04

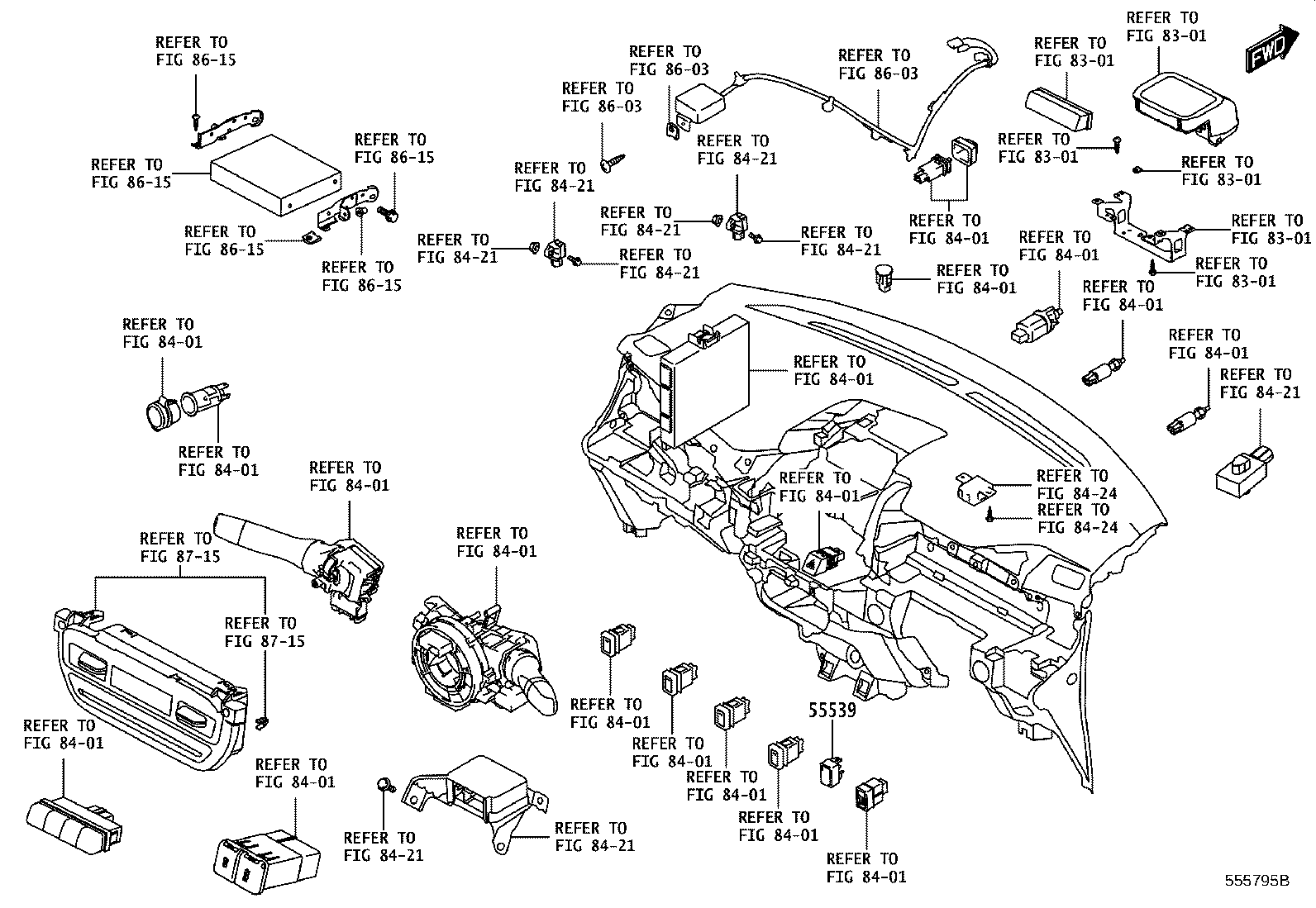

Instrument Panel & Glove Compartment
47 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 55044C | Panel Sub-assy, Instrument Panel Finish |
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55045D | Cushion, Glove Compartment |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303 | Stay Sub-assy, Instrument Panel, RH |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55304 | Stay Sub-assy, Instrument Panel, LH |
| 55308D | Box Sub-assy, Instrument Panel, Center |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55343B | Brace, Instrument Panel TO Cowl, Center |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55414A | Panel, Instrument Cluster Finish, End |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55434E | Cap |
| 55440A | Clip(FOR INSTRUMENT PANEL CENTER GARNISH) |
| 55444 | Garnish, Instrument Panel, LH |
| 55449D | Base, Switch |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55461A | Ornament, Instrument Panel |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55475A | Garnish, Instrument Cluster Finish Panel, NO.2 |
| 55475B | Garnish, Instrument Cluster Finish Panel, Center |
| 55476 | Cover, Cigarette Lighter Hole |
| 55476F | Clip, Instrument Cluster Finish Panel Garnish |
| 55491 | Cover, Instrument Panel, Upper |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55521C | Cover, Stereo Opening |
| 55539 | Cover, Spare Switch Hole |
| 55539B | Cover, Spare Switch Hole, NO.2 |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55573 | Cover, Instrument Panel, Center |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55606C | Clip(FOR INSTRUMENT PANEL UNDER COVER) |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 58825C | Pocket, Console Box |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
