Toyota Glanza
2022-02 → present · chassis K12N24 · catalogue 132320 · General
Supported model
Data version 2022-04

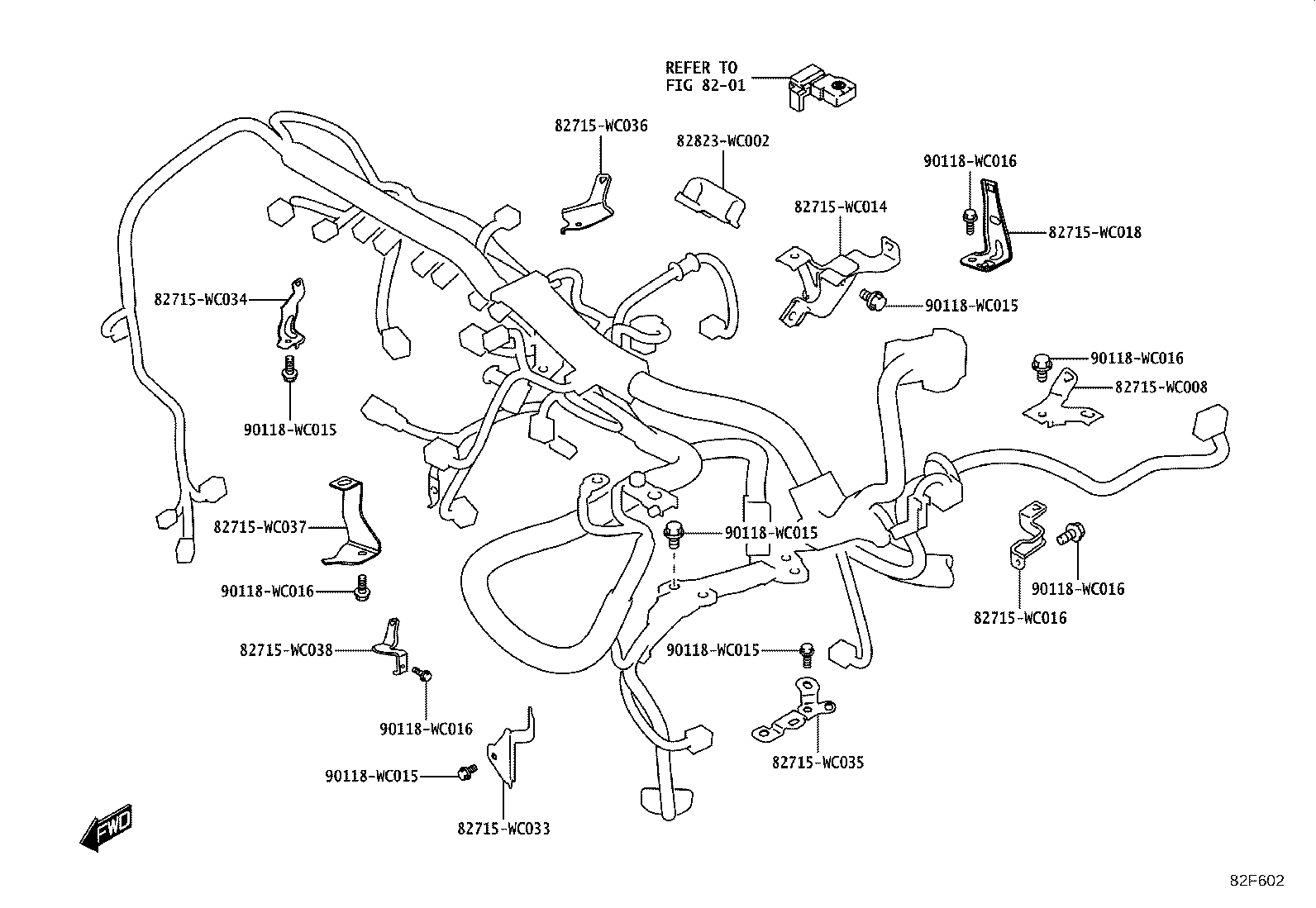

Wiring & Clamp
34 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82121 | Wire, Engine |
| 82122 | Wire, Engine, NO.2 |
| 82123 | Wire, Engine, NO.3 |
| 82124 | Wire, Engine, NO.4 |
| 82125 | Wire, Transmission |
| 82126 | Wire, Engine |
| 82141 | Wire, Instrument Panel |
| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153 | Wire, Rear Door, NO.1 |
| 82154 | Wire, Rear Door, NO.2 |
| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82181 | Wire, Luggage Room, NO.1 |
| 82184 | Wire, Back Door, NO.1 |
| 82280A | Wire Assy, Battery TO Cowl Top Side |
| 82284 | Wire, Earth |
| 82350 | Wiring Assy, Courtesy Lamp Switch (FOR FR OR RR DOOR) |
| 82505A | Wiring Sub-assy, Front Door |
| 82817 | Protector, Wiring Harness, NO.1 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817B | Protector, Wiring Harness, NO.3 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817D | Protector, Wiring Harness, NO.5 |
| 82817E | Protector, Wiring Harness, NO.6 |
| 82817F | Protector, Wiring Harness, NO.7 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82817K | Protector, Wiring Harness, NO.10 |
| 82817L | Protector, Wiring Harness, NO.11 |
| 82817M | Protector, Wiring Harness, NO.12 |
| 82817N | Protector, Wiring Harness, NO.13 |
| 82817P | Protector, Wiring Harness, NO.14 |
| 82988 | Wire, Airbag Repair |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
