Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

7 part groups · 3 illustrations

Illustrations

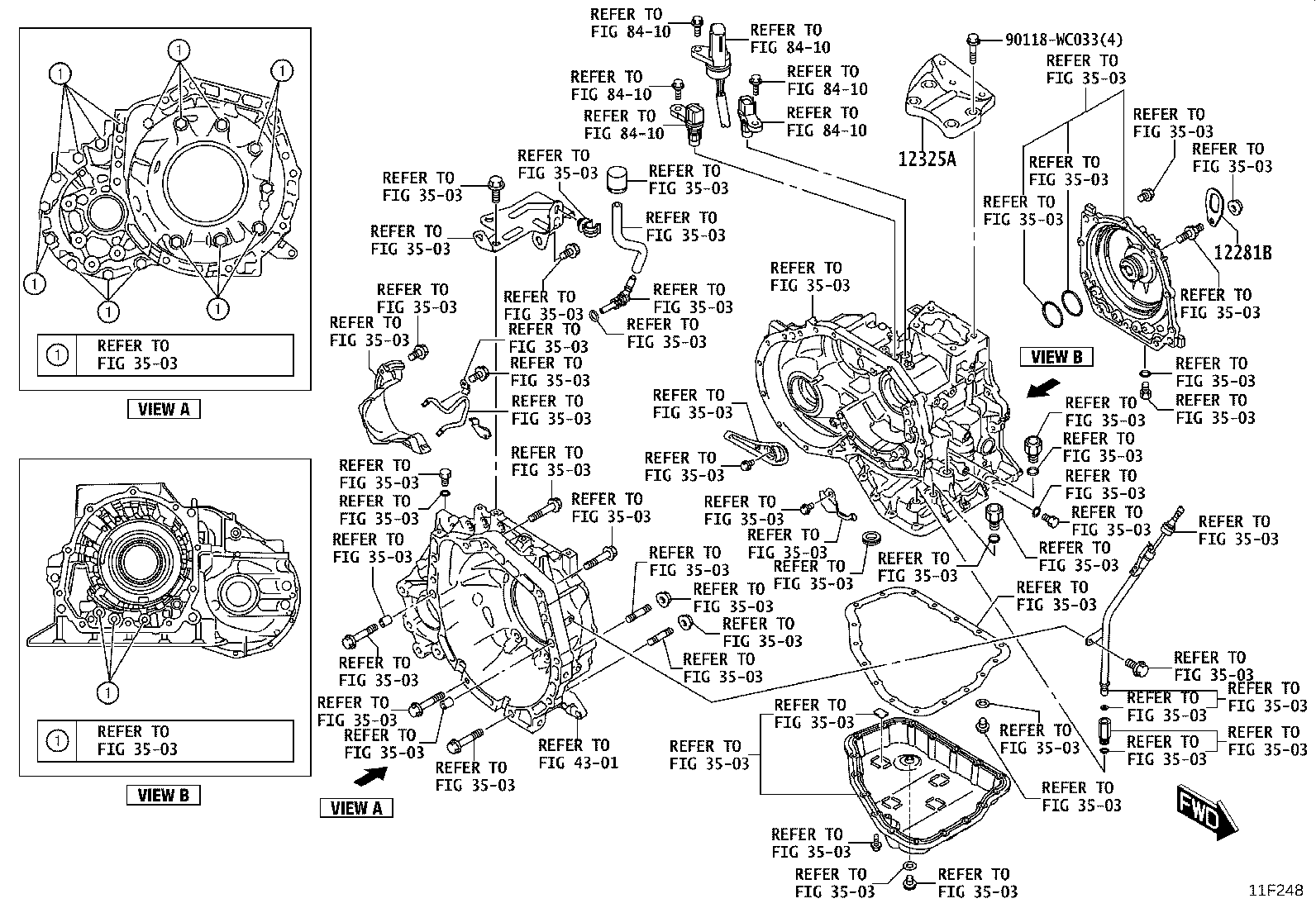

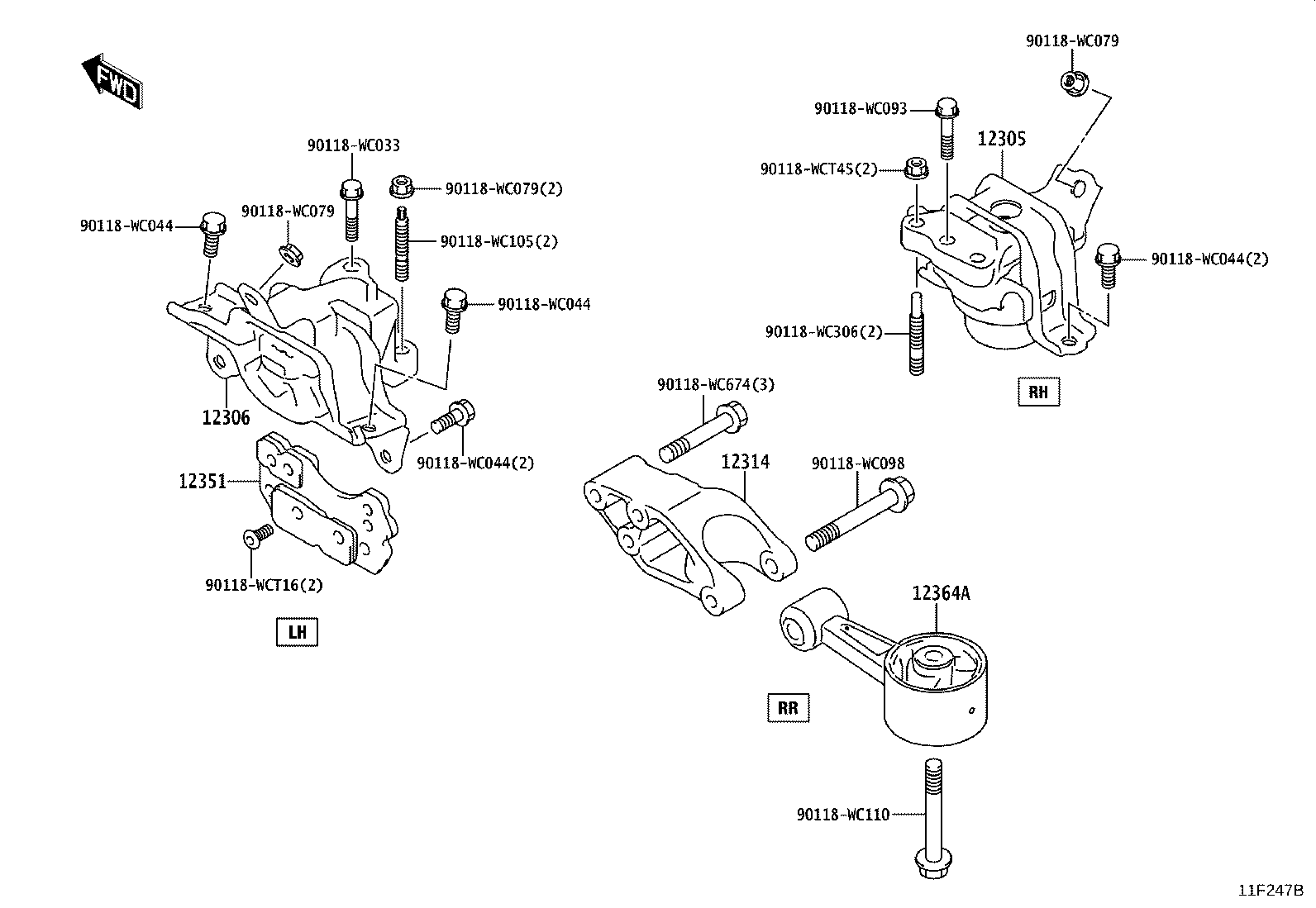

Figure 11F246A 11F246A 2020-07 → — Figure 11F247B 11F247B 2020-07 → — Figure 11F248 11F248 2020-07 → —

Part groups

PNCDescription
12281B Hanger, Engine, NO.1
12305 Insulator Sub-assy, Engine Mounting, RH
12306 Insulator Sub-assy, Engine Mounting, LH
12314 Bracket, Engine Lateral Control Rod
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12351 Damper, Engine Mounting
12364A Rod, Engine Lateral Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
