Toyota Starlet
2020-07 → present · chassis K14B# · catalogue 133310 · General
Supported model
Data version 2020-07
Transmission Gear (MTM)

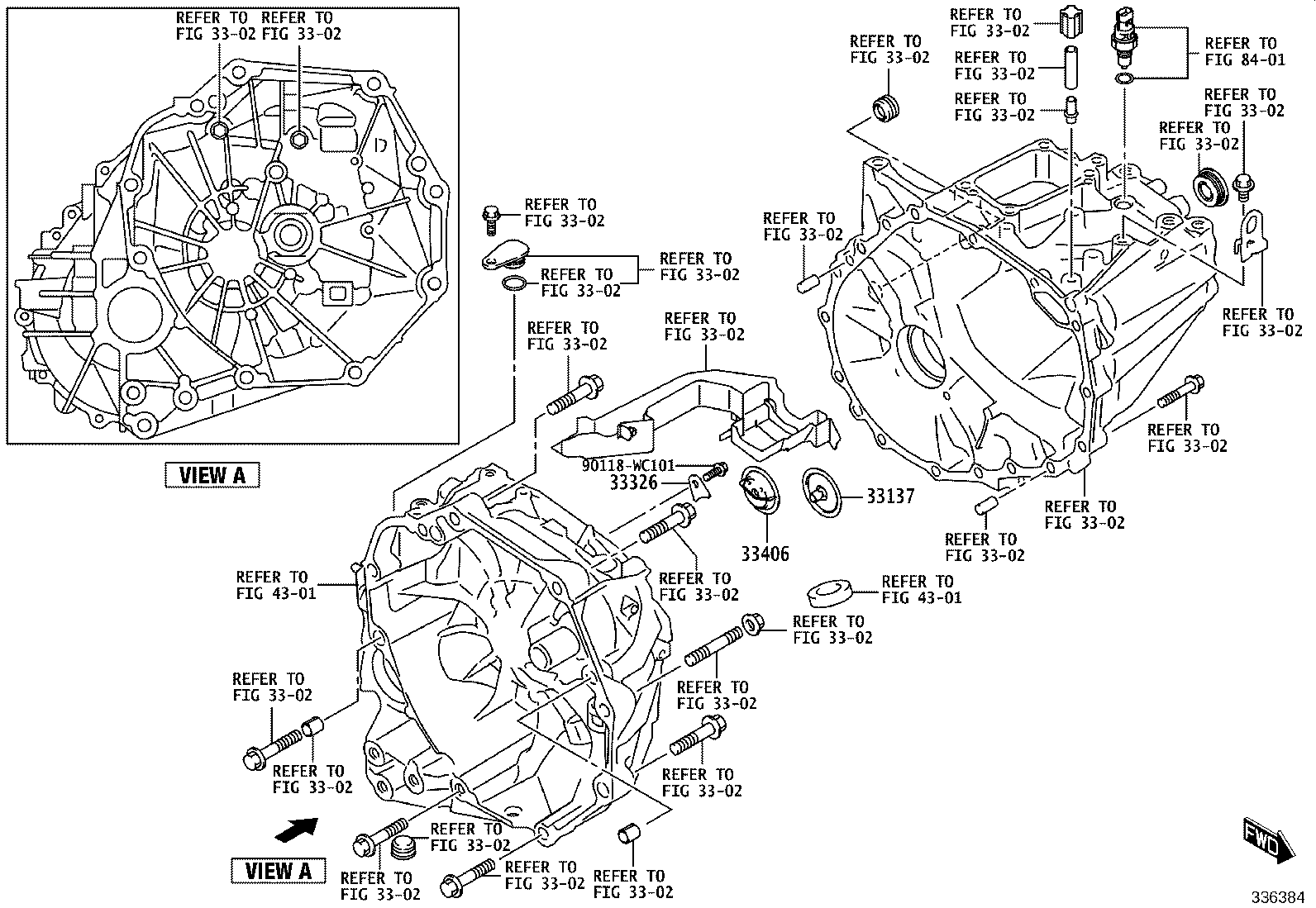

50 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33137 | Cover, Input Shaft(MTM) |
| 33311 | Shaft, Input |
| 33311A | Bearing (FOR INPUT SHAFT FRONT) |
| 33311E | Bearing, Radial Ball (FOR INPUT SHAFT REAR) |
| 33311U | Seal, Oil (FOR INPUT SHAFT) |
| 33326 | Plate, Bearing Lock |
| 33332B | Bearing, Needle Roller (FOR 2ND GEAR) |
| 33333 | Gear, 3RD |
| 33333A | Bearing, Needle Roller (FOR 3RD GEAR) |
| 33333D | Spacer (FOR 3RD GEAR) |
| 33334 | Gear, 4TH |
| 33334A | Bearing, Needle Roller (FOR 4TH GEAR) |
| 33335C | Bearing, Needle Roller(FOR 1ST GEAR) |
| 33336 | Gear, 5TH |
| 33336A | Bearing, Needle Roller (FOR 5TH GEAR) |
| 33336B | Spacer (FOR 5TH GEAR BEARING) |
| 33361 | Hub, Transmission Clutch, NO.1 |
| 33361B | Ring, Shaft Snap (FOR CLUTCH HUB NO.1) |
| 33362 | Hub, Transmission Clutch, NO.2 |
| 33362A | Ring, Shaft Snap (FOR CLUTCH HUB NO.2 SETTING) |
| 33363 | Sleeve, Transmission Hub, NO.1 |
| 33363A | Sleeve, Transmission Hub, NO.3 |
| 33364 | Sleeve, Transmission Hub, NO.2 |
| 33365 | Key, Synchromesh Shifting, NO.1 |
| 33366 | Key, Synchromesh Shifting, NO.2 |
| 33367 | Ring, Synchronizer, NO.1 |
| 33367B | Ring, Synchronizer (FOR 1ST GEAR) |
| 33367C | Ring, Synchronizer (FOR 2ND GEAR) |
| 33368J | Ring, Synchronizer (FOR 5TH GEAR) |
| 33393 | Hub, Transmission Clutch, NO.3 |
| 33393A | Ring, Shaft Snap (FOR TRANSMISSION CLUTCH HUB NO.3) |
| 33394 | Key, Synchromesh Shifting, NO.3 |
| 33402 | Gear Sub-assy, Reverse Idler |
| 33402C | Washer, Plate (FOR REVERSE IDLER) |
| 33406 | Cover Sub-assy, Countershaft |
| 33411 | Countershaft |
| 33411A | Bearing OR Roller(FOR COUNTER GEAR FRONT) |
| 33411D | Ring, Counter Gear Front Bearing Snap, NO.1 |
| 33411H | Bearing OR Roller(FOR COUNTER GEAR REAR) |
| 33421R | Ring, Shaft Snap(FOR COUNTER GEAR REAR) |
| 33421S | Ring, Shaft Snap(FOR COUNTER GEAR REAR) |
| 33422 | Gear, Countershaft 4TH Speed |
| 33423 | Gear, Countershaft 3RD Speed |
| 33424 | Gear, Countershaft 2ND Speed |
| 33426A | Gear, Countershaft, 1ST Speed |
| 33428 | Gear, Countershaft 5TH |
| 33428A | Ring, Shaft Snap (FOR COUNTER 5TH GEAR) |
| 33451 | Shaft, Reverse Idler Gear |
| 33451H | Bolt (FOR REVERSE IDLER GEAR SHAFT) |
| 33451J | Gasket (FOR REVERSE IDLER GEAR SHAFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
