Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

9 part groups · 8 illustrations

Illustrations

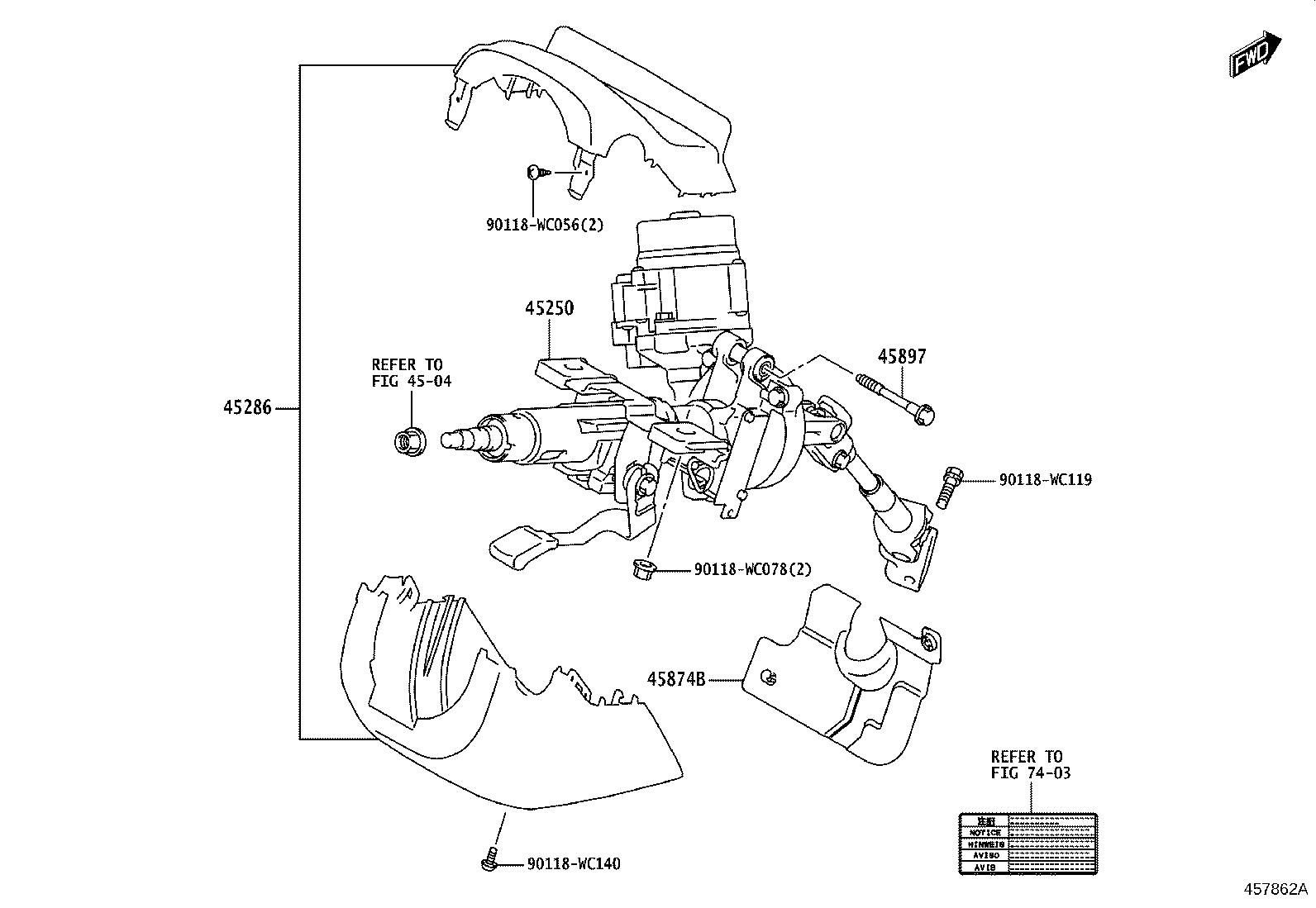

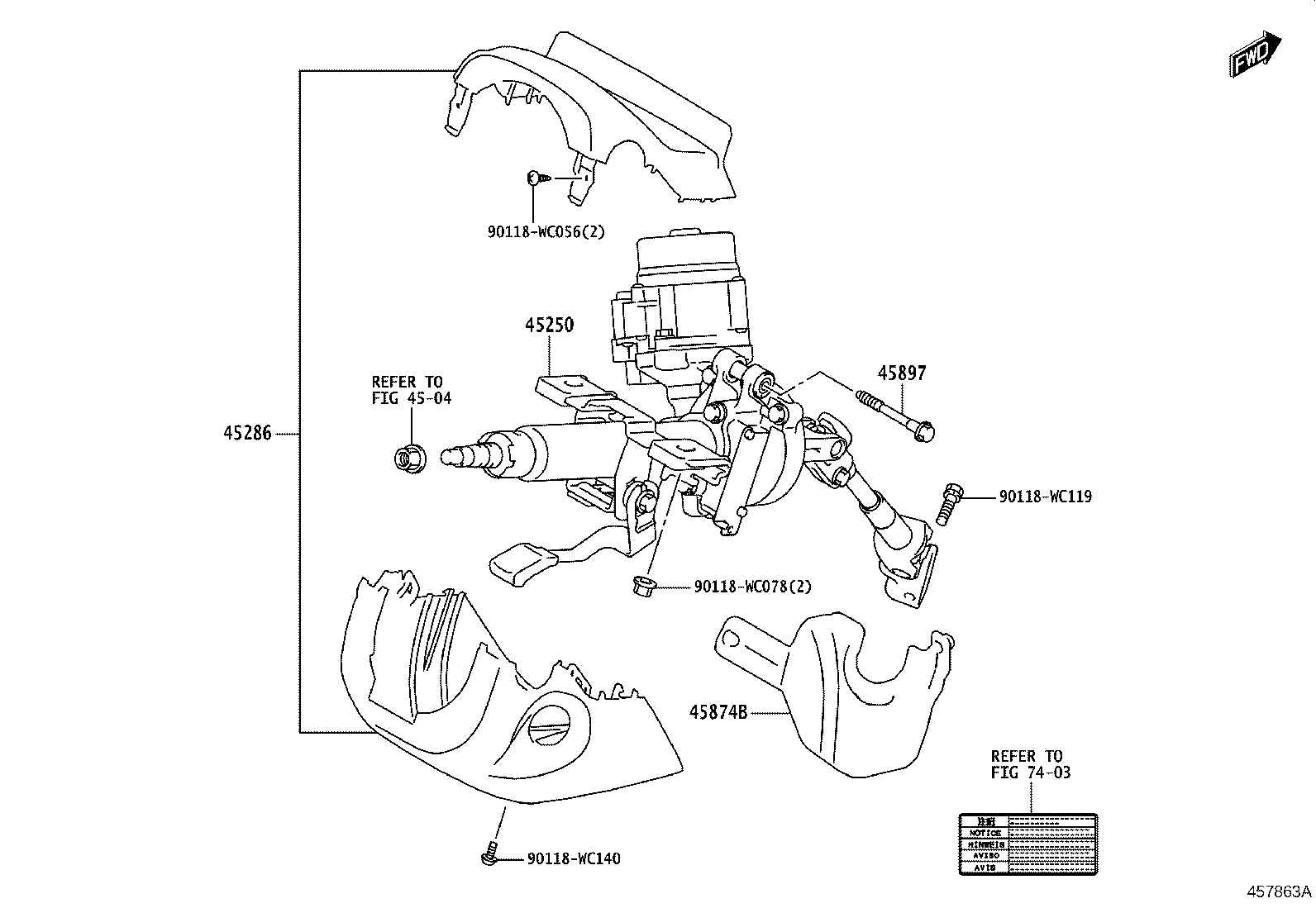

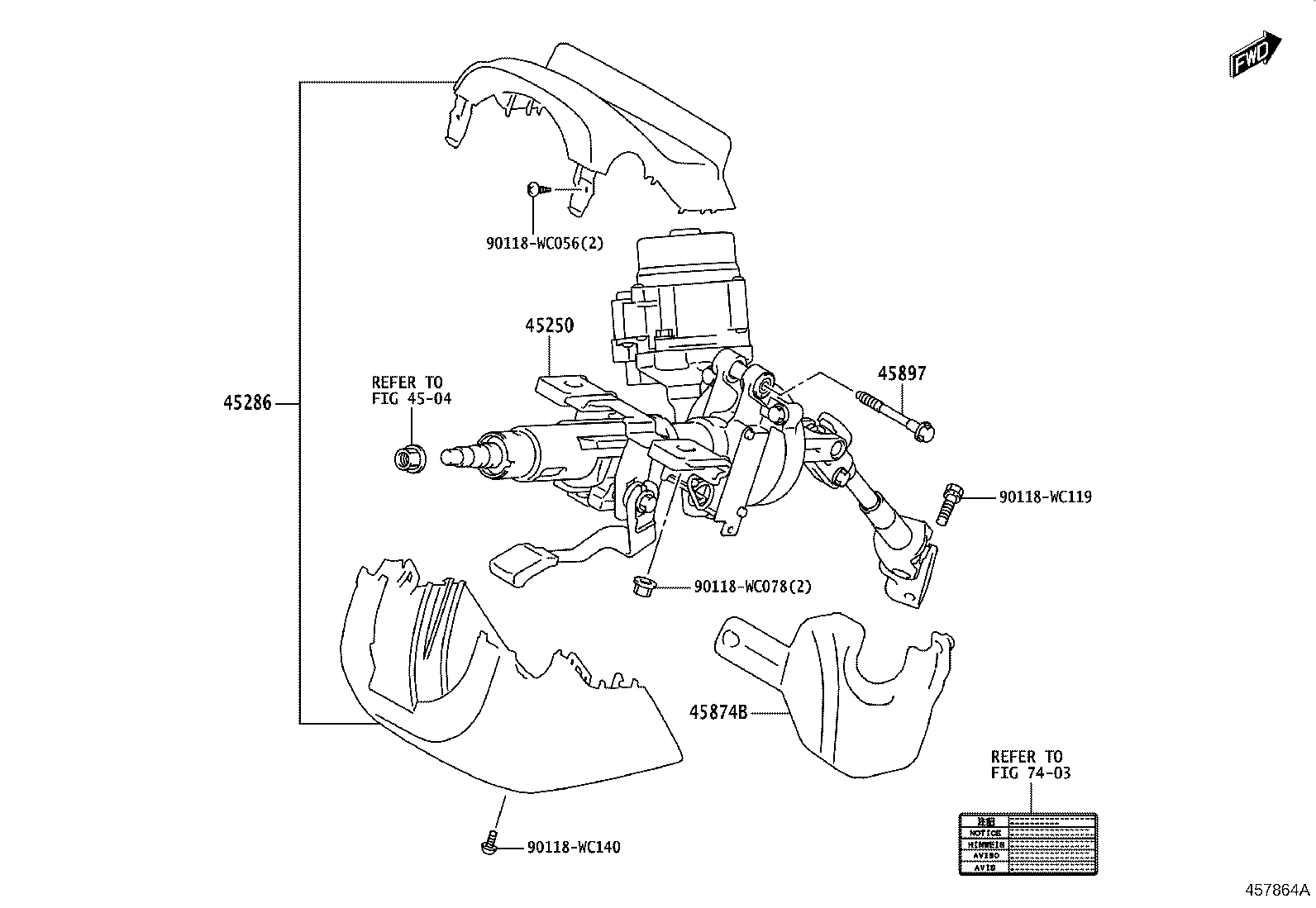

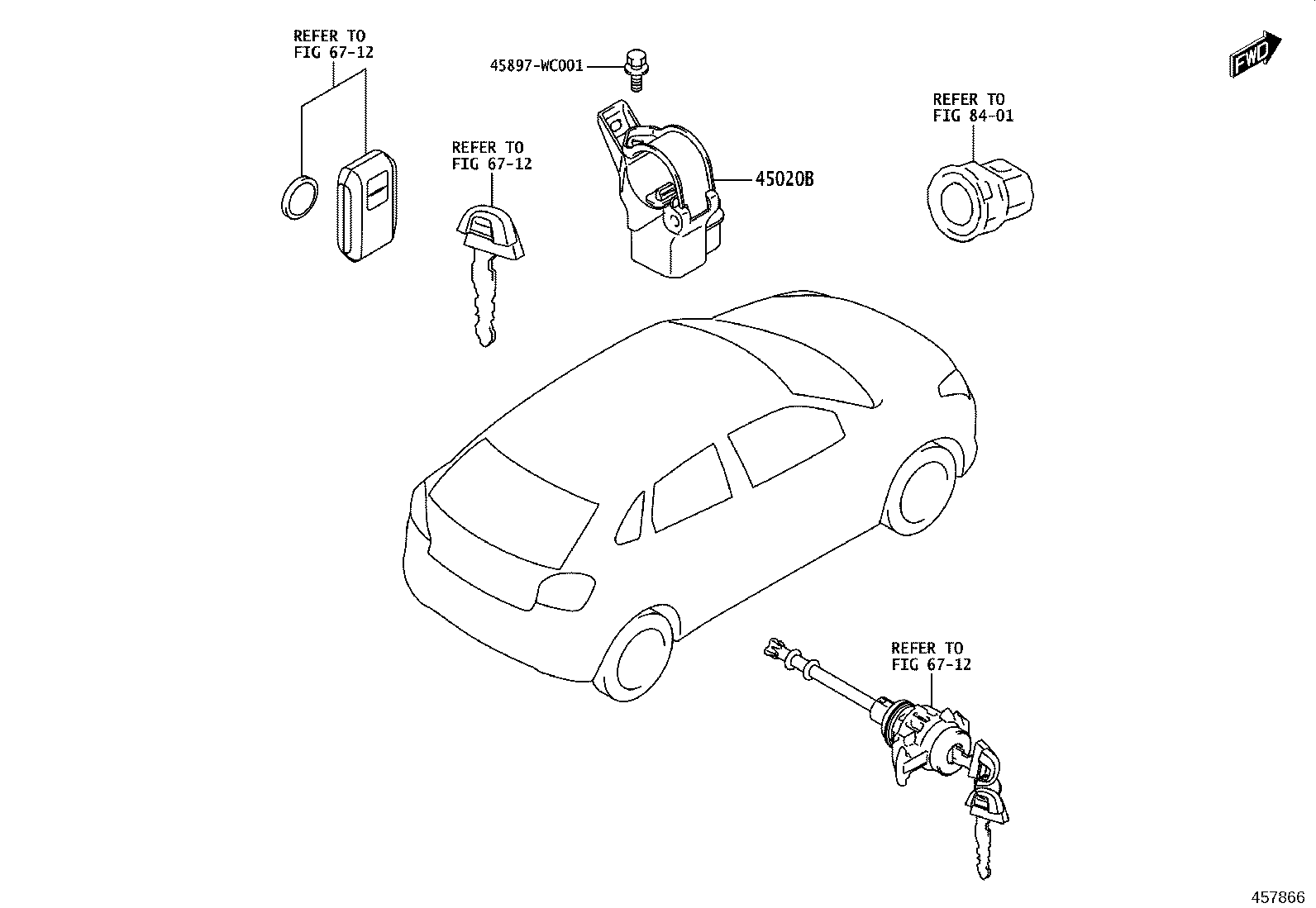

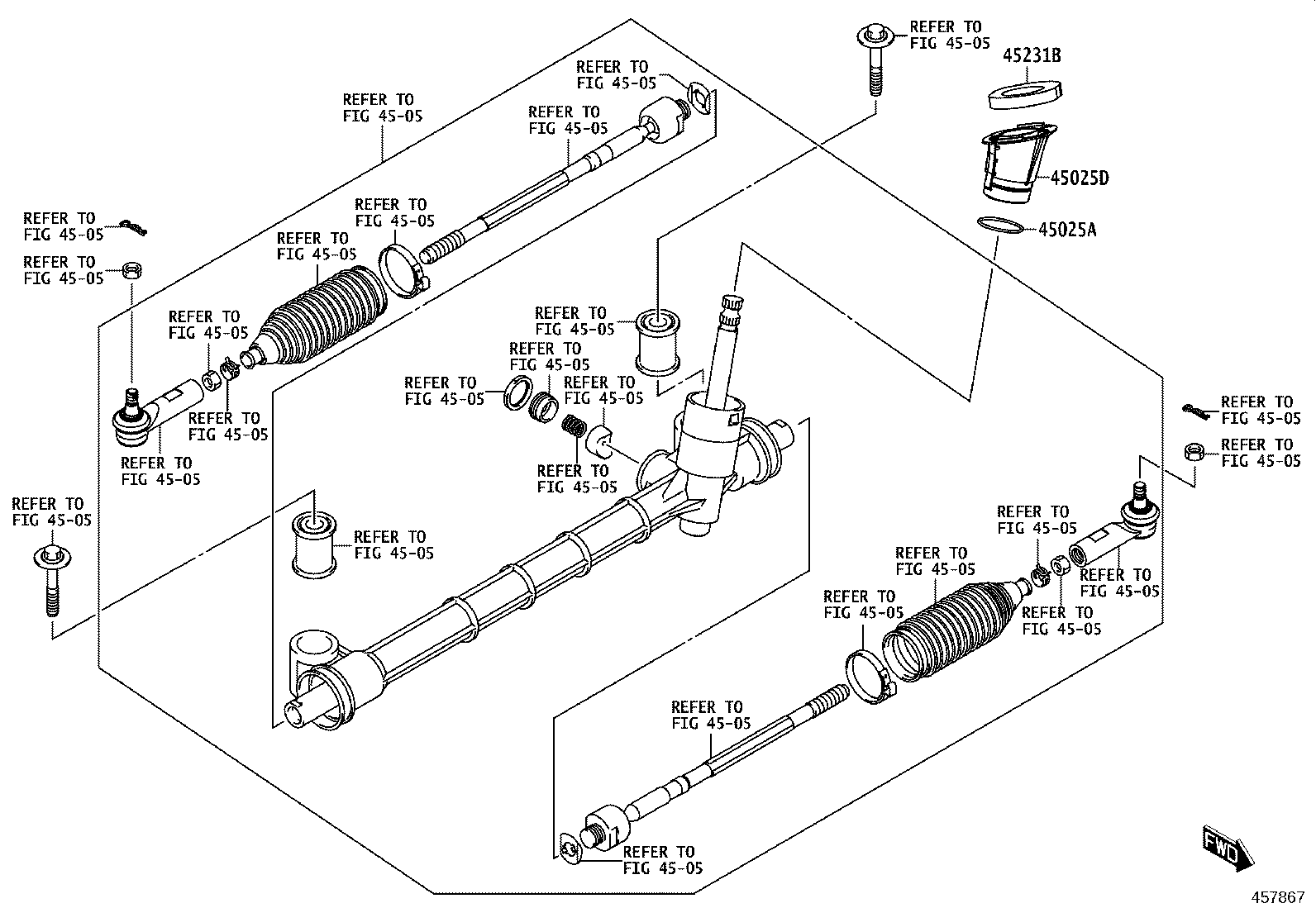

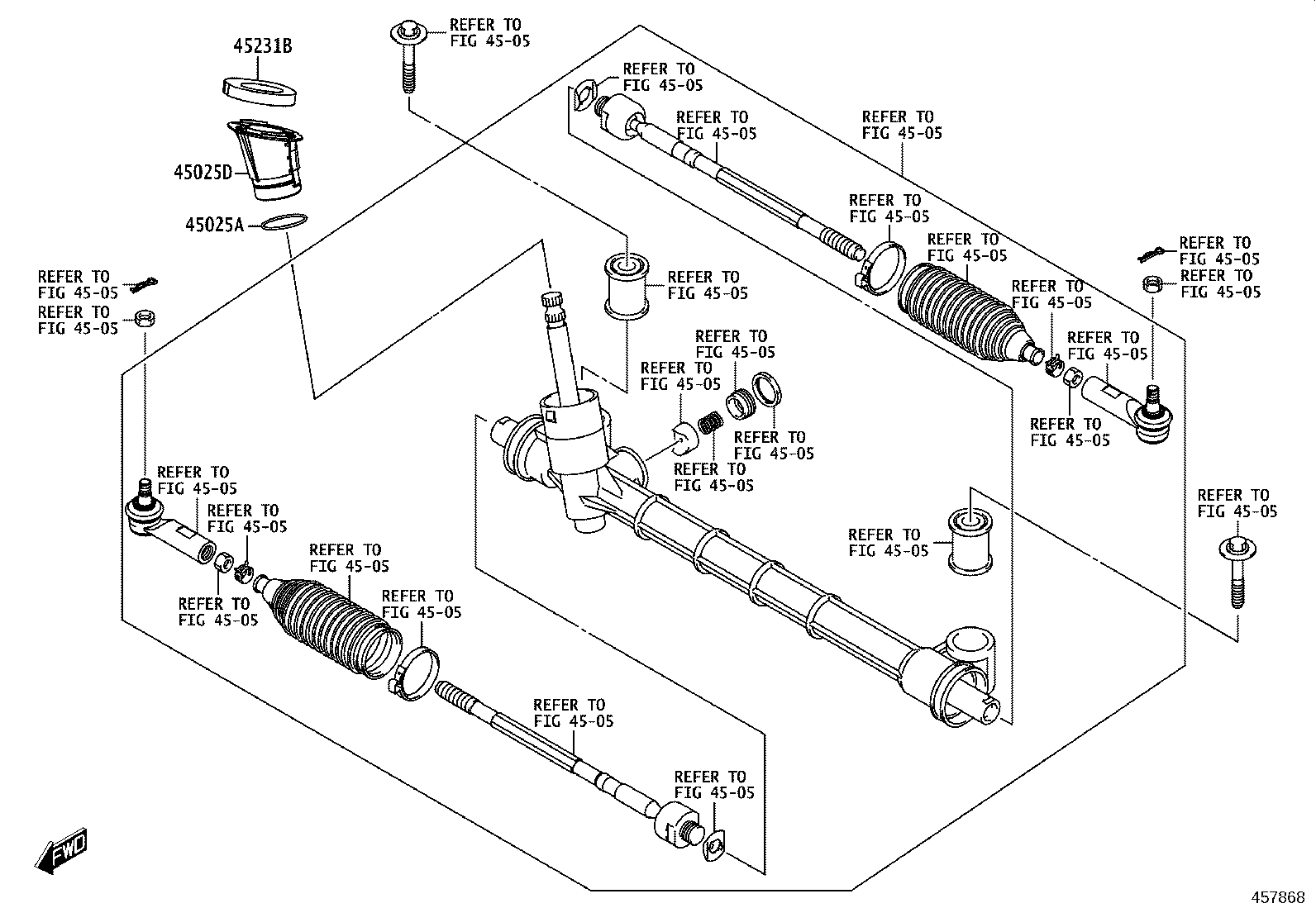

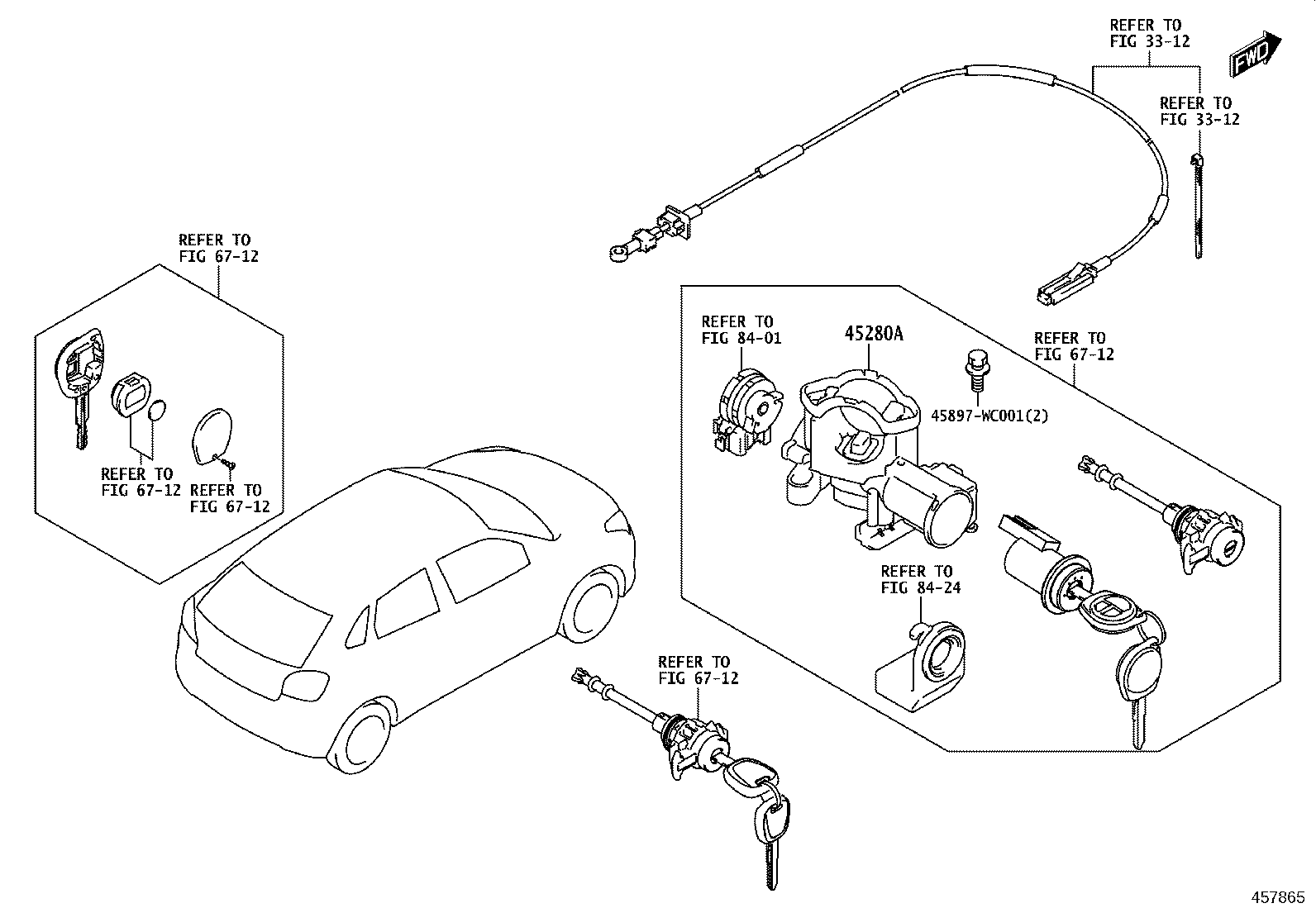

Figure 457861A 457861A 2020-07 → — Figure 457862A 457862A 2020-07 → — Figure 457863A 457863A 2020-07 → — Figure 457864A 457864A 2020-07 → — Figure 457865 457865 2020-07 → — Figure 457866 457866 2020-07 → — Figure 457867 457867 2020-07 → — Figure 457868 457868 2020-07 → —

Part groups

PNCDescription
45020B Actuator OR Upper Bracket Assy, Steering Lock
45025A Ring, O(FOR STEERING COLUMN HOLE COVER)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45231B Seal, Dust
45250 Column Assy, Steering
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
