Factory parts data · Europe

Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

3 part groups · 2 illustrations

Illustrations

461761 2020-07 → —

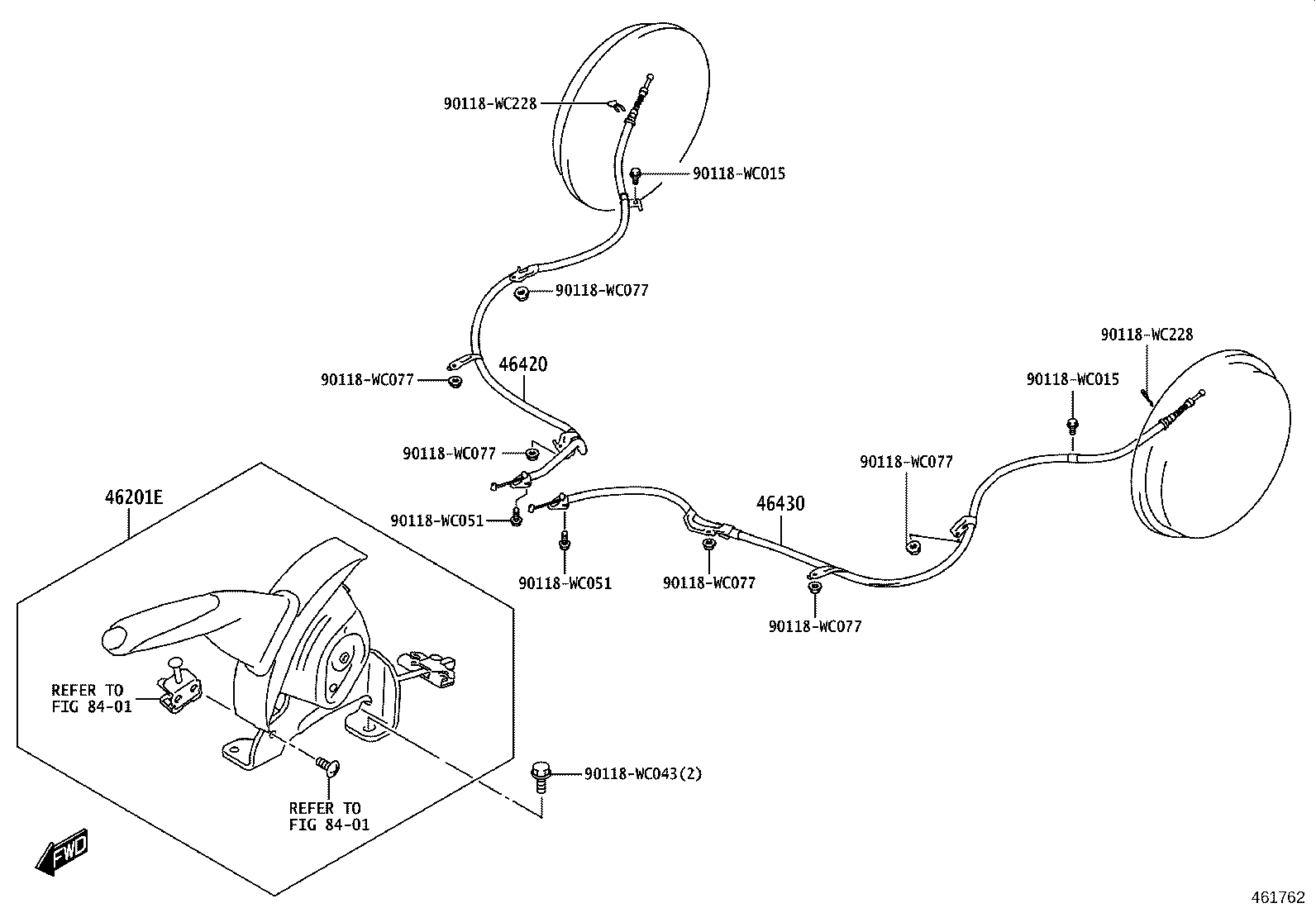

461762 2020-07 → —

Part groups

PNC	Description
46201E	Lever Sub-assy, Parking Brake
46420	Cable Assy, Parking Brake, NO.2
46430	Cable Assy, Parking Brake, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
