Toyota Starlet
2020-07 → present · chassis K14B# · catalogue 133310 · General
Supported model
Data version 2020-07

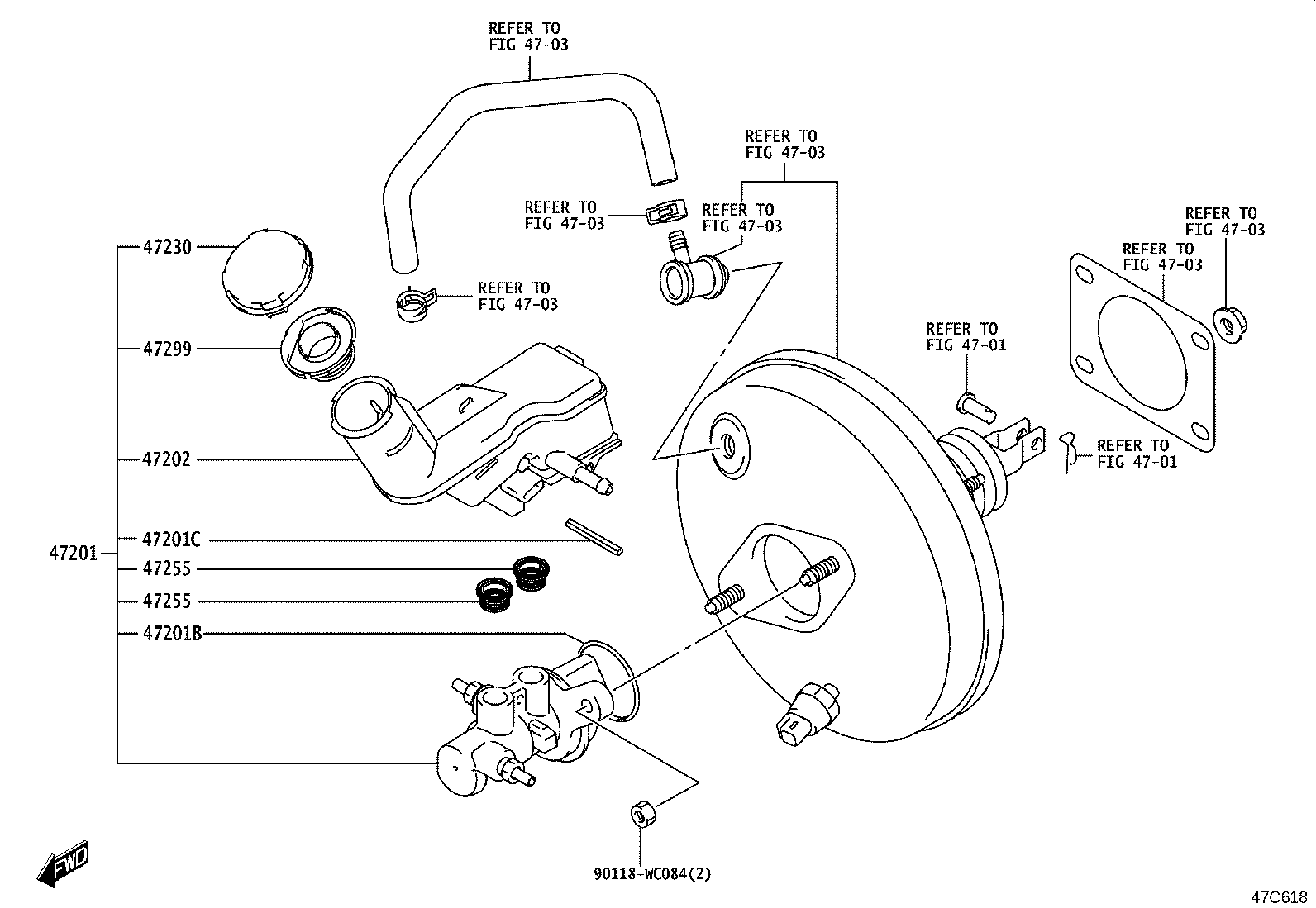

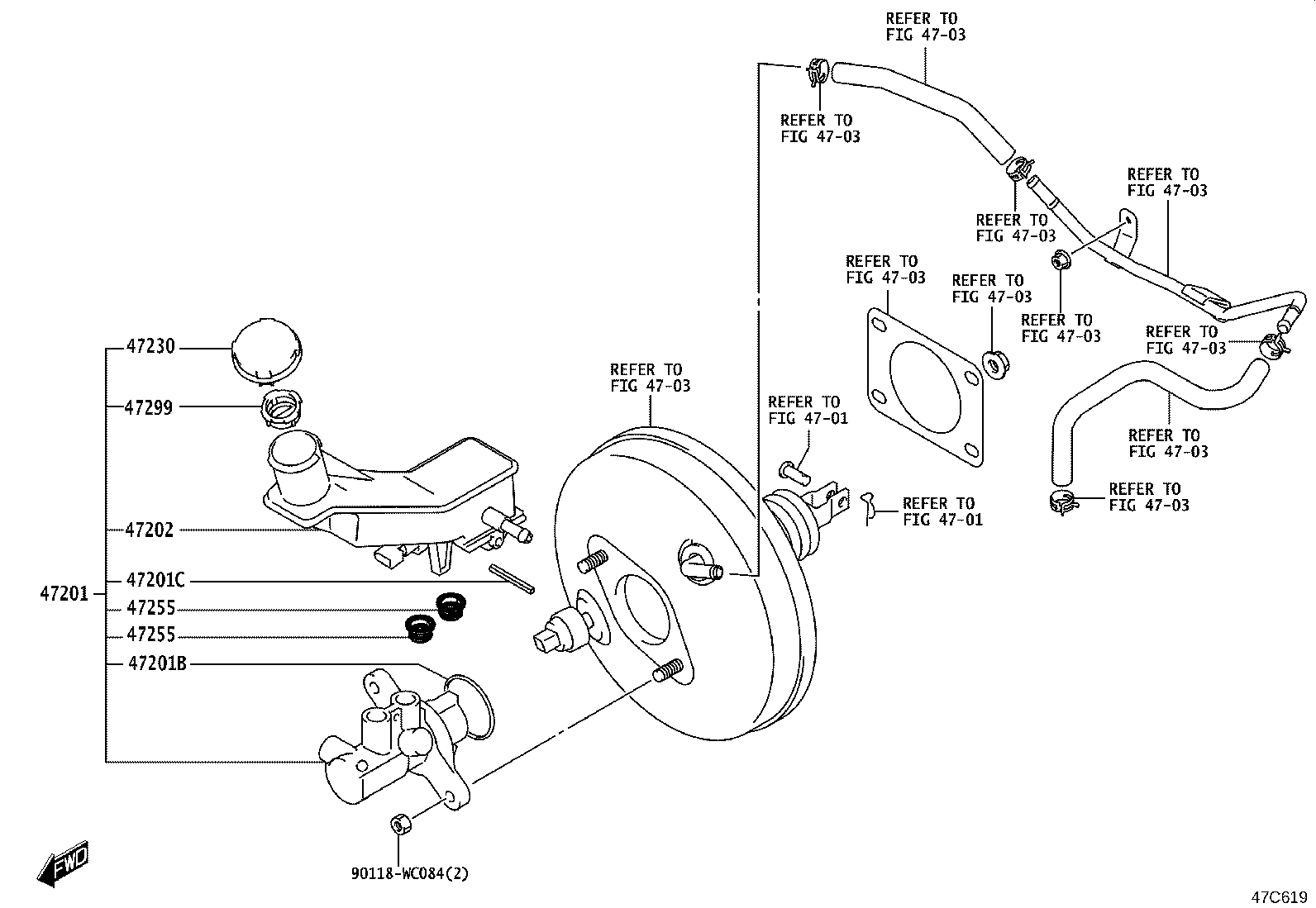

Brake Master Cylinder
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44785C | Gasket, Brake Booster |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
