Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

9 part groups · 3 illustrations

Illustrations

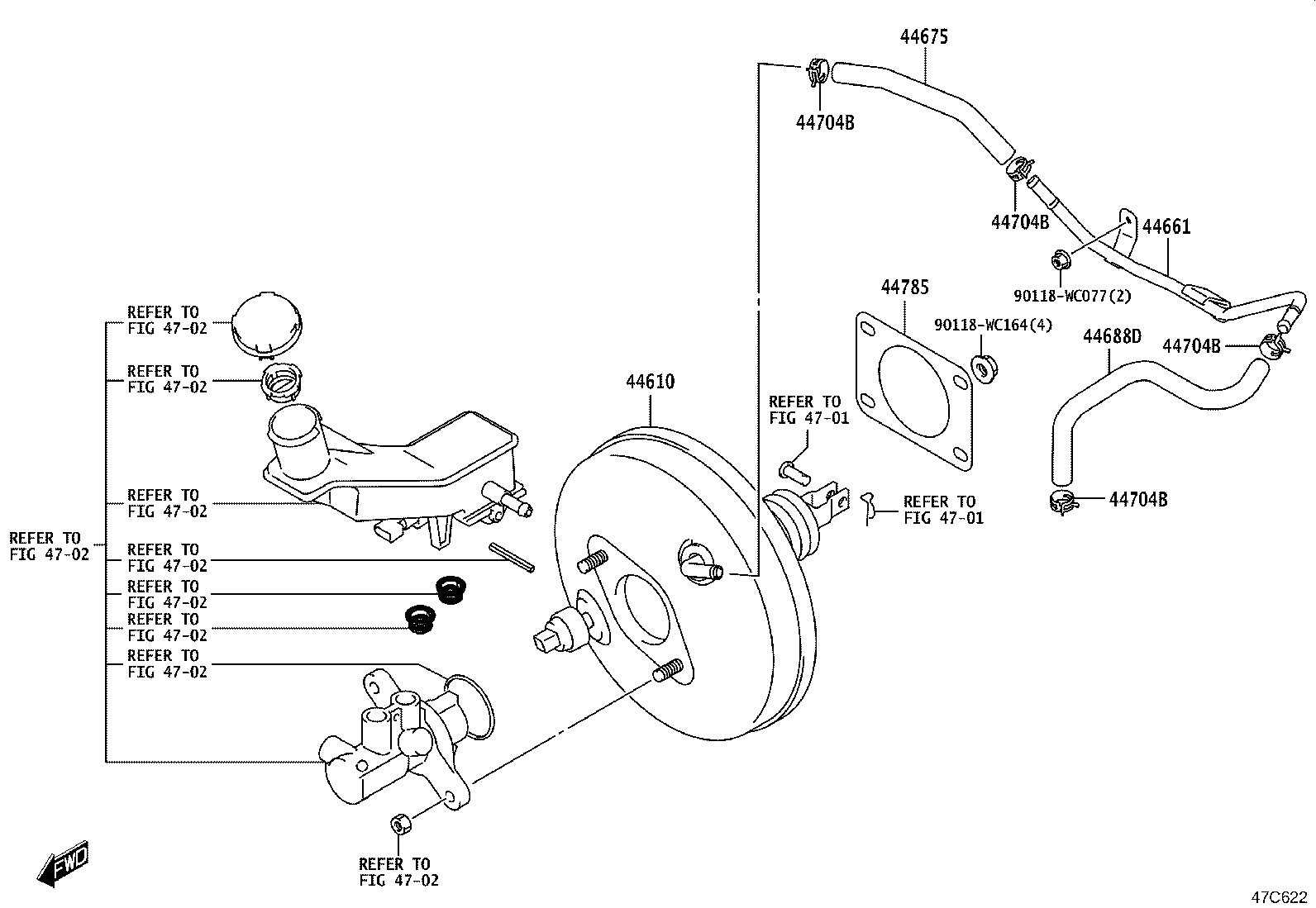

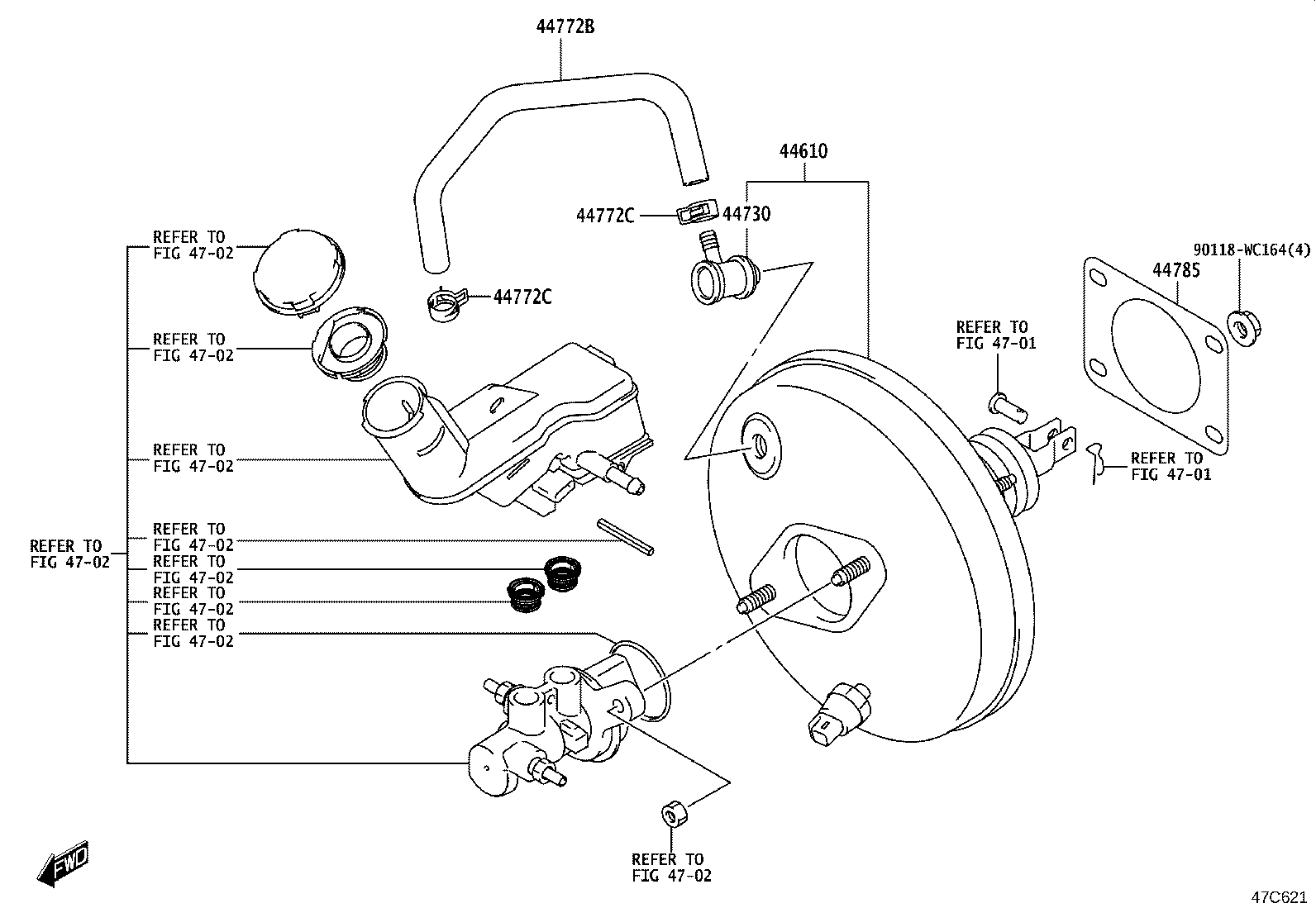

Figure 47C620 47C620 2020-07 → — Figure 47C621 47C621 2020-07 → — Figure 47C622 47C622 2020-07 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44661 Tube, Booster Vacuum
44675 Hose, Booster Vacuum
44688D Hose, Booster Vacuum
44704B Clip(FOR HOSE)
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44772B Hose, Check Valve TO Brake Booster
44772C Clip(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
