Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 3 illustrations

Illustrations

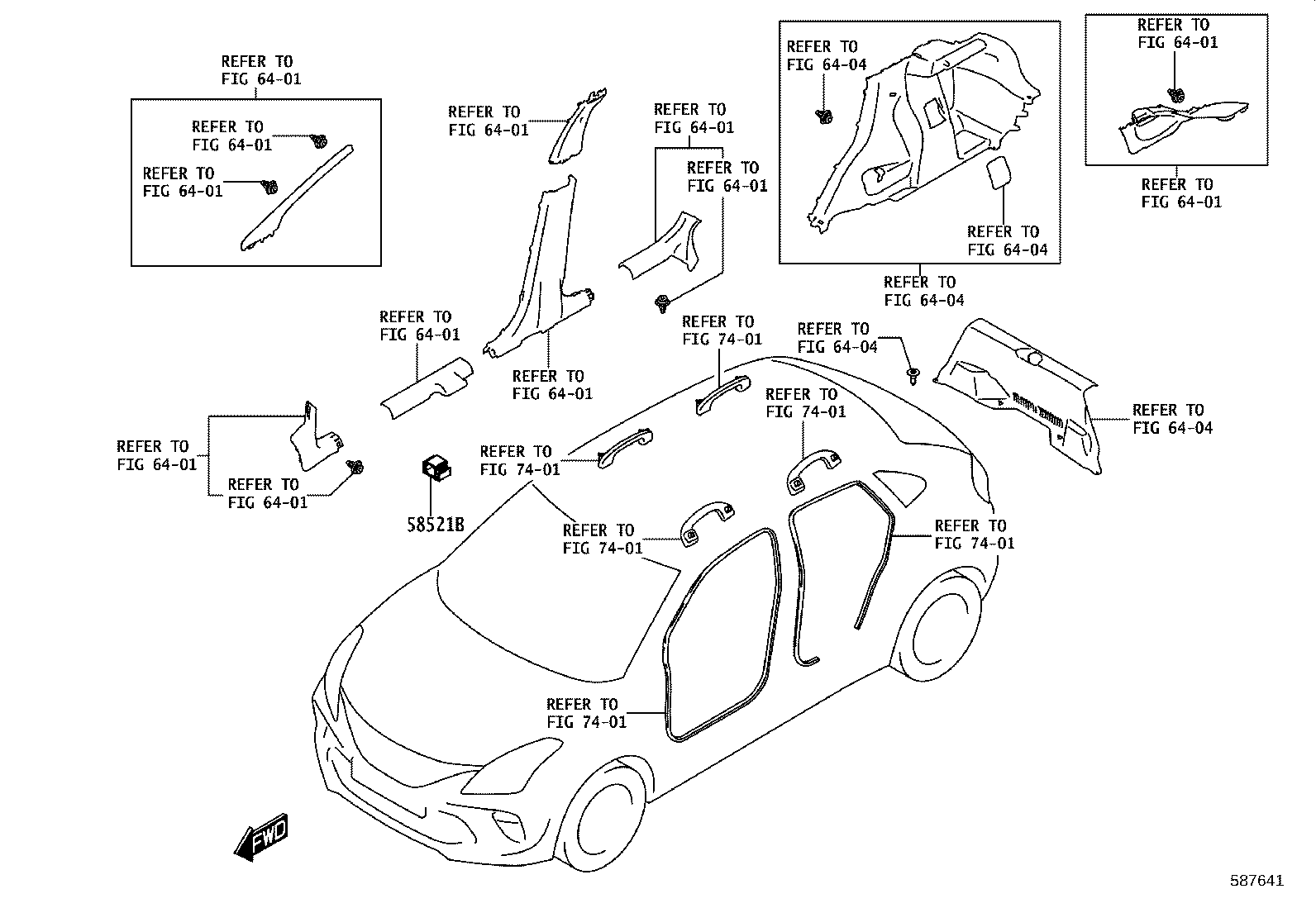

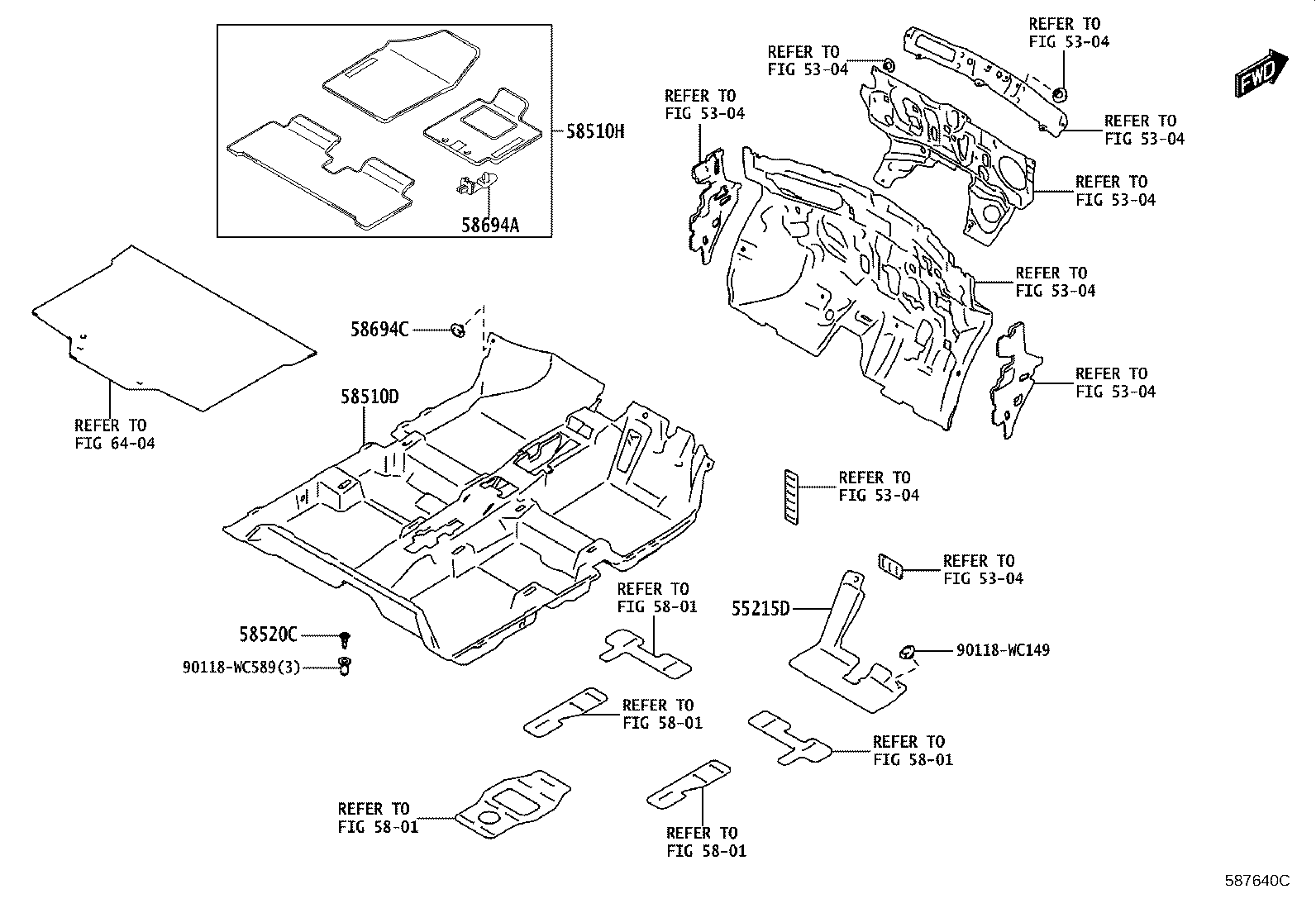

Figure 587639B 587639B 2020-07 → — Figure 587640C 587640C 2020-07 → — Figure 587641 587641 2020-07 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58694A Plate, Mat Set, Upper
58694C Grommet(FOR MAT SET PLATE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
