Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 6 illustrations

Illustrations

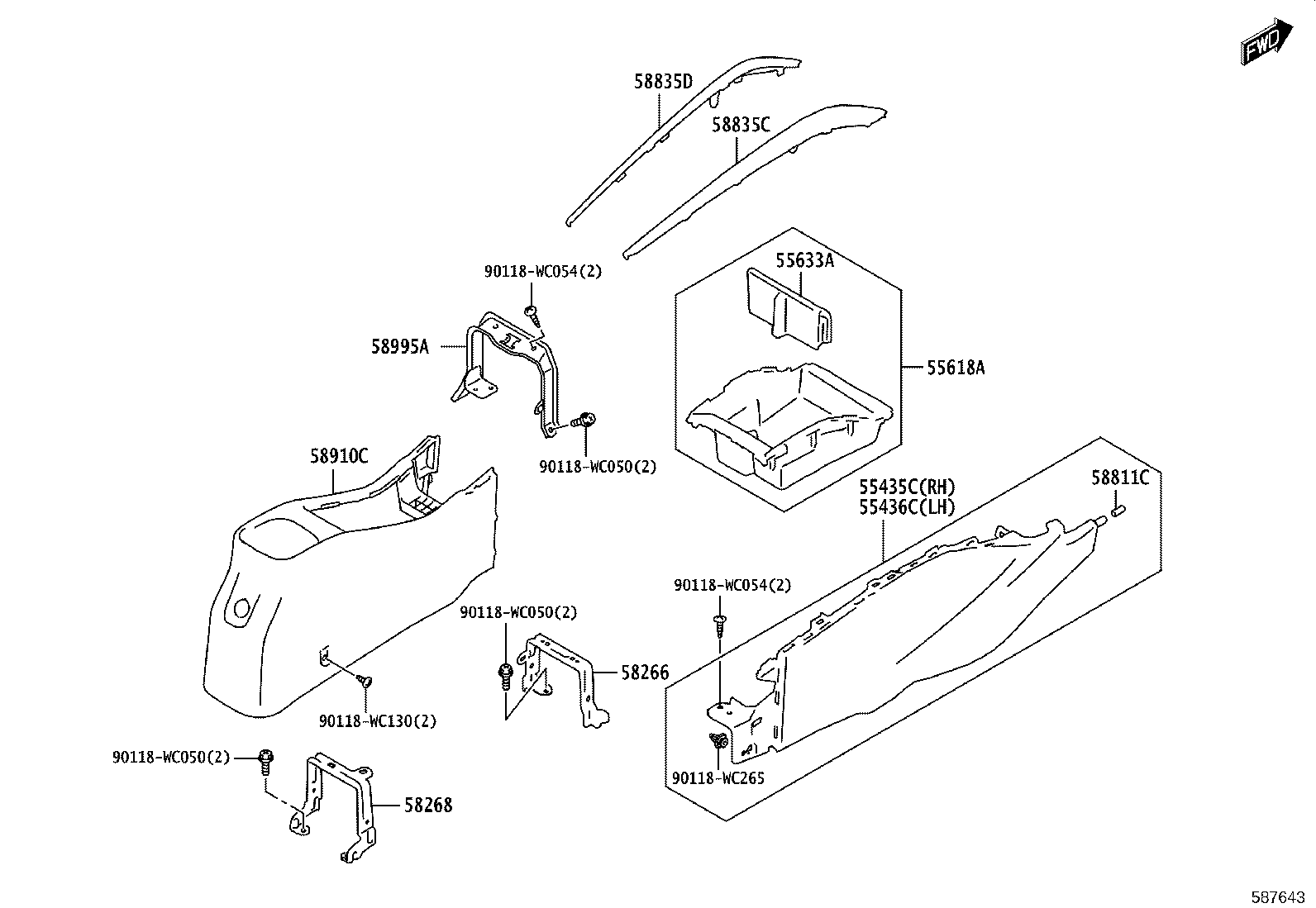

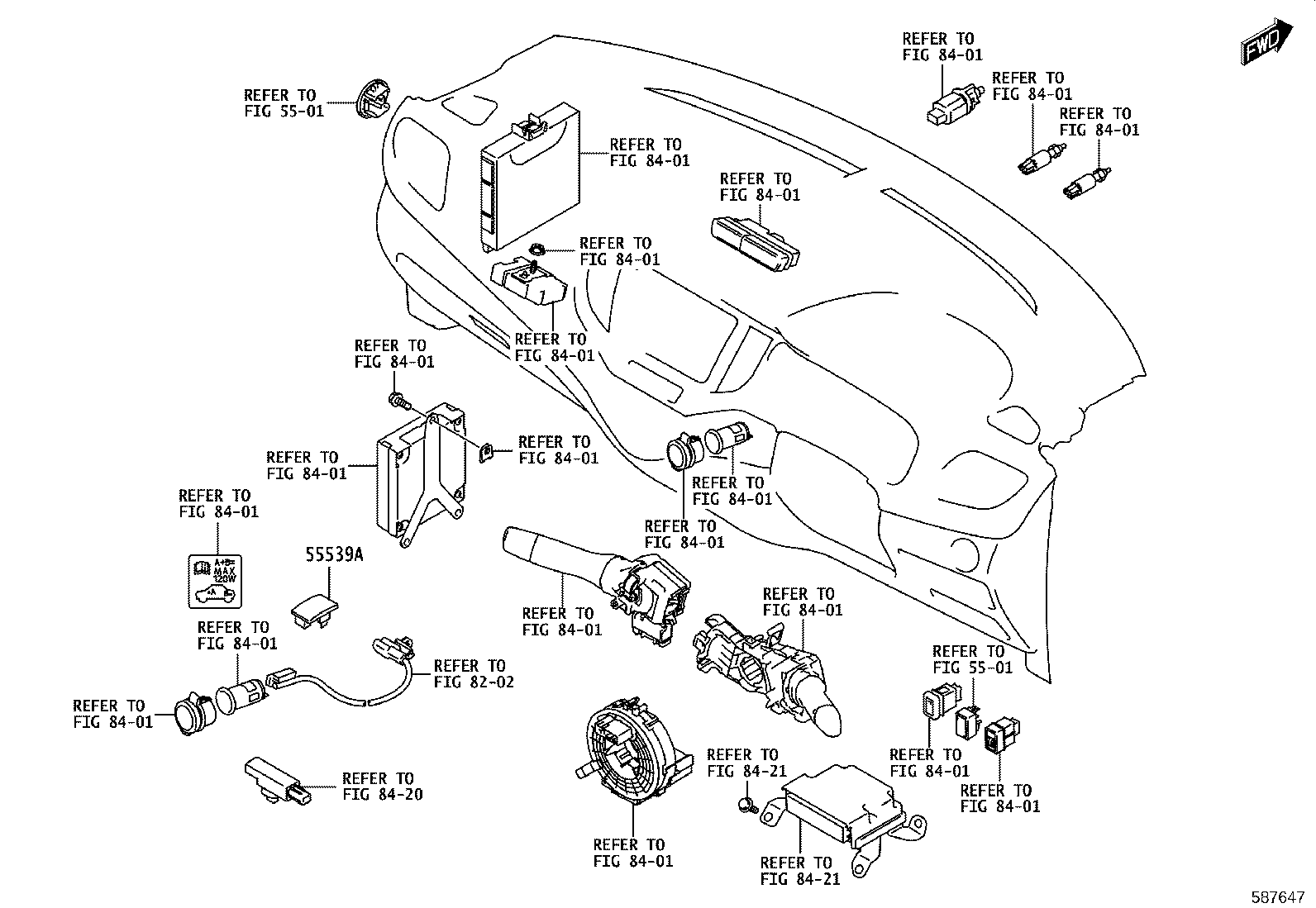

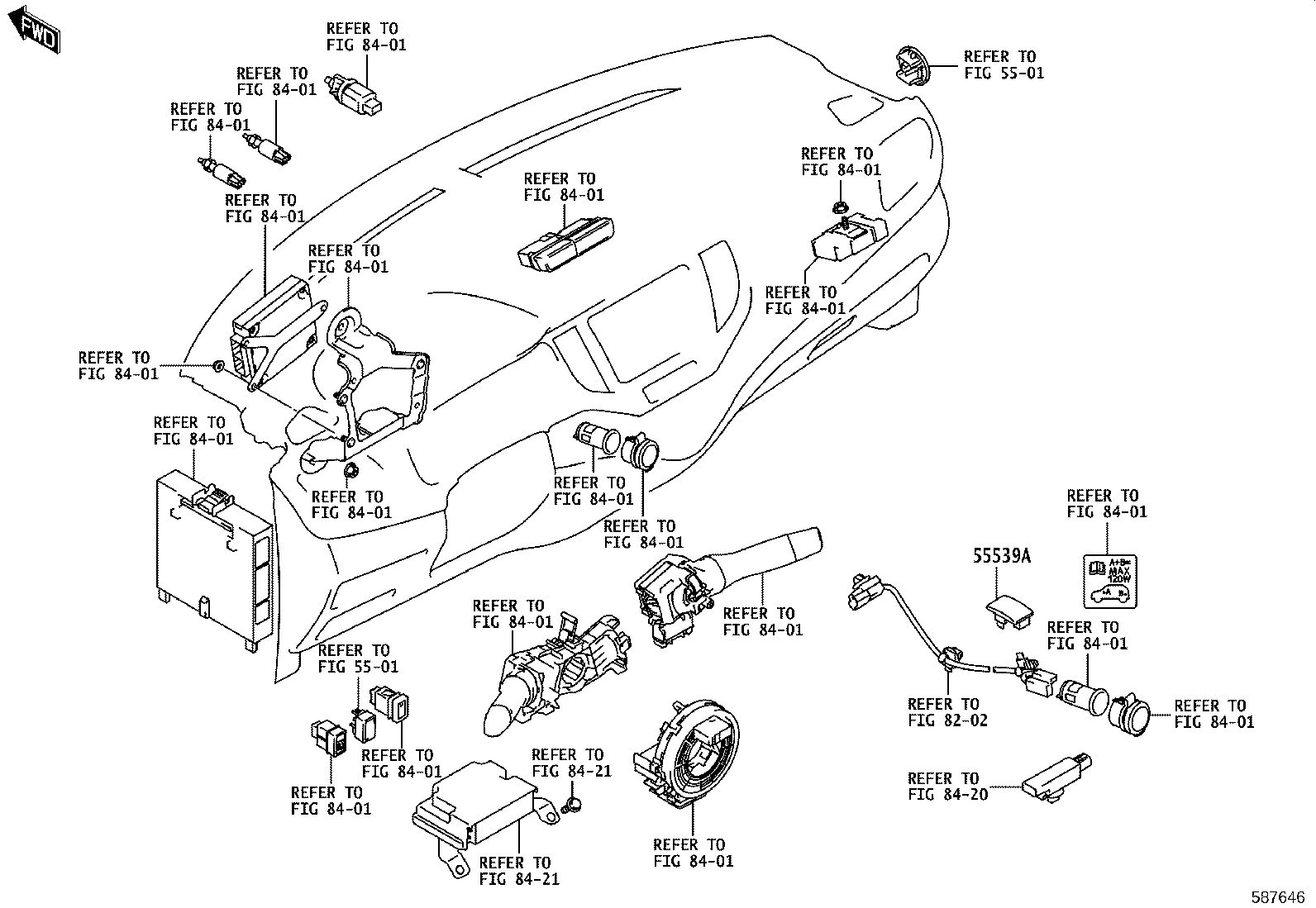

Figure 587642 587642 2020-07 → — Figure 587643 587643 2020-07 → — Figure 587644 587644 2020-07 → — Figure 587645 587645 2020-07 → — Figure 587646 587646 2020-07 → — Figure 587647 587647 2020-07 → —

Part groups

PNCDescription
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
55539A Cover, Spare Switch Hole
55618A Holder, Console Box Cup
55633A Support, Instrument Panel Cup Holder, NO.1
58266 Bracket, Console Box Support, Front
58268 Bracket, Console Box Support, Rear
58804A Panel Sub-assy, Console, Upper
58811C Cap(FOR CONSOLE)
58835C Ornament, Console Box
58835D Ornament, Console Box, NO.2
58910C Box Assy, Console, Rear
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
