Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

9 part groups · 3 illustrations

Illustrations

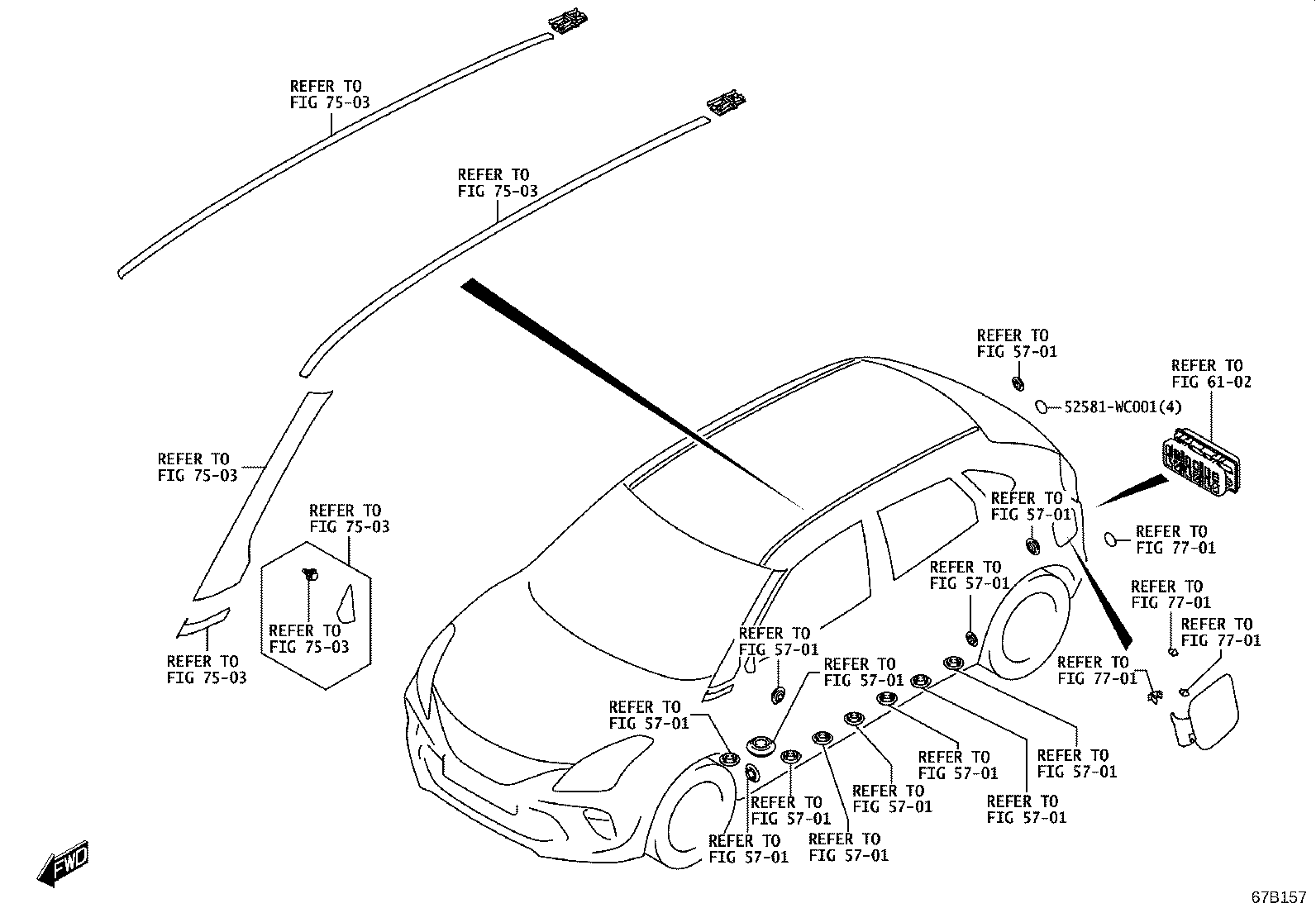

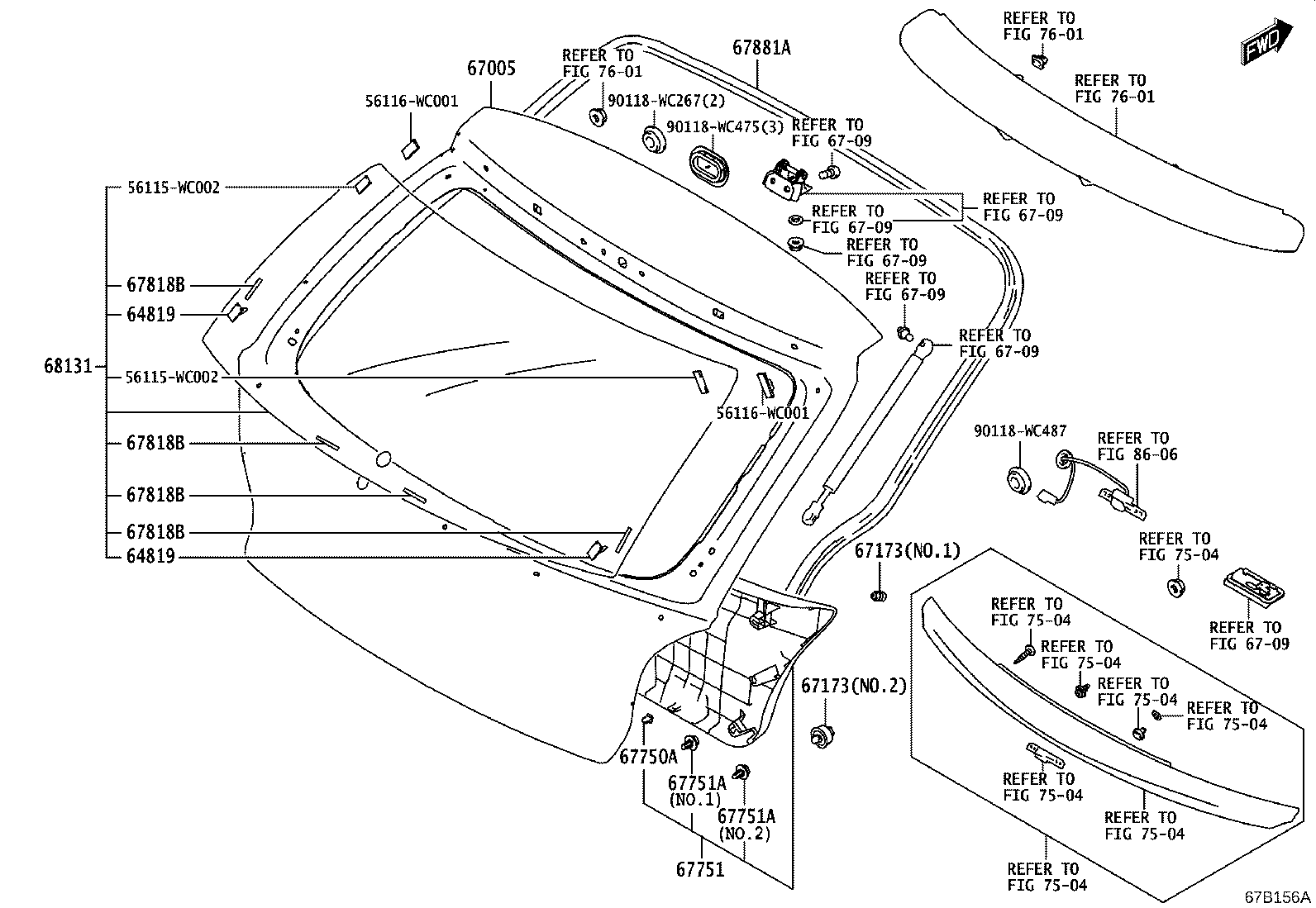

Figure 67B155 67B155 2020-07 → — Figure 67B156A 67B156A 2020-07 → — Figure 67B157 67B157 2020-07 → —

Part groups

PNCDescription
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67173 Cushion, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67818B Spacer, Back Window Glass
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
