Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

8 part groups · 3 illustrations

Illustrations

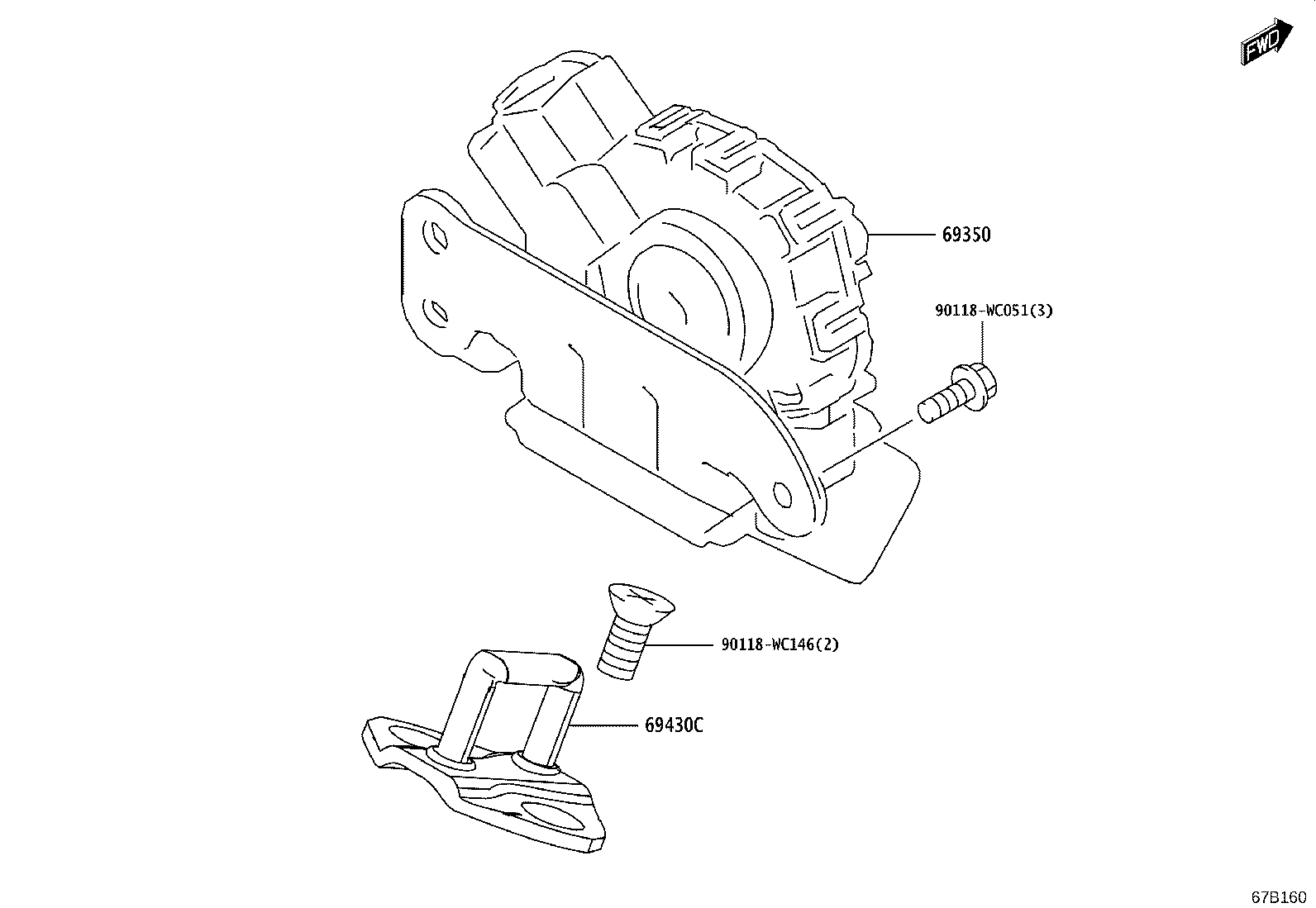

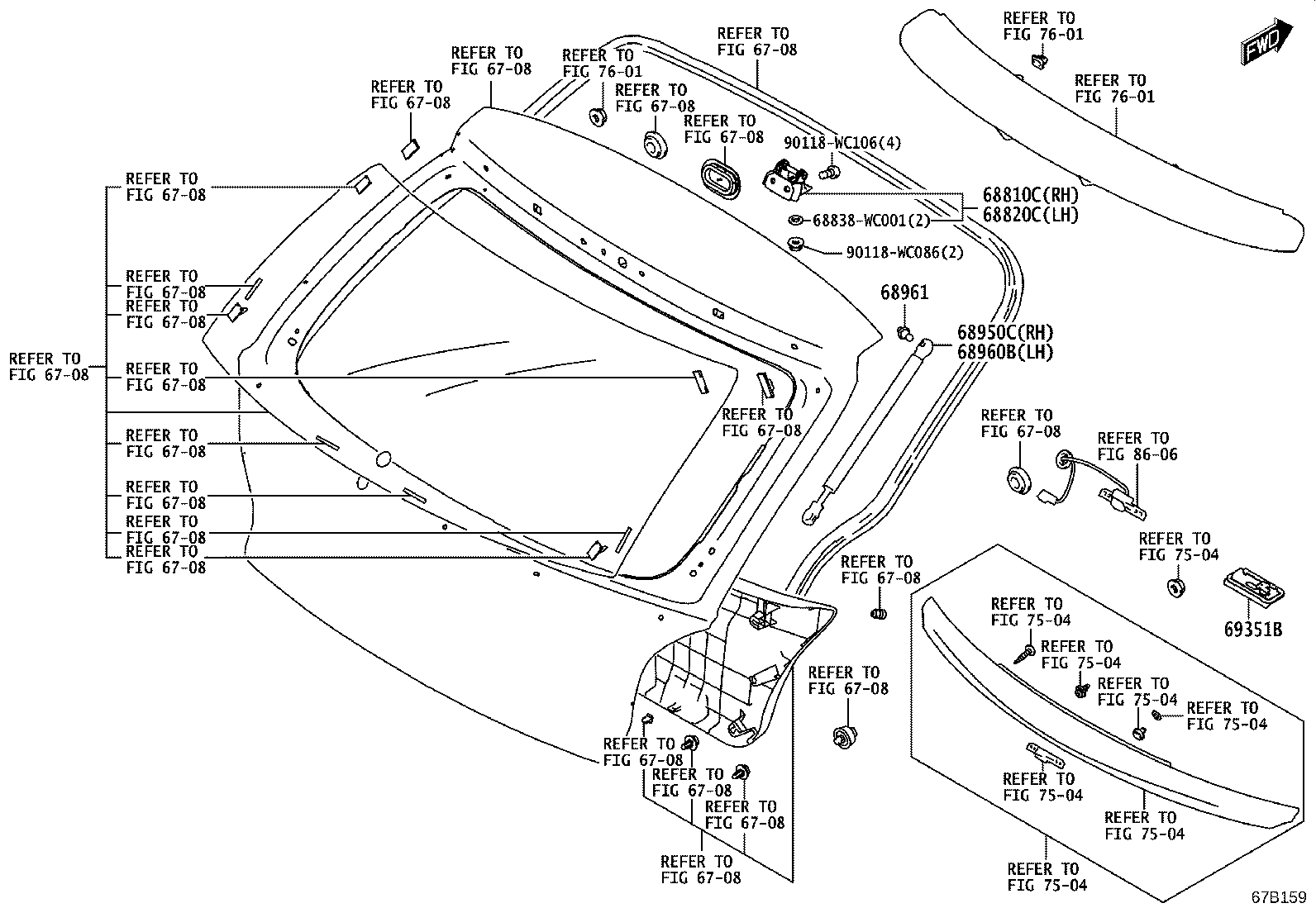

Figure 67B158 67B158 2020-07 → — Figure 67B159 67B159 2020-07 → — Figure 67B160 67B160 2020-07 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68950C Stay Assy, Back Door, RH
68960B Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
69350 Lock Assy, Back Door
69351B Holder, Back Door Switch
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
