Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

38 part groups · 8 illustrations

Illustrations

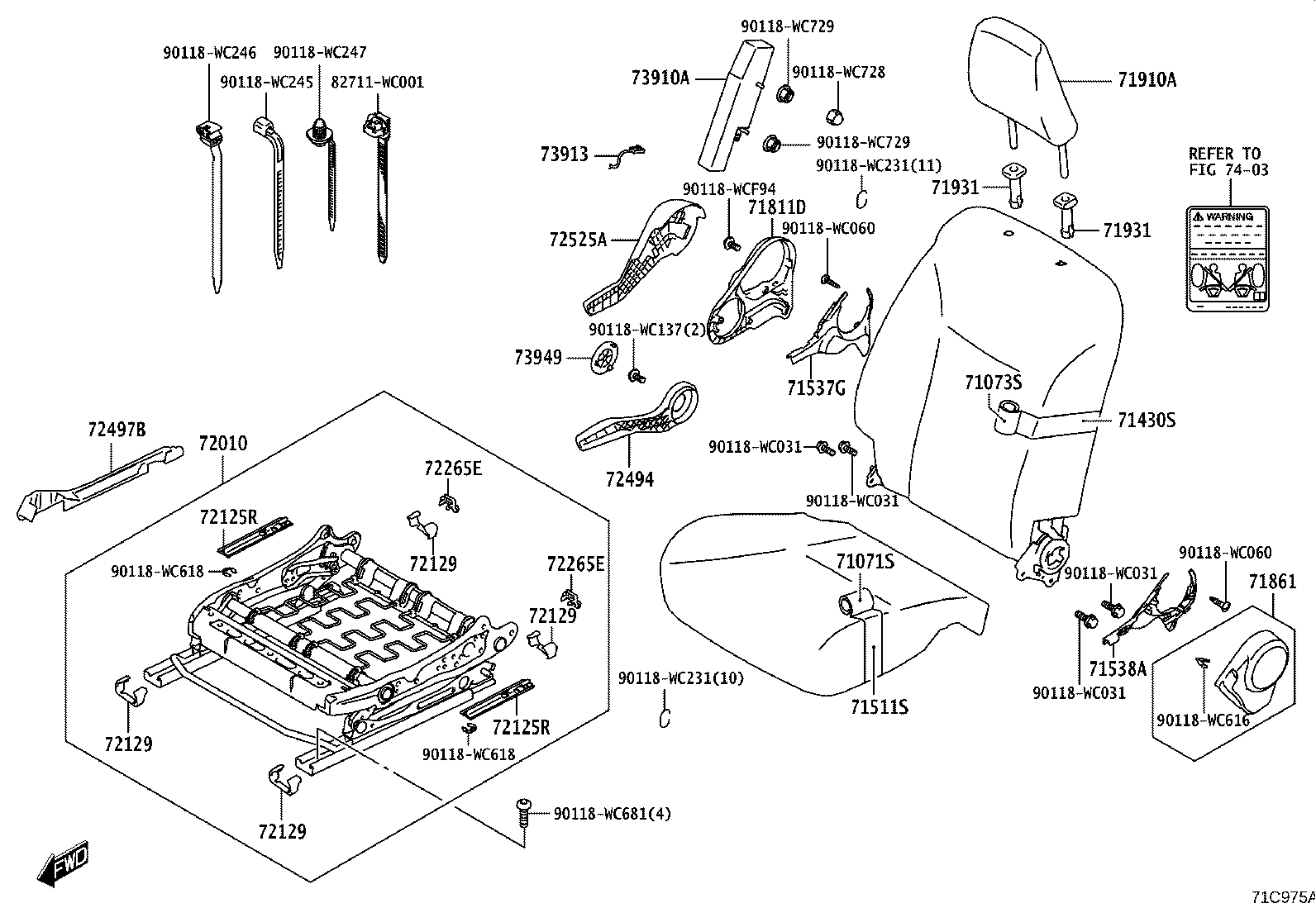

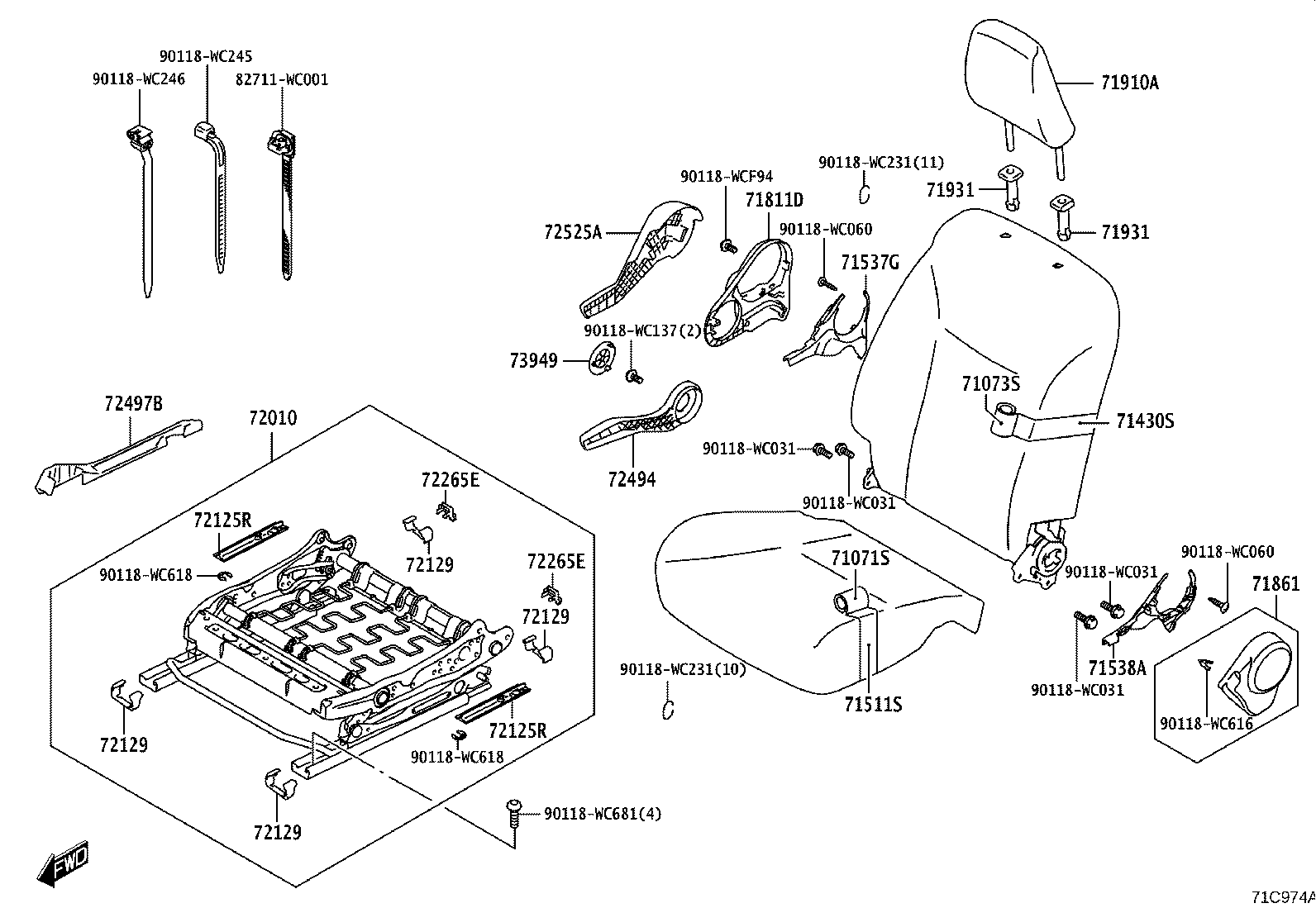

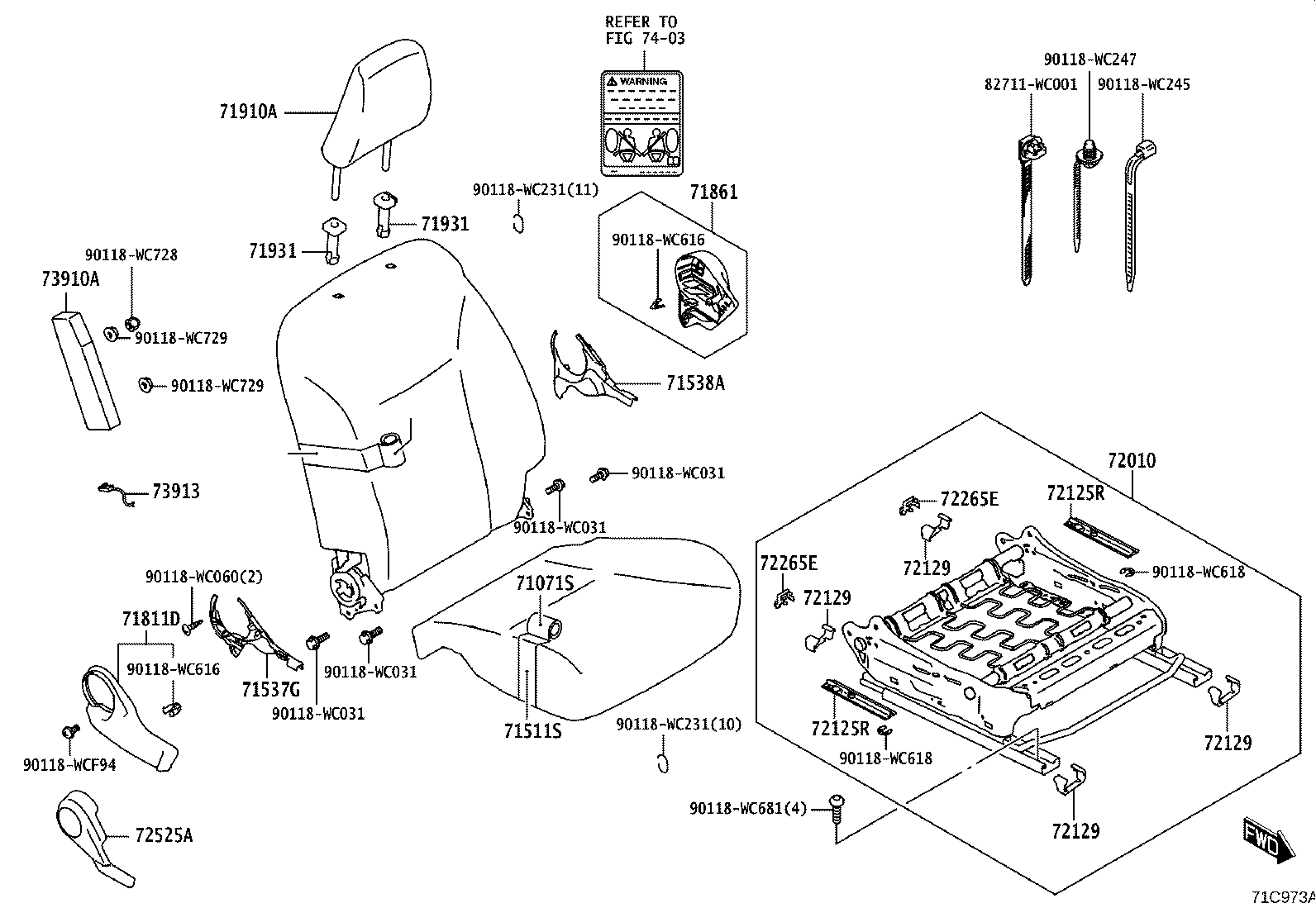

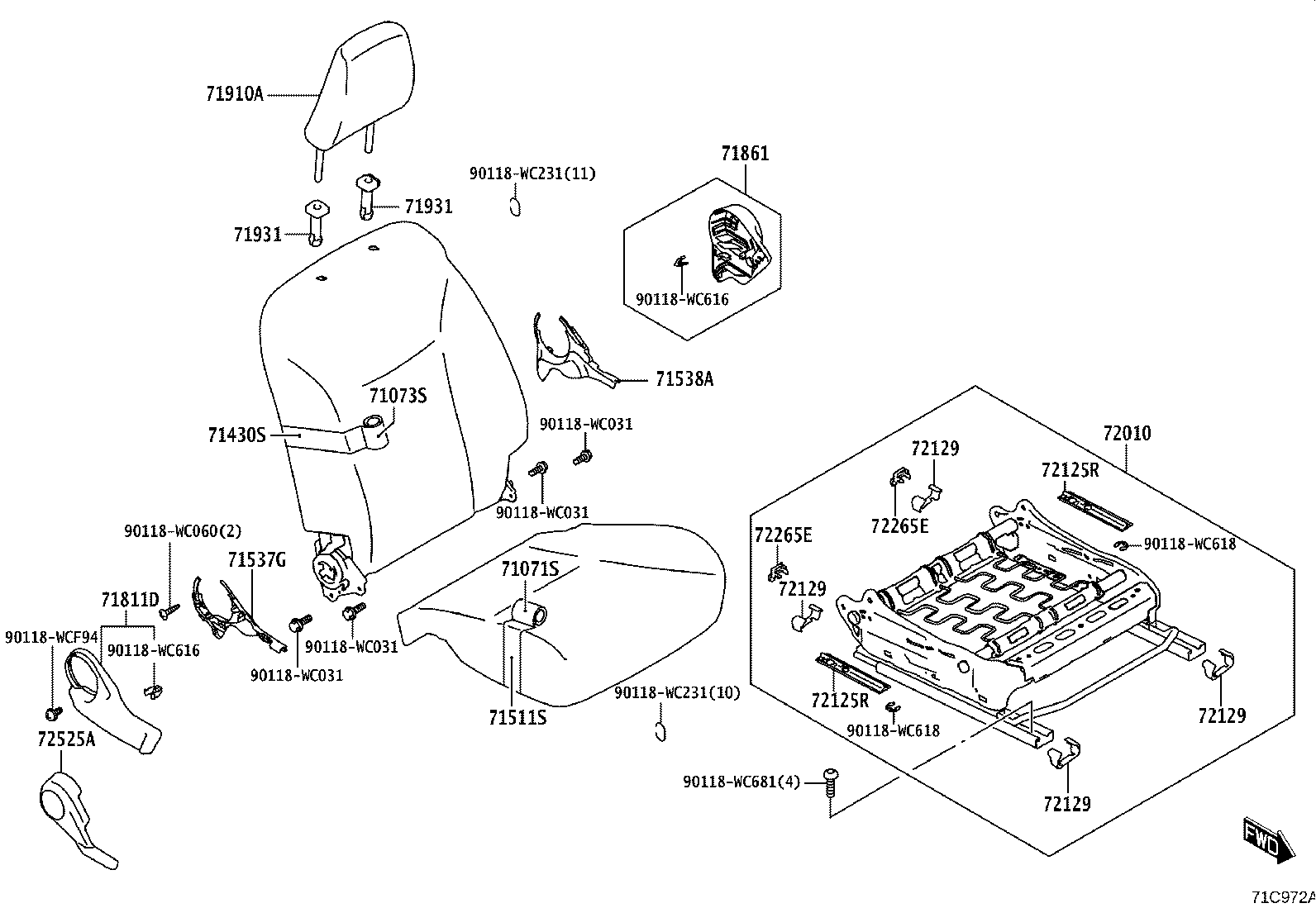

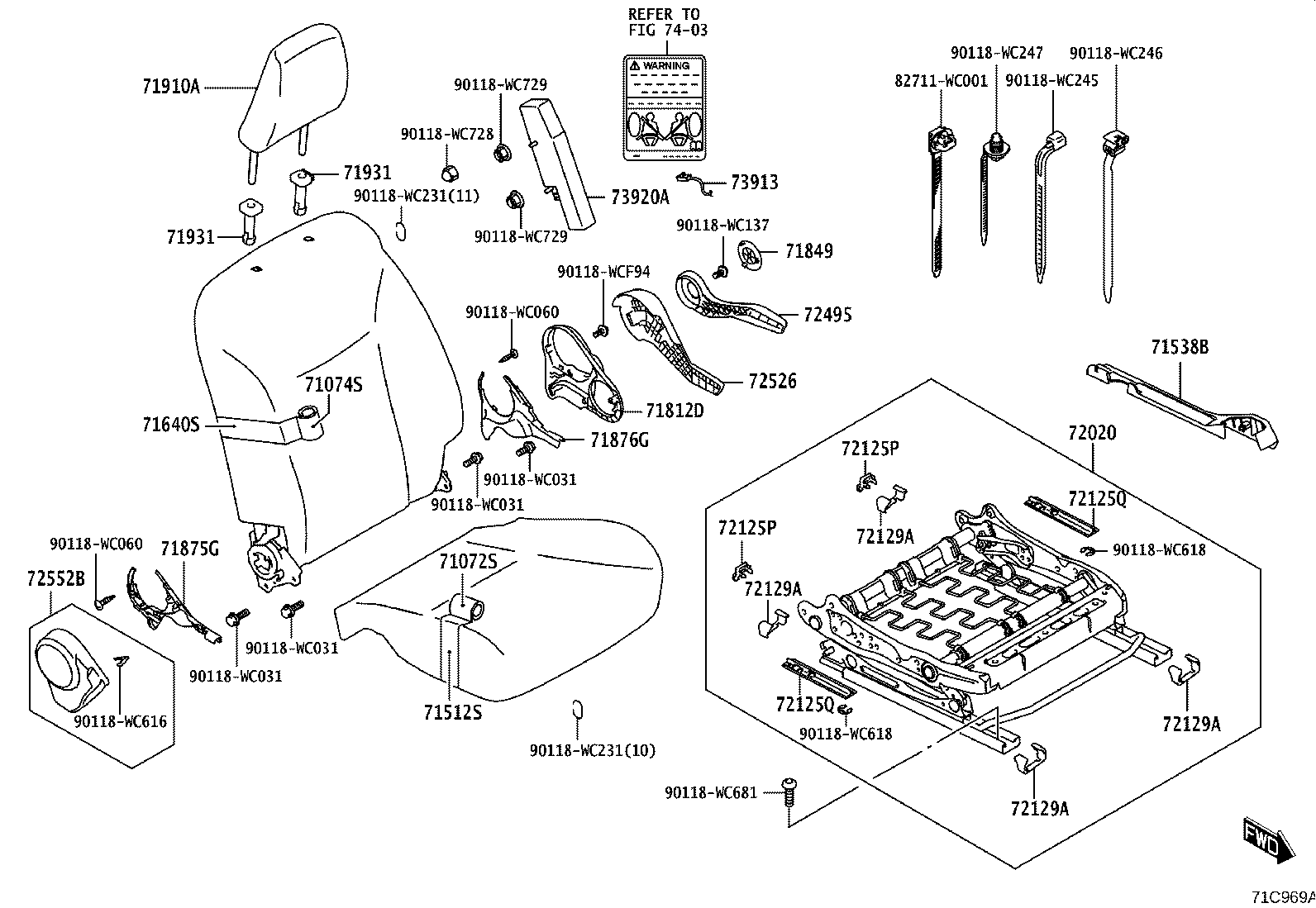

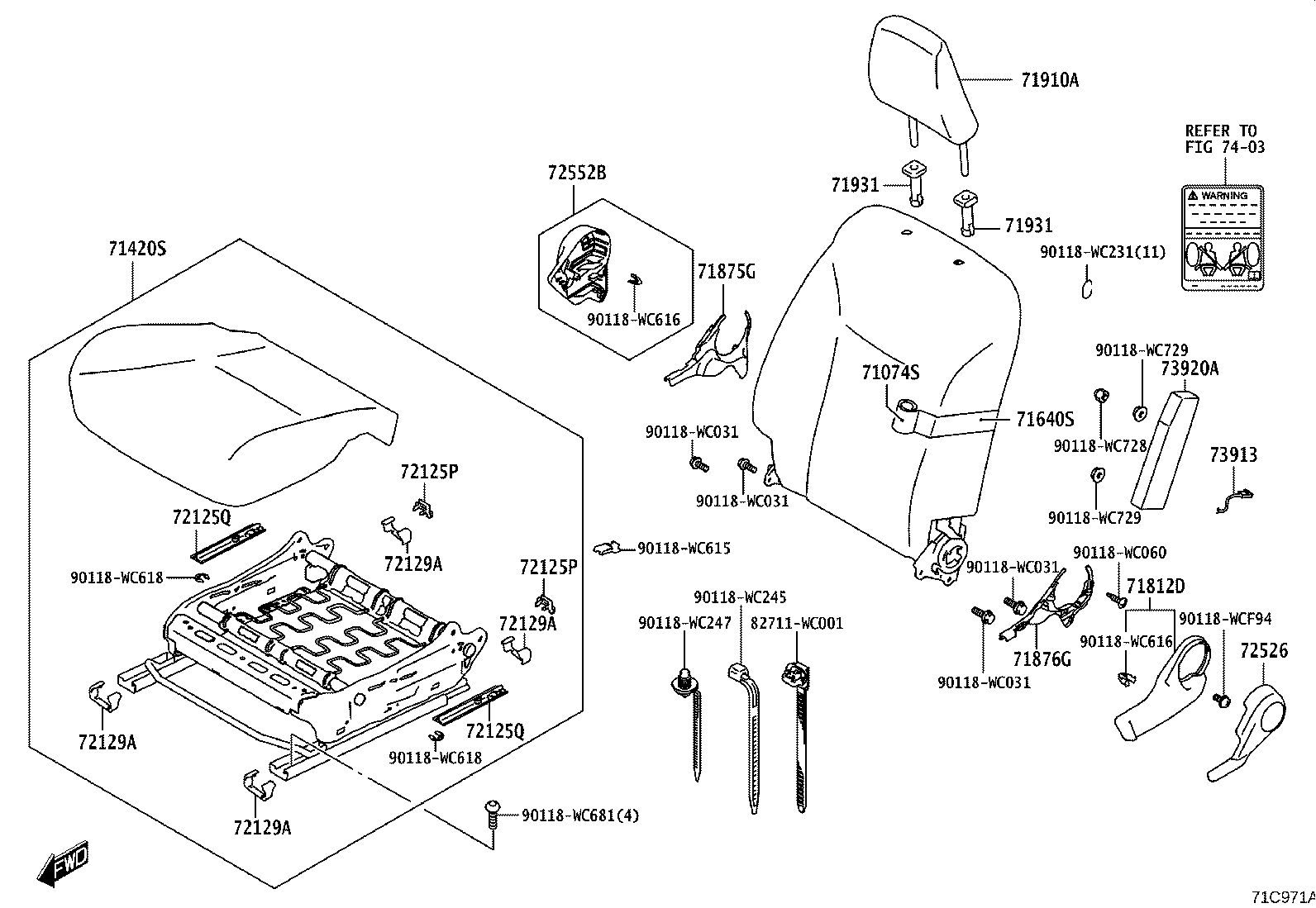

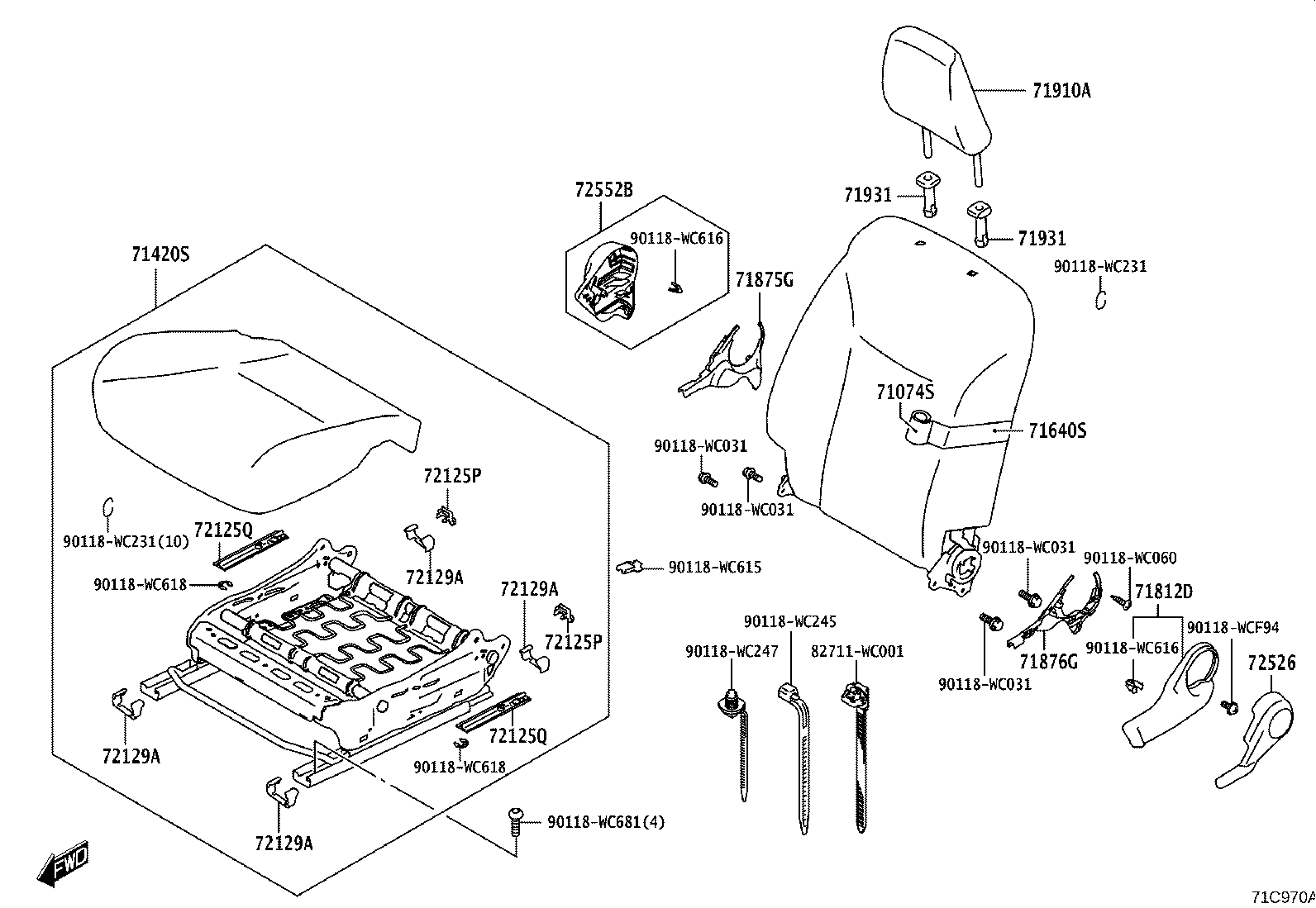

Figure 71C968B 71C968B 2020-07 → — Figure 71C969A 71C969A 2020-07 → — Figure 71C970A 71C970A 2020-07 → — Figure 71C971A 71C971A 2020-07 → — Figure 71C972A 71C972A 2020-07 → — Figure 71C973A 71C973A 2020-07 → — Figure 71C974A 71C974A 2020-07 → — Figure 71C975A 71C975A 2020-07 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537G Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538A Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71640S Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72125P Cover, Seat Track, Upper Rear NO.3
72125Q Cover, Seat Track, Upper Rear NO.4
72125R Cover, Seat Track, Upper Rear NO.1
72129 Protector, Seat Track Lower Rail, NO.1
72129A Protector, Seat Track Lower Rail, NO.2
72265E Cover, Seat Track Upper Rail, RH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72497B Cover, Vertical Adjuster Bracket, RH
72525A Handle, Reclining Adjuster Release, RH
72526 Handle, Reclining Adjuster Release, LH
72552B Cover, Reclining Hinge, LH
73910A Airbag Assy, Front Seat, RH
73913 Wire, Seat Airbag
73920A Airbag Assy, Front Seat, LH
73949 Cap
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
