Toyota Starlet
2020-07 → present · chassis K14B# · catalogue 133310 · General
Supported model
Data version 2020-07

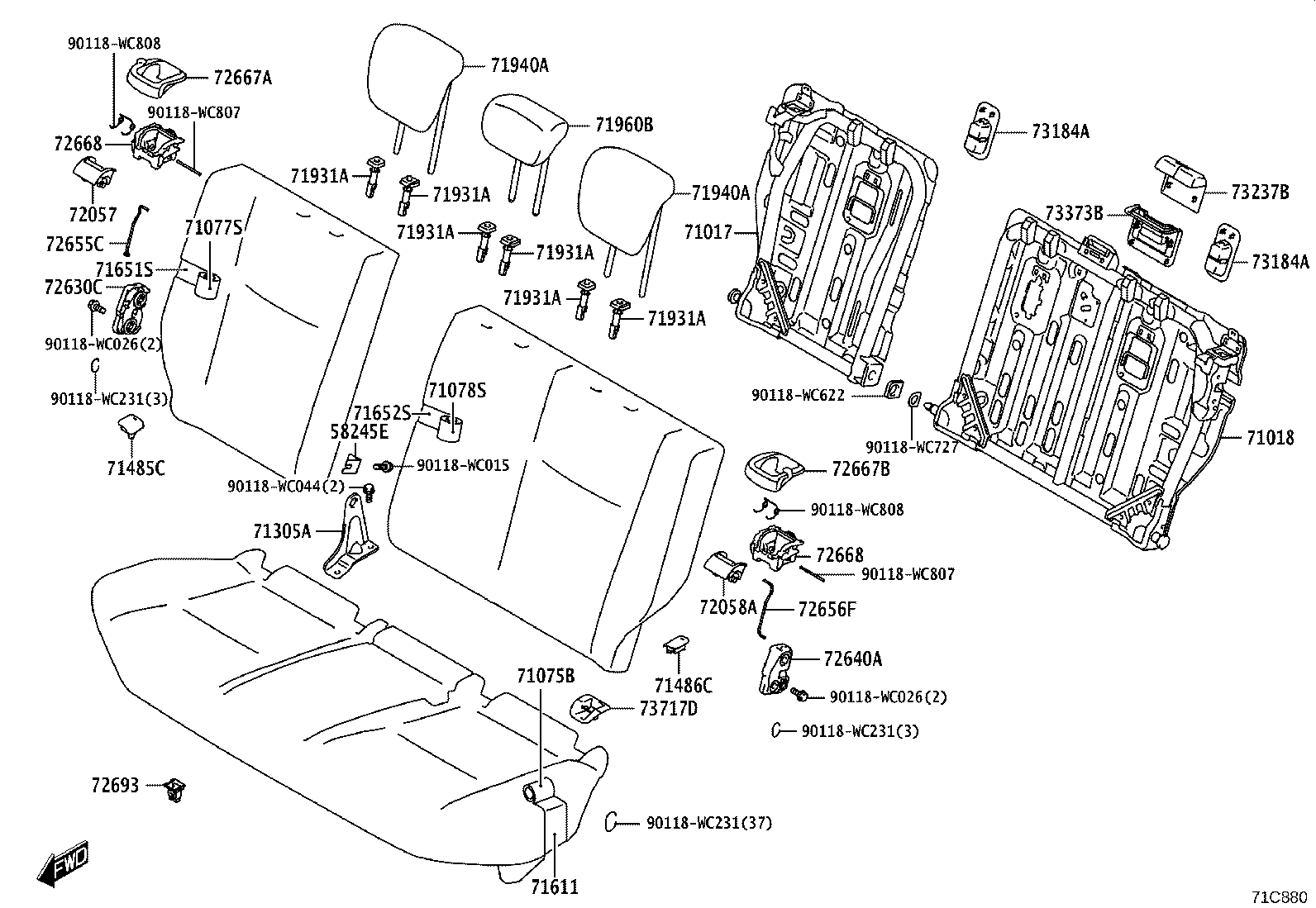

Rear Seat & Seat Track
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58245E | Bracket, Rear Seat Hinge, Center NO,1 |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71485C | Cover, Rear Seat Hinge, RH |
| 71486C | Cover, Rear Seat Hinge, LH |
| 71611 | Pad, Rear Seat Cushion |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72057 | Lever Sub-assy, Rear Seat Lock Control, RH |
| 72058A | Lever Sub-assy, Rear Seat Lock Control, LH |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72655C | Link, Rear Seatback Lock Control, NO.1 RH |
| 72656F | Link, Rear Seatback Lock Control, NO.1 LH |
| 72661C | Button, Rear Seatback Lock Release |
| 72667A | Bezel, Rear Seatback Lock, Upper RH |
| 72667B | Bezel, Rear Seatback Lock, Upper LH |
| 72668 | Bar, Rear Seat Cushion Lock Striker |
| 72693 | Hook, Rear Seat Cushion Lock |
| 73184A | Cover, Child Restraint Seat Tether Anchor |
| 73237B | Cover, Shoulder Belt Anchor |
| 73373B | Cover, Rear NO.1 Seat Shoulder Belt |
| 73717D | Cover, Child Restraint Seat Tether Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
