Factory parts data · Europe

Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

3 part groups · 2 illustrations

Illustrations

745286 2020-07 → —

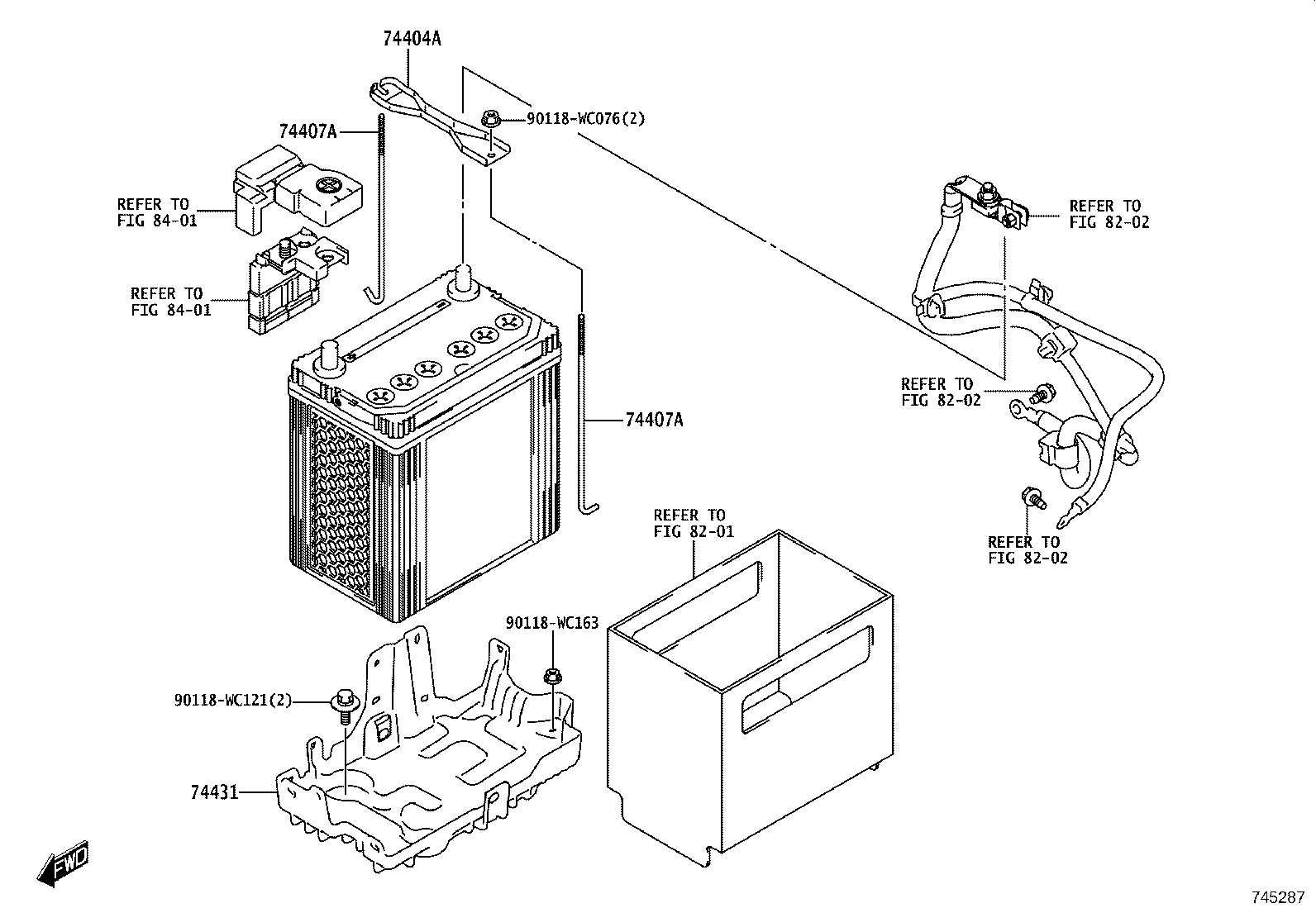

745287 2020-07 → —

Part groups

PNC	Description
74404A	Clamp Sub-assy, Battery
74407A	Bolt Sub-assy, Battery Clamp
74431	Tray, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
