Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

15 part groups · 8 illustrations

Illustrations

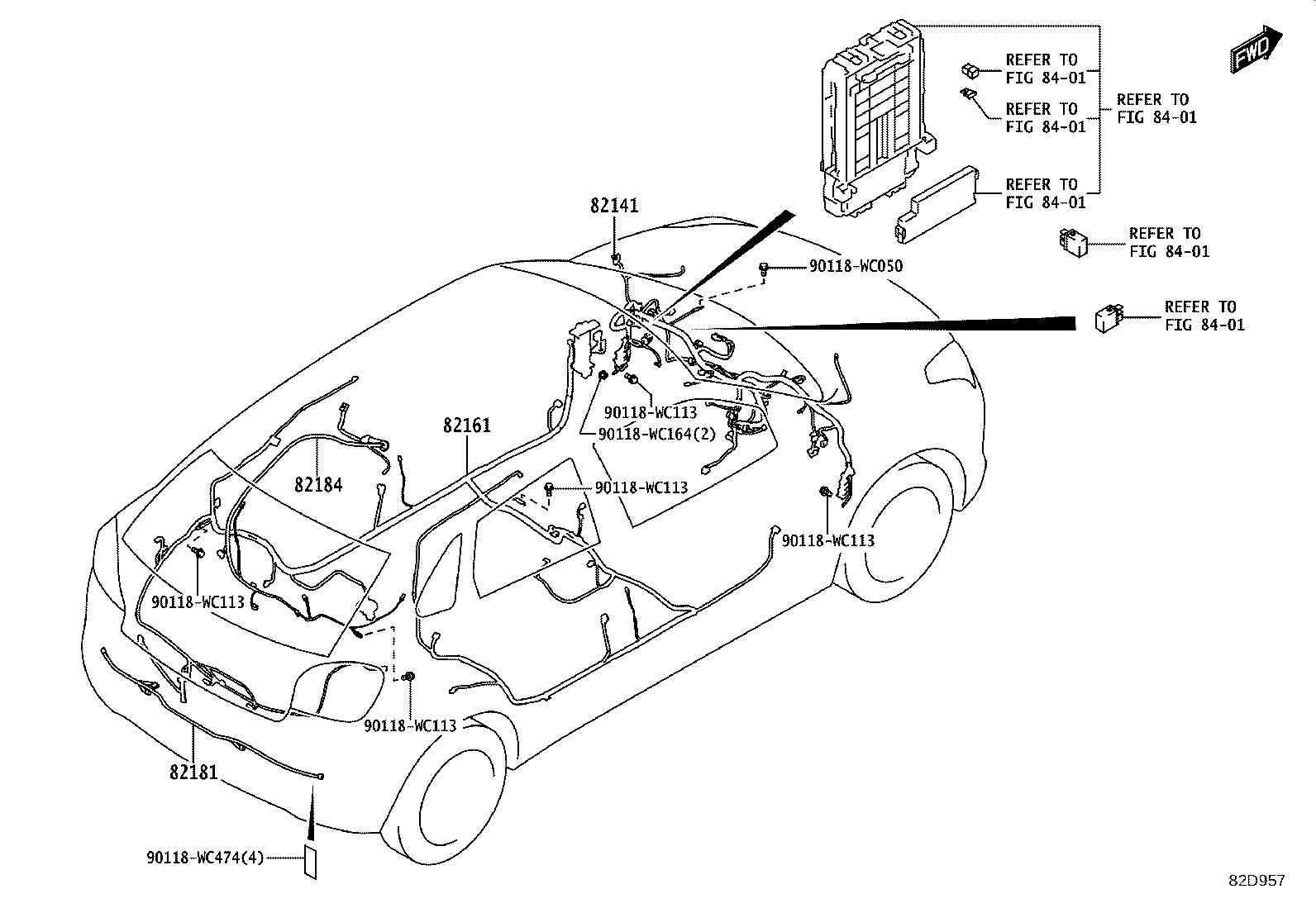

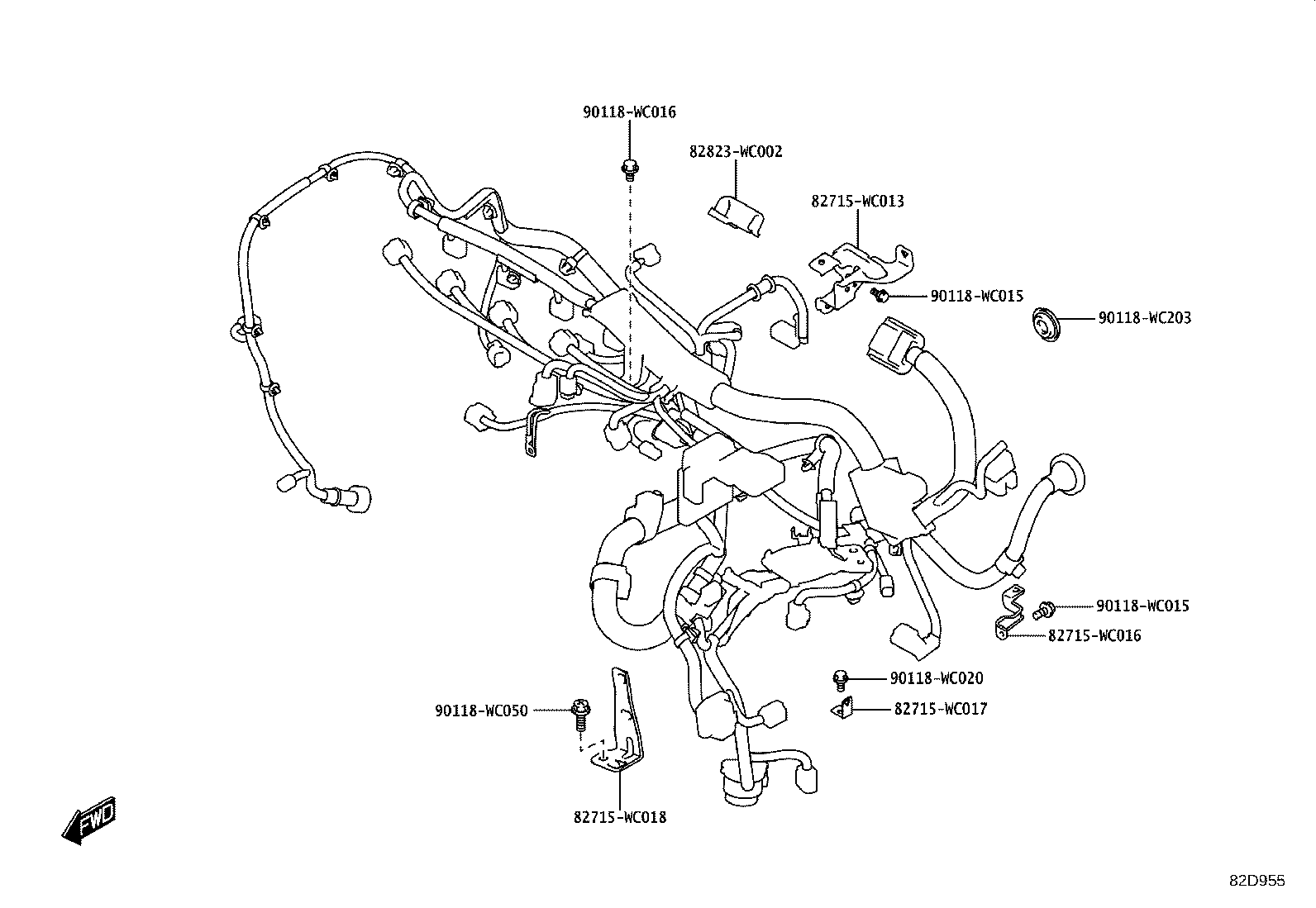

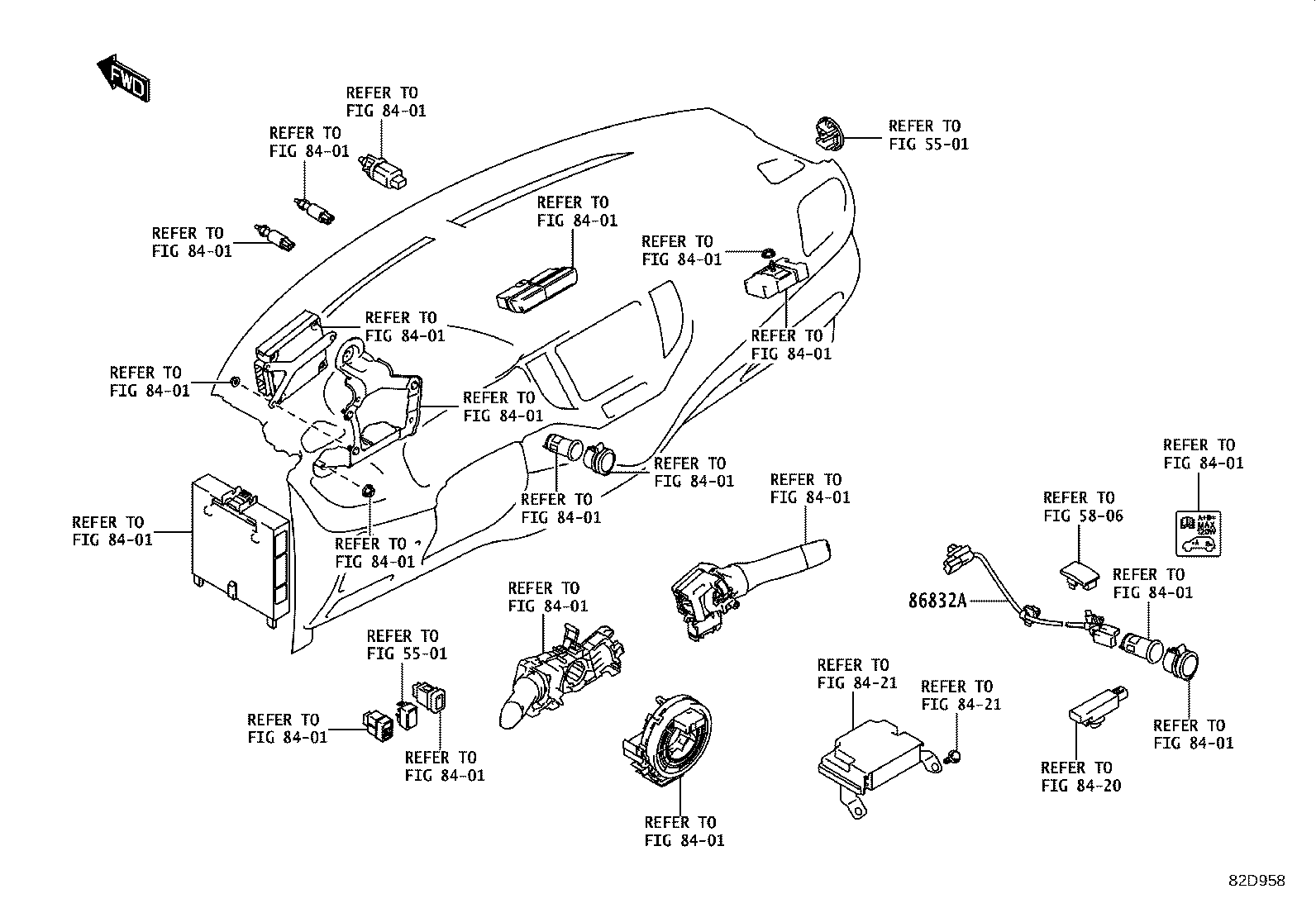

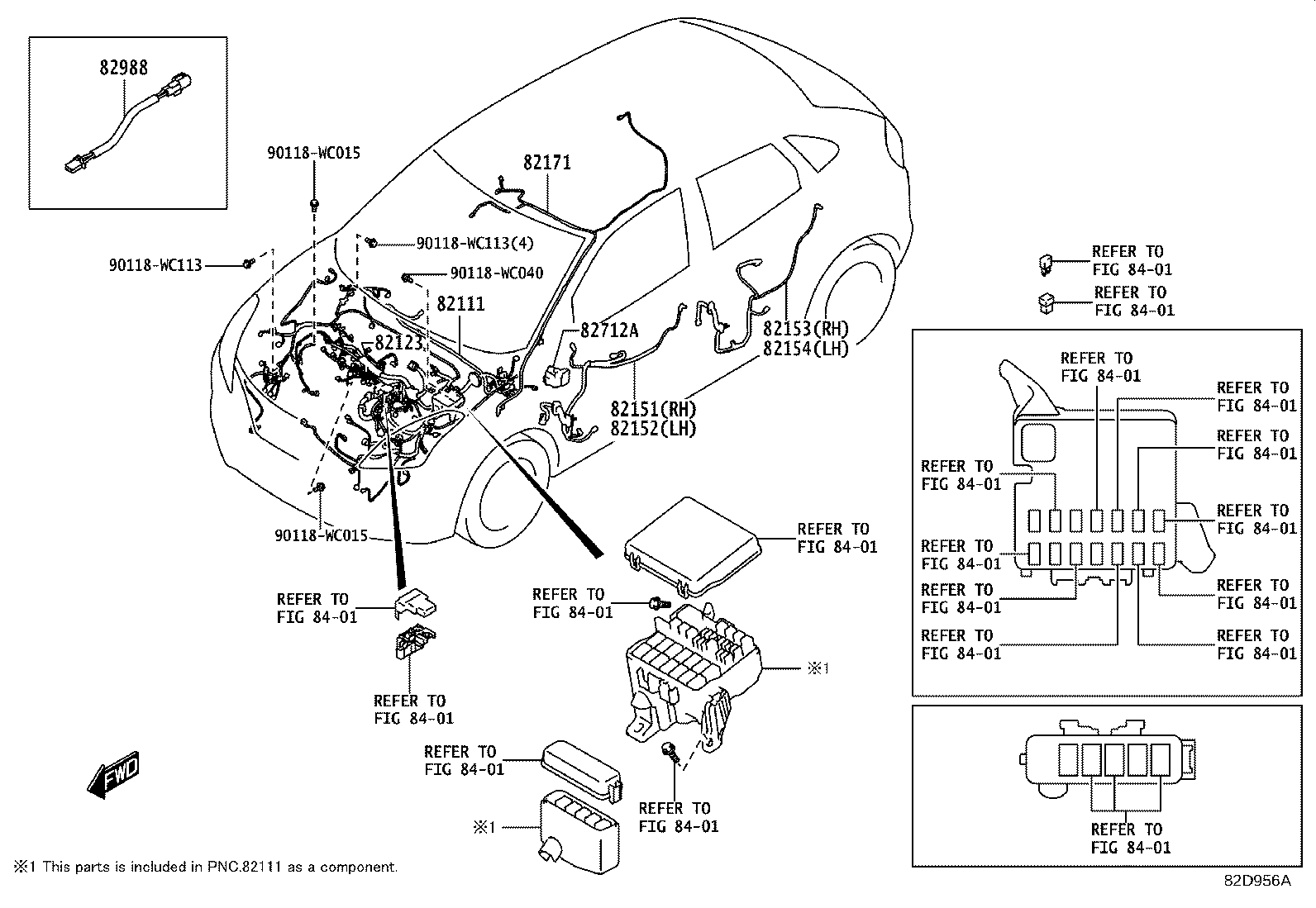

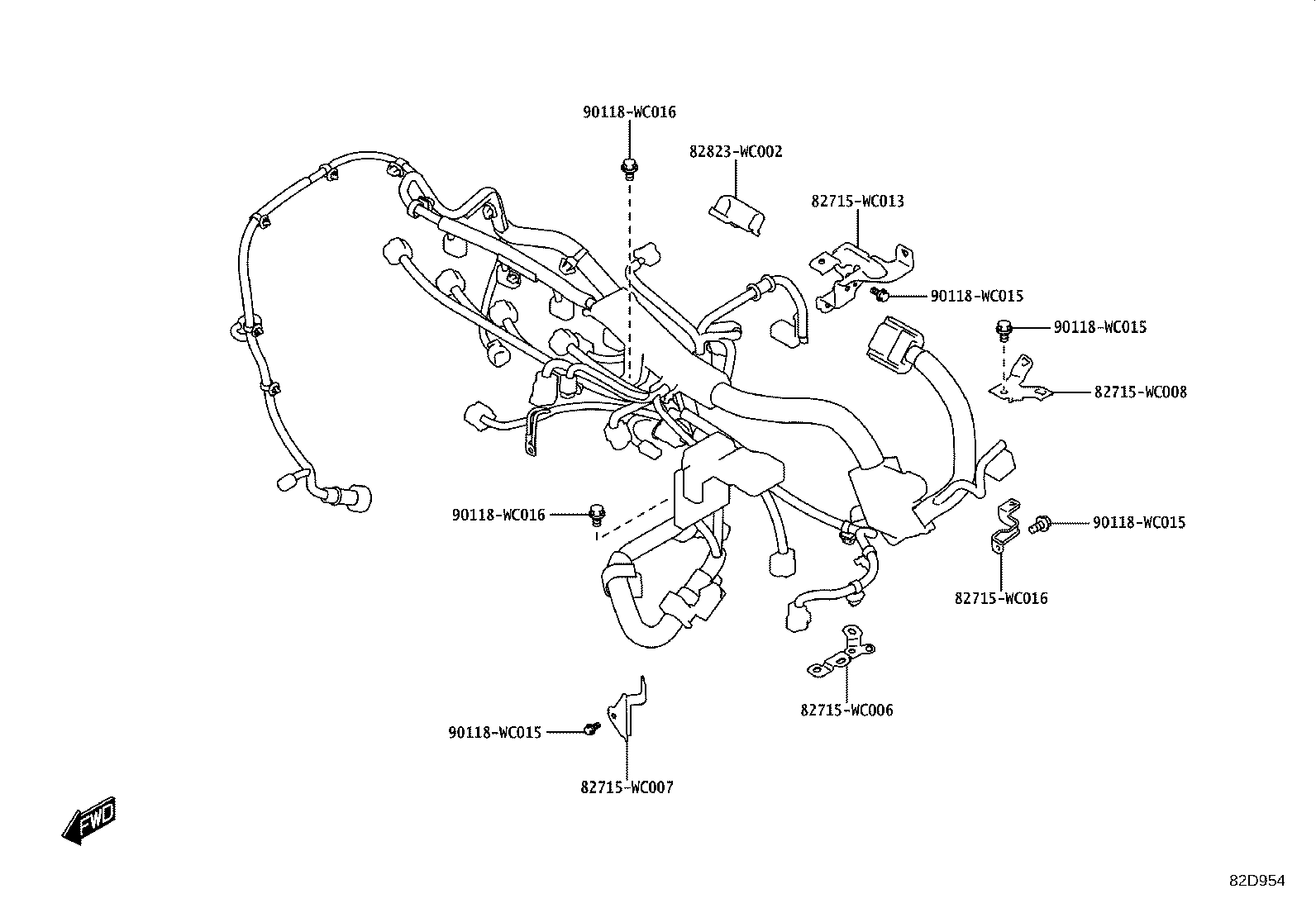

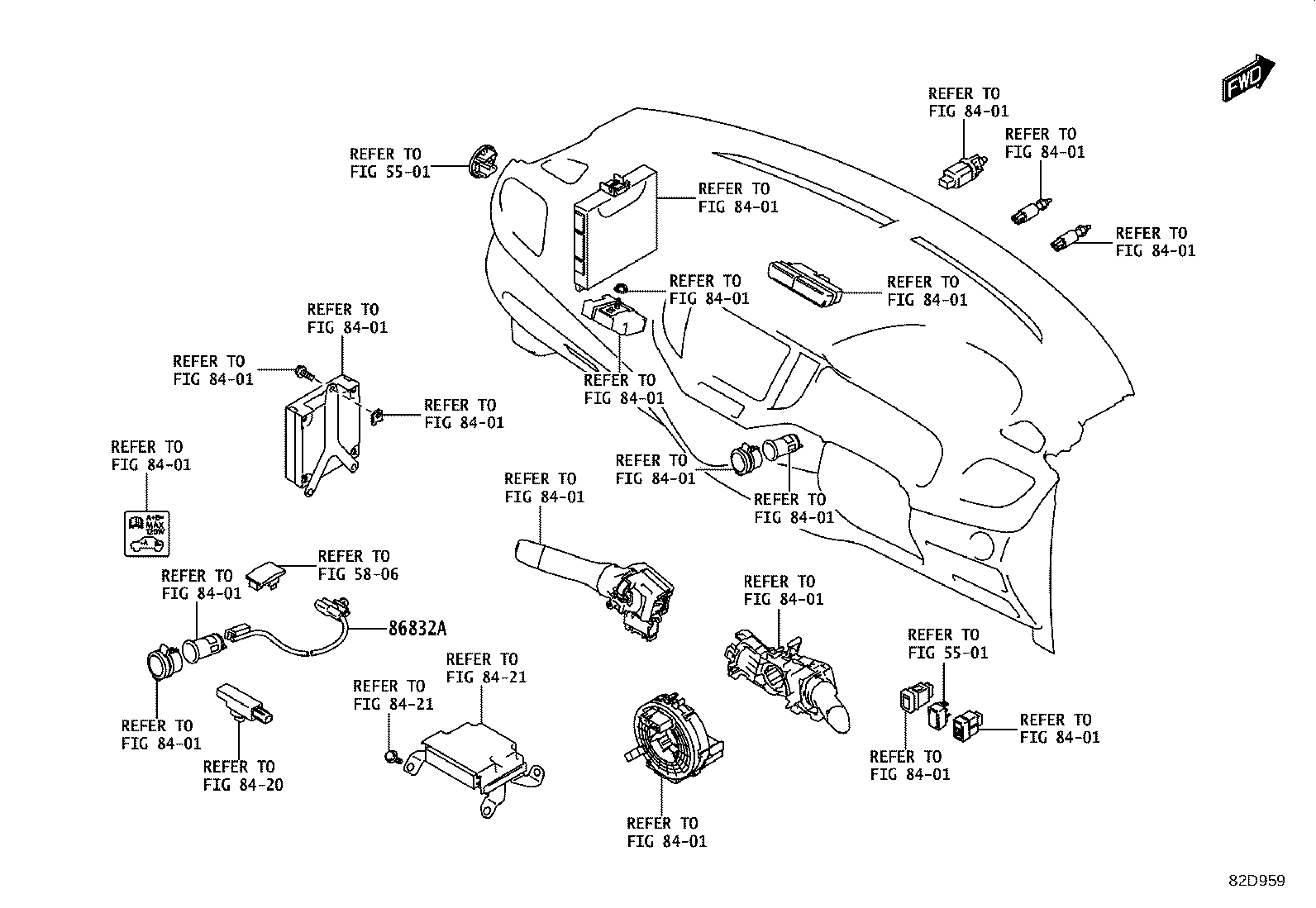

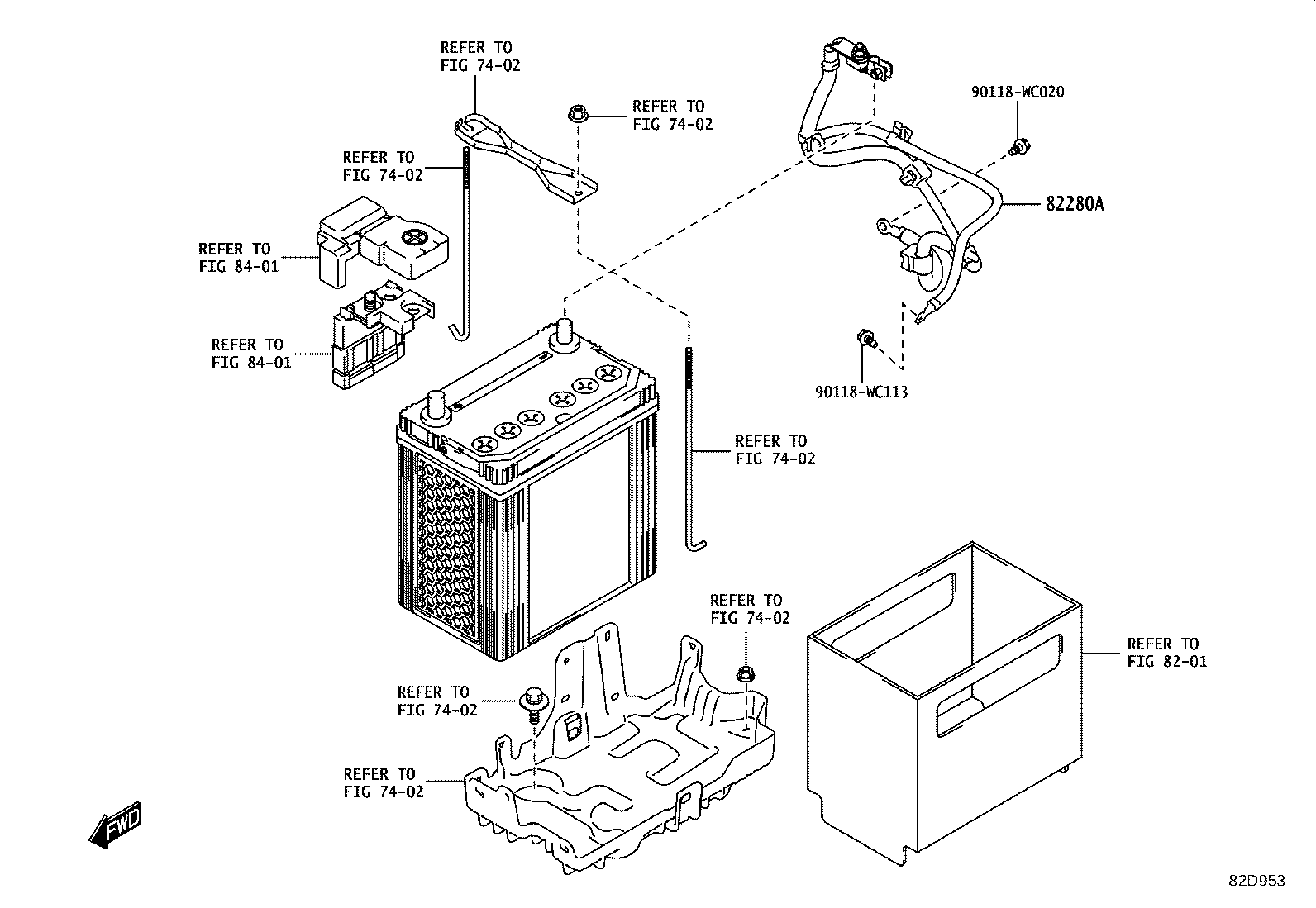

Figure 82D952 82D952 2020-07 → — Figure 82D953 82D953 2020-07 → — Figure 82D954 82D954 2020-07 → — Figure 82D955 82D955 2020-07 → — Figure 82D956A 82D956A 2020-07 → — Figure 82D957 82D957 2020-07 → — Figure 82D958 82D958 2020-07 → — Figure 82D959 82D959 2020-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82280A Wire Assy, Battery TO Cowl Top Side
82712A Support, Wiring Harness
82988 Wire, Airbag Repair
86832A Wire, Accessory Socket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
