Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

57 part groups · 24 illustrations

Illustrations

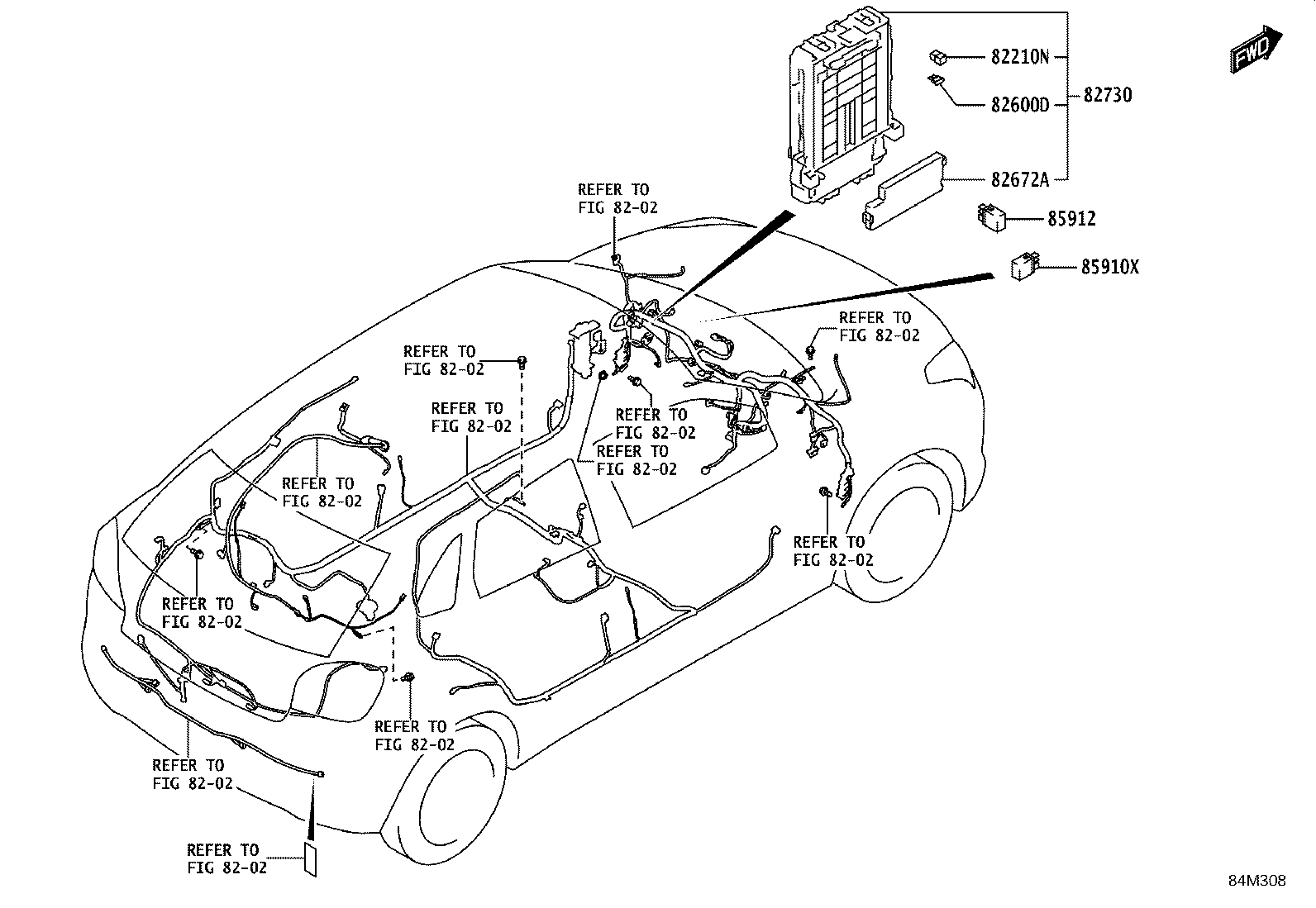

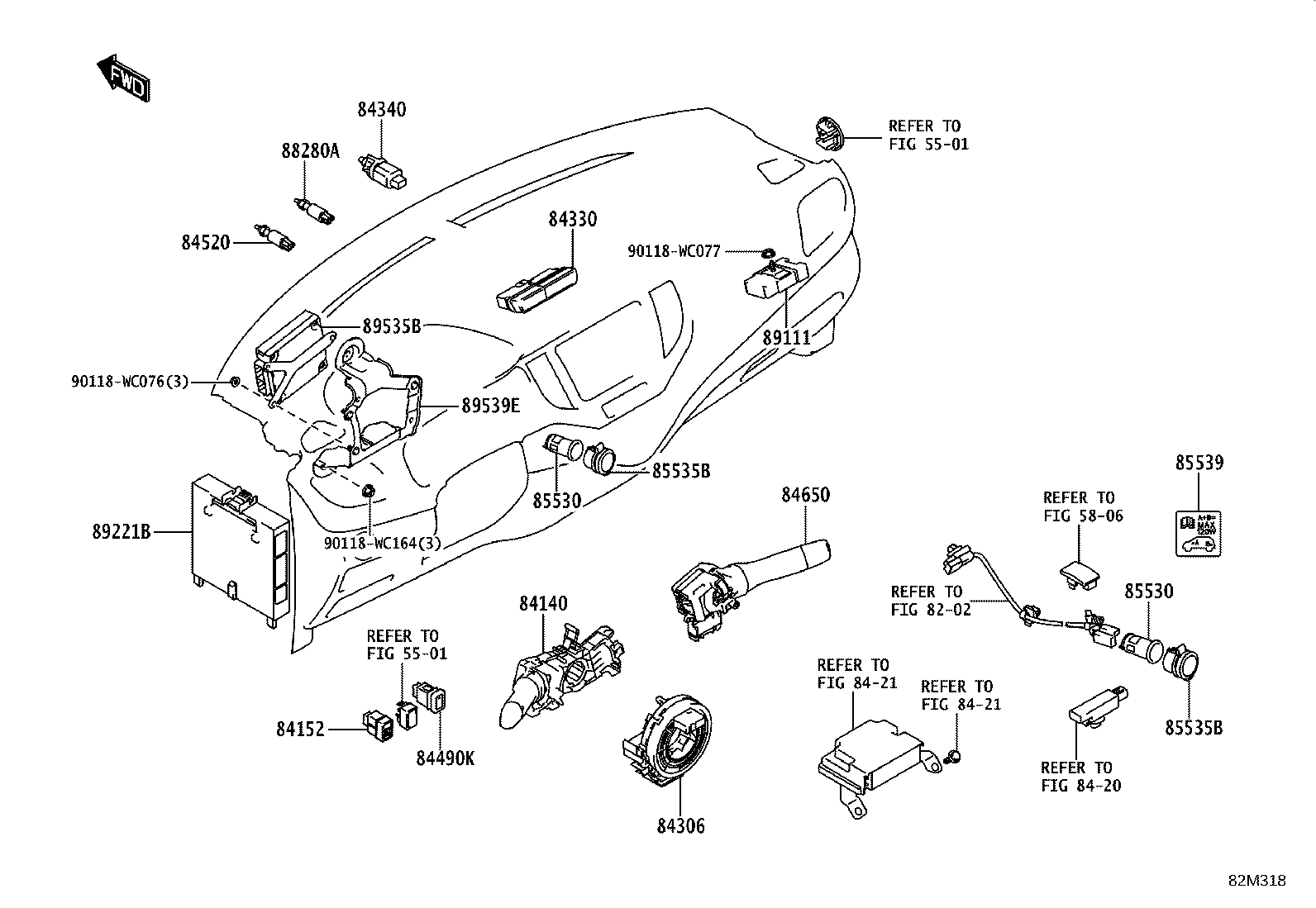

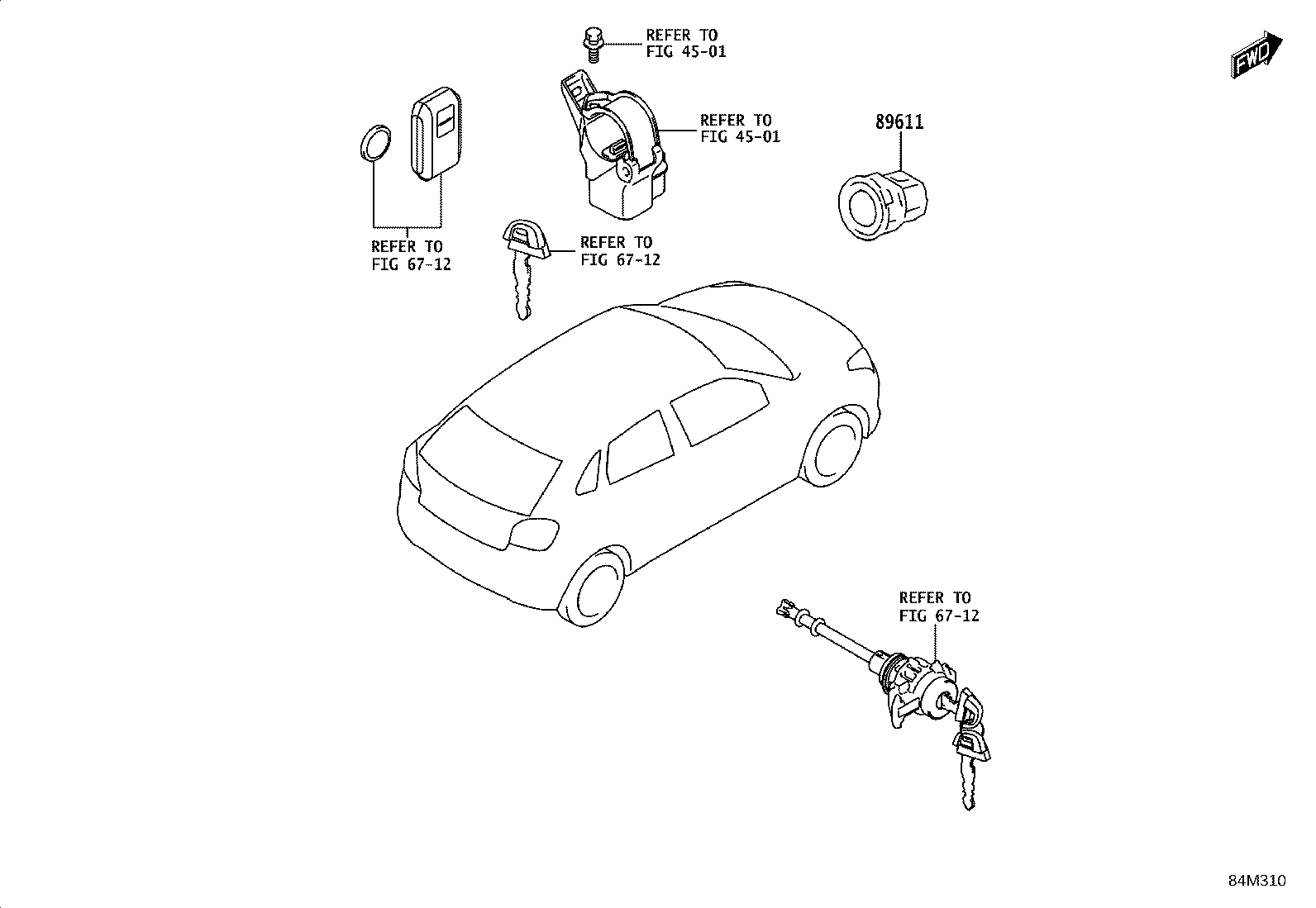

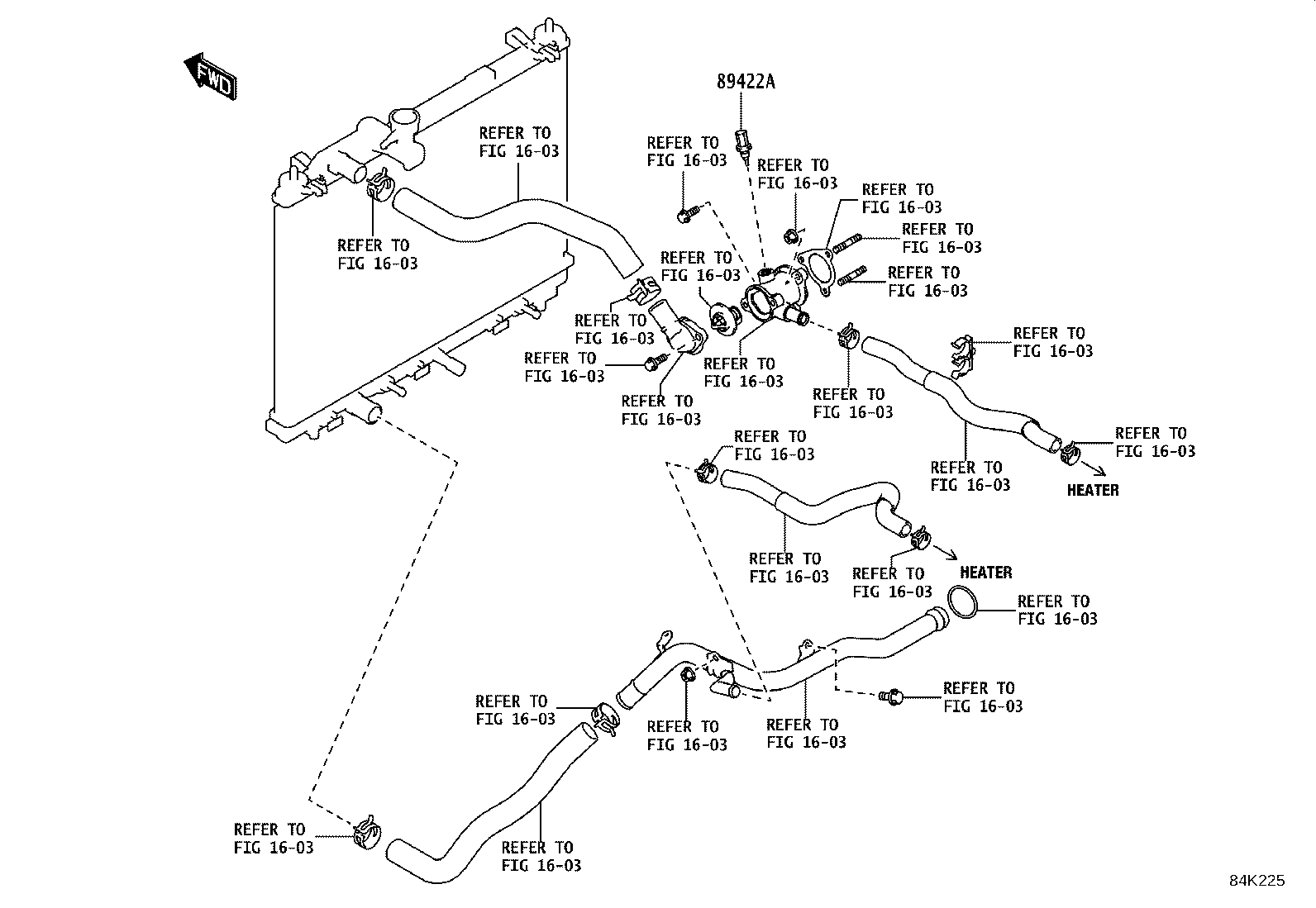

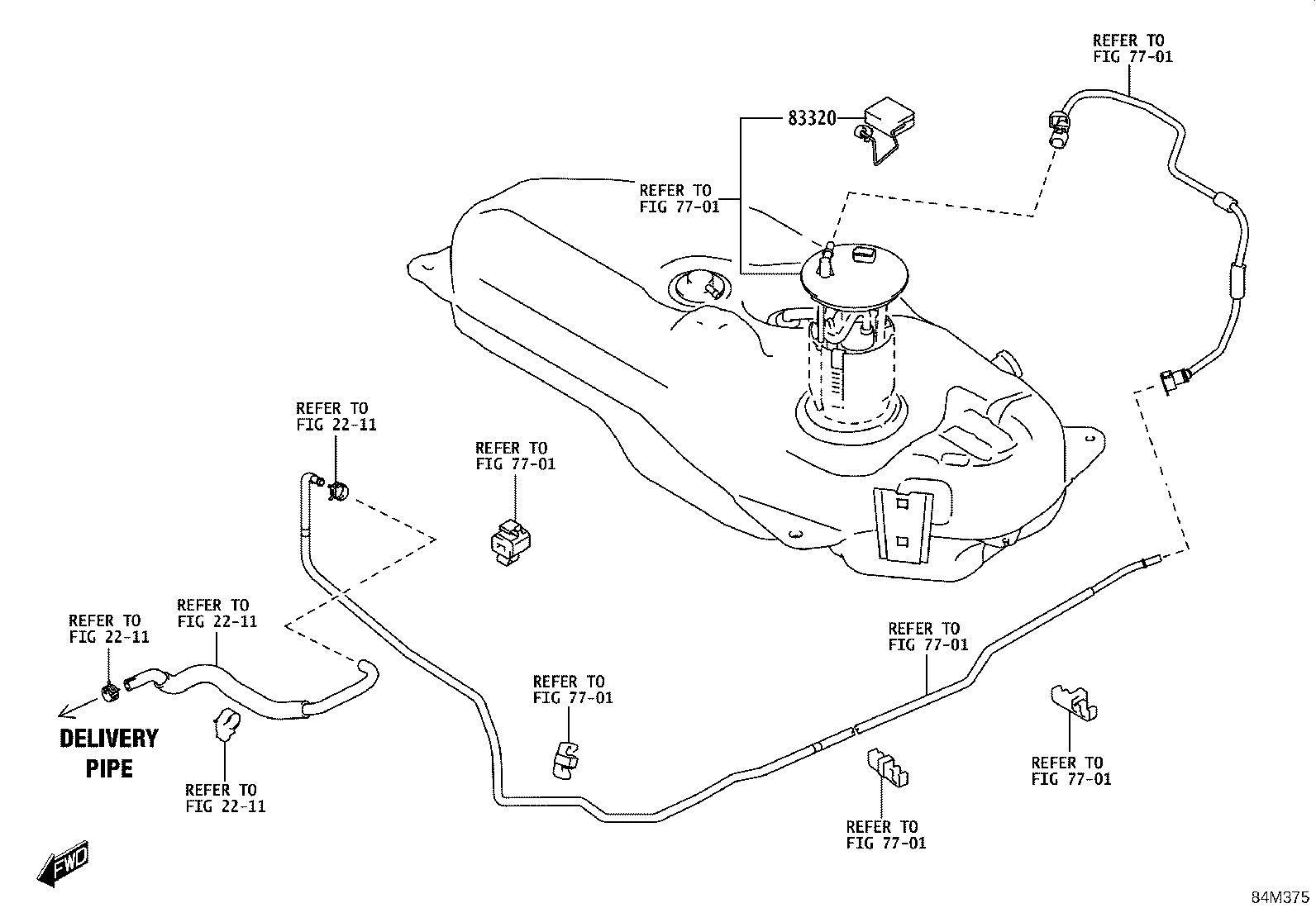

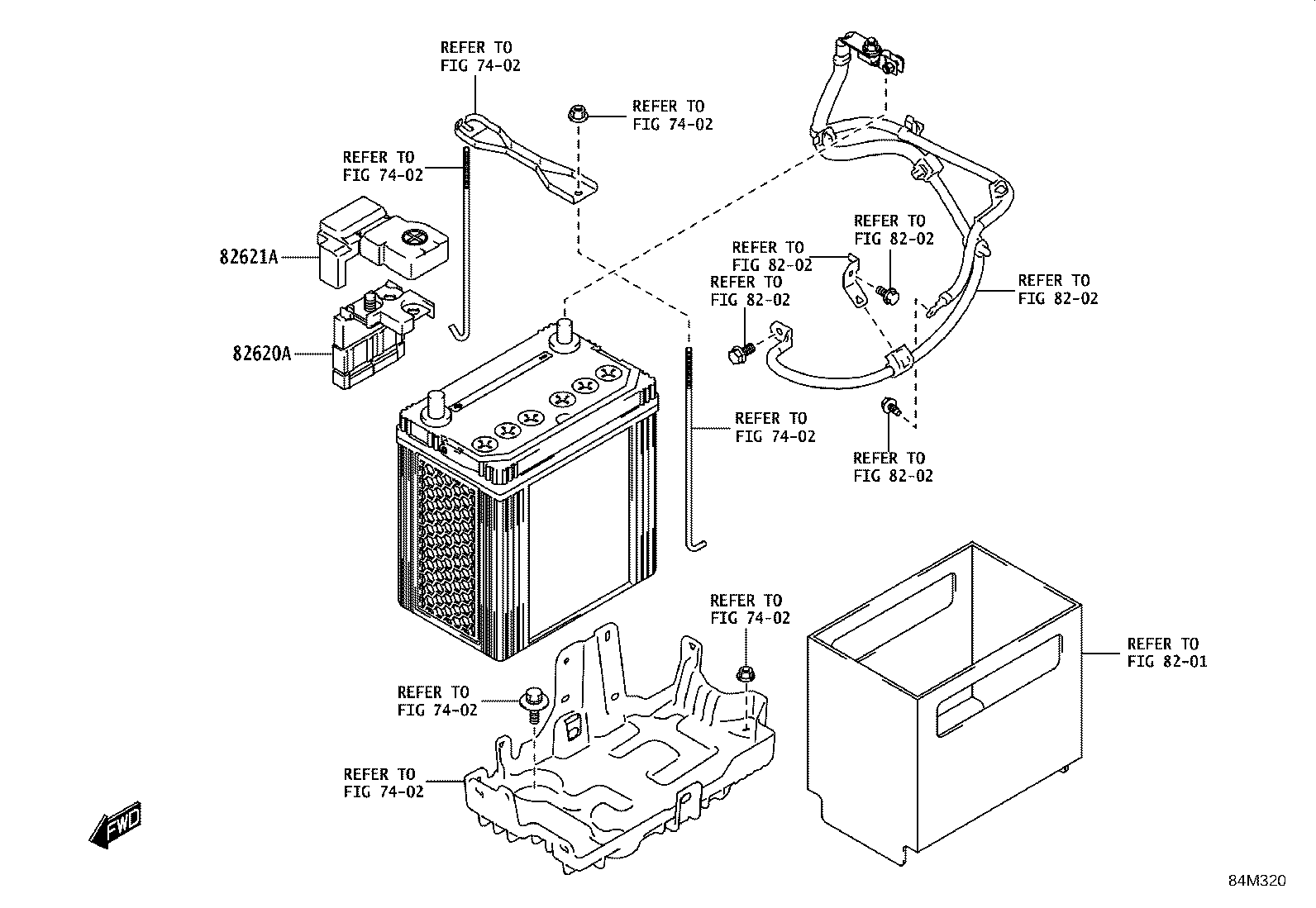

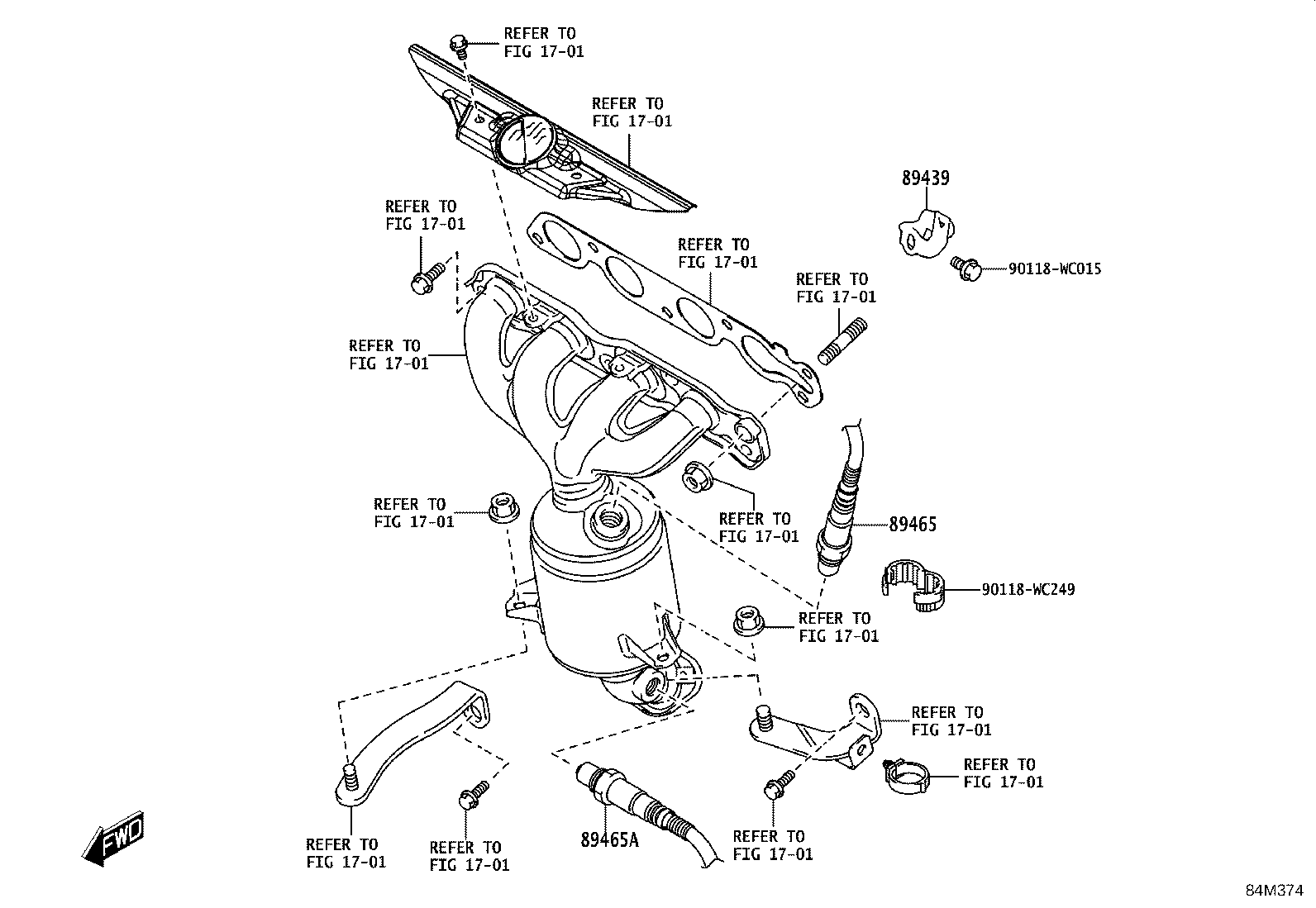

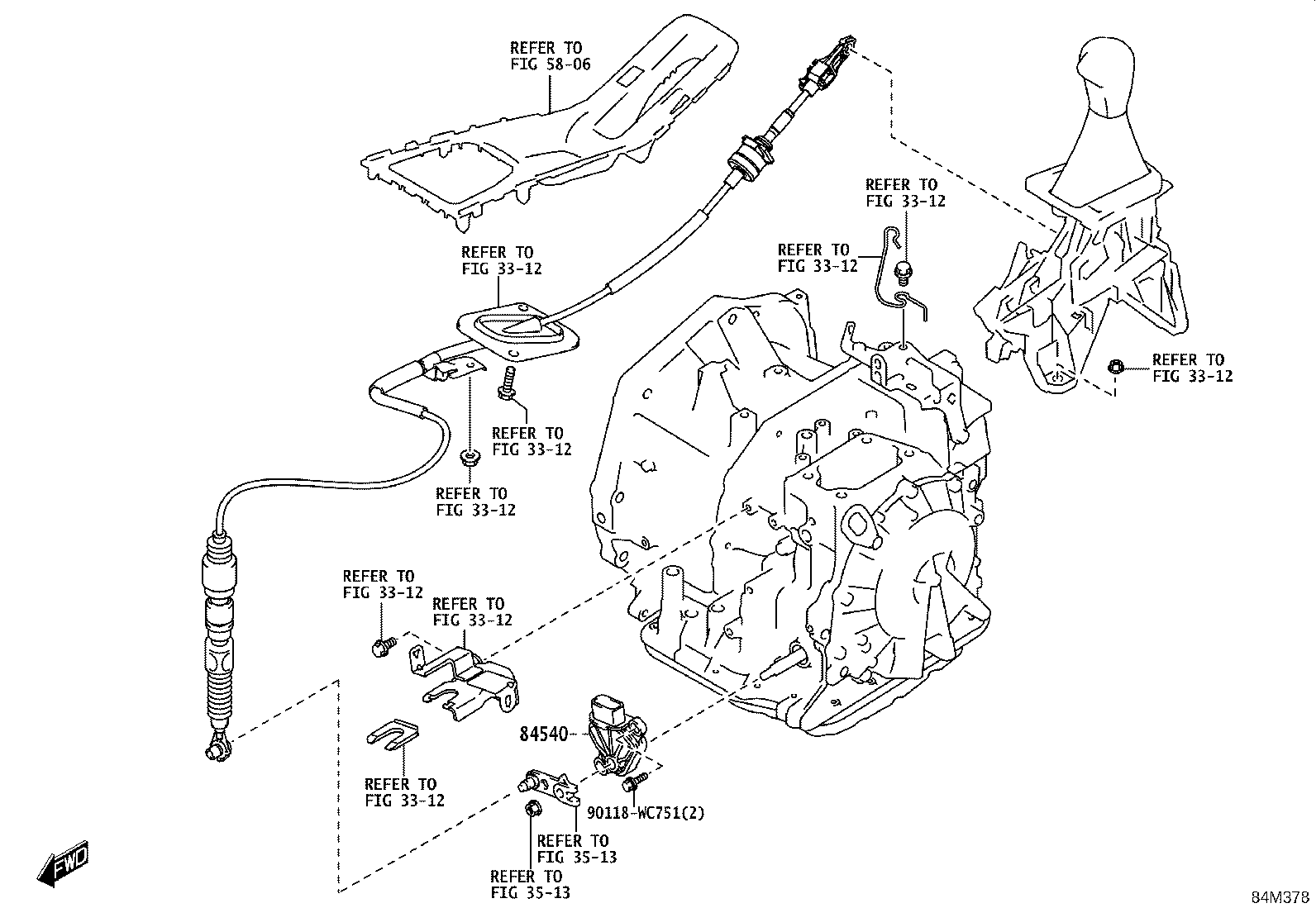

Figure 84M381 84M381 2020-07 → — Figure 84M317 84M317 2020-07 → — Figure 84M308 84M308 2020-07 → — Figure 84K217 84K217 2020-07 → — Figure 84K219 84K219 2020-07 → — Figure 84M373 84M373 2020-07 → — Figure 84M374 84M374 2020-07 → — Figure 84M375 84M375 2020-07 → — Figure 84M376 84M376 2020-07 → — Figure 84K225 84K225 2020-07 → — Figure 84K227 84K227 2020-07 → — Figure 84M378 84M378 2020-07 → — Figure 84K230 84K230 2020-07 → — Figure 84M320 84M320 2020-07 → — Figure 84M321 84M321 2020-07 → — Figure 84M322 84M322 2020-07 → — Figure 84M323 84M323 2020-07 → — Figure 84M318 84M318 2020-07 → — Figure 84M319 84M319 2020-07 → — Figure 84M309 84M309 2020-07 → — Figure 84M310 84M310 2020-07 → — Figure 84K239 84K239 2020-07 → — Figure 84M311 84M311 2020-07 → — Figure 84K240 84K240 2020-07 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse

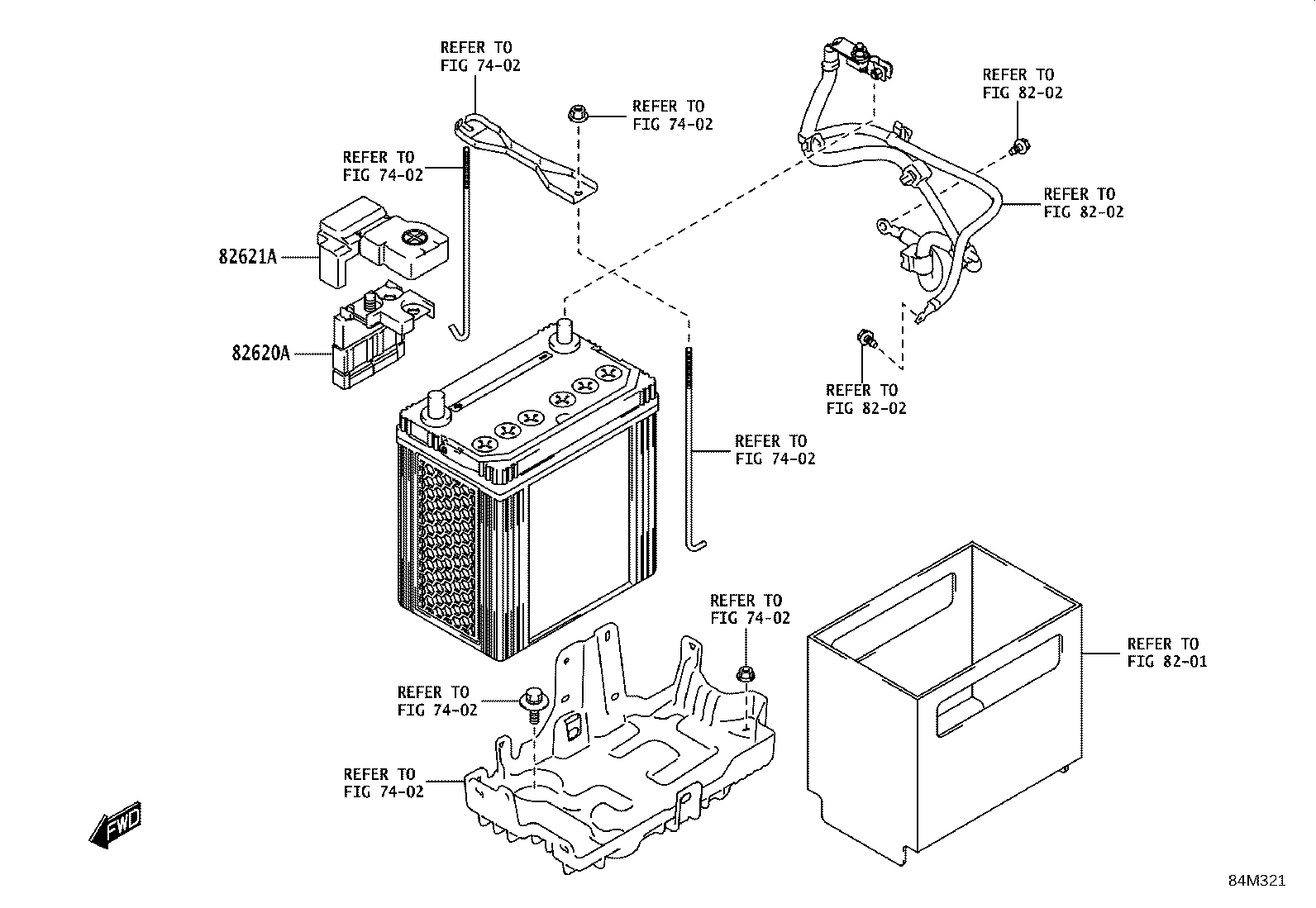

82620A Block Assy, Fusible Link
82621A Cover, Fusible Link
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82672A Cover, Junction Block

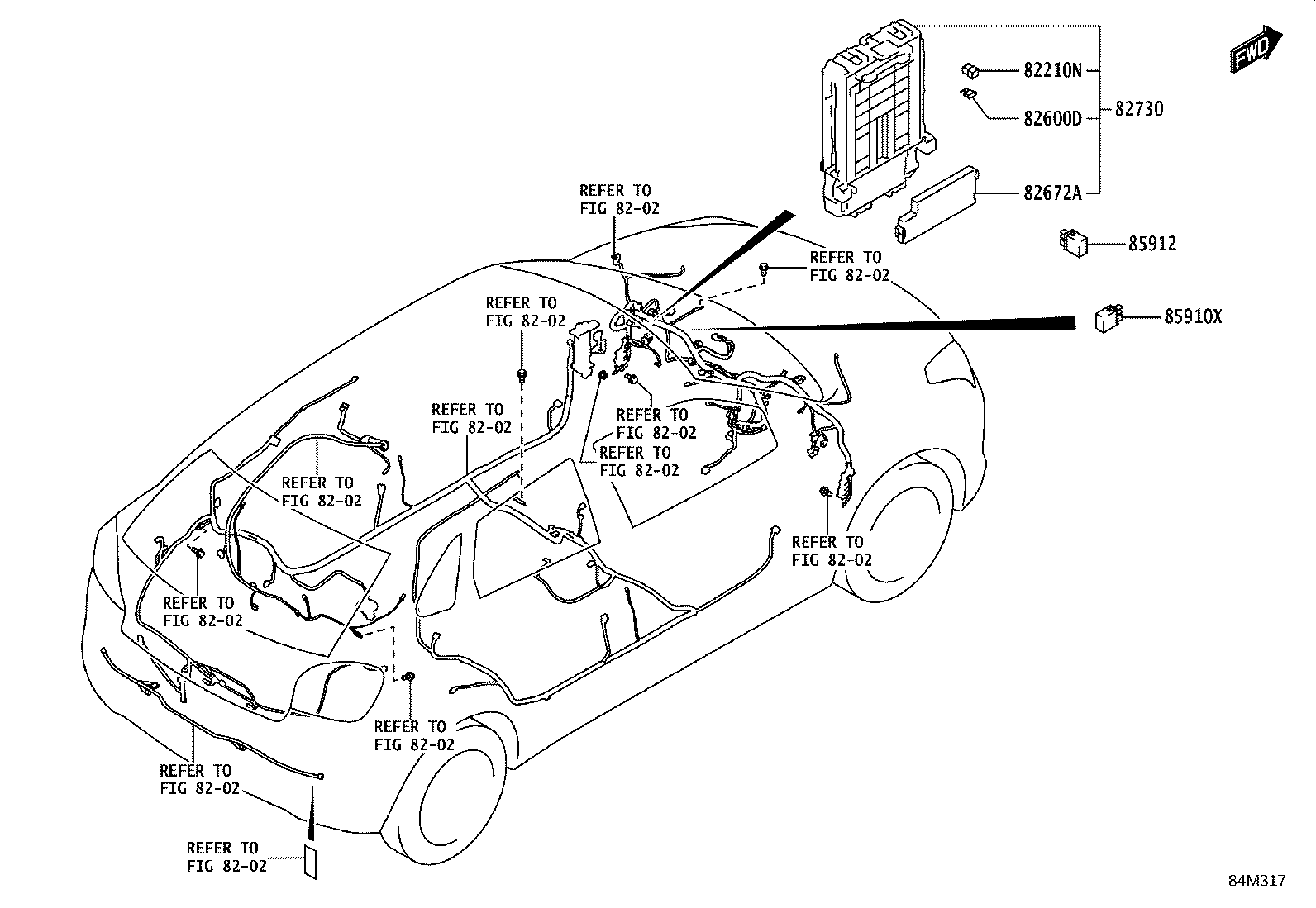

82730 Block Assy, Instrument Panel Junction

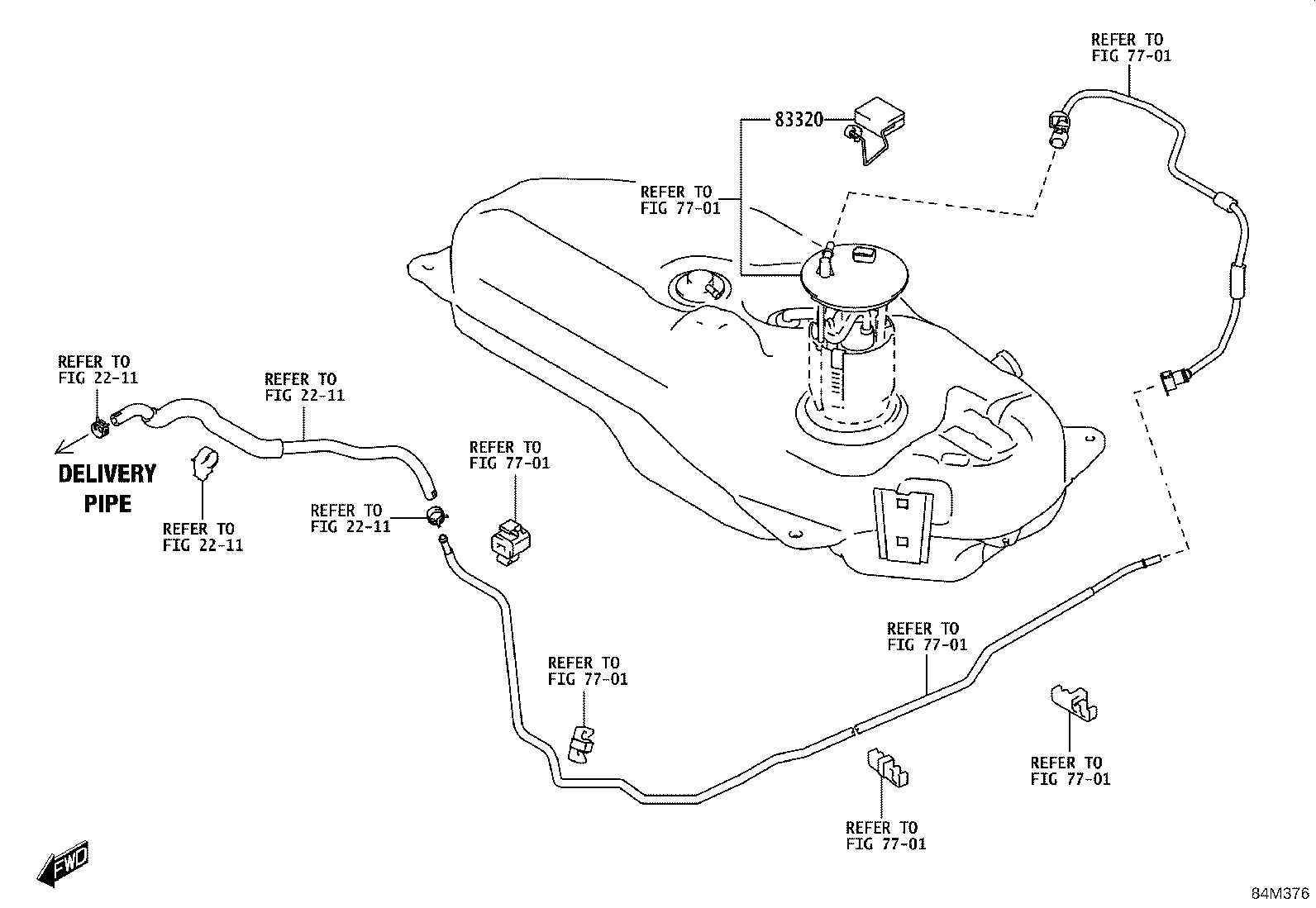

83320 Gage Assy, Fuel Sender

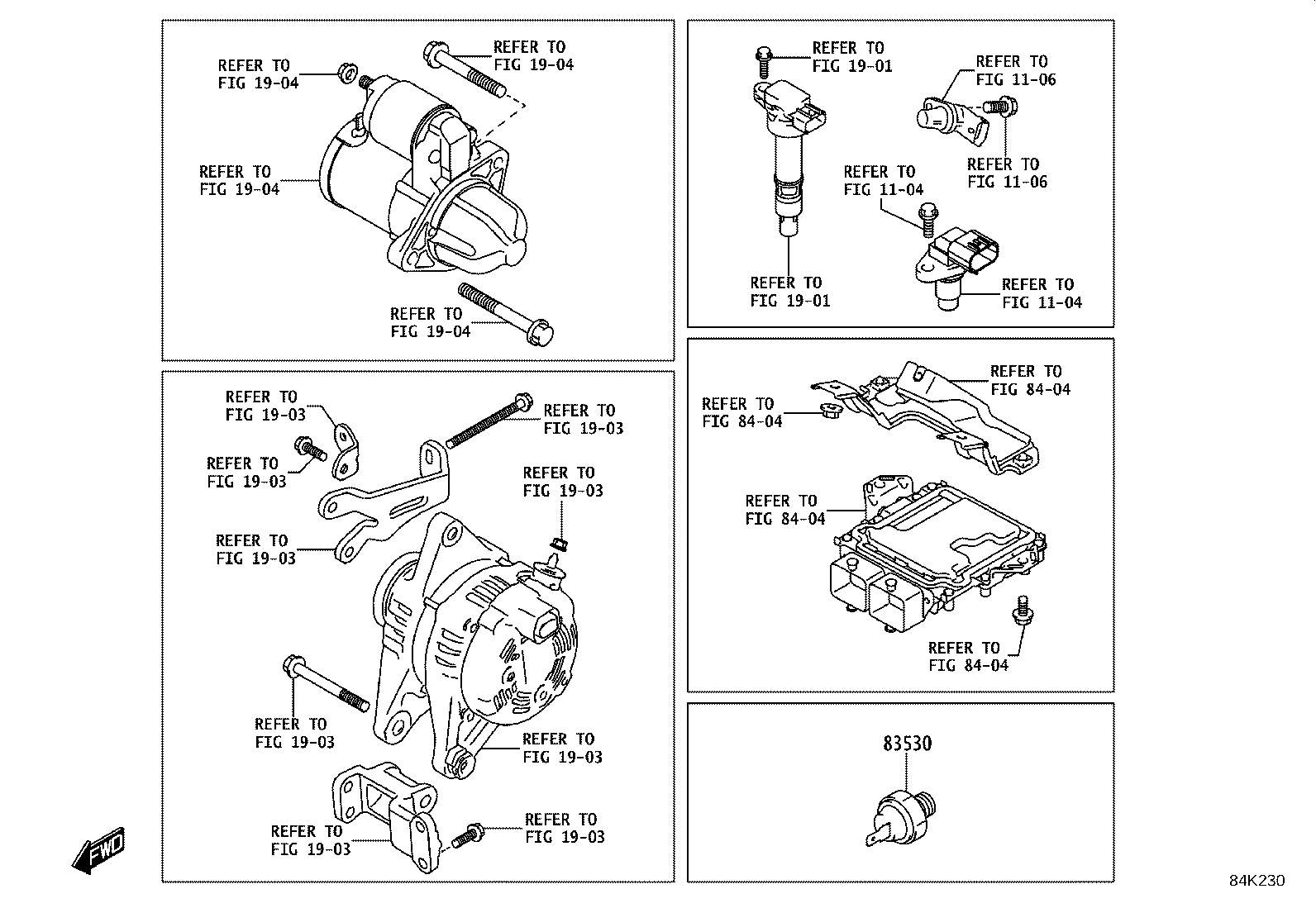

83530 Switch Assy, Oil Pressure (FOR ENGINE)
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling

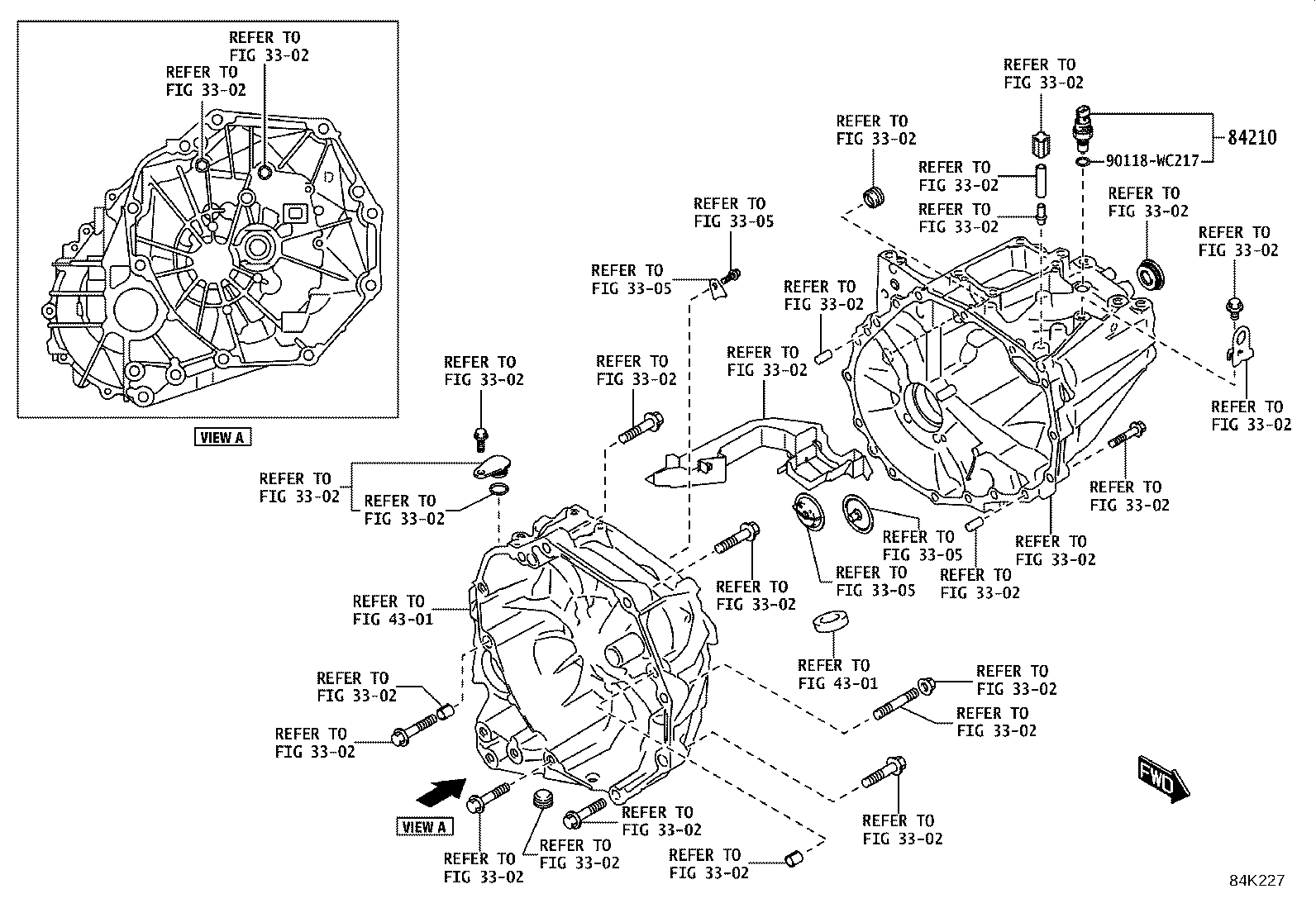

84210 Switch Assy, Back-up Lamp
84230G Switch Assy, Courtesy Lamp
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp

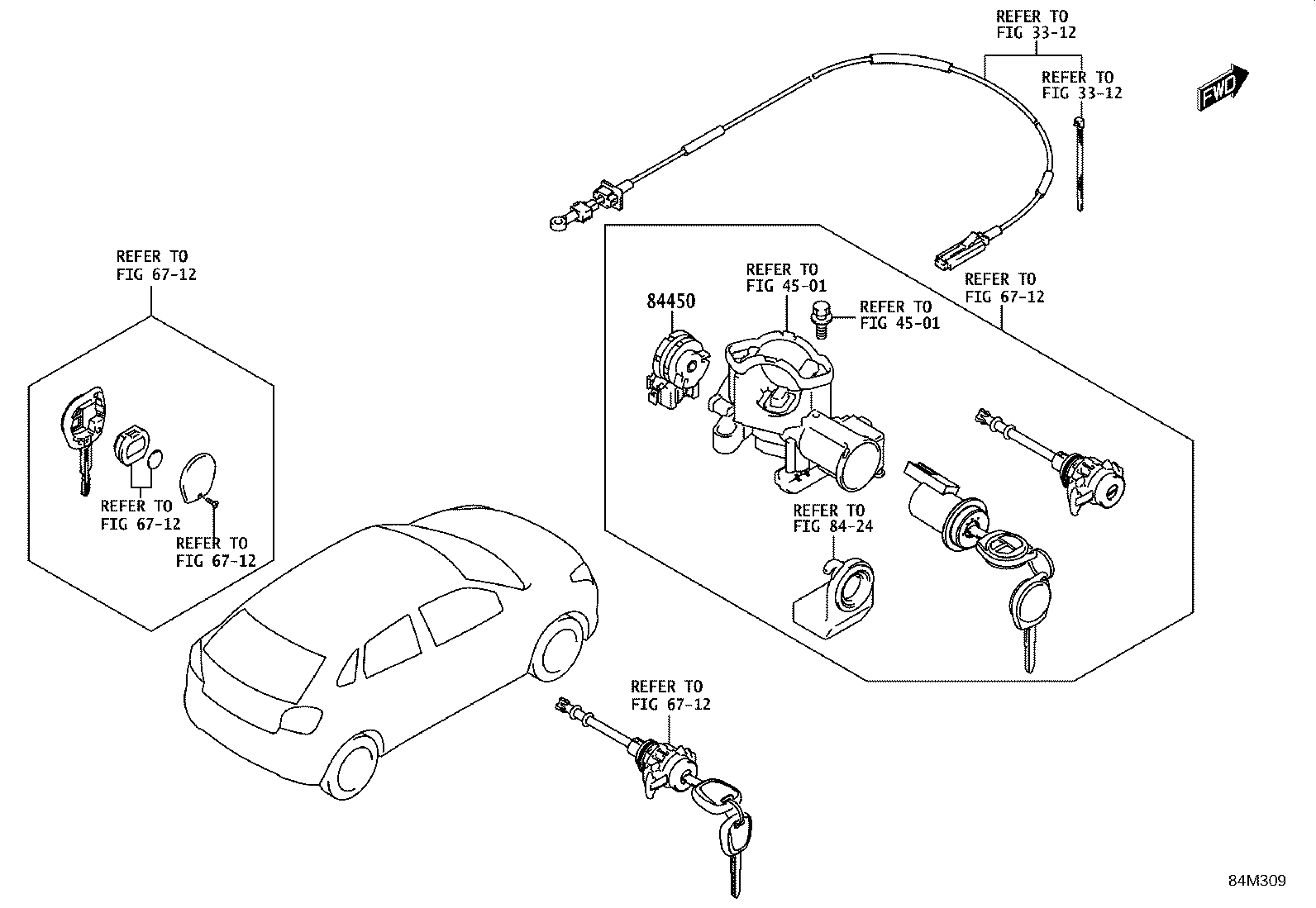

84450 Switch Assy, Ignition OR Starter
84490K Switch Assy, Back Sonar
84520 Switch Assy, Clutch Start
84540 Switch Assy, Neutral Start

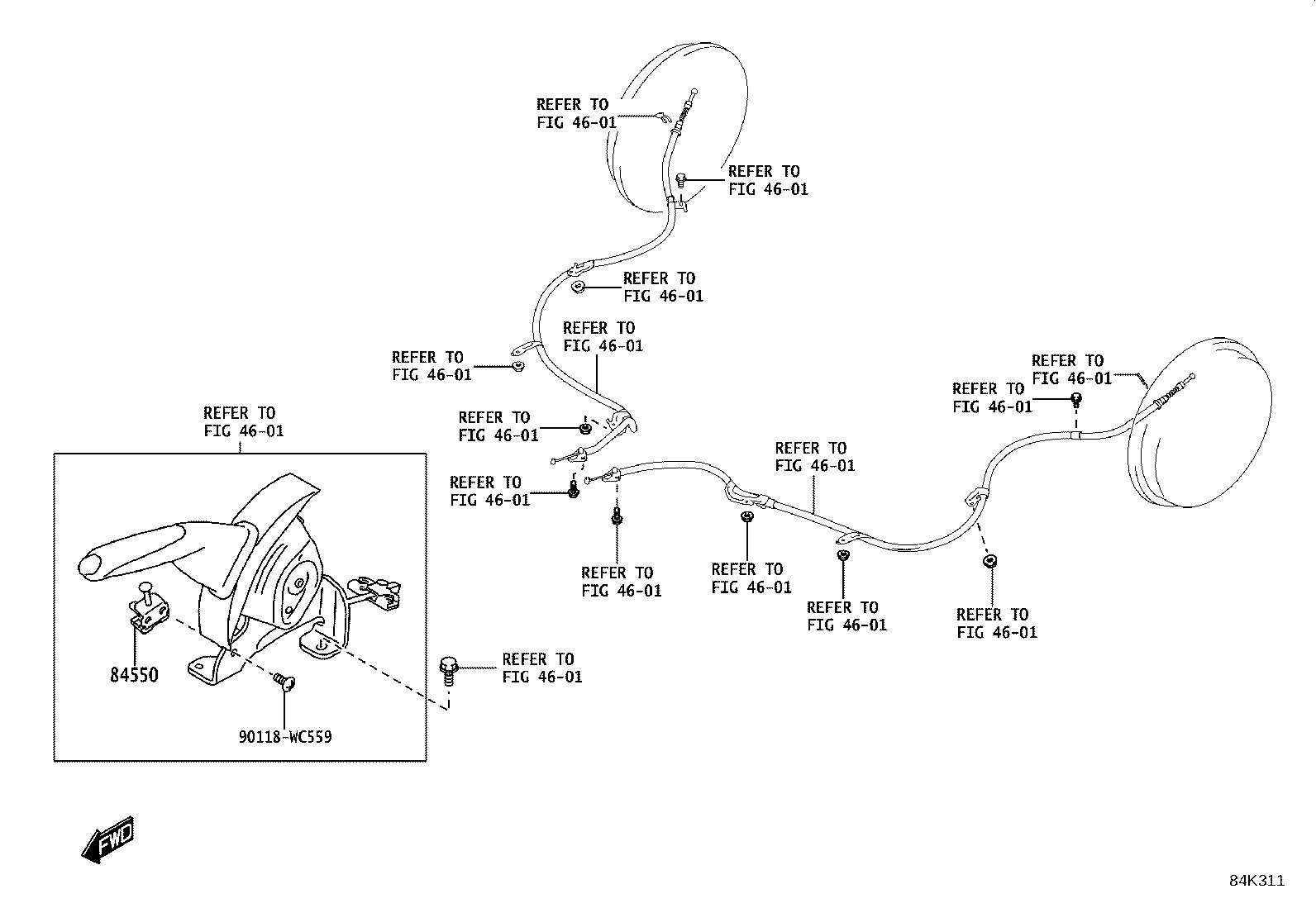

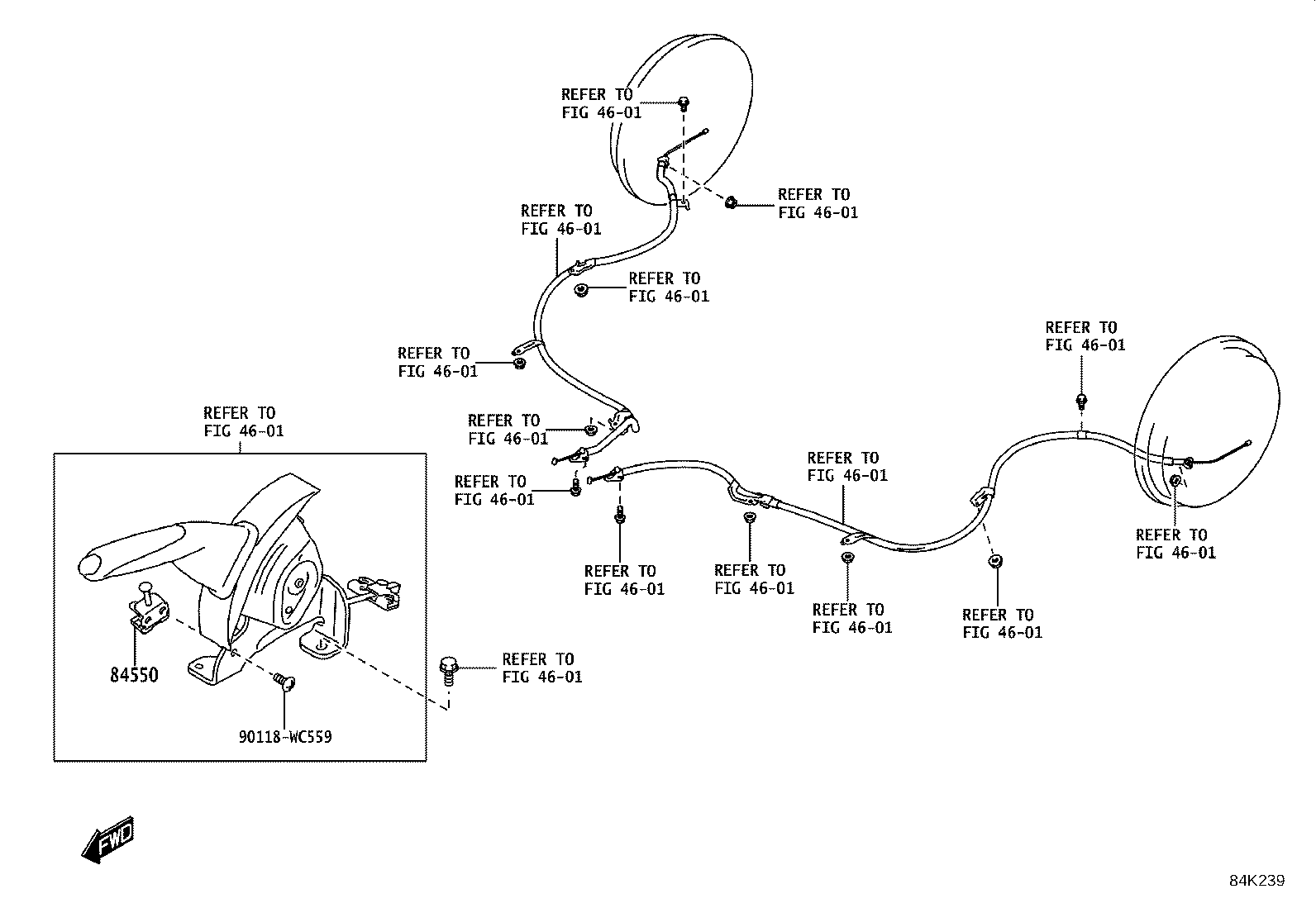

84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper

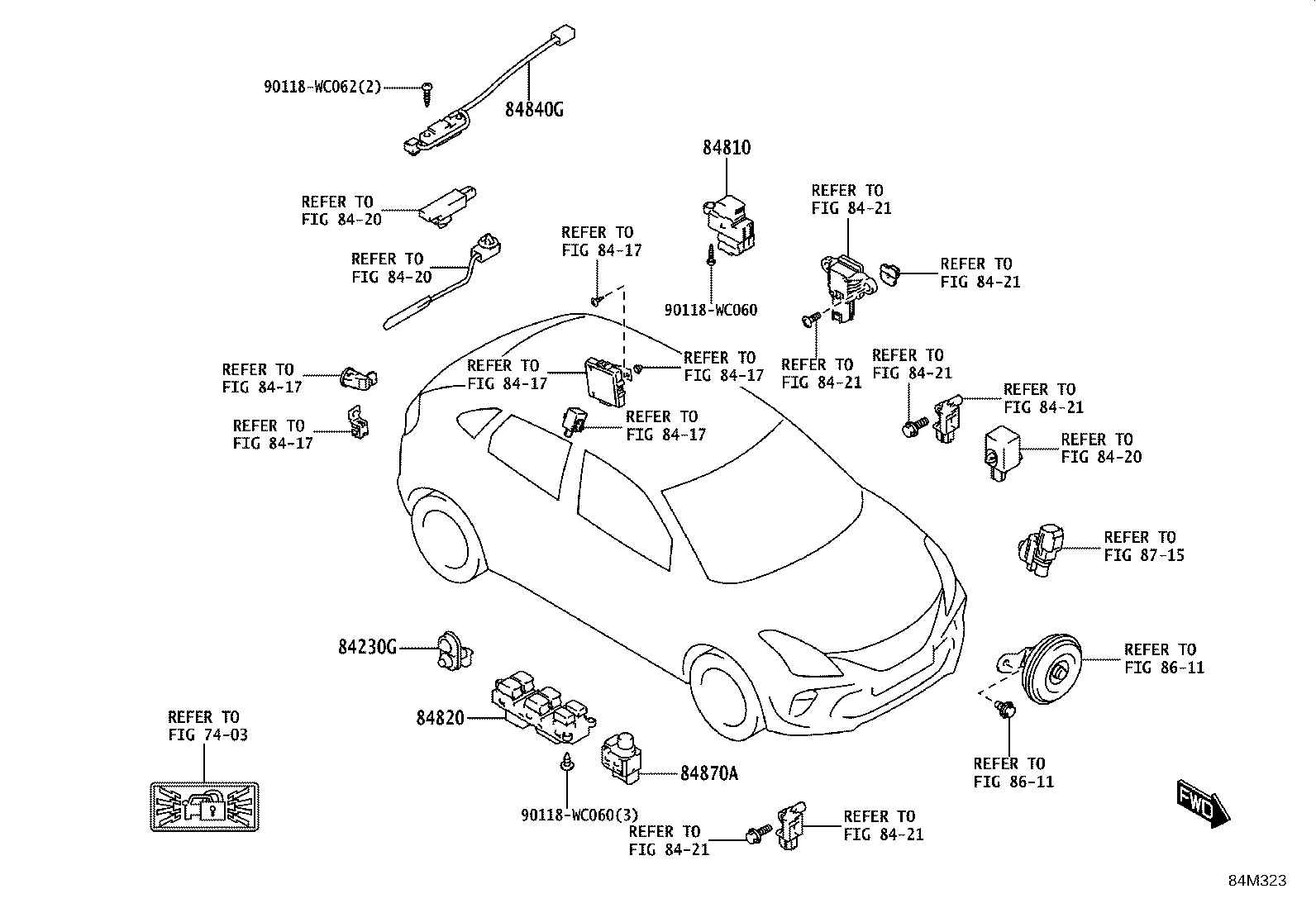

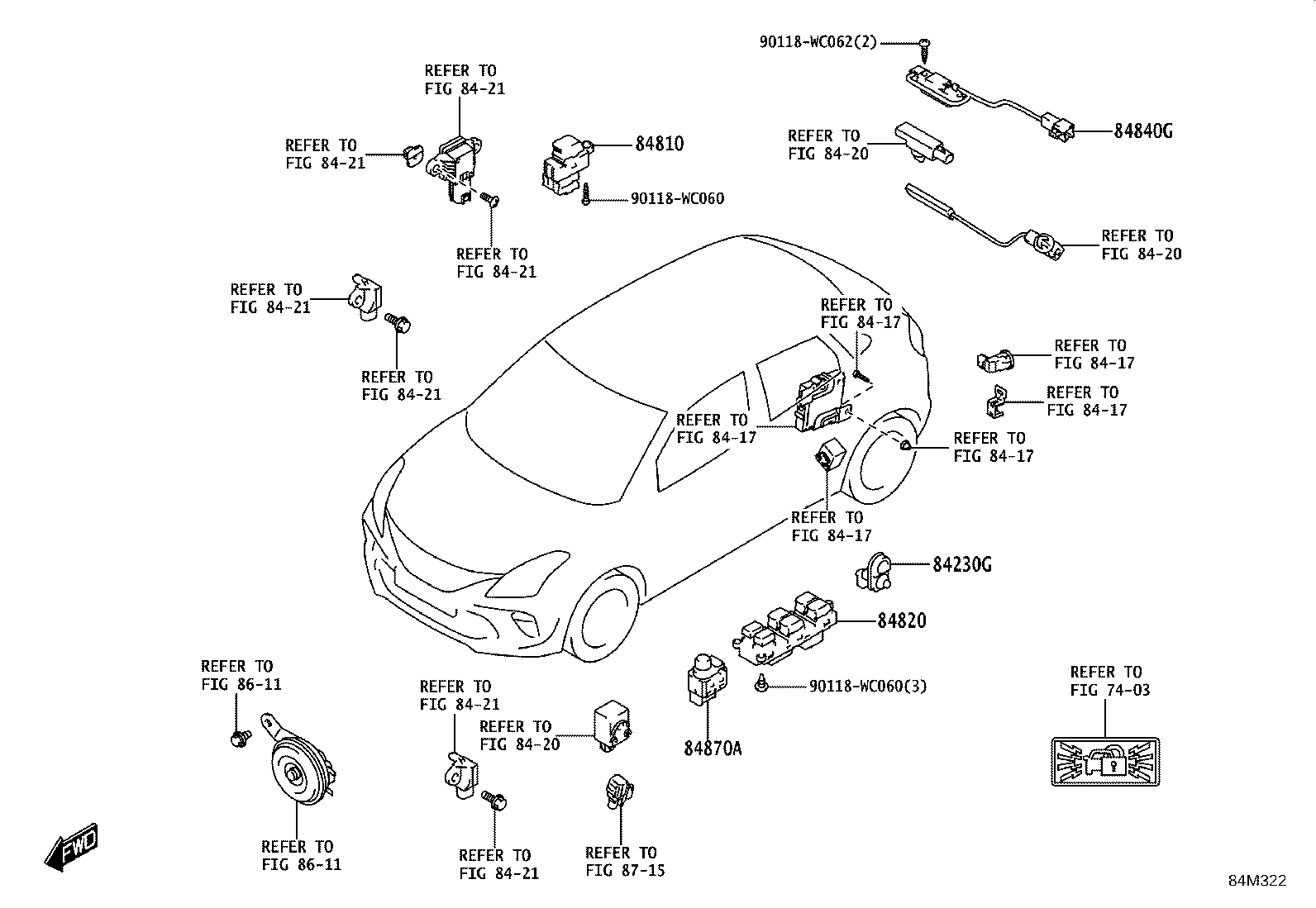

84810 Switch Assy, Power Window Regulator
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84988F Switch, Traction Control
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85539 Label, Power Outlet Notice
85910X Relay, Heater Mirror
85912 Relay, Defogger
85915 Relay, Main
85916D Relay, Fog Lamp
85916P Relay, Headlamp
85925 Relay, Radiator Fan
85935 Relay, Fuel Pump
86530 Relay Assy, Horn
87299 Relay, Heater
88280A Switch Assy, Clutch

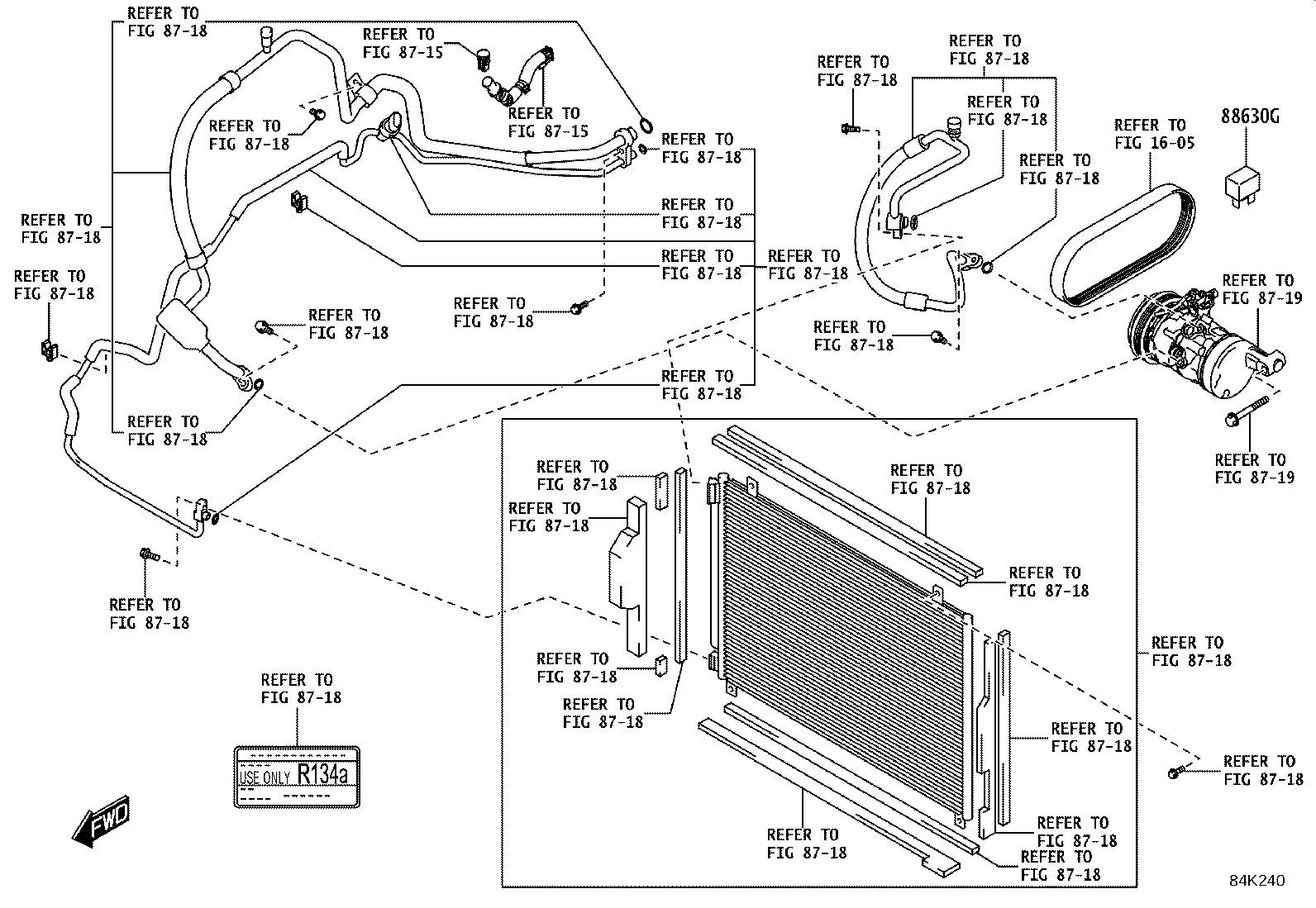

88630G Relay Assy, Cooler
89111 Computer, Network Gateway

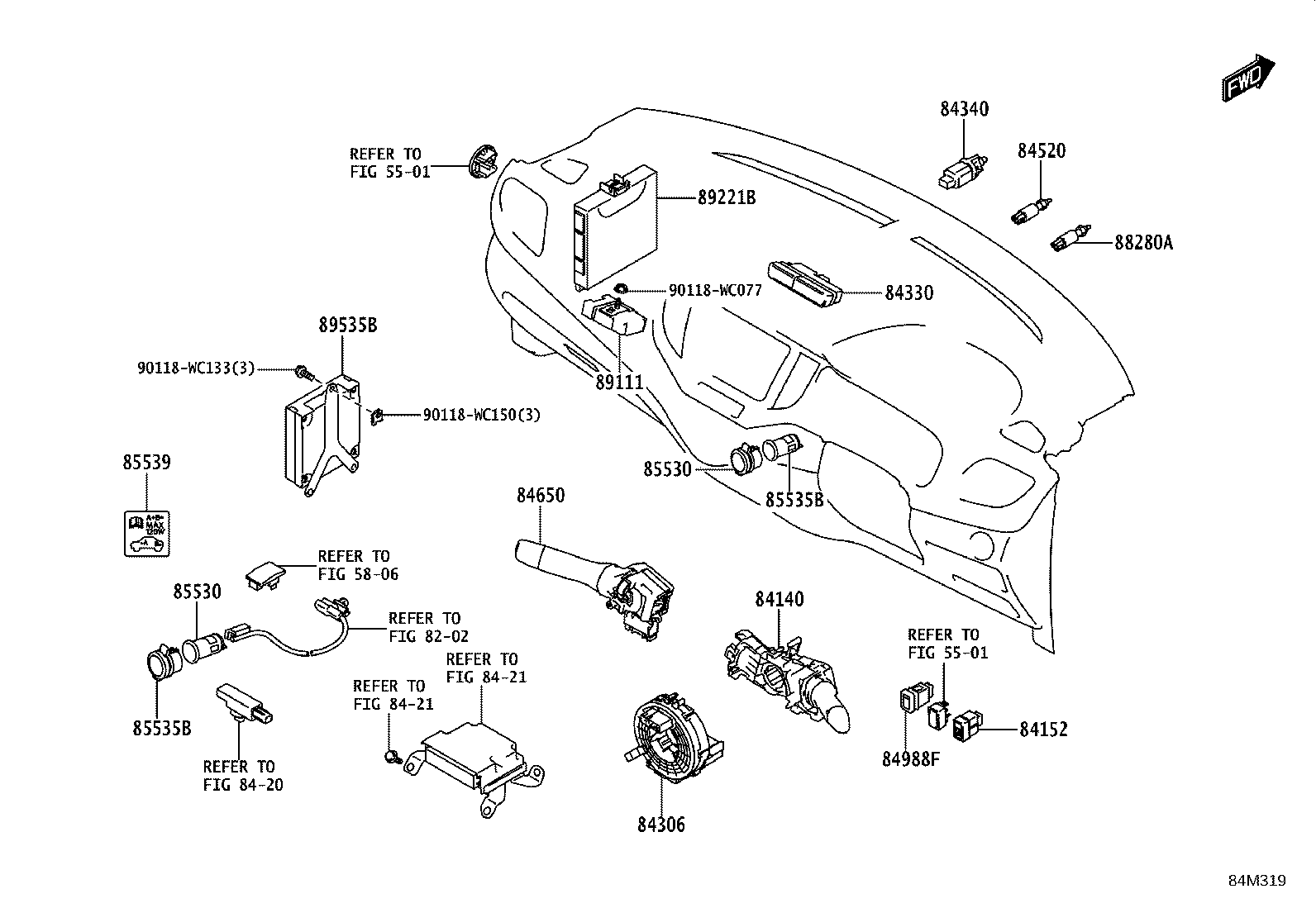

89221B Computer, Body

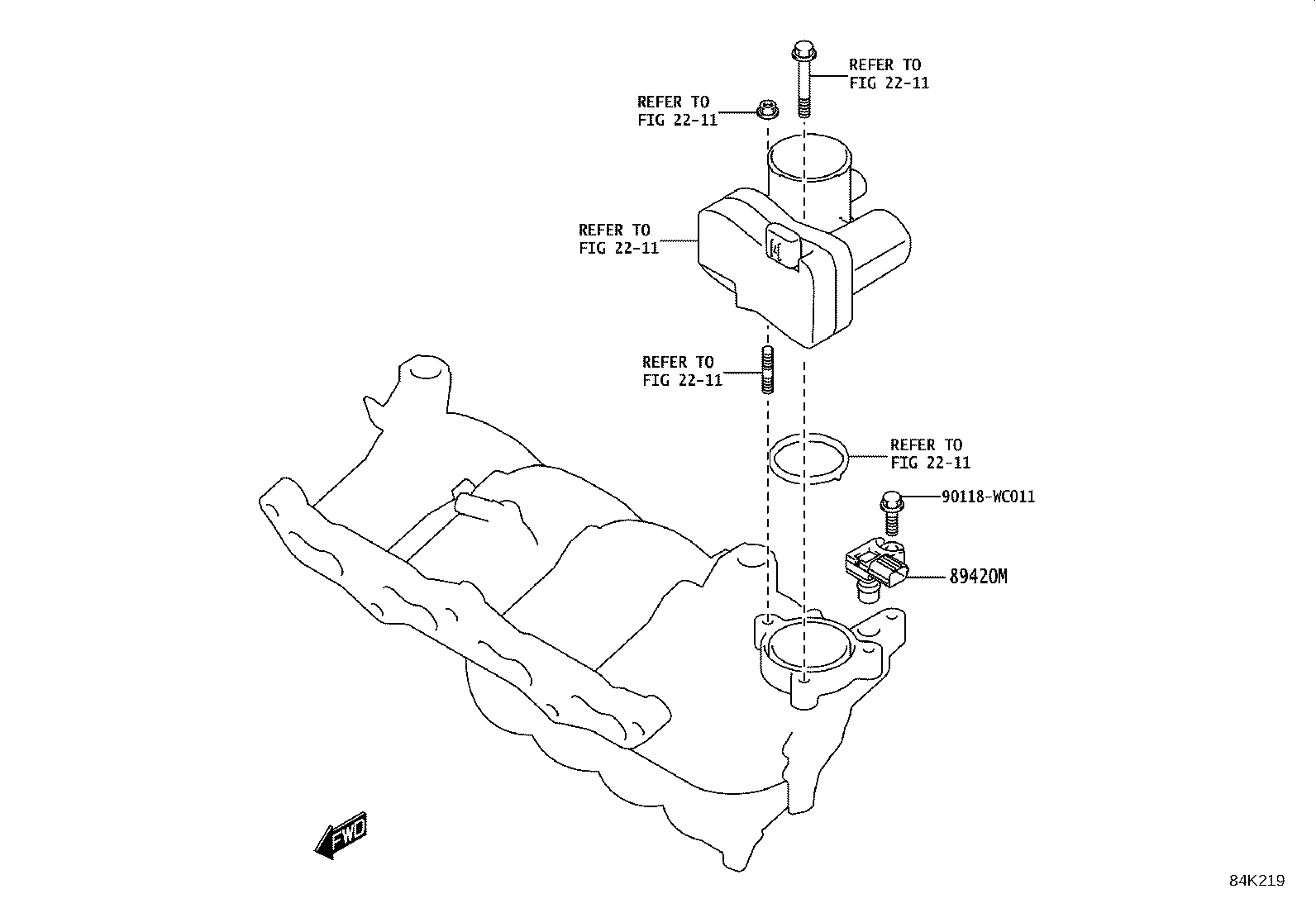

89420M Sensor Assy, Air Pressure
89422A Sensor, Water Temperature

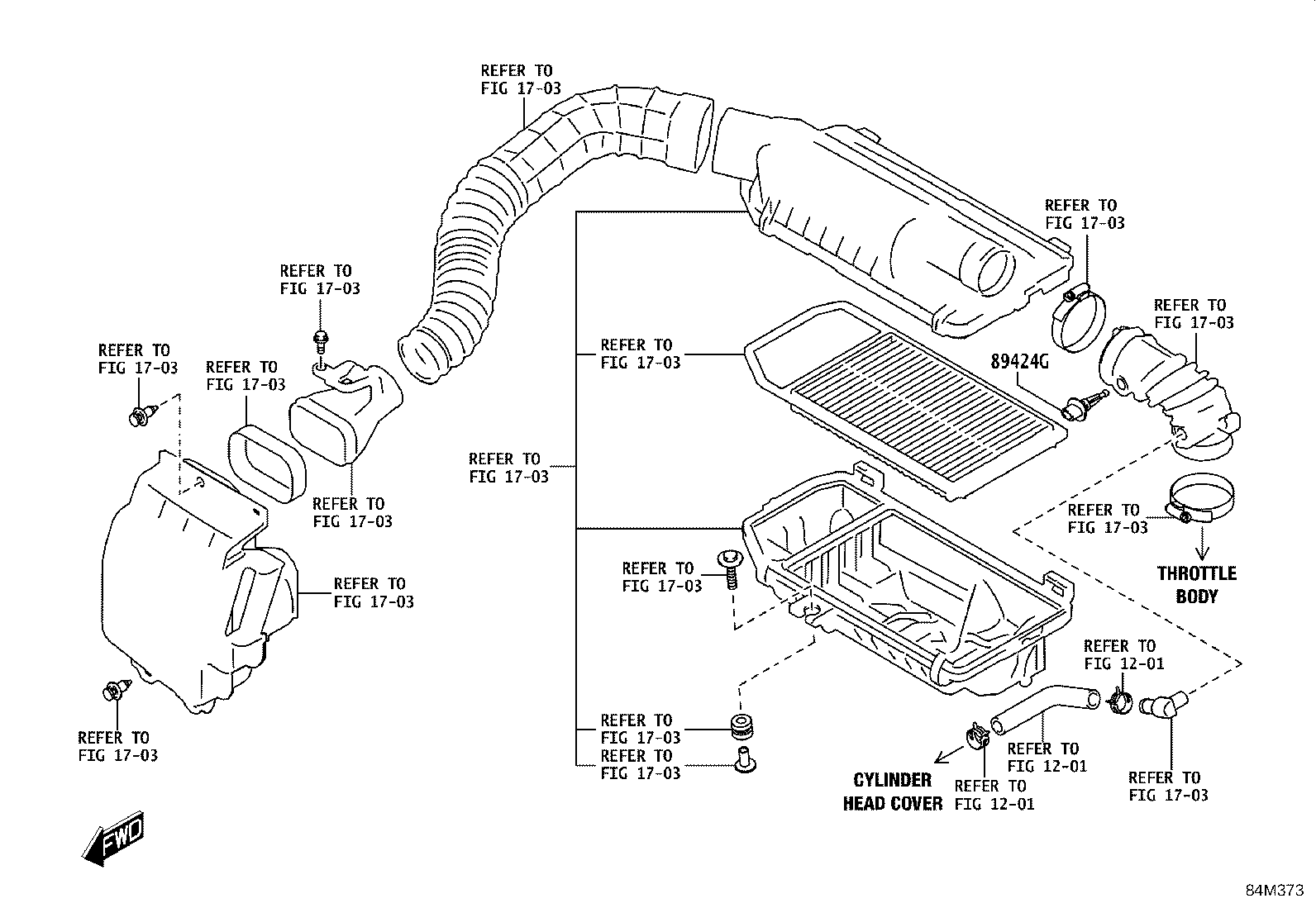

89424G Sensor, Inlet Air Temperature
89439 Bracket, Sensor
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89535B Computer, Transmission Control
89539E Bracket, Computer
89611 Switch, Push Start

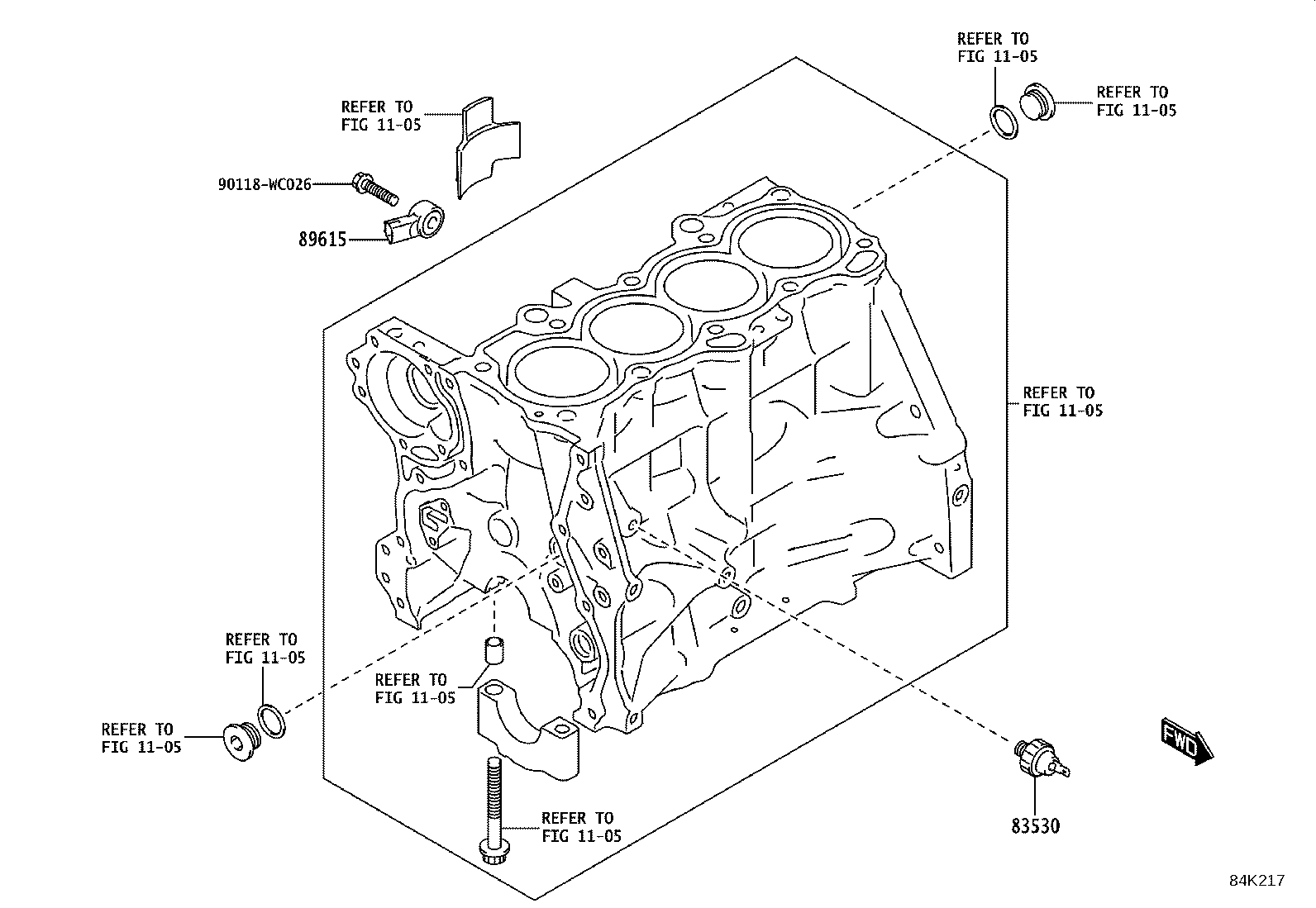

89615 Sensor, Knock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
