Factory parts data · Europe

Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

7 part groups · 4 illustrations

Illustrations

Figure 84M336

84M336 2020-07 → —

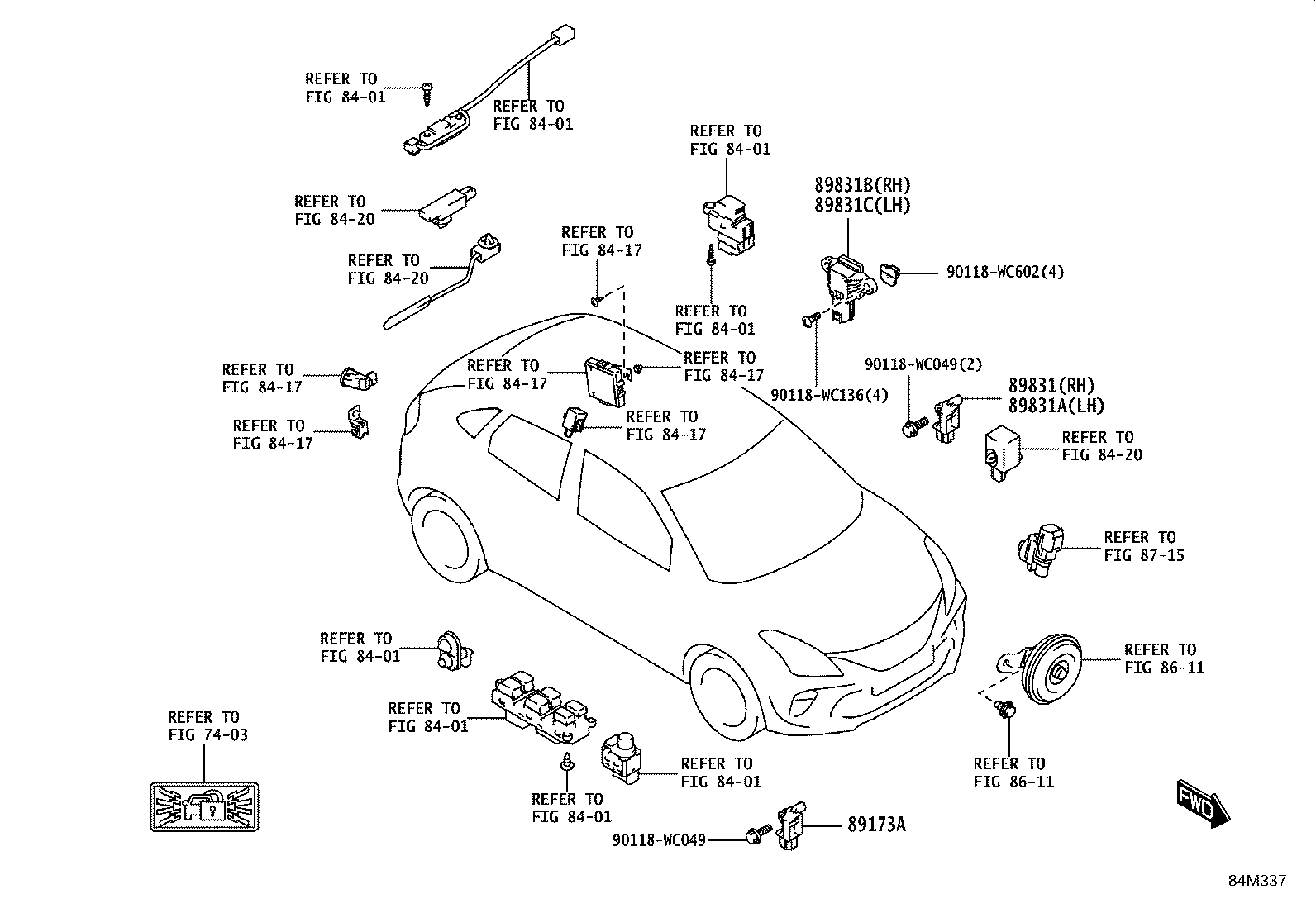

Figure 84M337

84M337 2020-07 → —

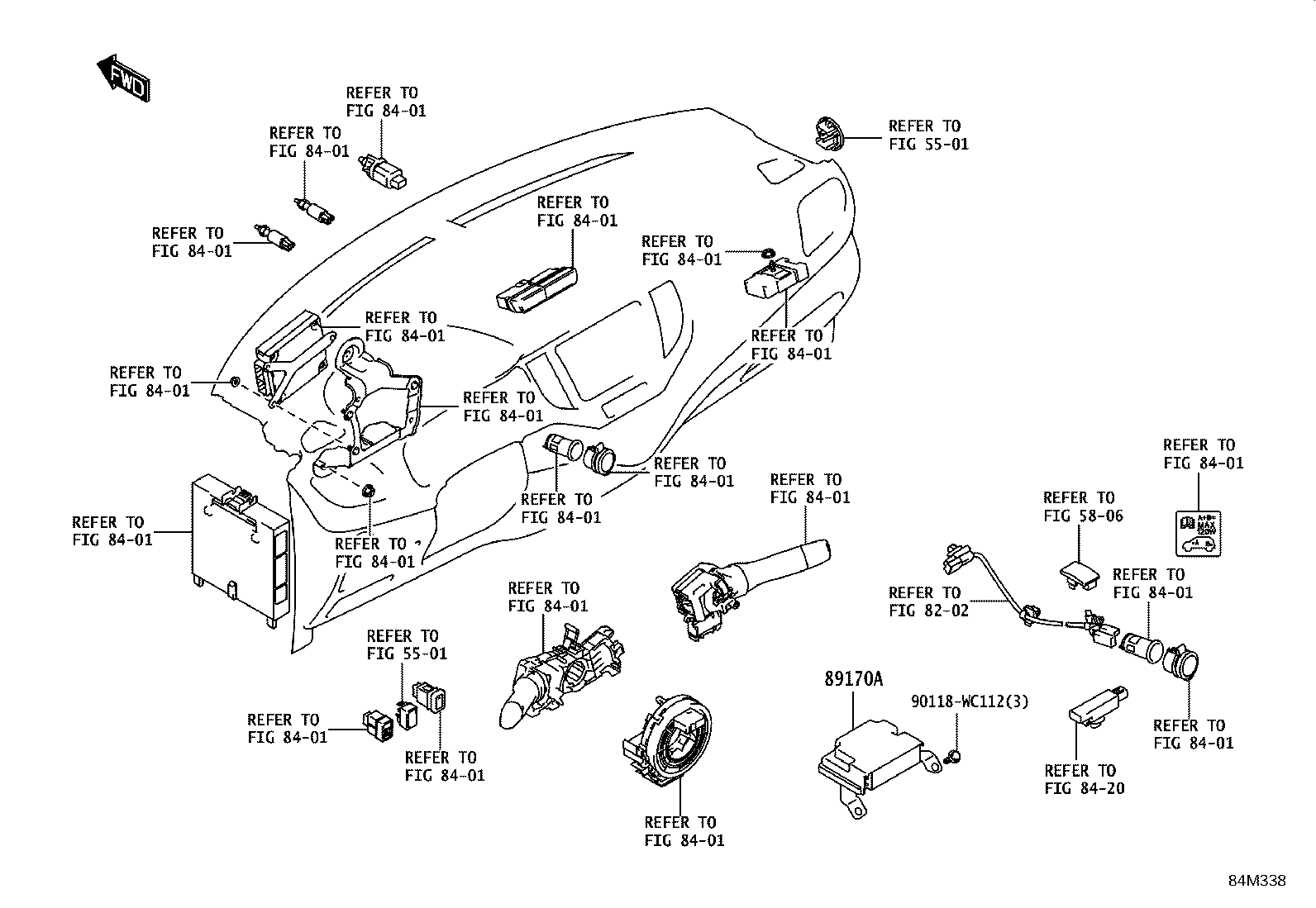

Figure 84M338

84M338 2020-07 → —

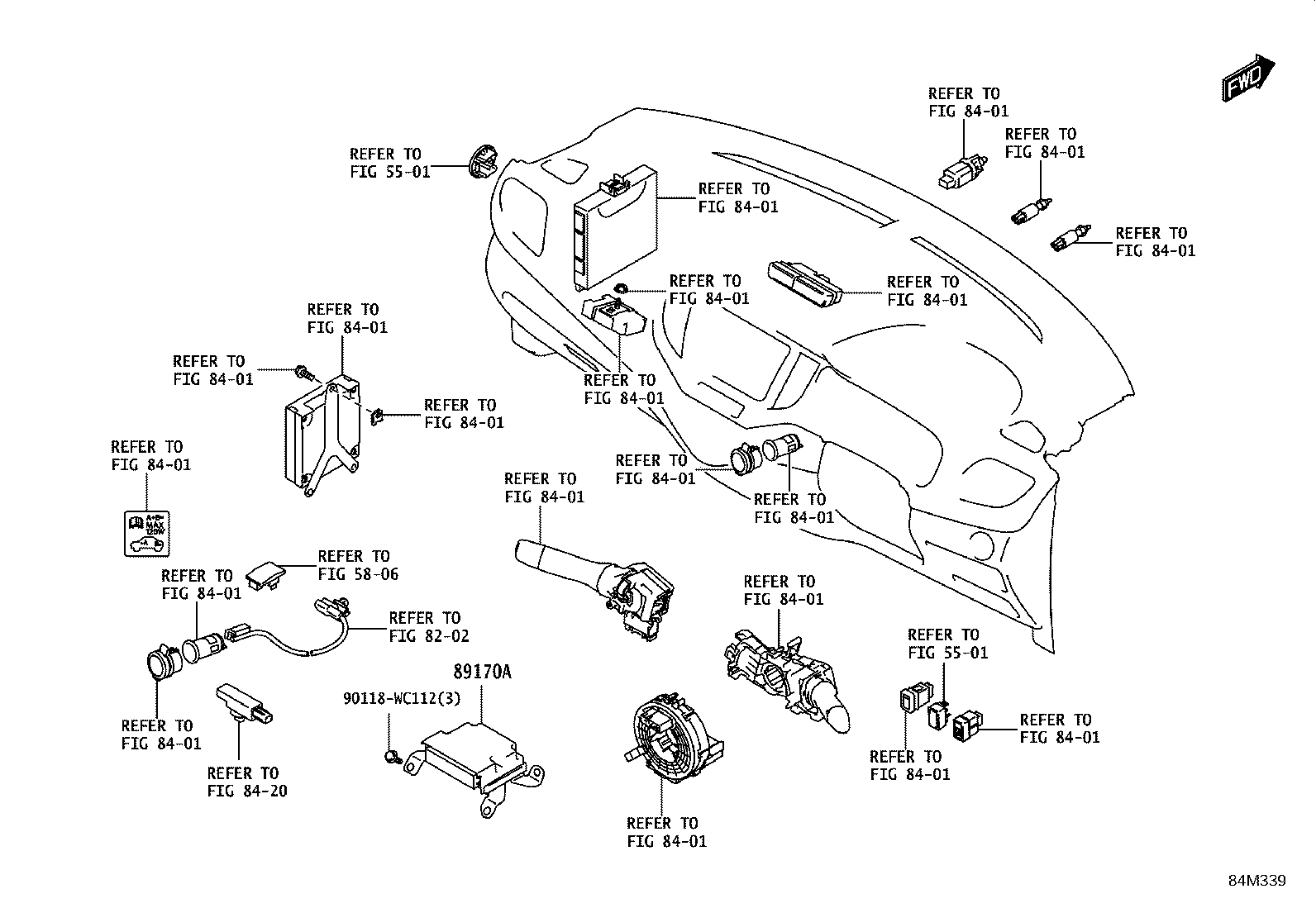

Figure 84M339

84M339 2020-07 → —

Part groups

PNC	Description
89170A	Computer Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89831	Sensor, Side Airbag, RH, NO.1
89831A	Sensor, Side Airbag, LH, NO.1
89831B	Sensor, Side Airbag, RH, NO.2
89831C	Sensor, Side Airbag, LH, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
