Toyota Starlet

2020-07 → present · chassis K14B# · catalogue 133310 · General

Supported model Data version 2020-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

15 part groups · 12 illustrations

Illustrations

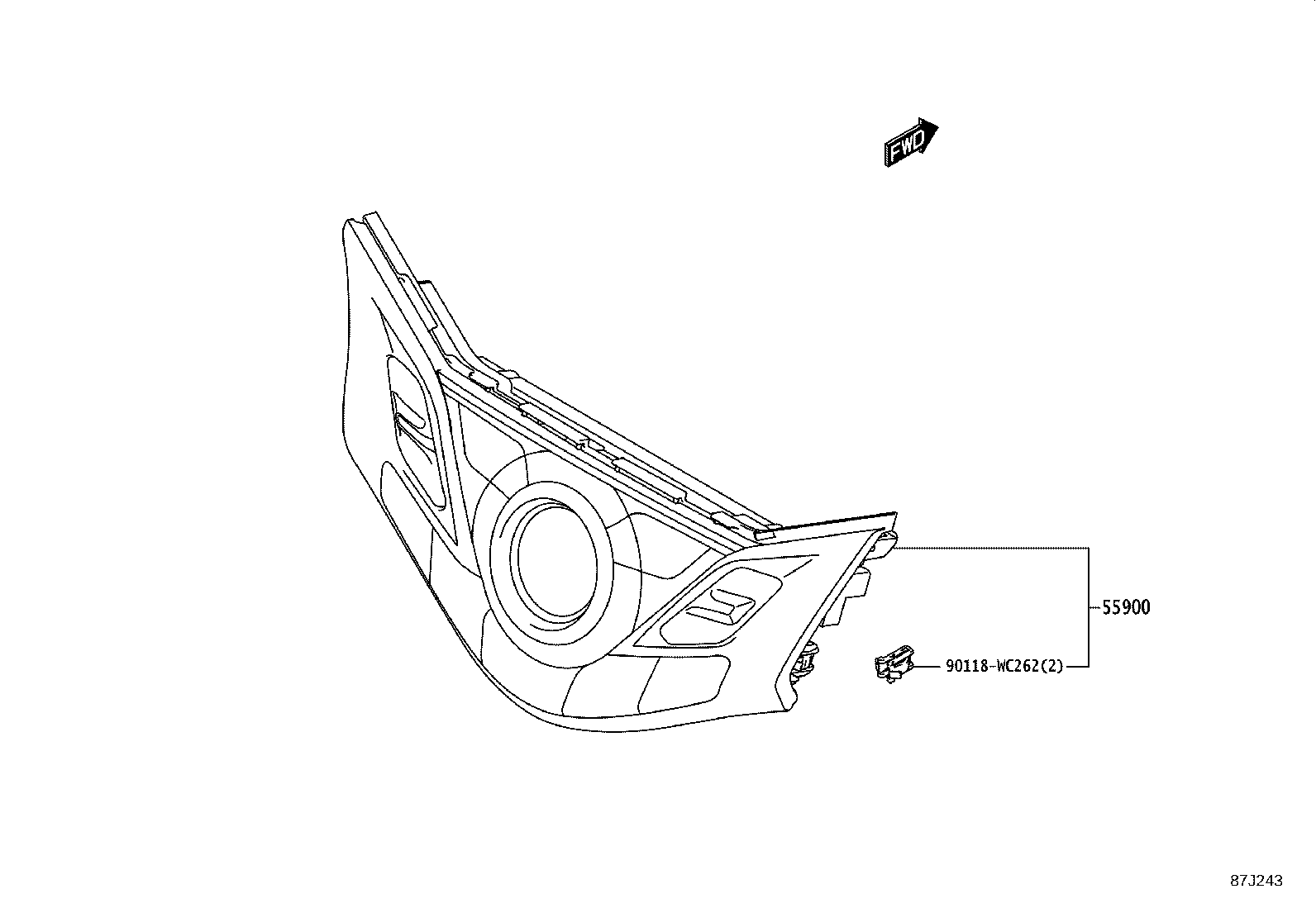

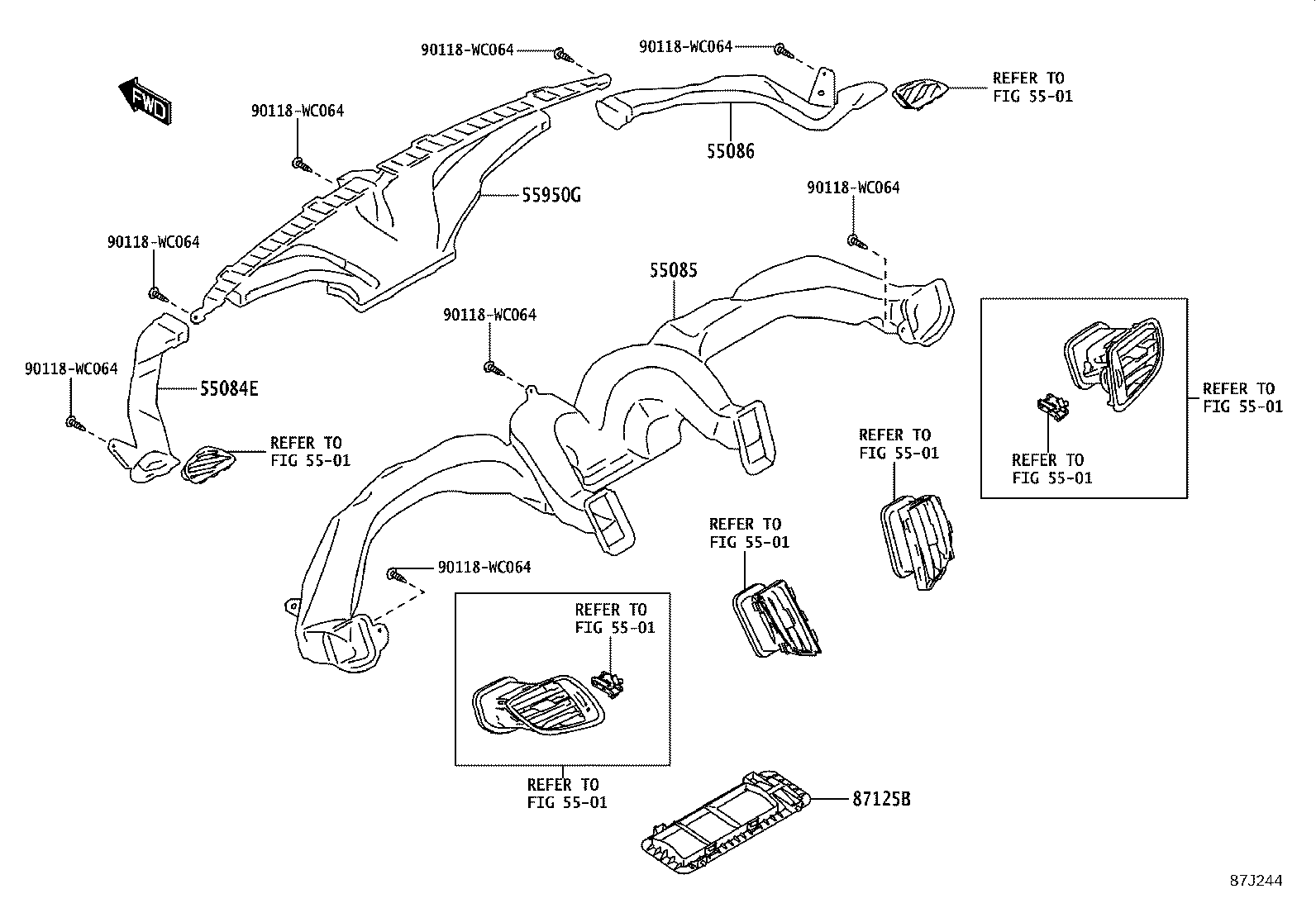

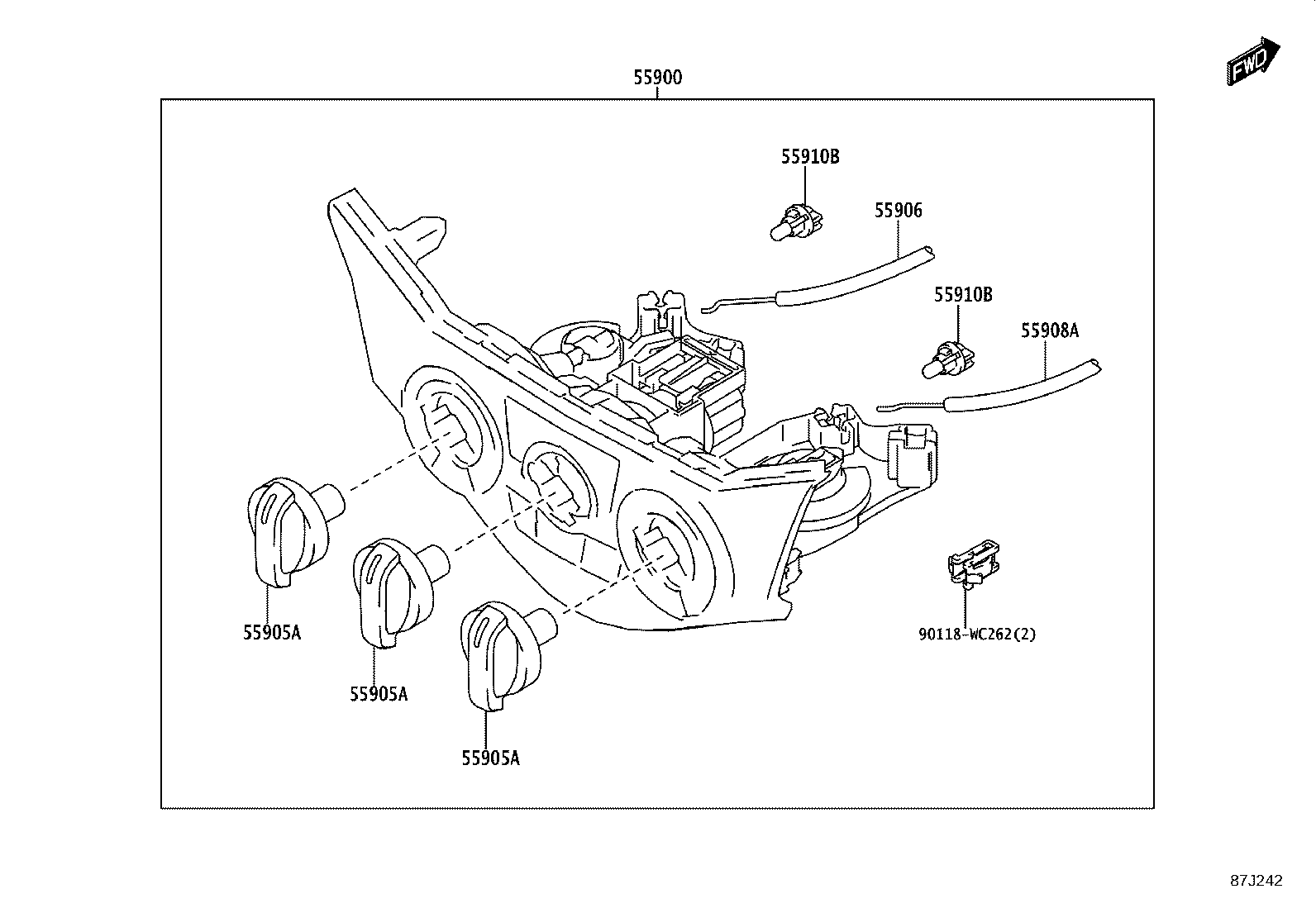

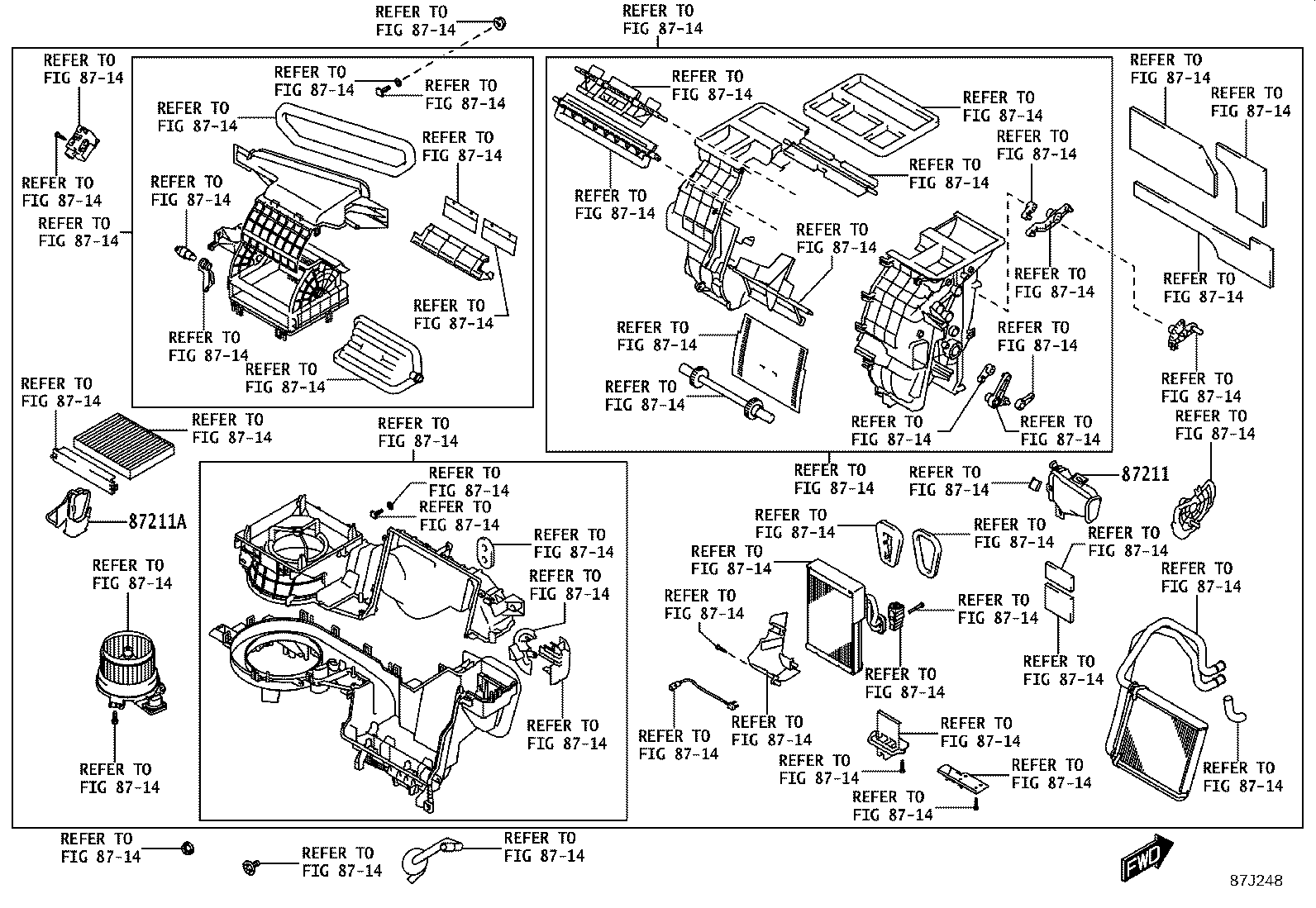

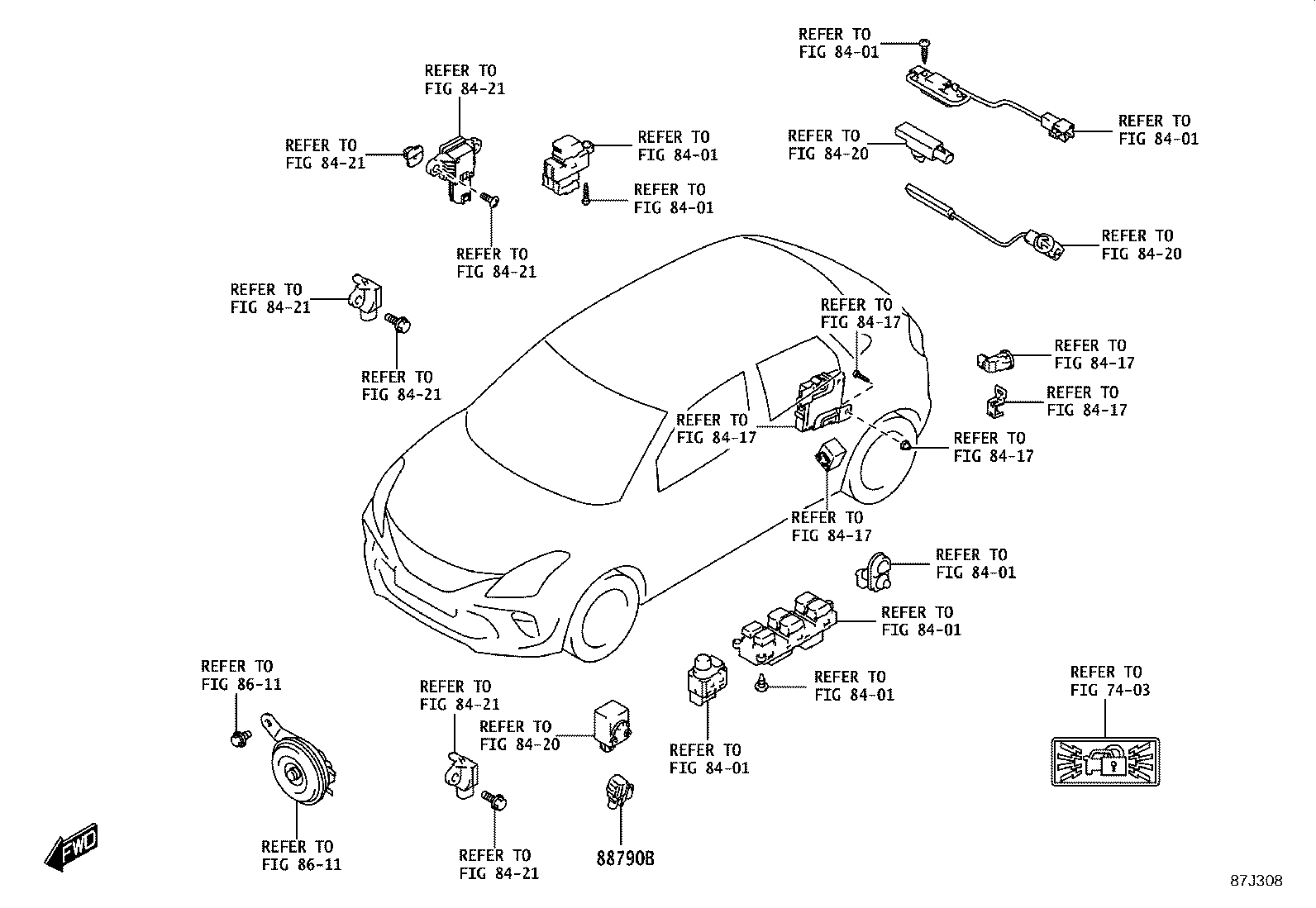

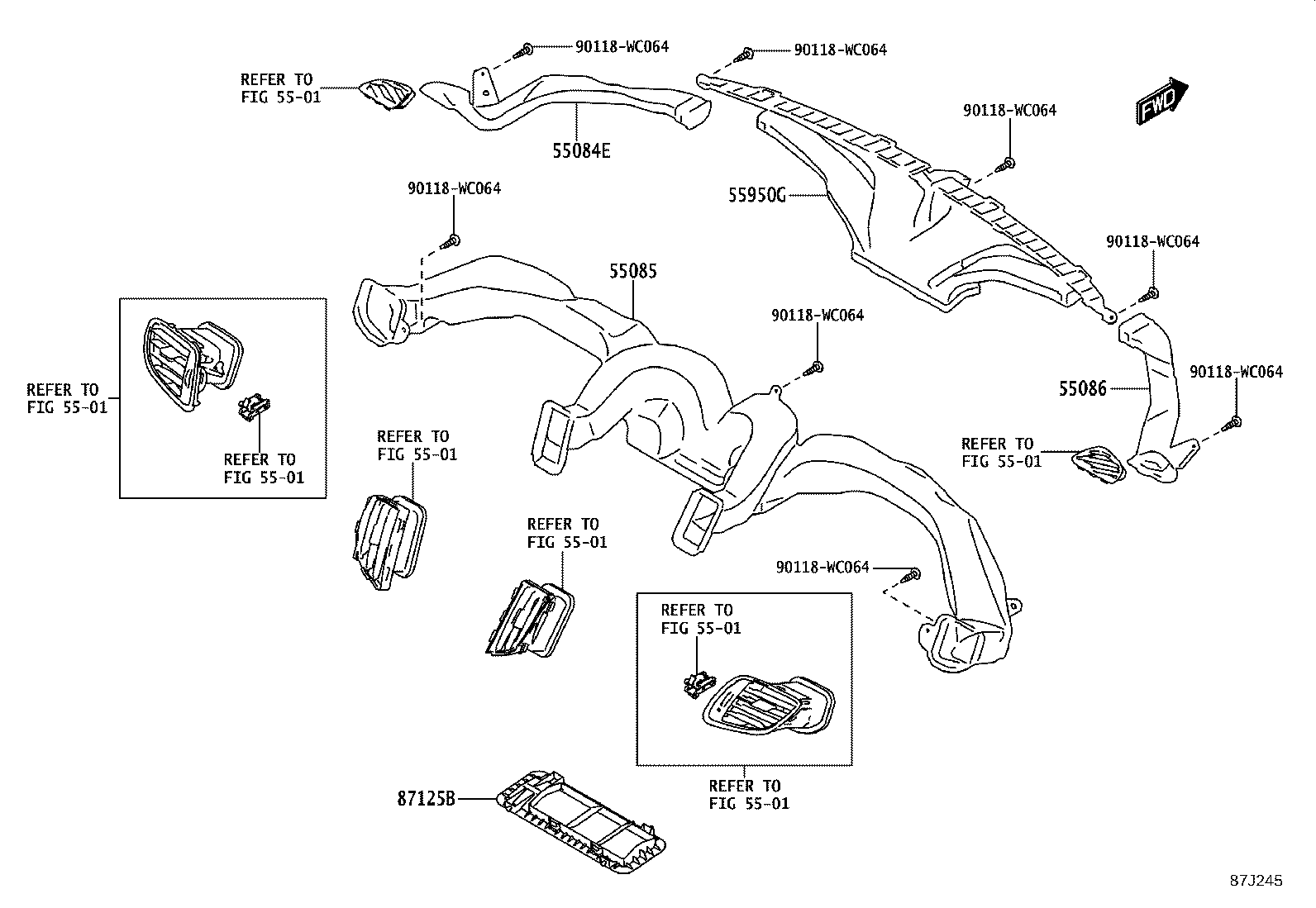

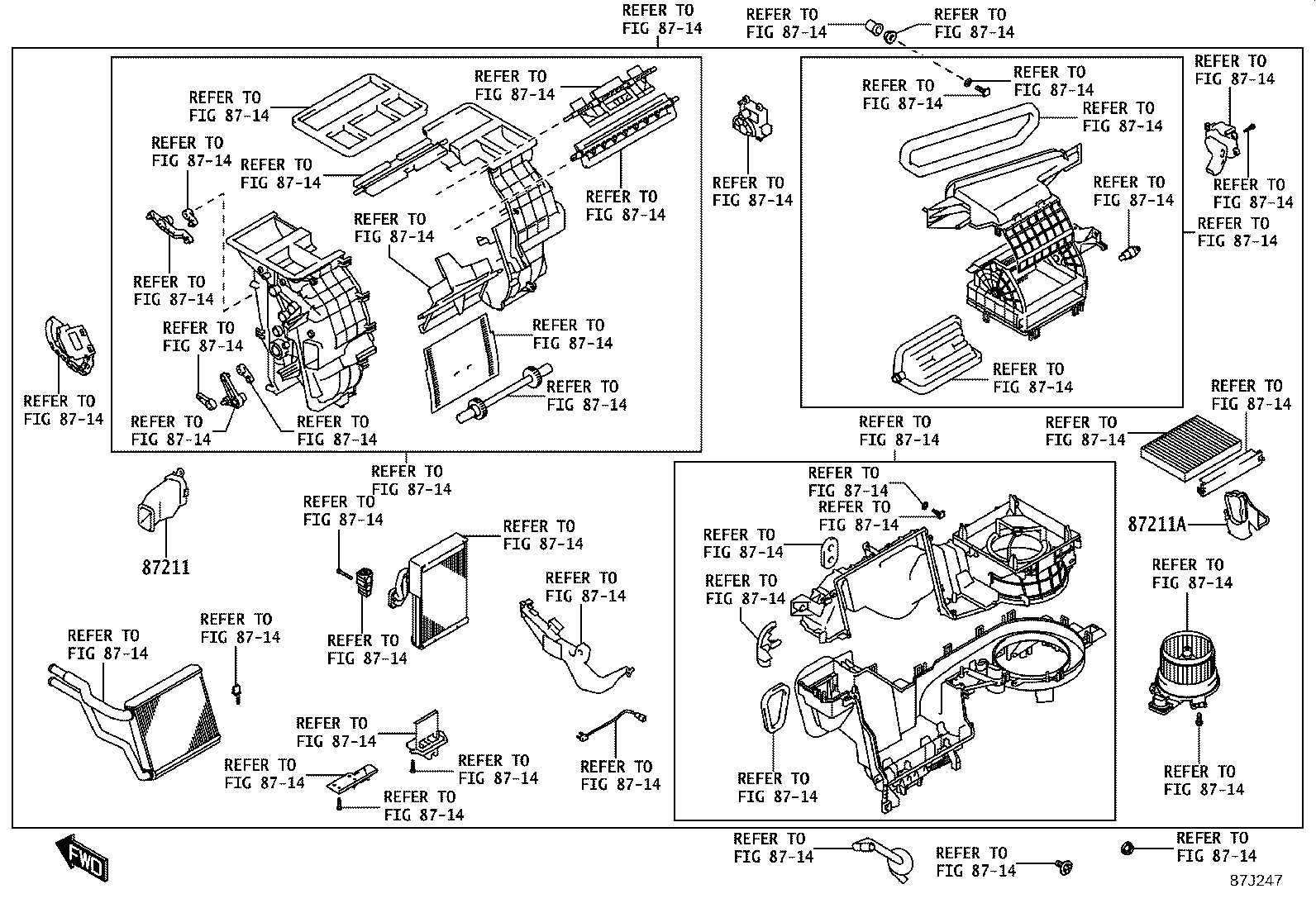

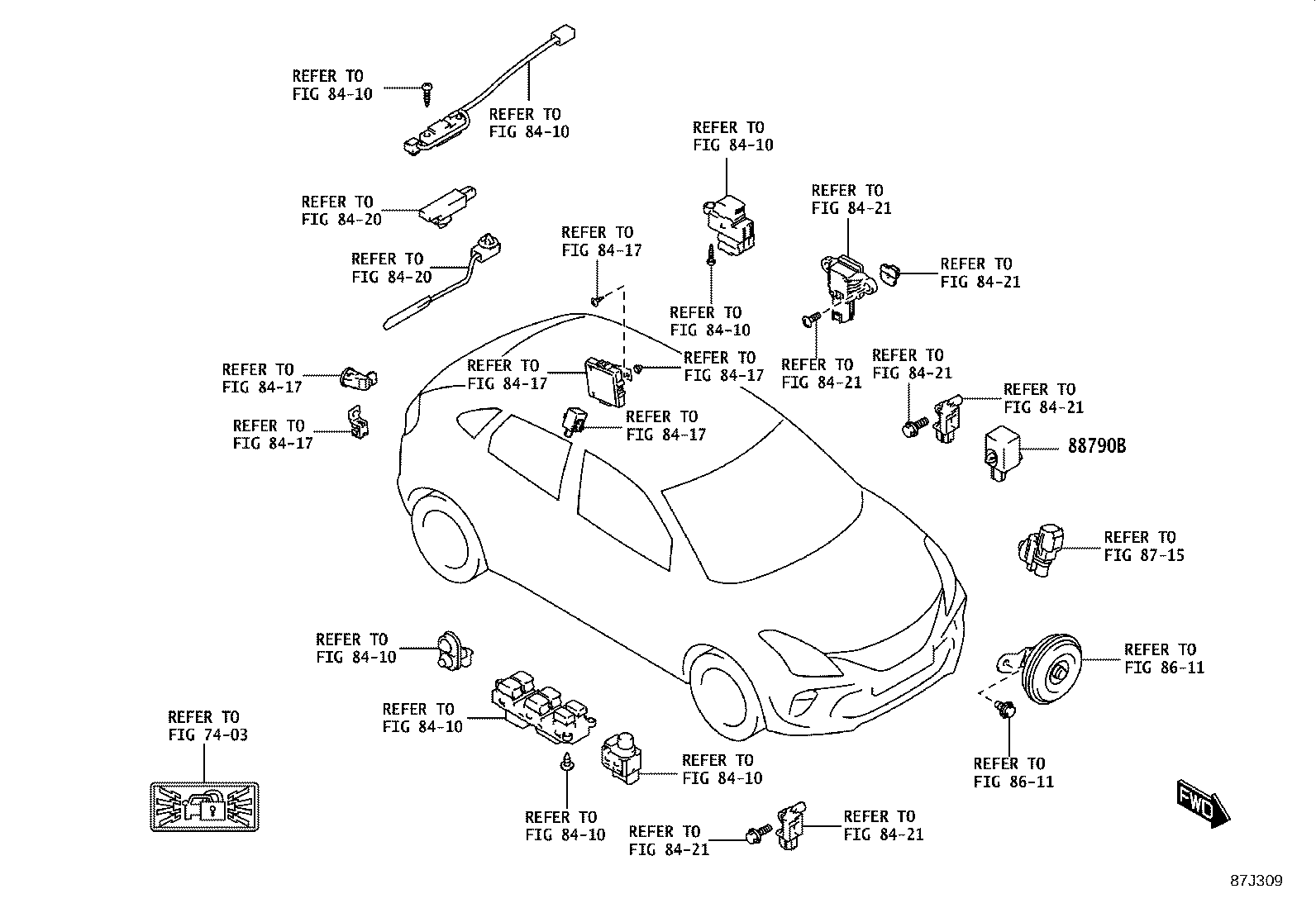

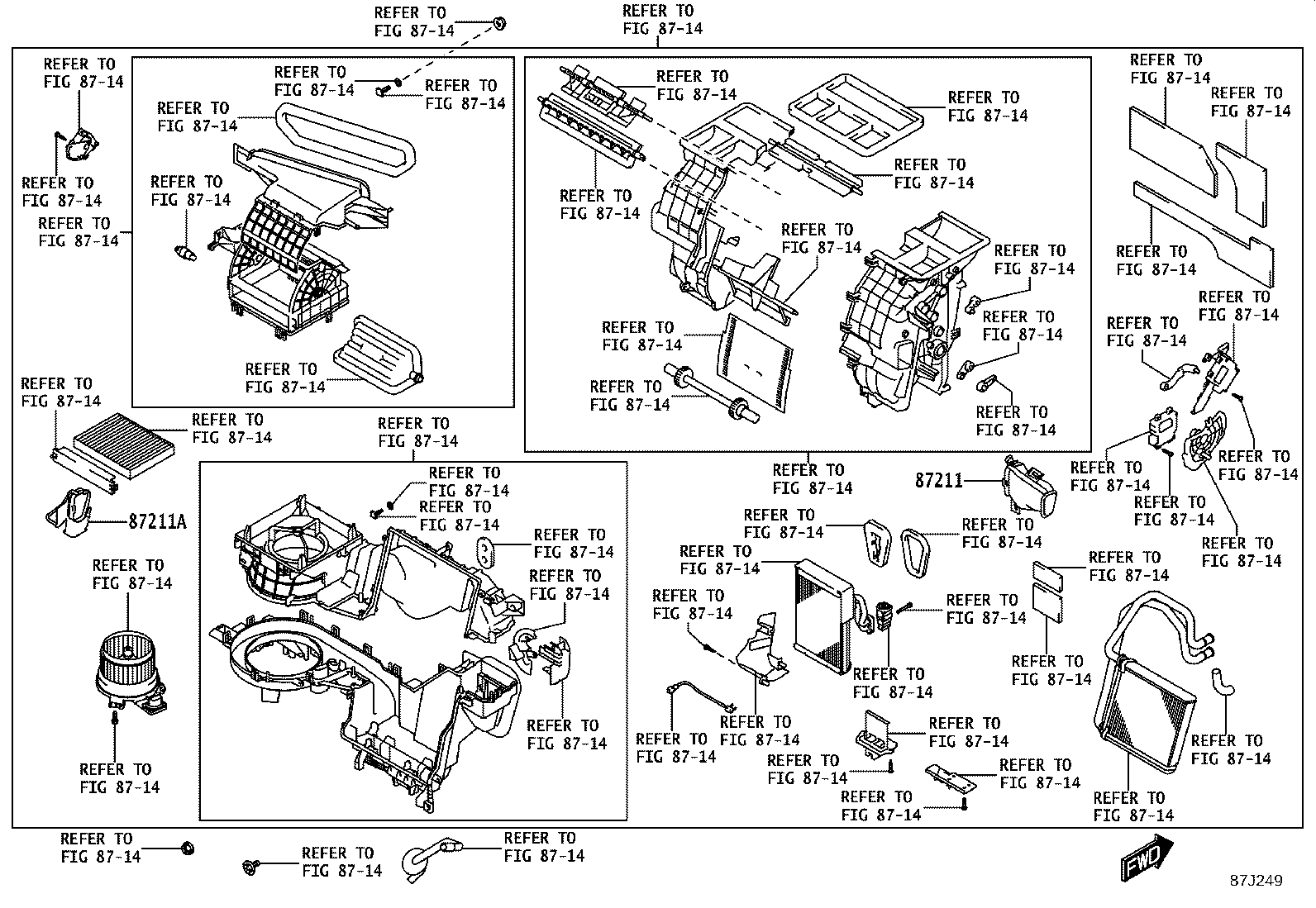

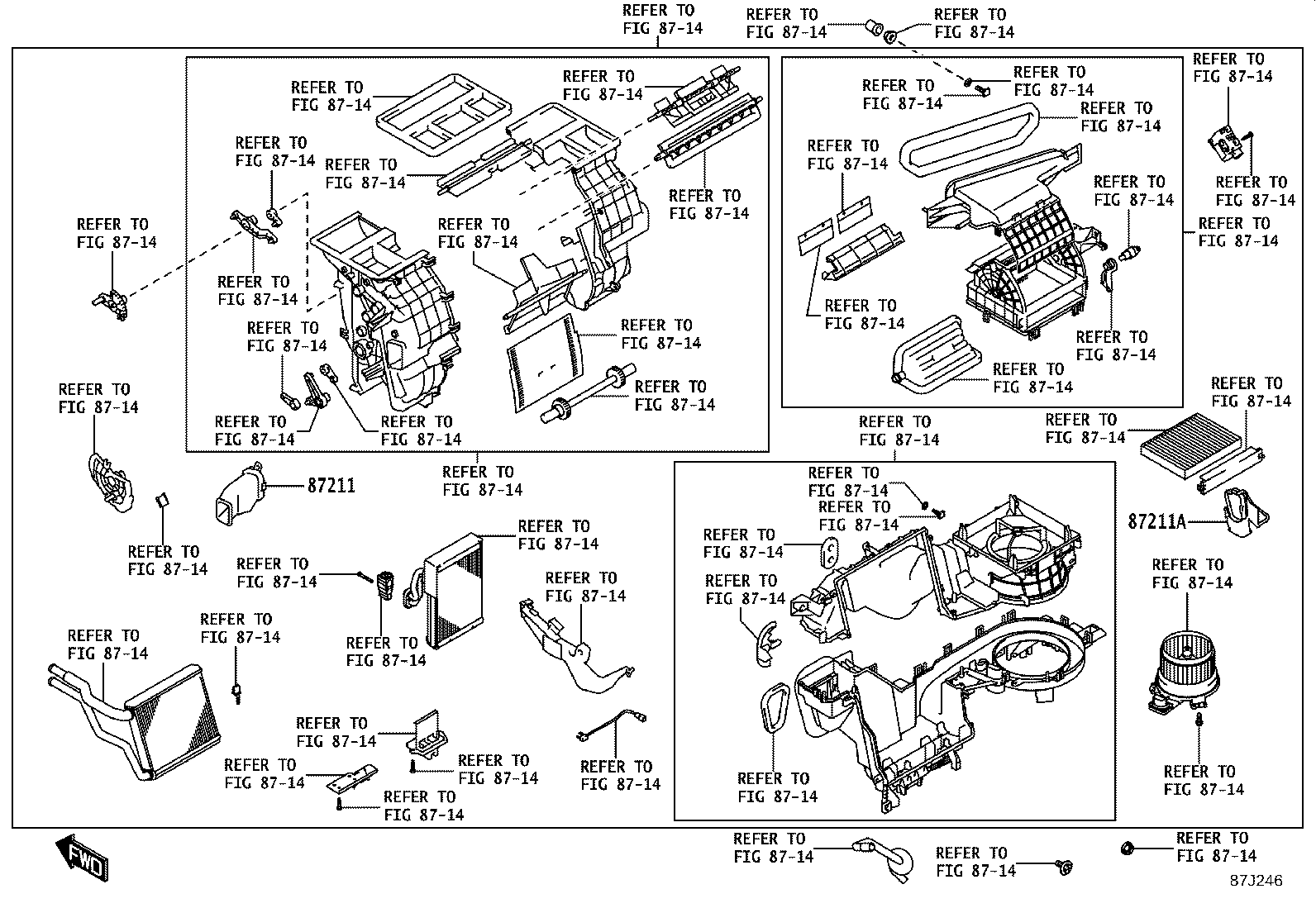

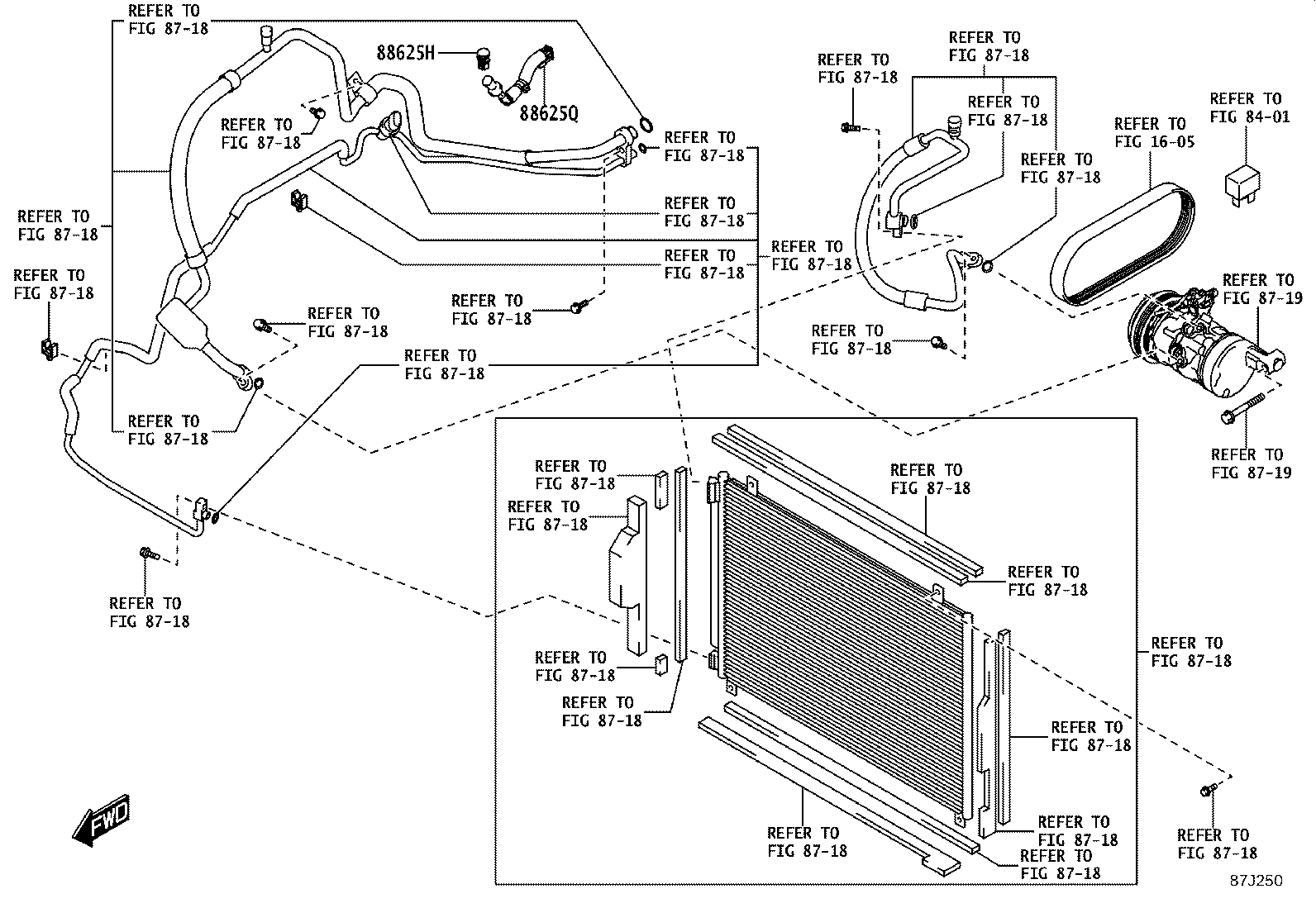

Figure 87J241 87J241 2020-07 → — Figure 87J242 87J242 2020-07 → — Figure 87J243 87J243 2020-07 → — Figure 87J244 87J244 2020-07 → — Figure 87J245 87J245 2020-07 → — Figure 87J246 87J246 2020-07 → — Figure 87J247 87J247 2020-07 → — Figure 87J248 87J248 2020-07 → — Figure 87J249 87J249 2020-07 → — Figure 87J250 87J250 2020-07 → — Figure 87J308 87J308 2020-07 → — Figure 87J309 87J309 2020-07 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55086 Duct Sub-assy, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55905A Knob, Heater Control
55906 Cable Sub-assy, Heater Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55950G Nozzle Assy, Defroster
87125B Grille, Heater Air Outlet
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
