Toyota Starlet
2020-07 → present · chassis K14B# · catalogue 133310 · General
Supported model
Data version 2020-07

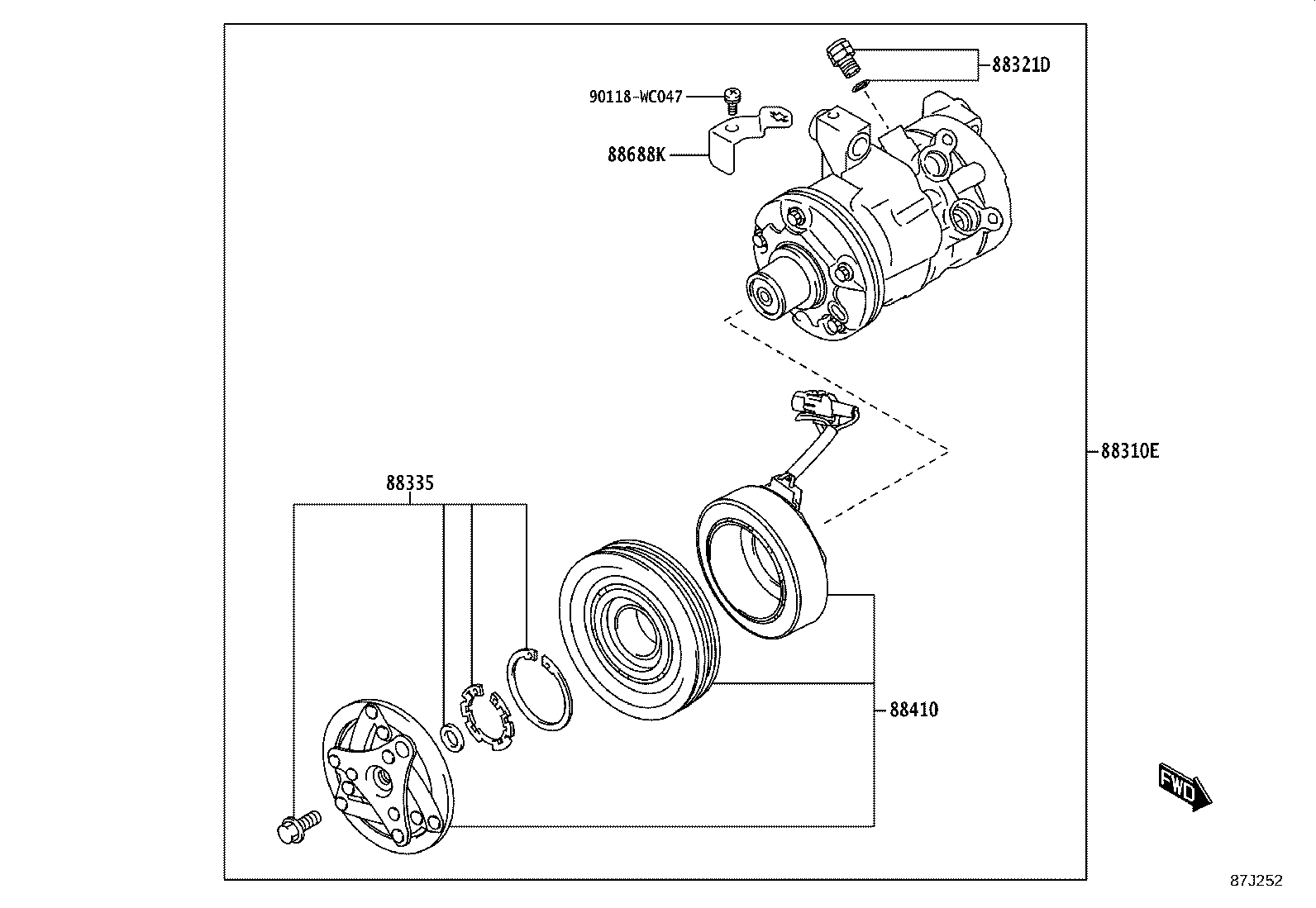

Heating & Air Conditioning - Compressor
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310E | Compressor, W/Magnet Clutch |
| 88321D | Valve, Pressure Relief |
| 88335 | Gasket Kit, Overhaul |
| 88410 | Clutch Assy, Magnet |
| 88446D | Bolt, Cooler |
| 88688K | Bracket, Cooler Compressor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
