Toyota Starlet
2022-03 → present · chassis K15B · catalogue 133320 · General
Supported model
Data version 2022-03

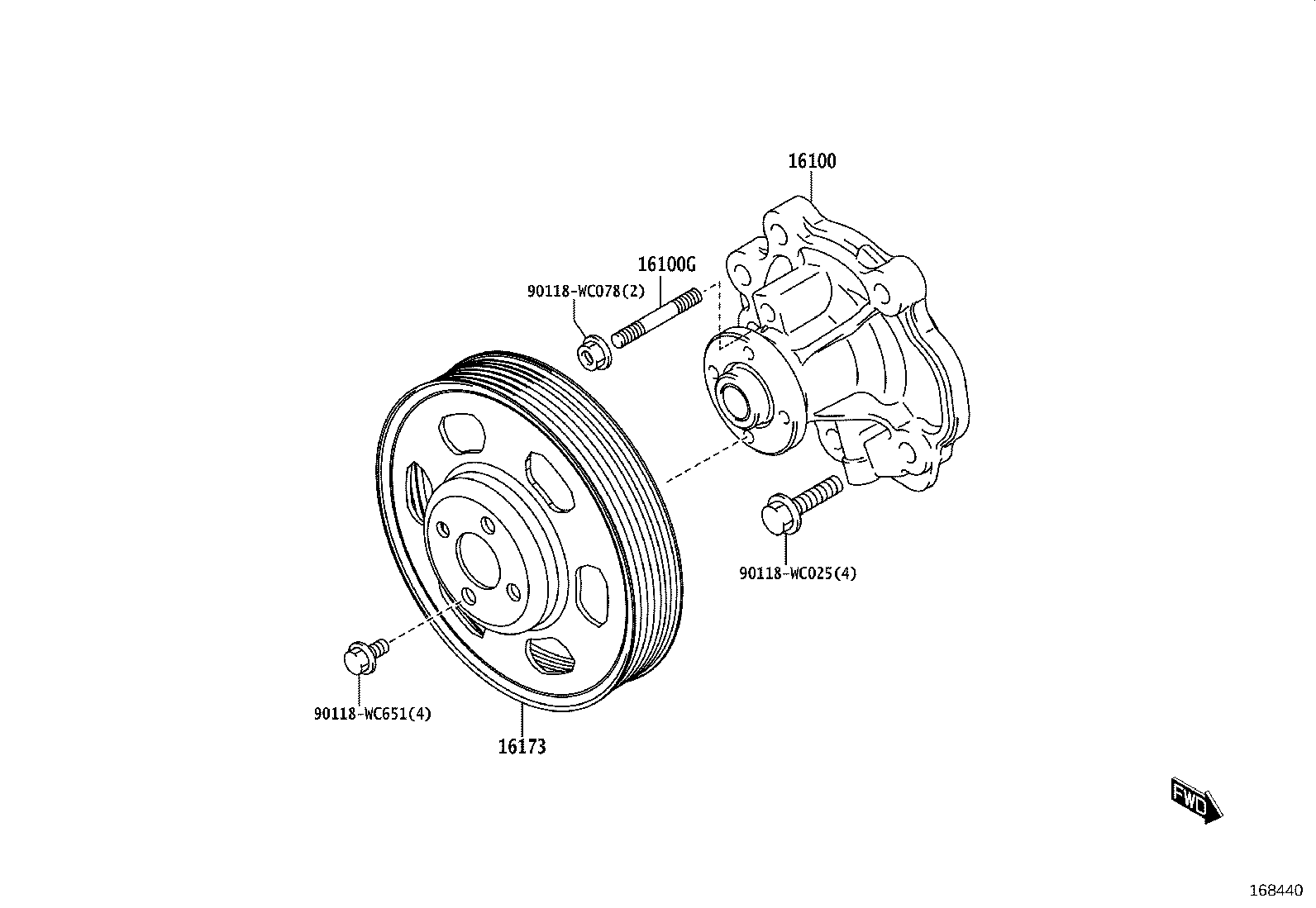

Water Pump
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 16100 | Pump Assy, Engine Water |
| 16100G | Bolt, Stud(FOR WATER PUMP SET) |
| 16173 | Pulley, Water Pump |
| 16621 | Bracket, V-ribbed Belt Tensioner |
| 16622 | Arm, V-ribbed Belt Tensioner |
| 16630G | Pulley Assy, Idler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
