Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

11 part groups · 2 illustrations

Illustrations

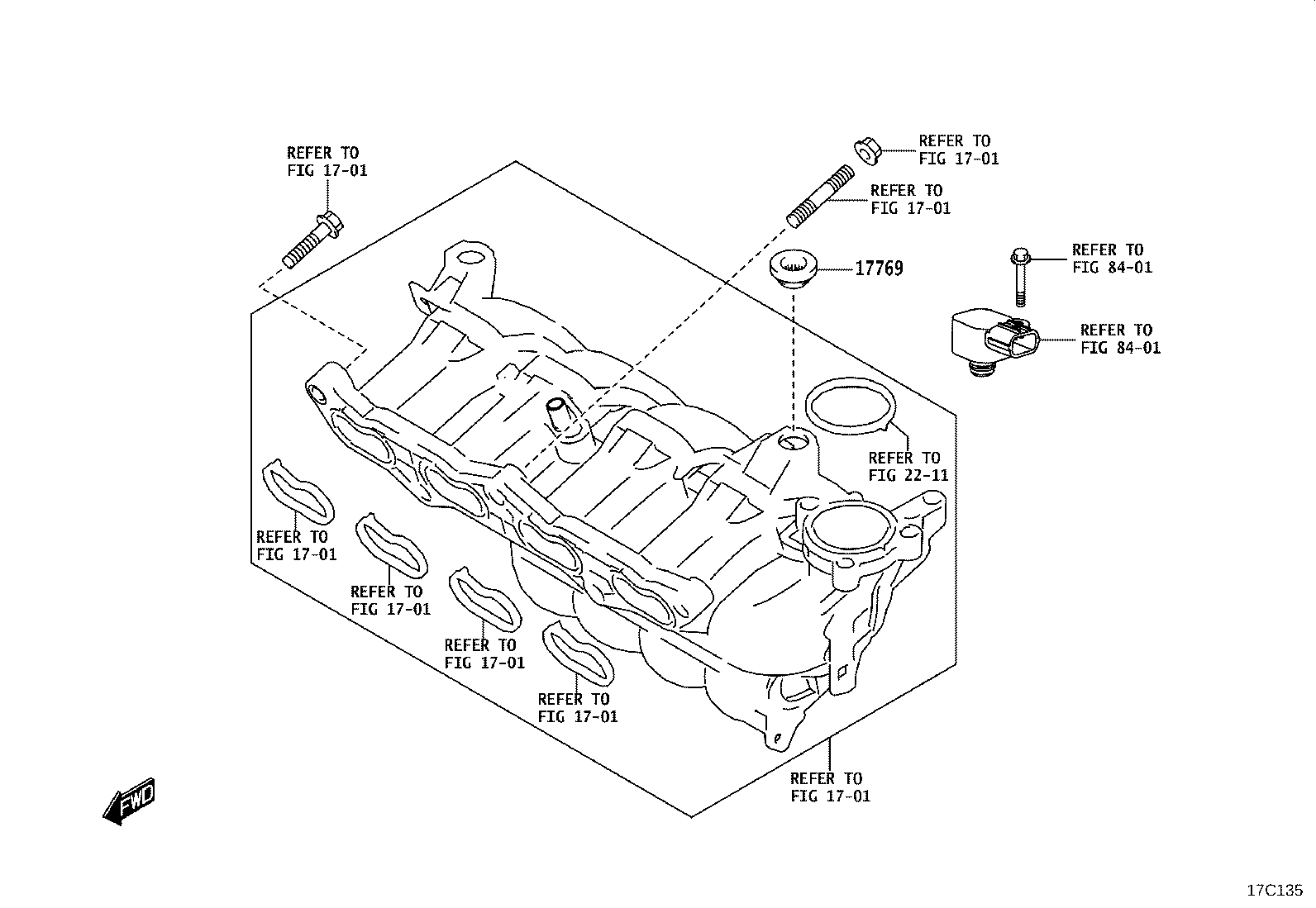

Figure 17C134 17C134 2022-02 → — Figure 17C135 17C135 2022-02 → —

Part groups

PNCDescription
12229A Pipe, Ventilation
17700 Cleaner Assy, Air
17710B Grommet
17710K Collar(FOR AIR CLEANER)
17769 Support, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
