Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

5 part groups · 2 illustrations

Illustrations

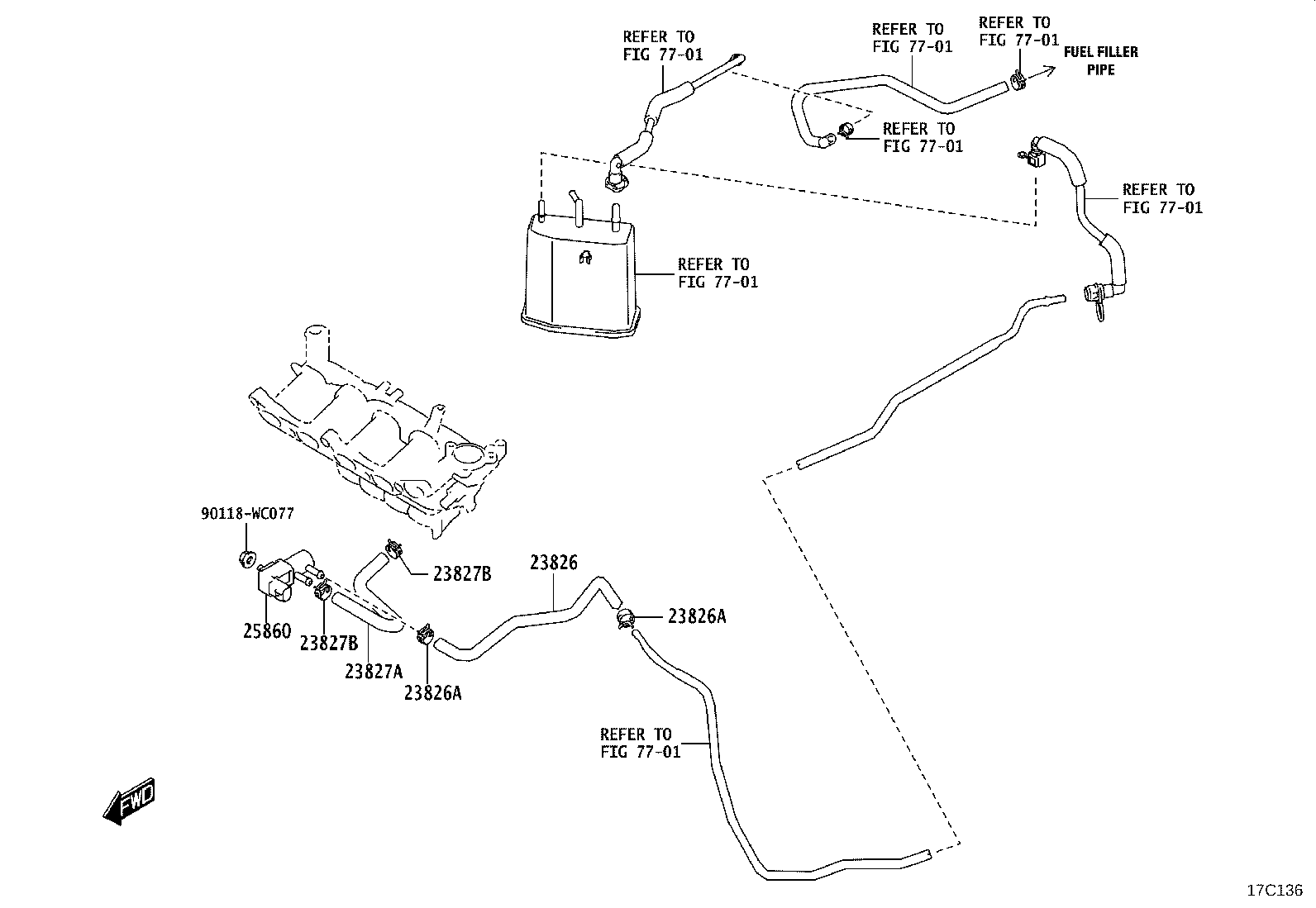

Figure 17C137 17C137 2022-03 → — Figure 17C136 17C136 2022-03 → —

Part groups

PNCDescription
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
