Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

8 part groups · 8 illustrations

Illustrations

Figure 458316 458316 2022-03 → — Figure 458317 458317 2022-03 → — Figure 458318 458318 2022-03 → — Figure 458319 458319 2022-03 → — Figure 458320 458320 2022-03 → — Figure 458321 458321 2022-03 → — Figure 458322 458322 2022-03 → — Figure 4587AD 4587AD 2022-03 → —

Part groups

PNCDescription

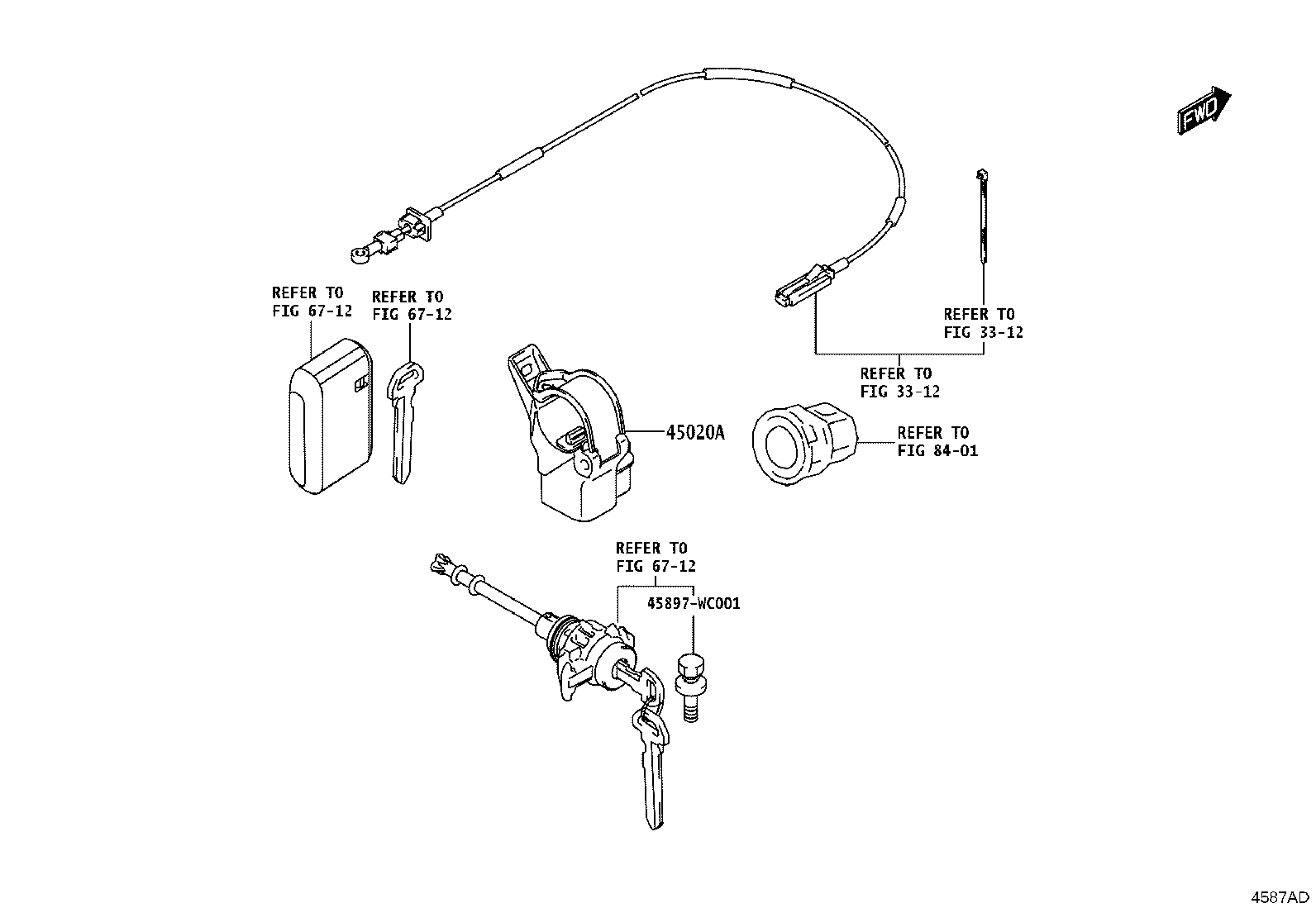

45020A Actuator Assy, Steering Lock

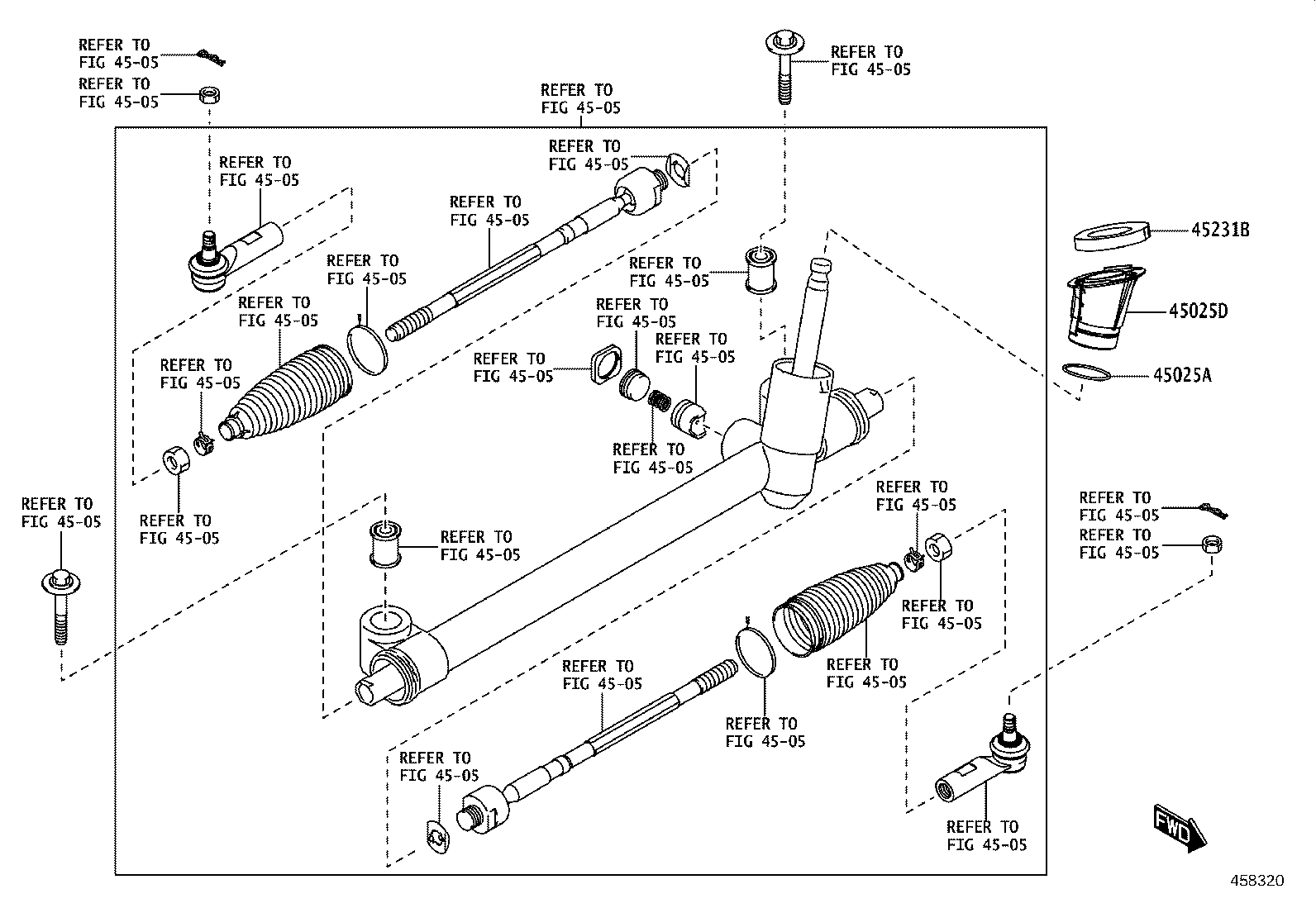

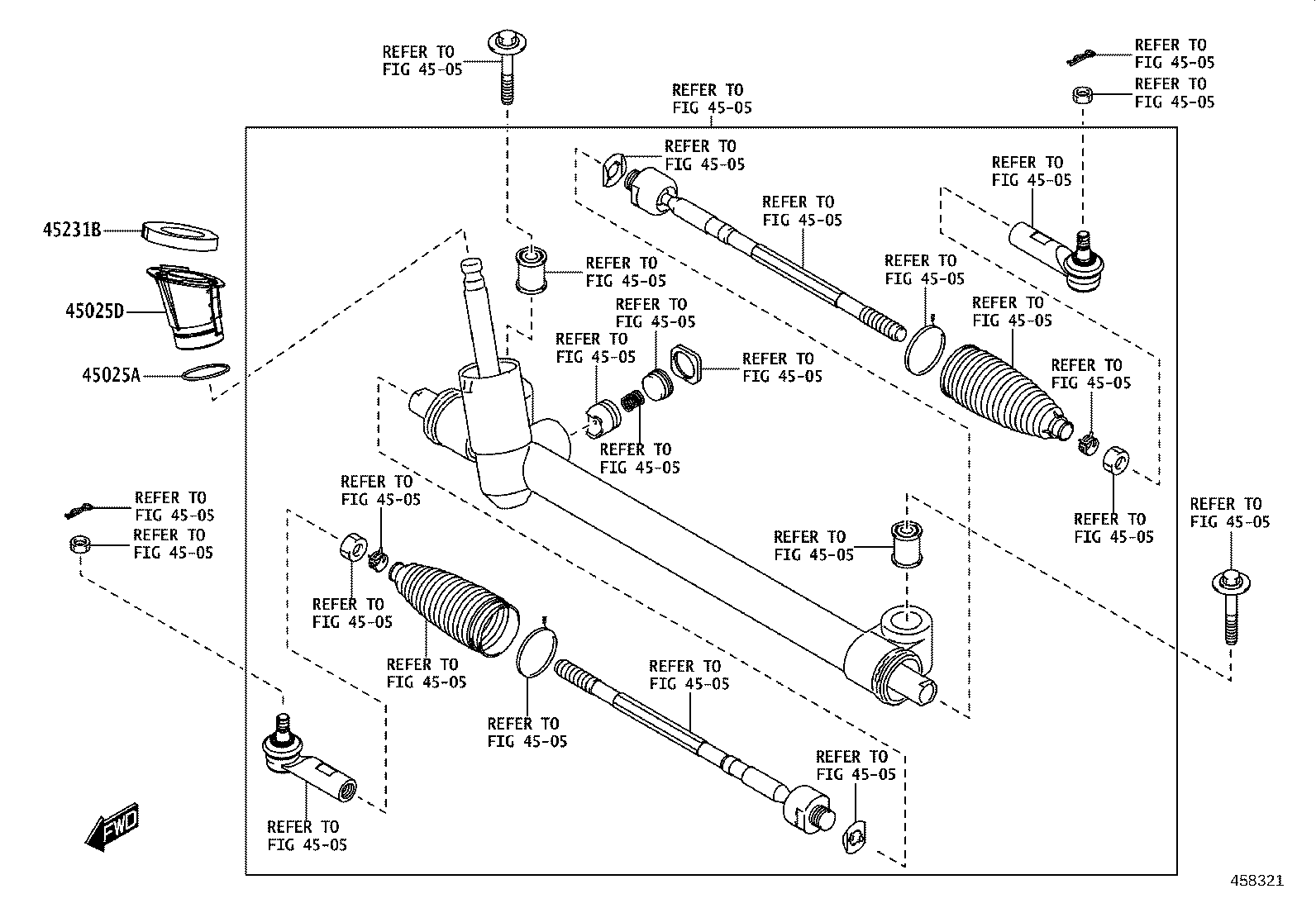

45025A Ring, O(FOR STEERING COLUMN HOLE COVER)
45025D Cover Sub-assy, Steering Column Hole, NO.1
45231B Seal, Dust

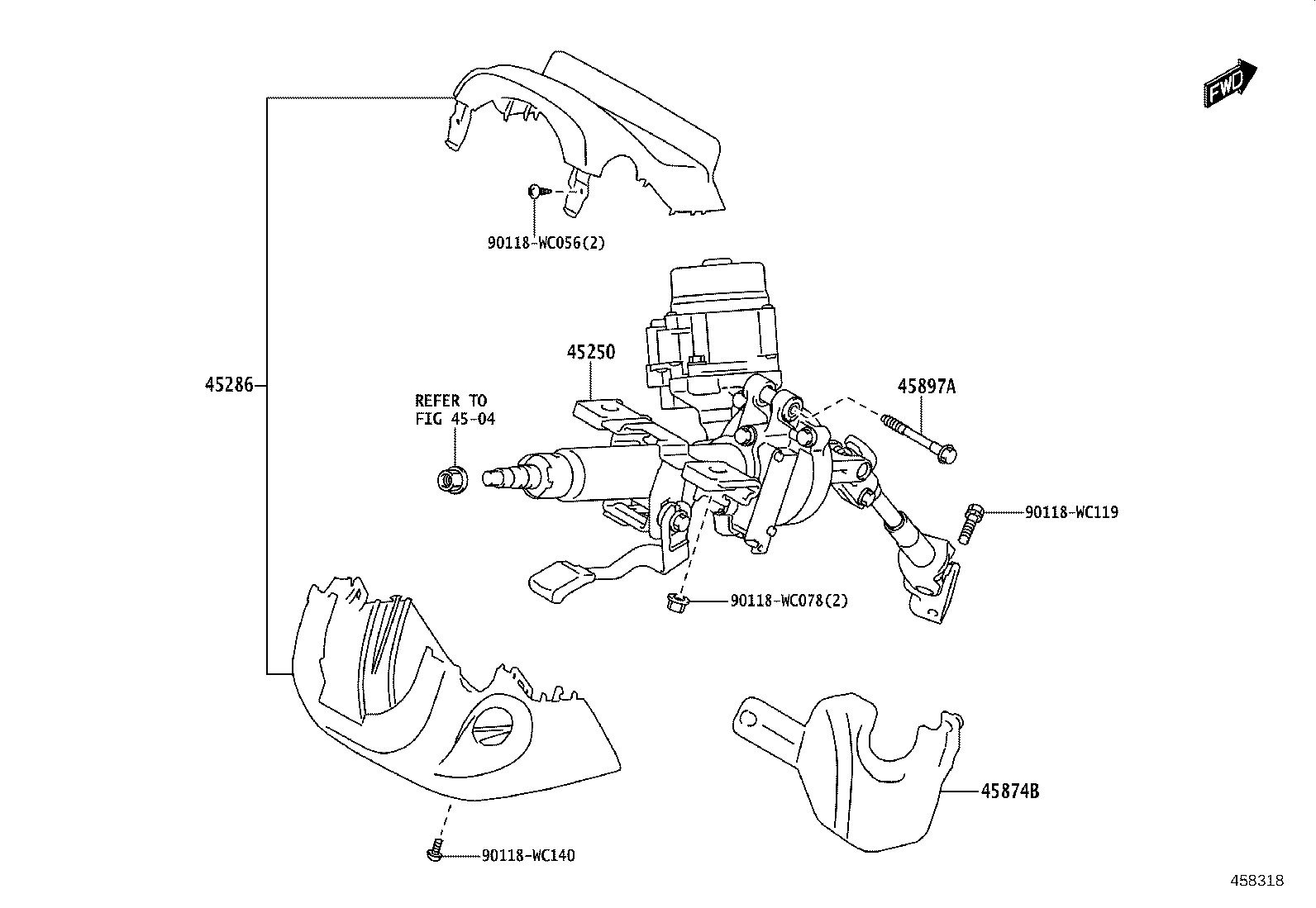

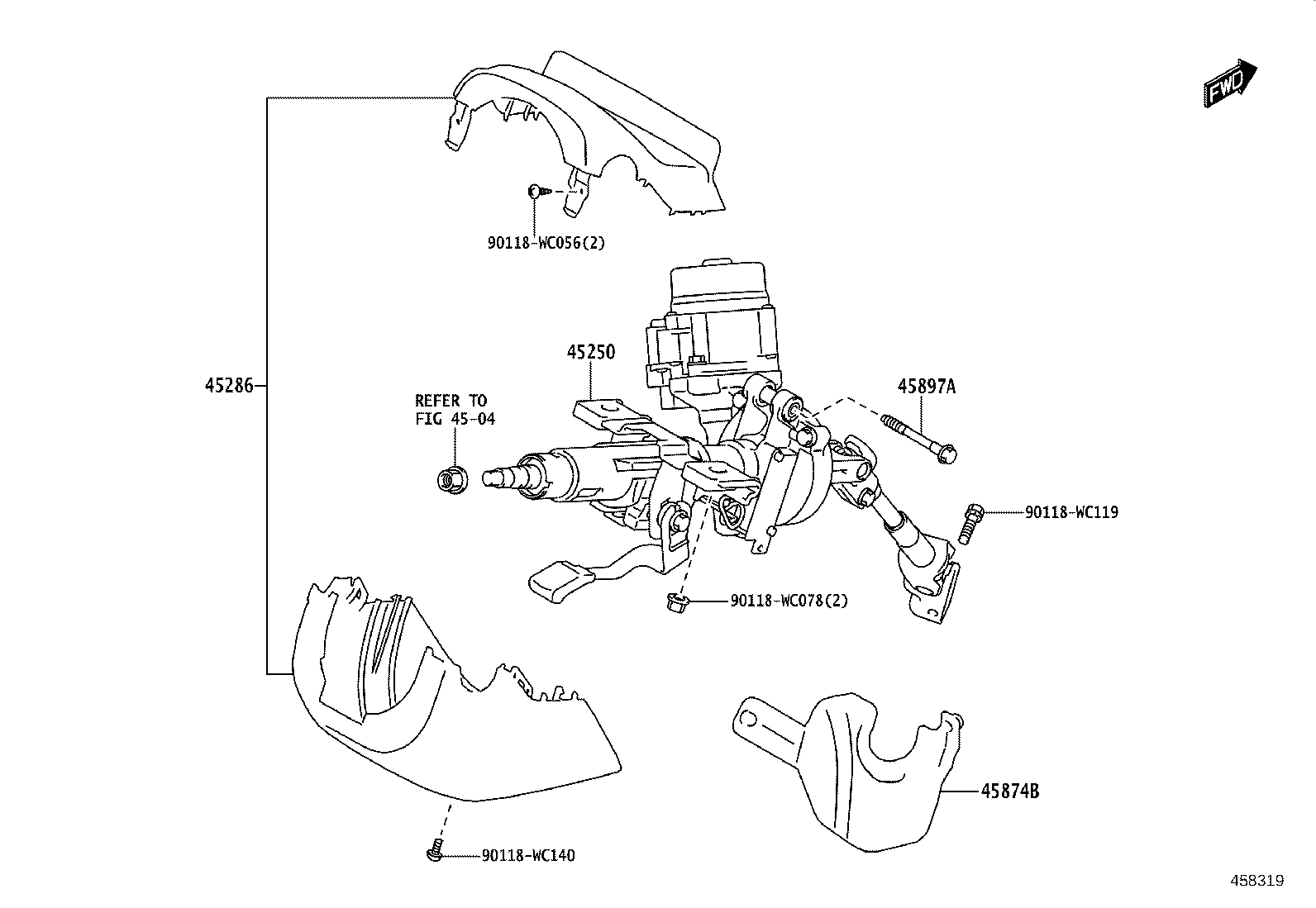

45250 Column Assy, Steering
45286 Cover, Steering Column
45874B Protector, Steering Column, NO.1

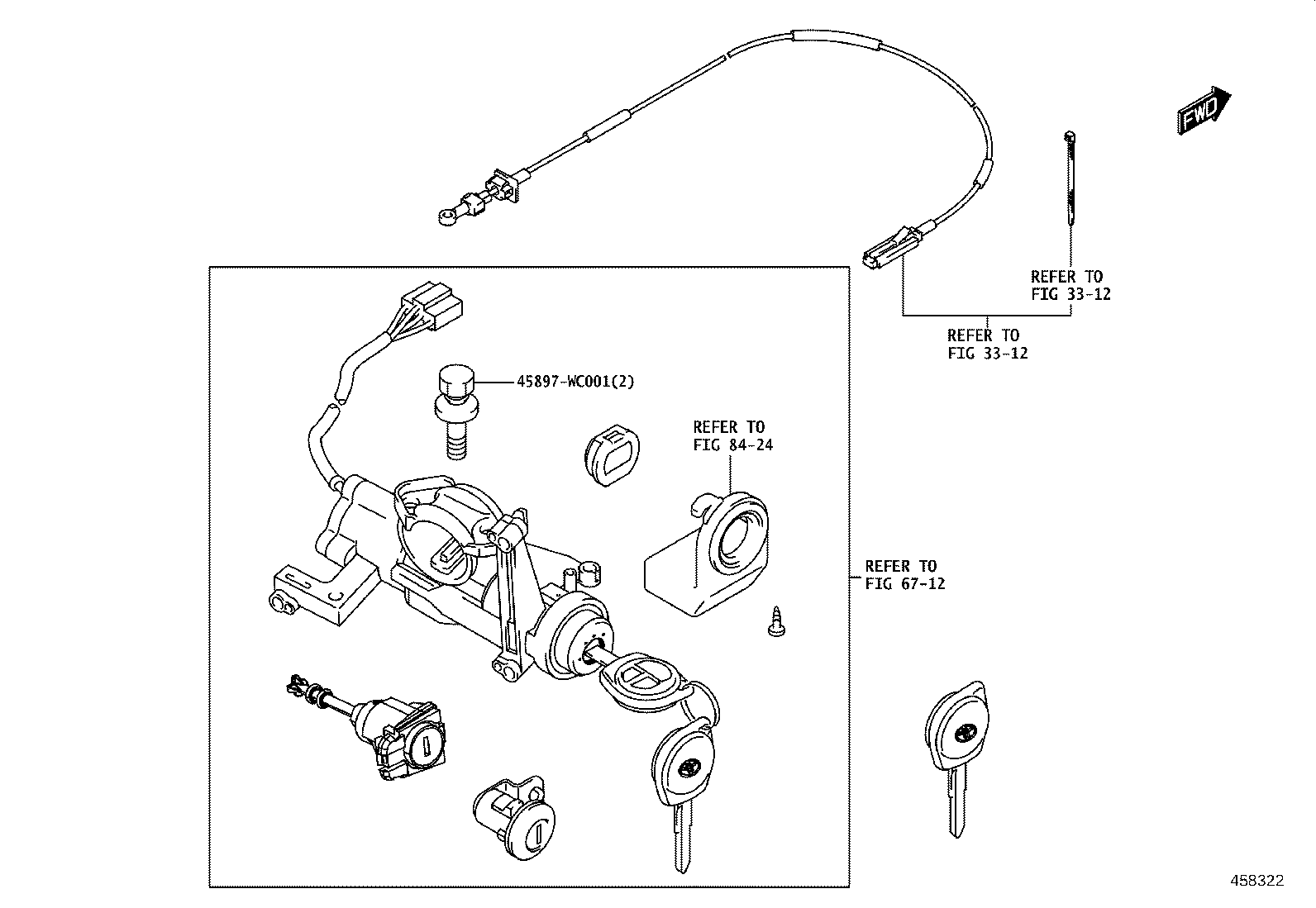

45897A Bolt, Tilt Steering Pawl Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
