Brake Pedal & Bracket

3 part groups · 6 illustrations

Illustrations

Figure 47D698B

47D698B 2022-03 → —

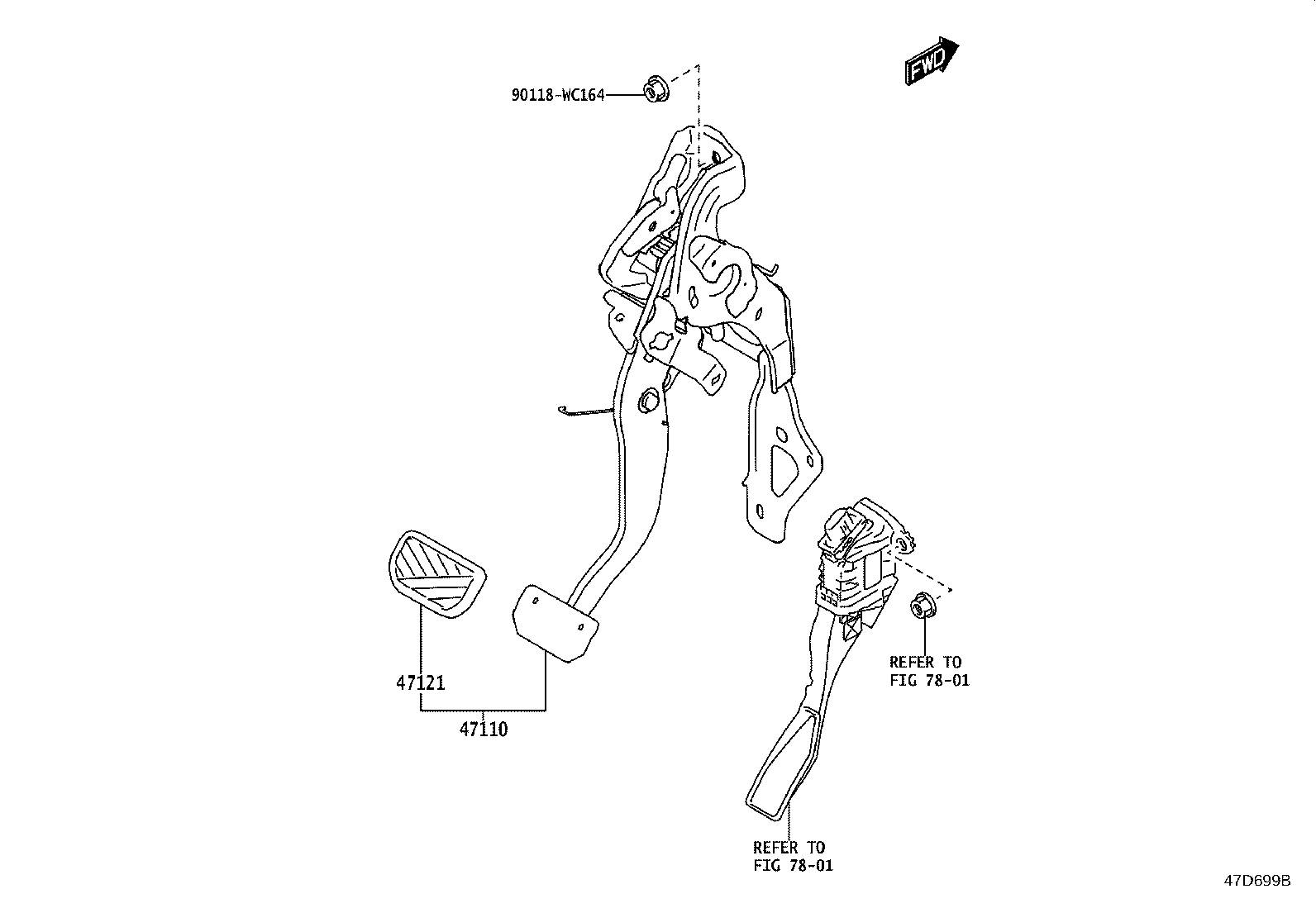

Figure 47D699B

47D699B 2022-03 → —

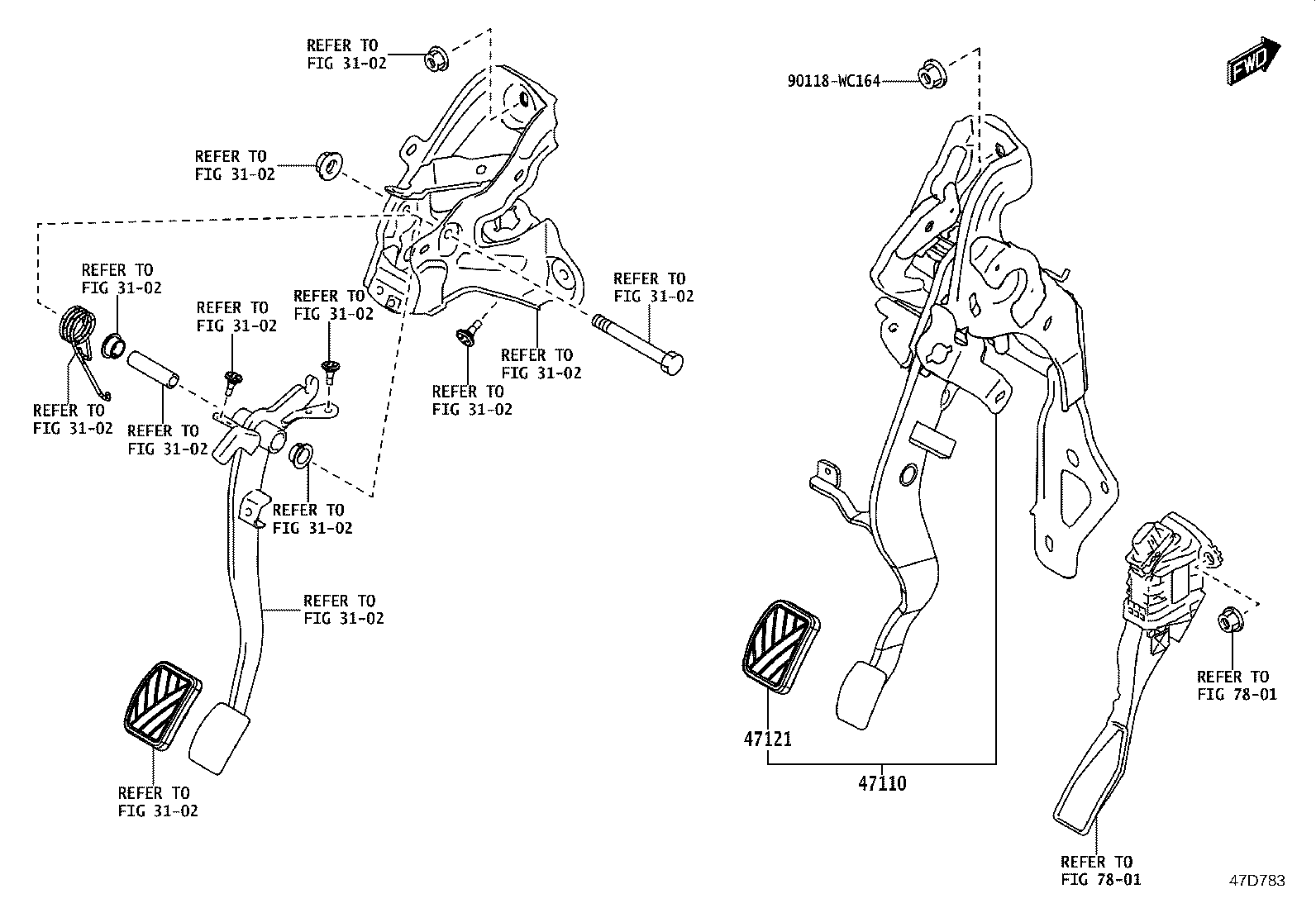

Figure 47D783

47D783 2022-03 → —

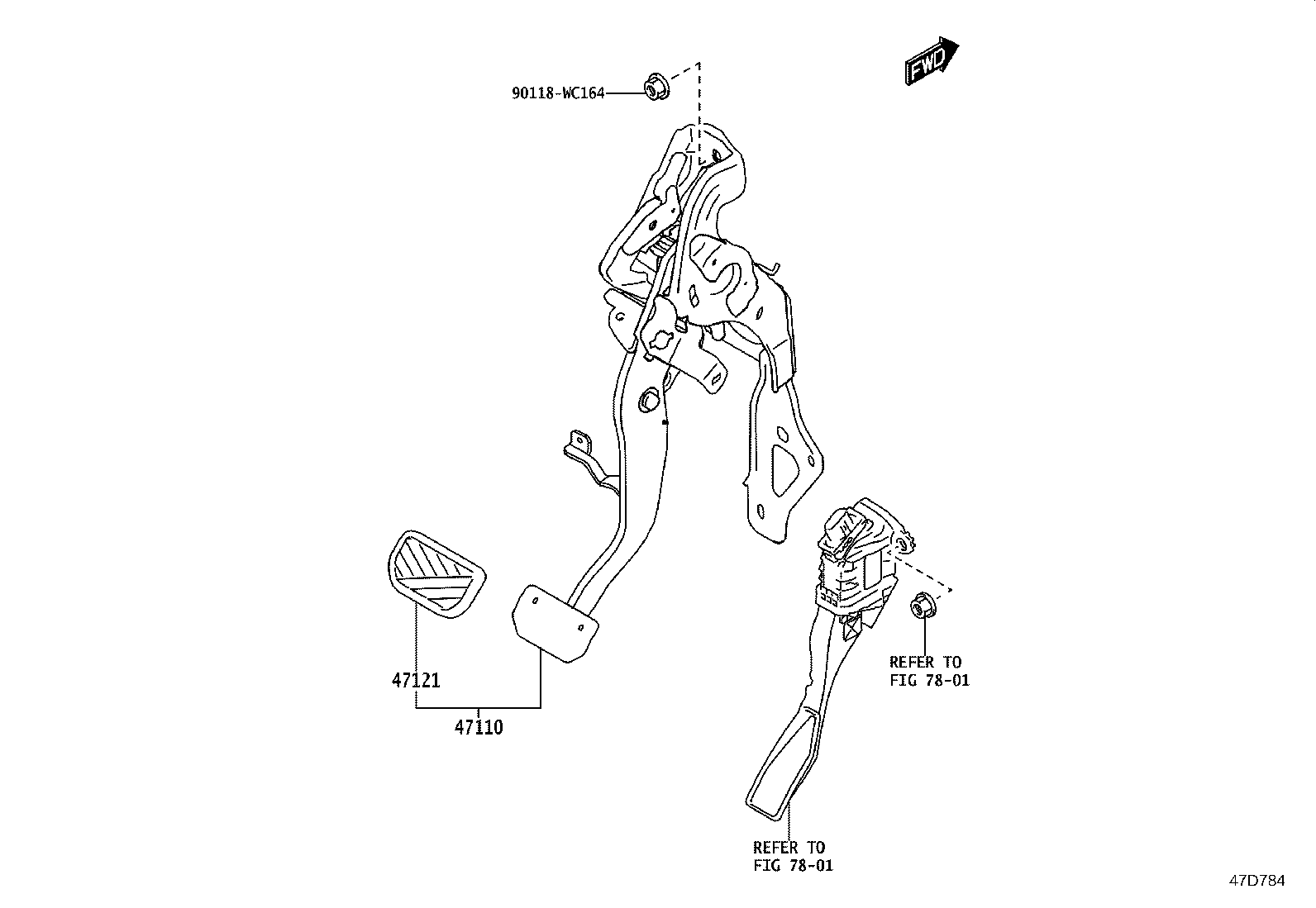

Figure 47D784

47D784 2022-03 → —

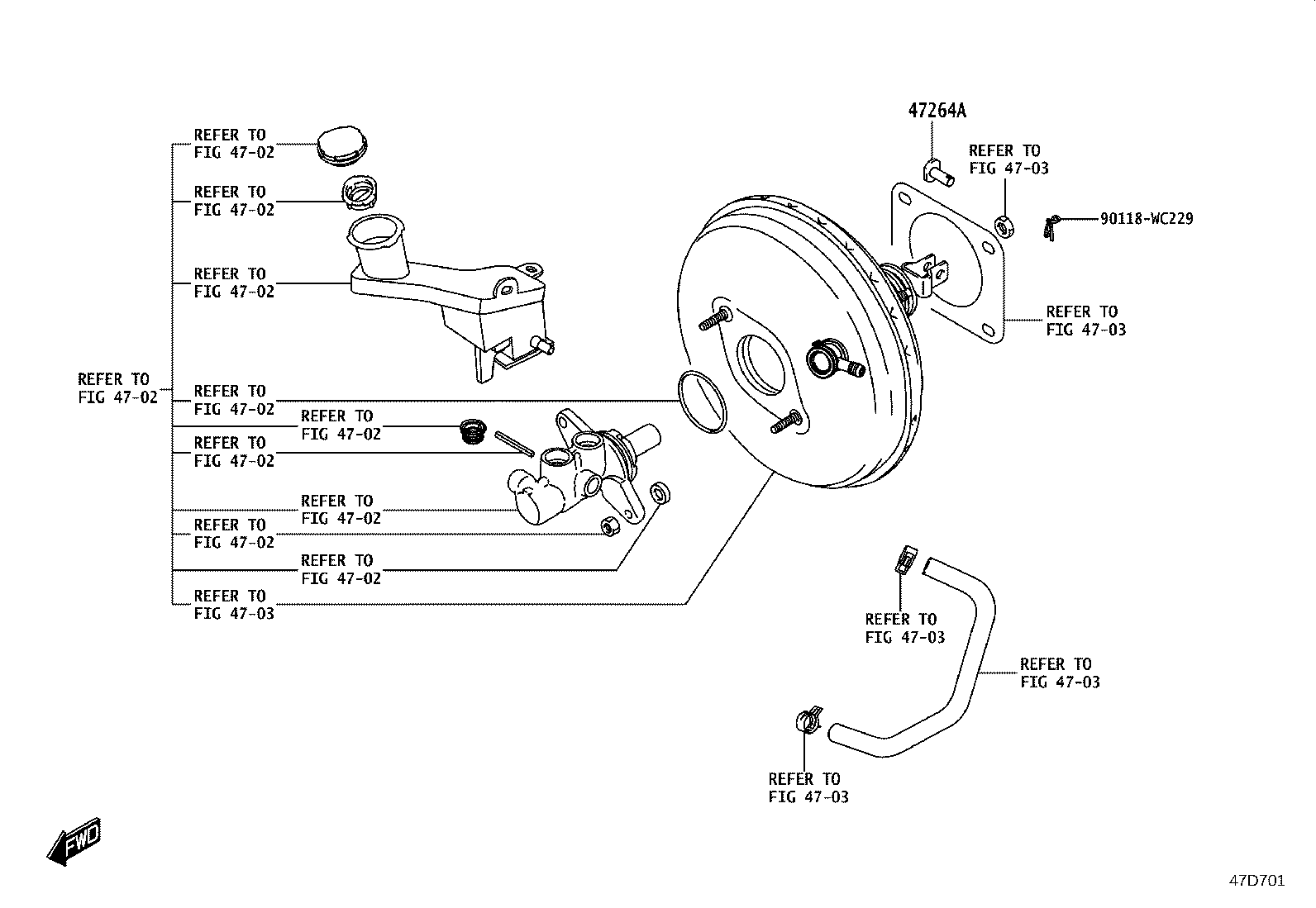

Figure 47D701

47D701 2022-03 → —

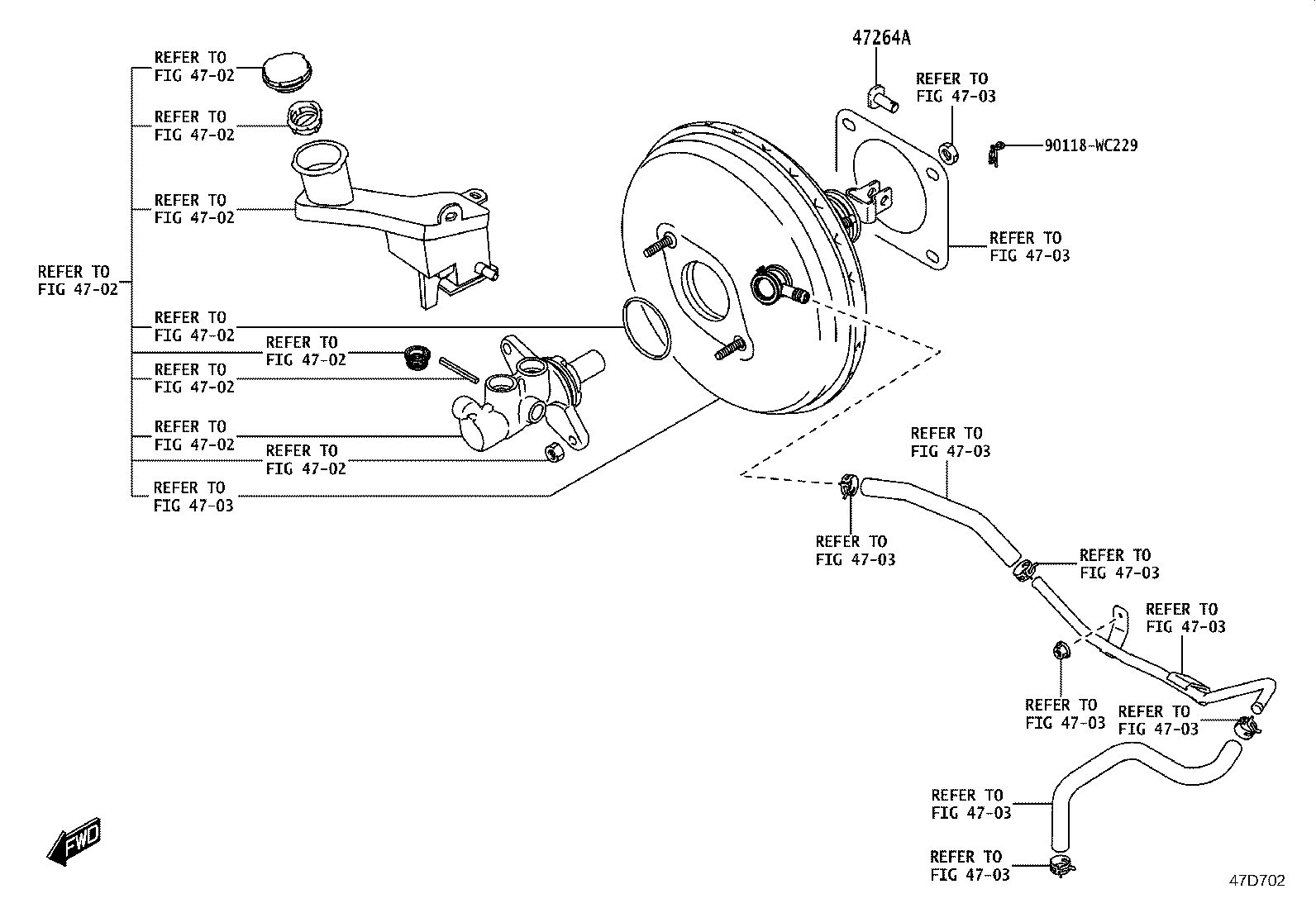

Figure 47D702

47D702 2022-03 → —

Part groups

PNC	Description
47110	Support Assy, Brake Pedal
47121	Pad, Brake Pedal
47264A	Pin(FOR PUSH ROD)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
