Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

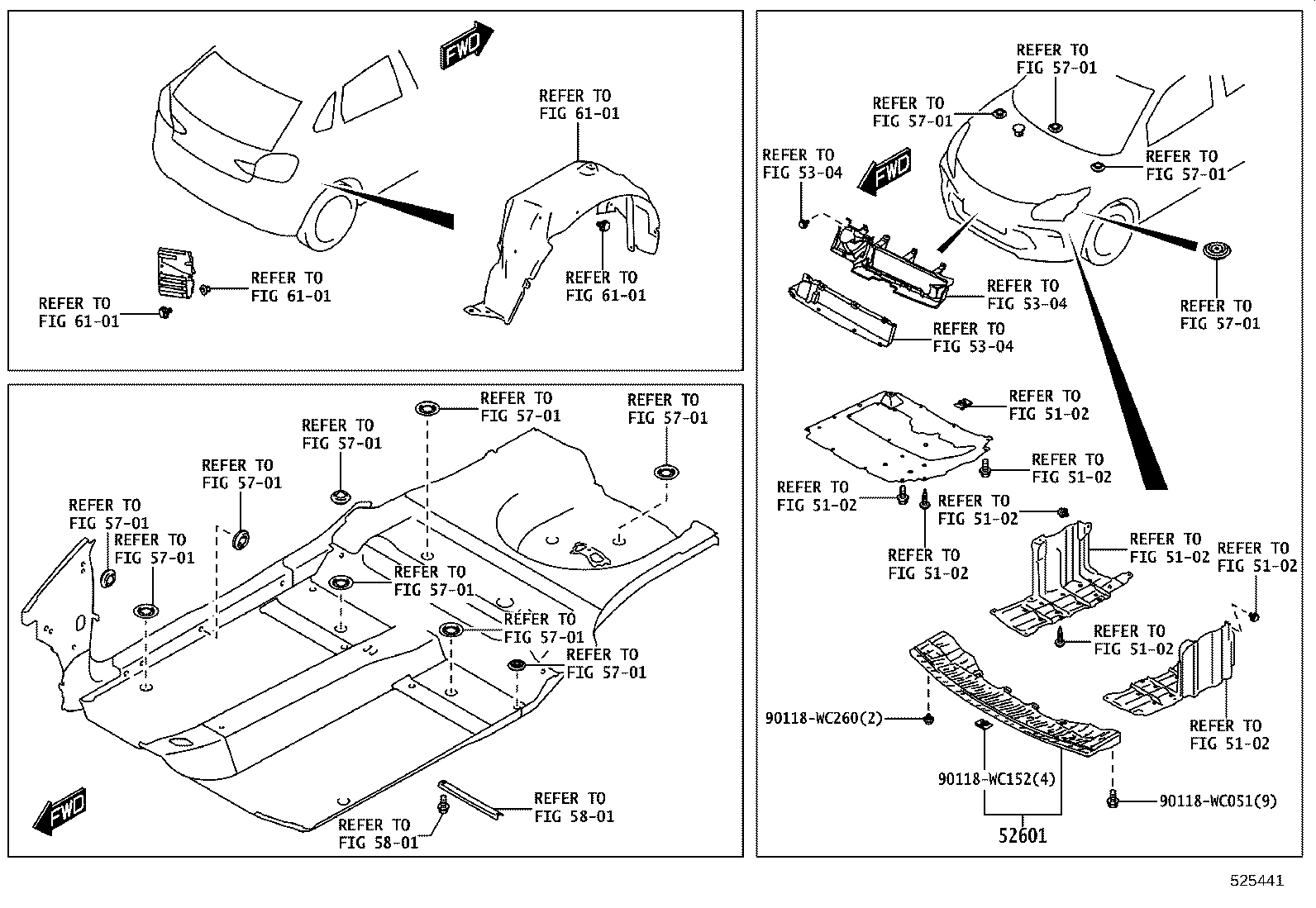

Figure 525440A 525440A 2022-03 → — Figure 525441 525441 2022-03 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52115D Support, Front Bumper Side, NO.2 RH
52116A Support, Front Bumper Side, LH
52116D Support, Front Bumper Side, NO.2 LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52128C Cover, Front Bumper Hole, LH
52143D Bracket, Front Bumper Side, RH
52144D Bracket, Front Bumper Side, LH
52601 Absorber Sub-assy, Front Bumper Energy
53112E Grille, Radiator, Lower NO.1
53141K Garnish, Fog Lamp Cover, RH
53142F Garnish, Fog Lamp Cover, LH
53395E Seal, Hood TO Front End Panel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
