Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

7 part groups · 2 illustrations

Illustrations

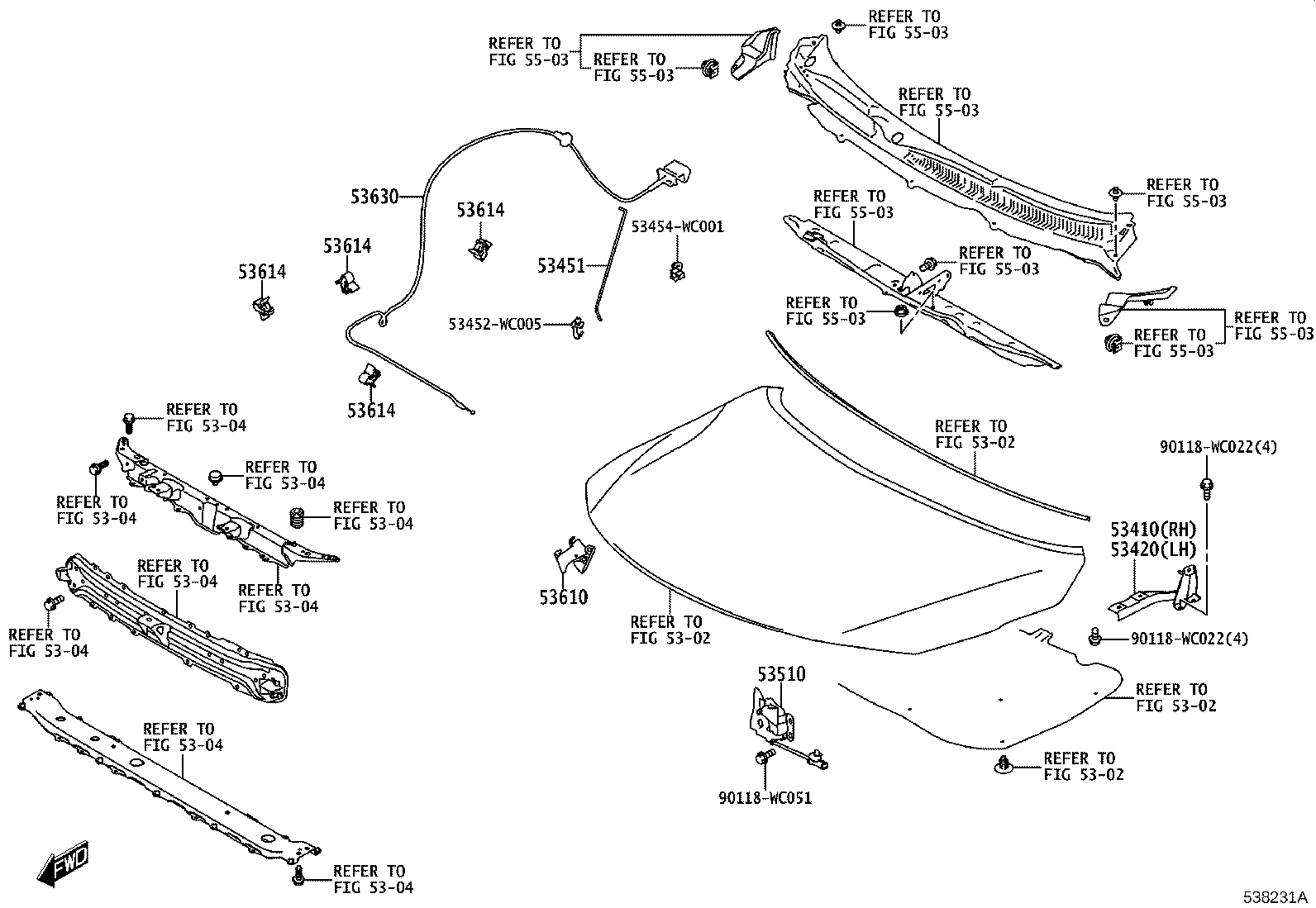

Figure 538232A 538232A 2022-03 → — Figure 538231A 538231A 2022-03 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53451 Rod, Hood Support
53510 Lock Assy, Hood
53610 Lever Assy, Hood Lock Release
53614 Clamp, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
