Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

12 part groups · 5 illustrations

Illustrations

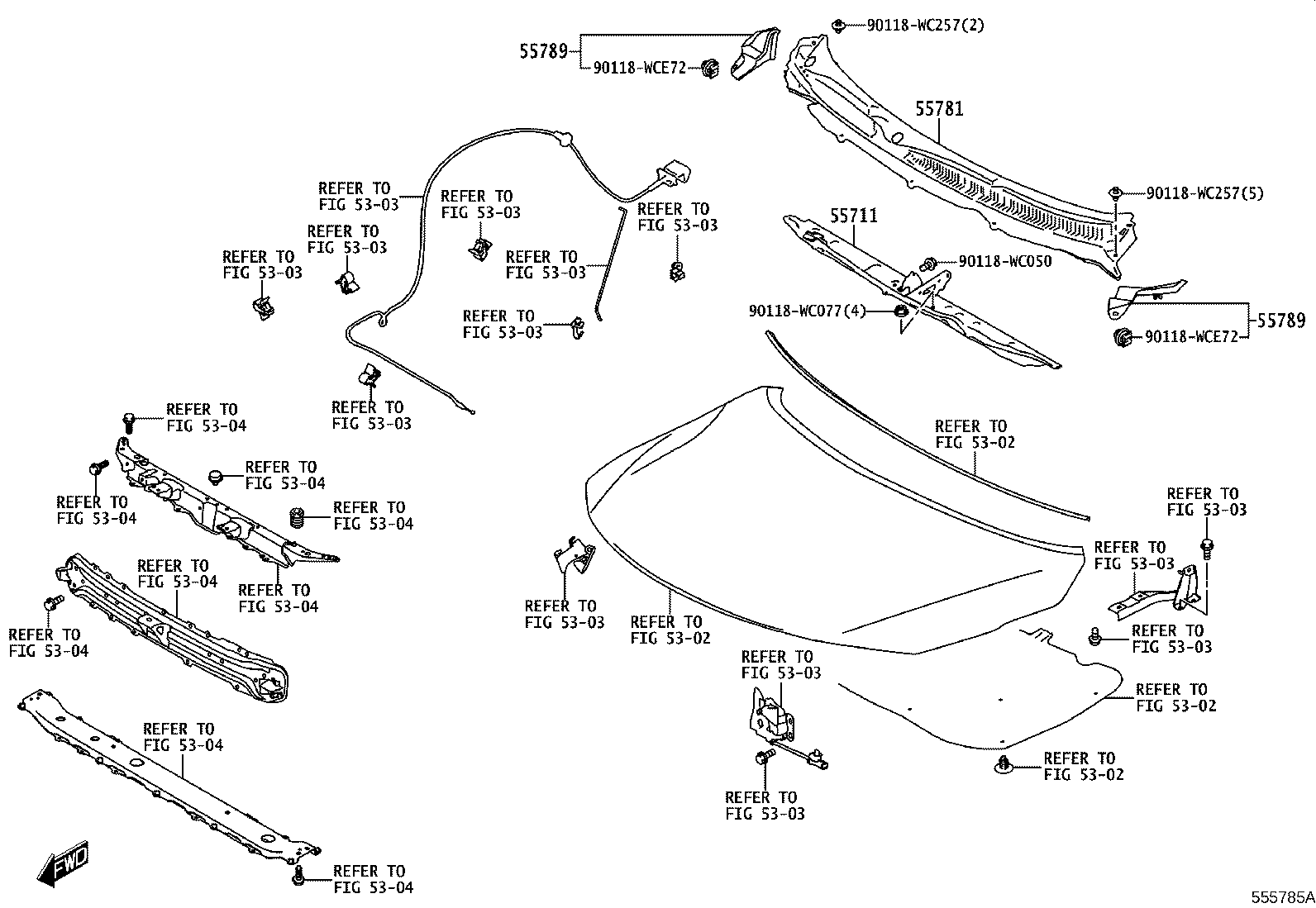

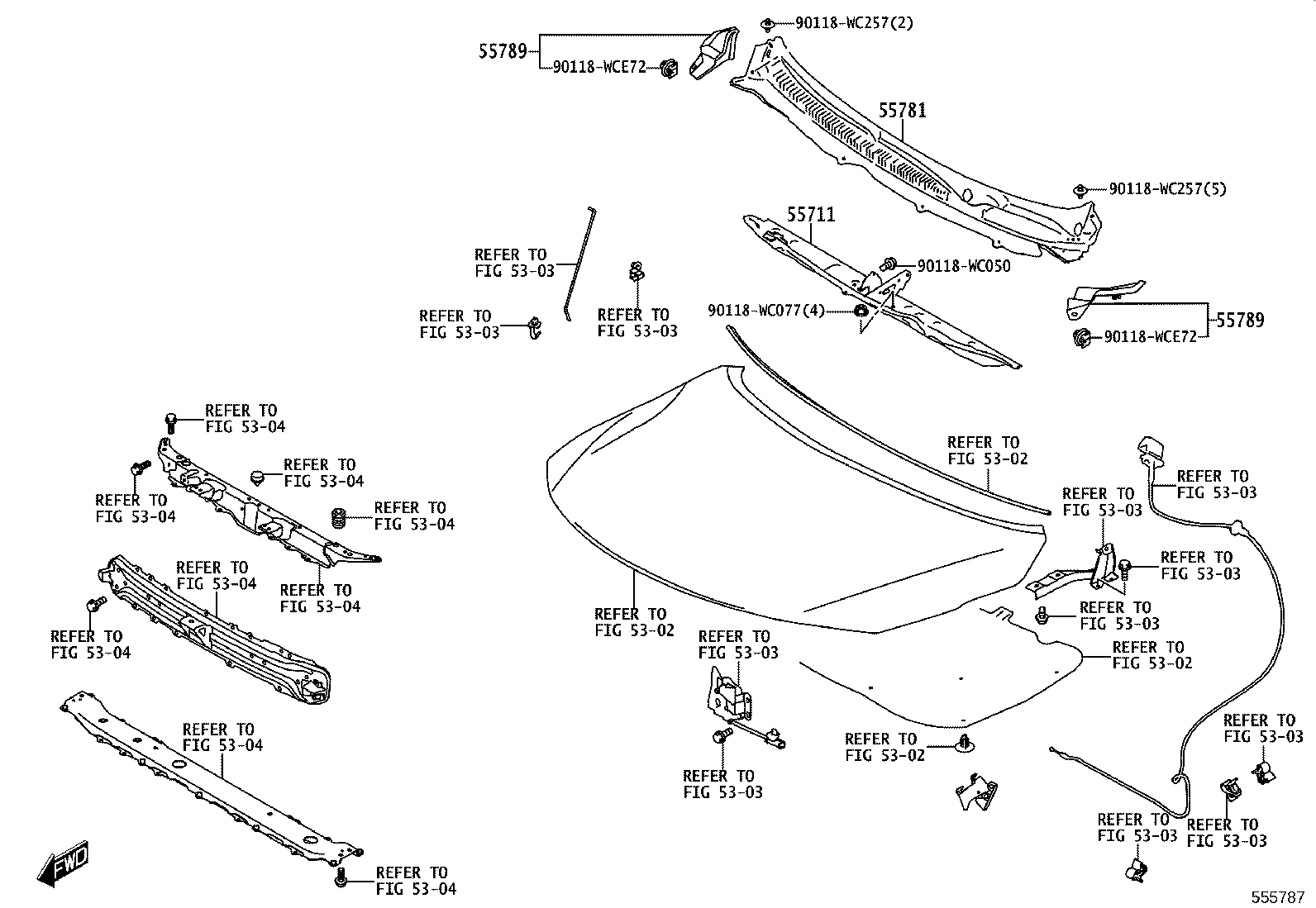

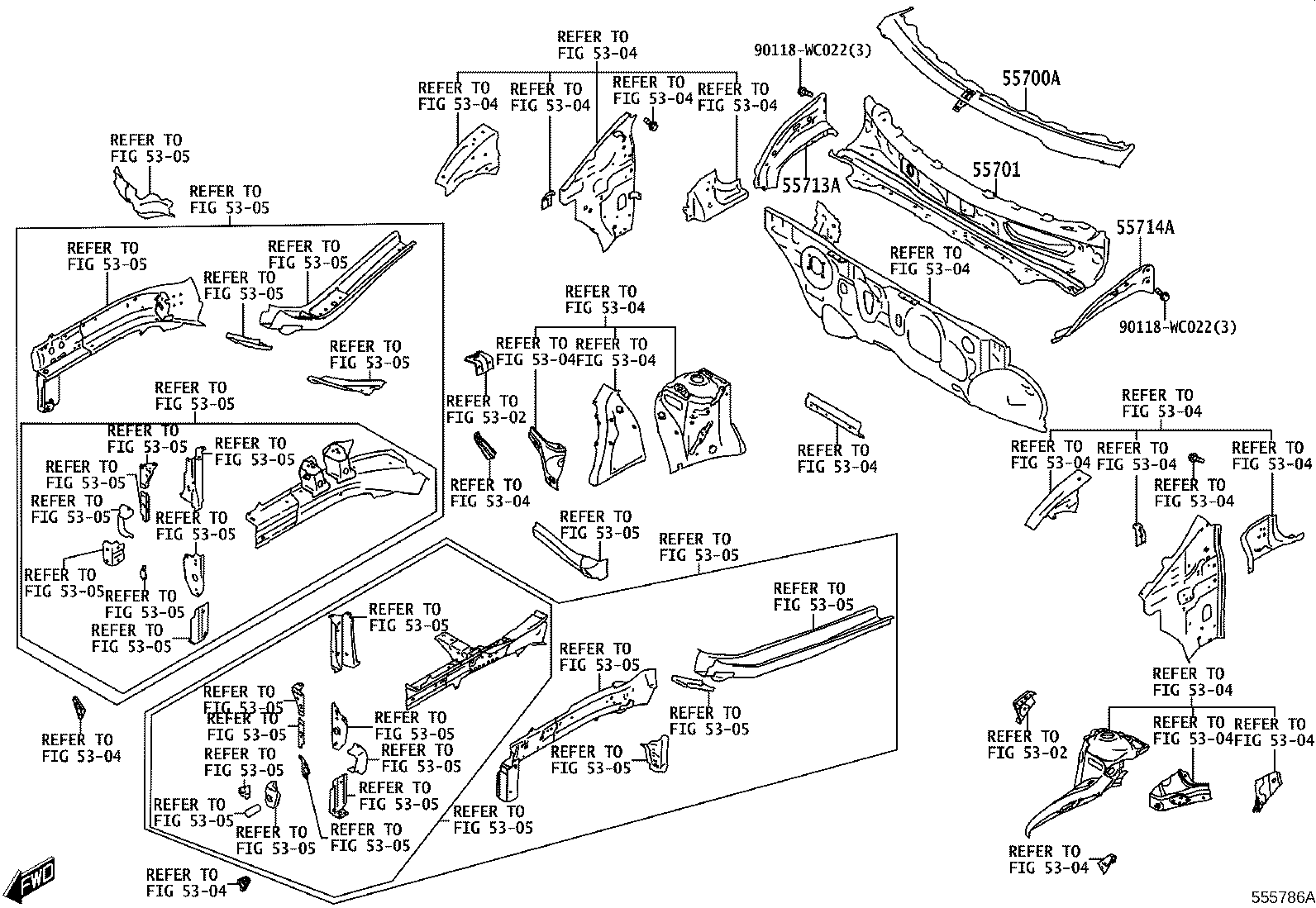

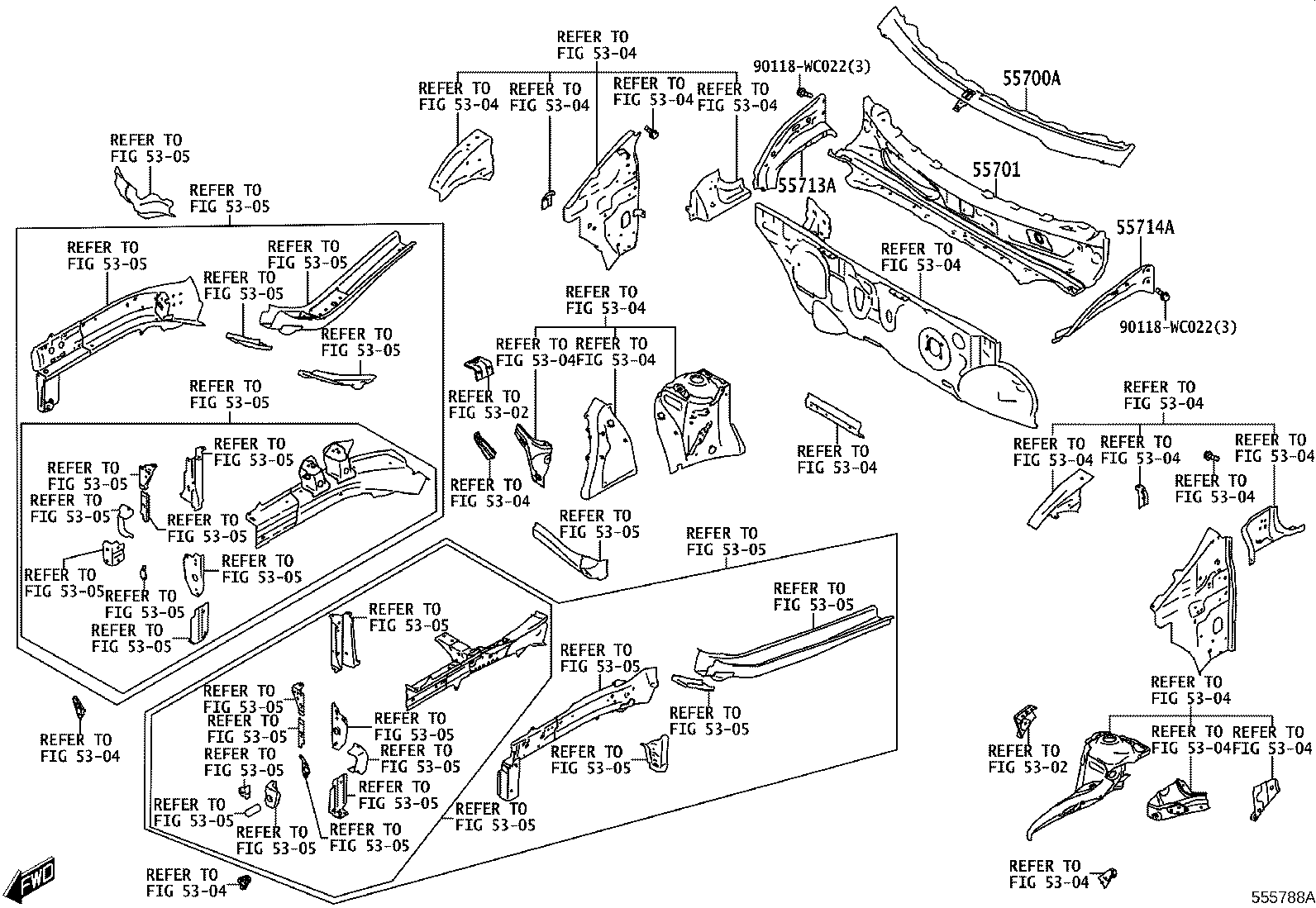

Figure 555784A 555784A 2022-03 → — Figure 555787 555787 2022-03 → — Figure 555785A 555785A 2022-03 → — Figure 555788A 555788A 2022-03 → — Figure 555786A 555786A 2022-03 → —

Part groups

PNCDescription
55700A Panel Assy, Cowl Top
55701 Panel Sub-assy, Cowl
55711 Panel, Cowl Top, Outer
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55781 Louver, Cowl Ventilator
55789 Seal, Cowl Top TO Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56117A Dam, Window Glass Adhesive
56126A Spacer, Windshield Glass, NO.1
56126B Spacer, Windshield Glass, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
