Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

8 part groups · 3 illustrations

Illustrations

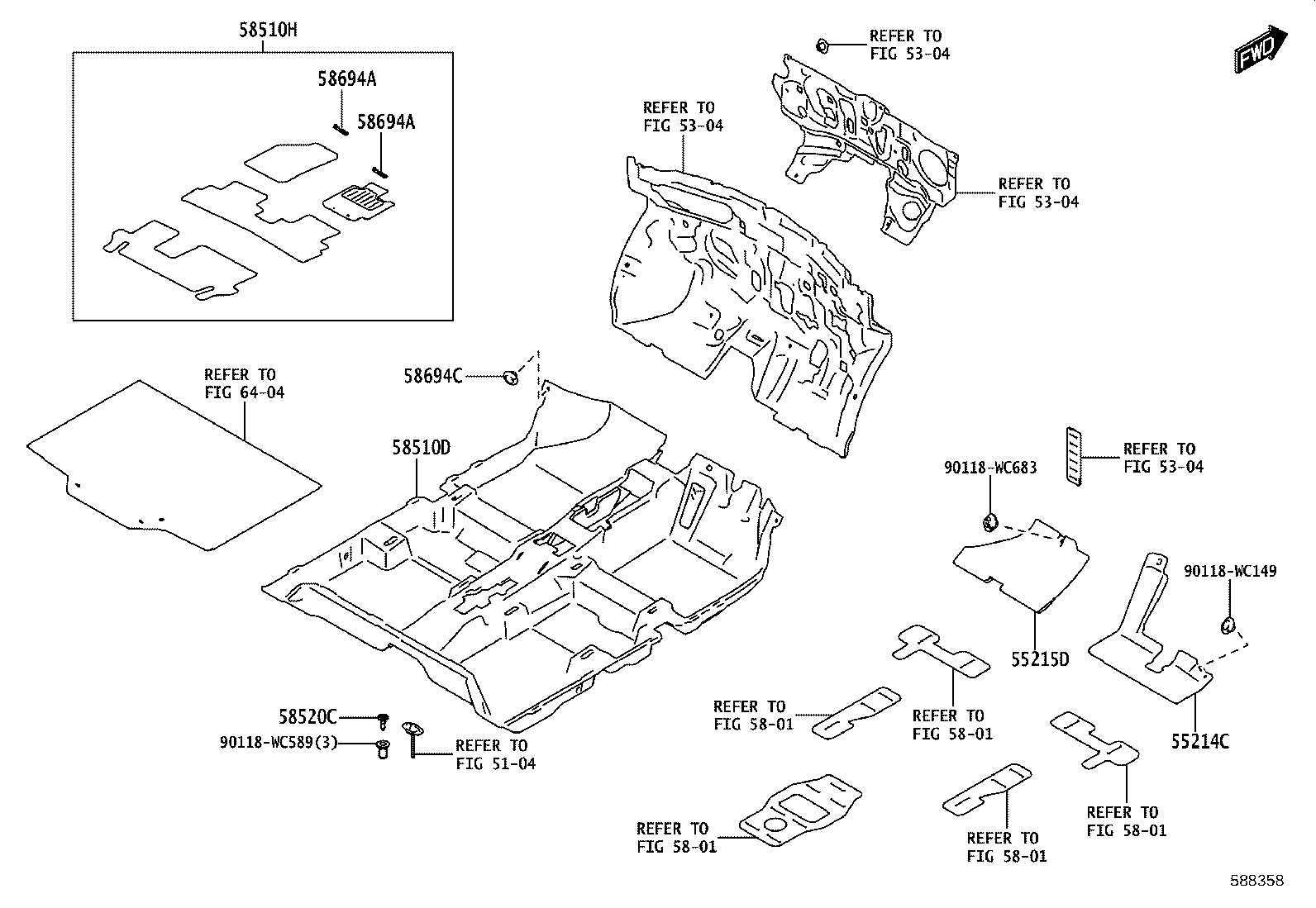

Figure 588357 588357 2022-03 → — Figure 588358 588358 2022-03 → — Figure 588359 588359 2022-03 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58510H Mat Assy, Floor
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58694A Plate, Mat Set, Upper
58694C Grommet(FOR MAT SET PLATE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
