Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

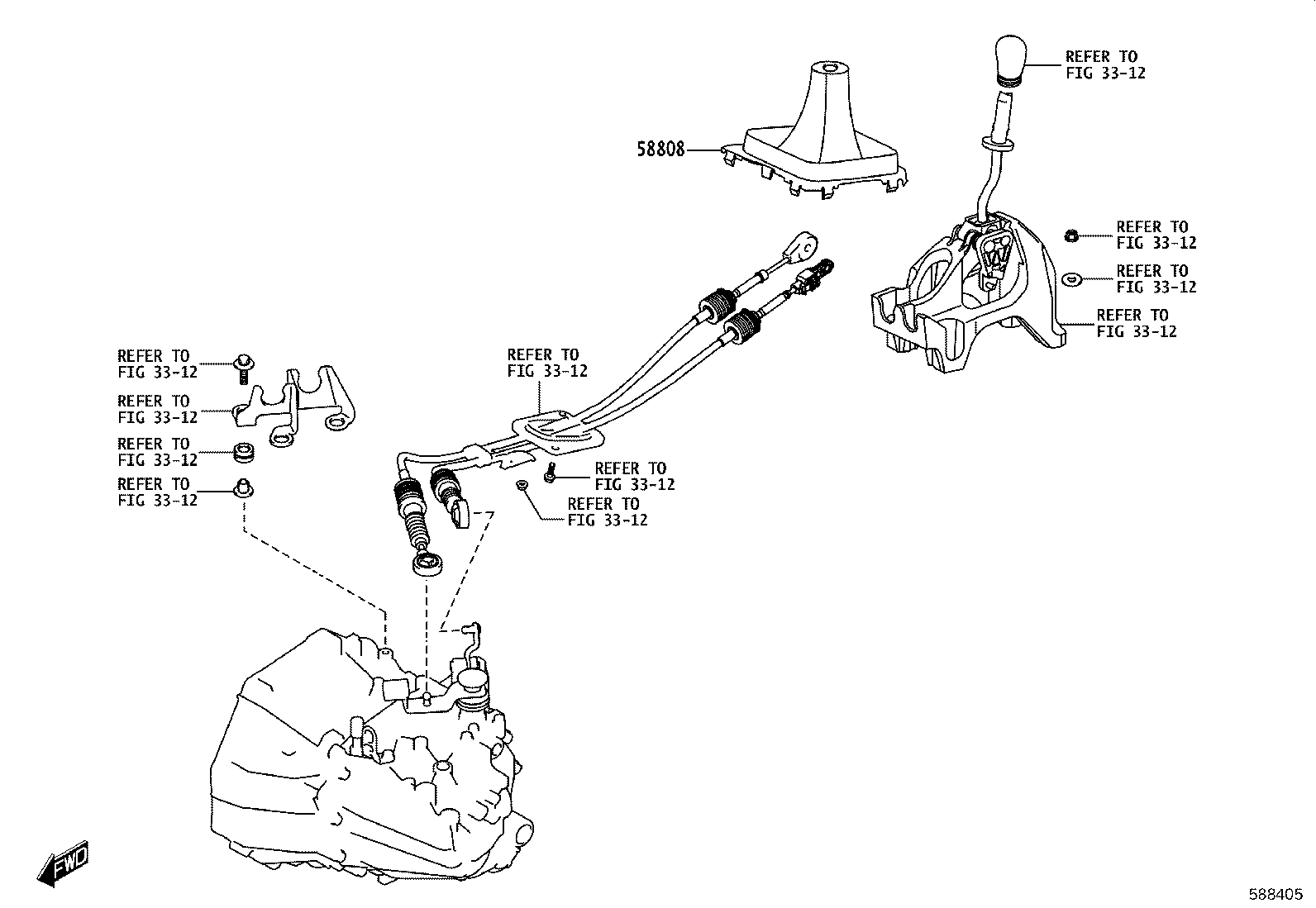

Figure 588372B 588372B 2022-03 → — Figure 588405 588405 2022-03 → —

Part groups

PNCDescription
55435C Panel, Instrument Panel Finish, End RH
55436C Panel, Instrument Panel Finish, End LH
58266 Bracket, Console Box Support, Front
58268 Bracket, Console Box Support, Rear
58816D Insert, Console Box, Front NO.1
58835C Ornament, Console Box
58835D Ornament, Console Box, NO.2
58860A Register Assy, Console Box
58904B Cover Sub-assy, Parking Brake Hole
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58931C Garnish, Rear Console Upper Panel
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
