Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

9 part groups · 2 illustrations

Illustrations

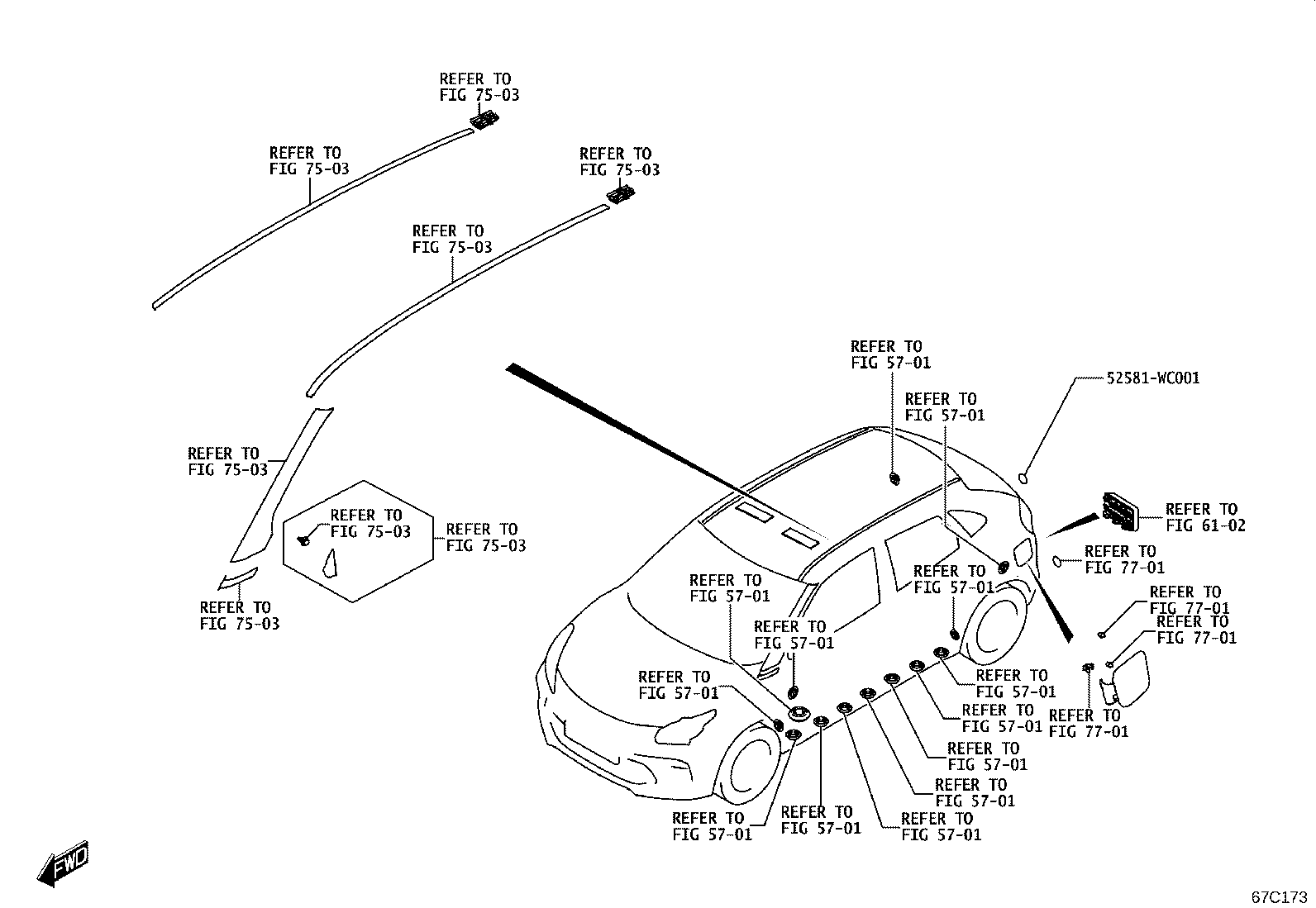

Figure 67C171A 67C171A 2022-03 → — Figure 67C173 67C173 2022-03 → —

Part groups

PNCDescription
64790D Cap, Back Door Trim Panel
64791B Cover, Back Door Trim
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67173 Cushion, Back Door
67751 Board, Back Door Trim
67818B Spacer, Back Window Glass
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
