Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

6 part groups · 2 illustrations

Illustrations

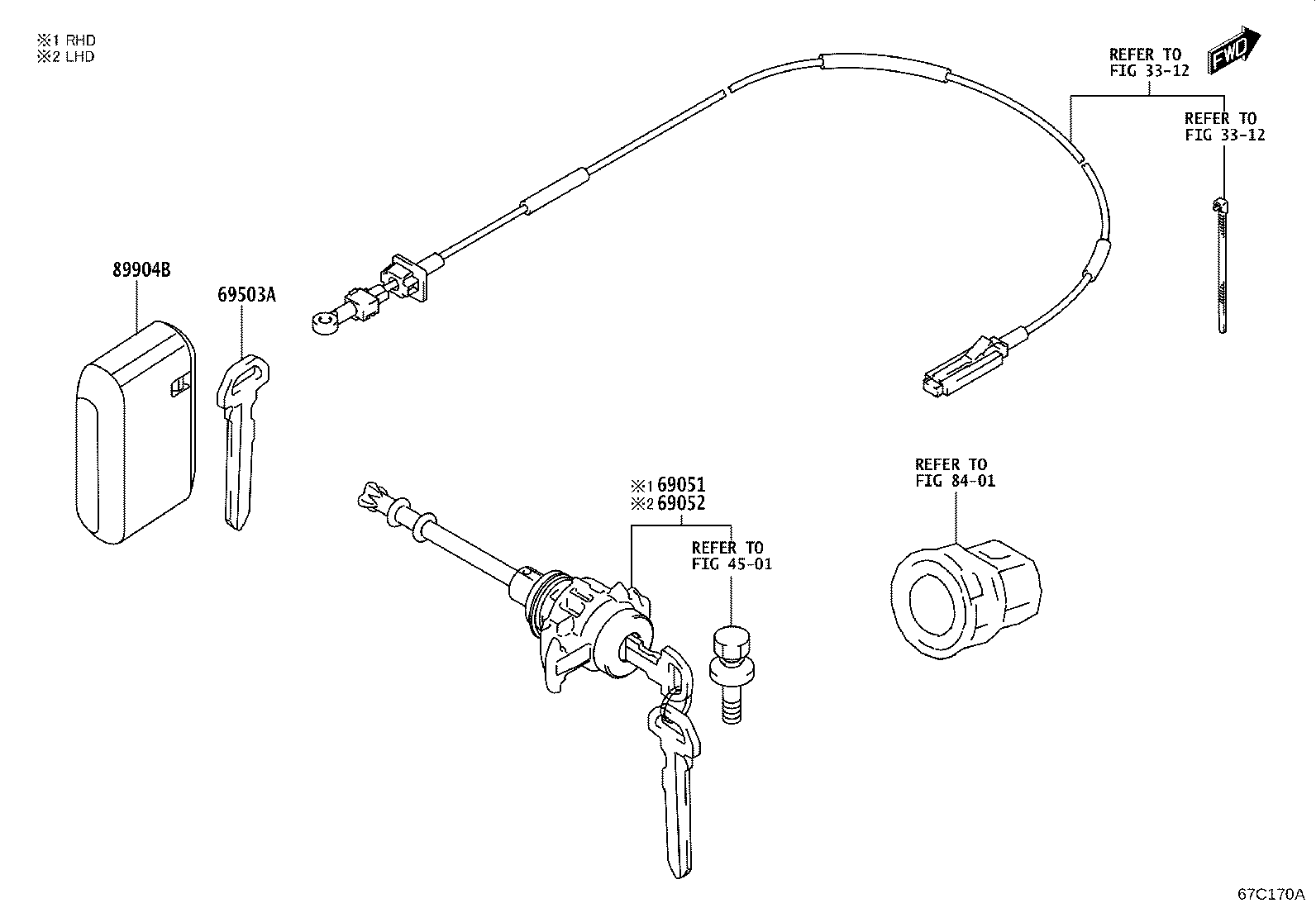

Figure 67C169A 67C169A 2022-03 → — Figure 67C170A 67C170A 2022-03 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69503 Cylinder Set, Lock
69503A Key, Blank
89071B Module Set, Transmitter Sub-assy, Door Control
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
