Toyota Starlet
2022-03 → present · chassis K15B · catalogue 133320 · General
Supported model
Data version 2022-03
Armrest & Visor
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

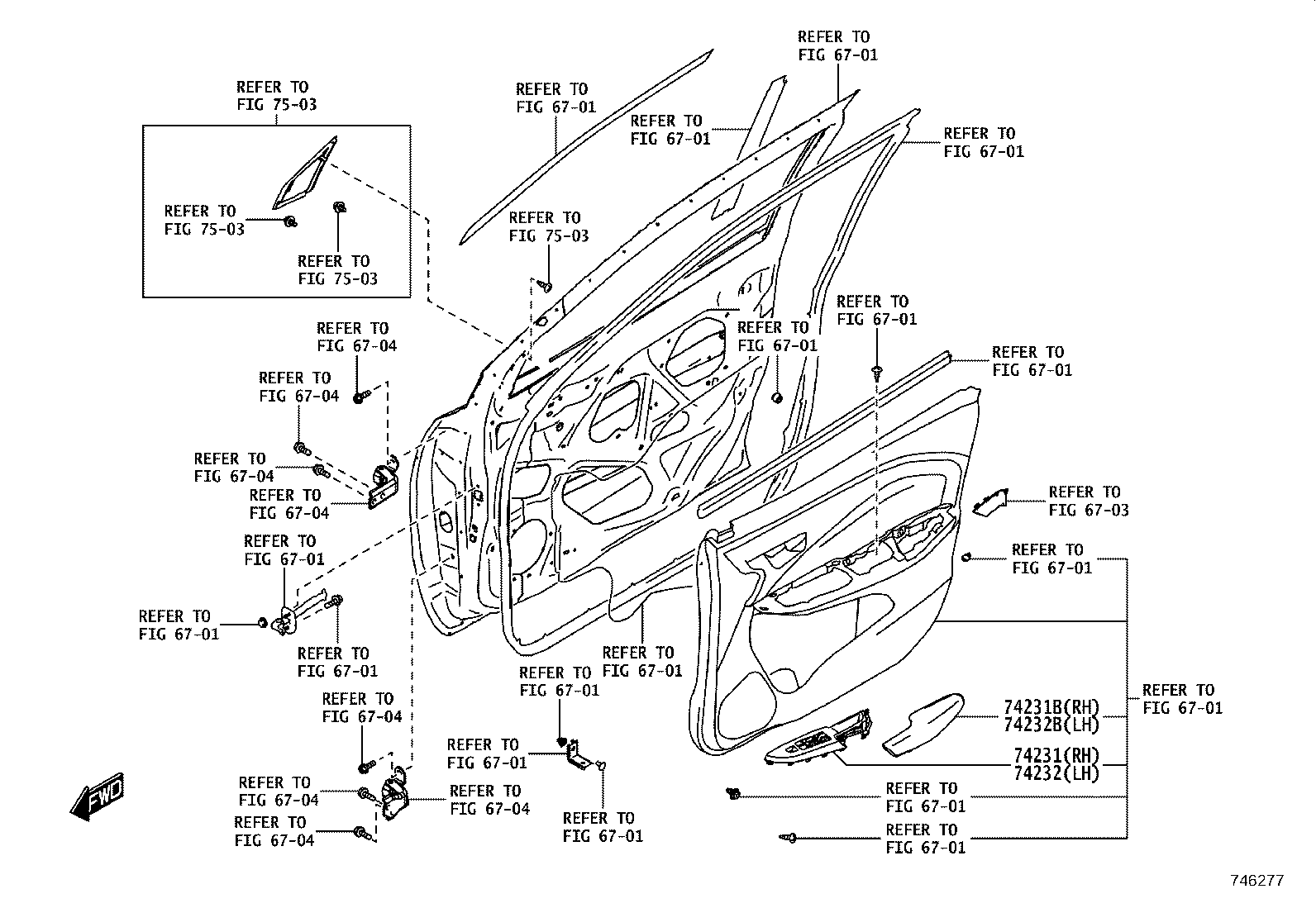

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74231B | Panel, Door Armrest Base, RH |
| 74232 | Panel, Front Armrest Base, Upper LH |
| 74232B | Panel, Door Armrest Base, LH |

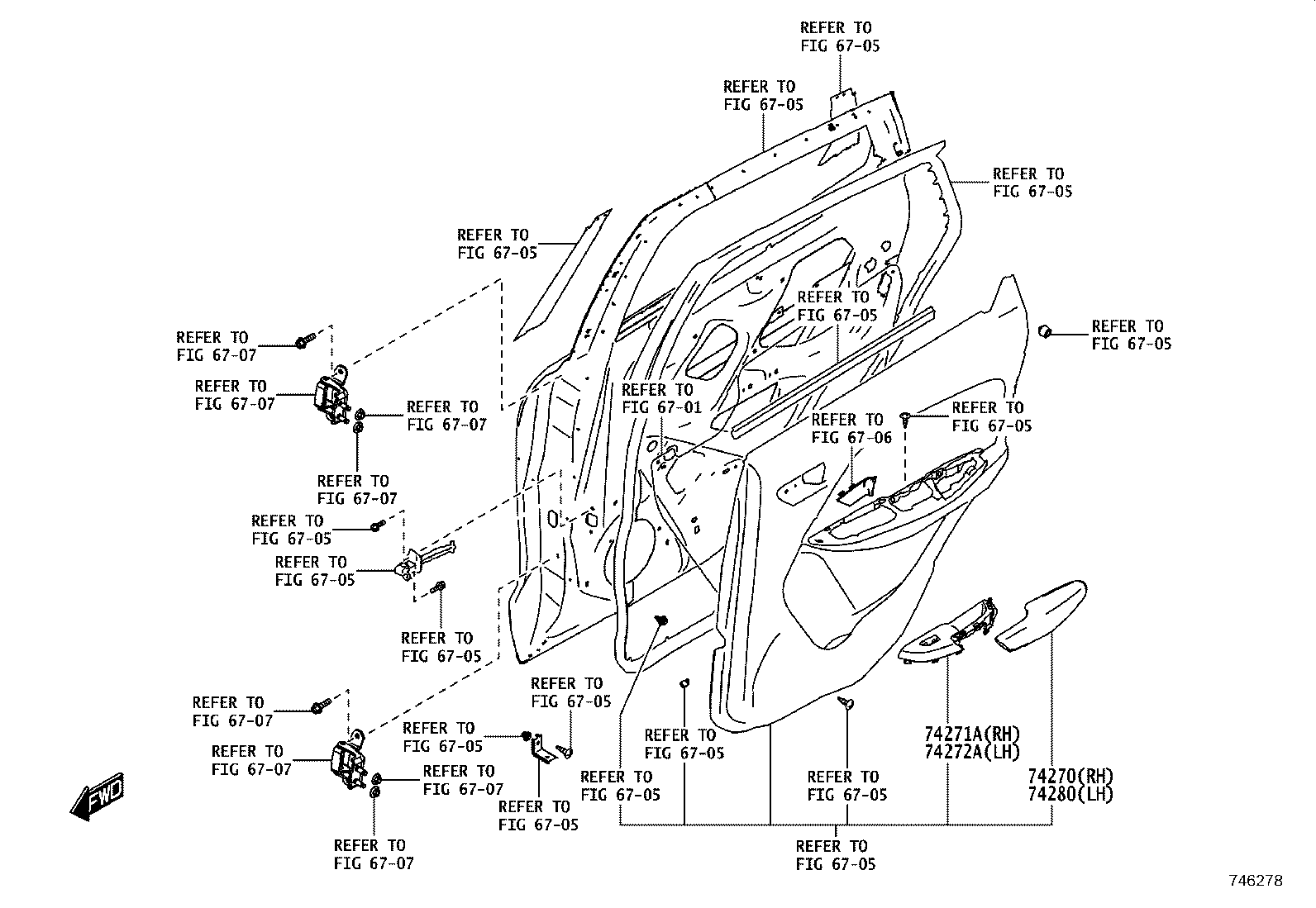

| 74270 | Panel Assy, Rear Door Armrest Base, RH |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |
| 74280 | Panel Assy, Rear Door Armrest Base, LH |
| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74351A | Cover, Visor, NO.1 |
| 74352 | Cover, Visor, NO.2 |

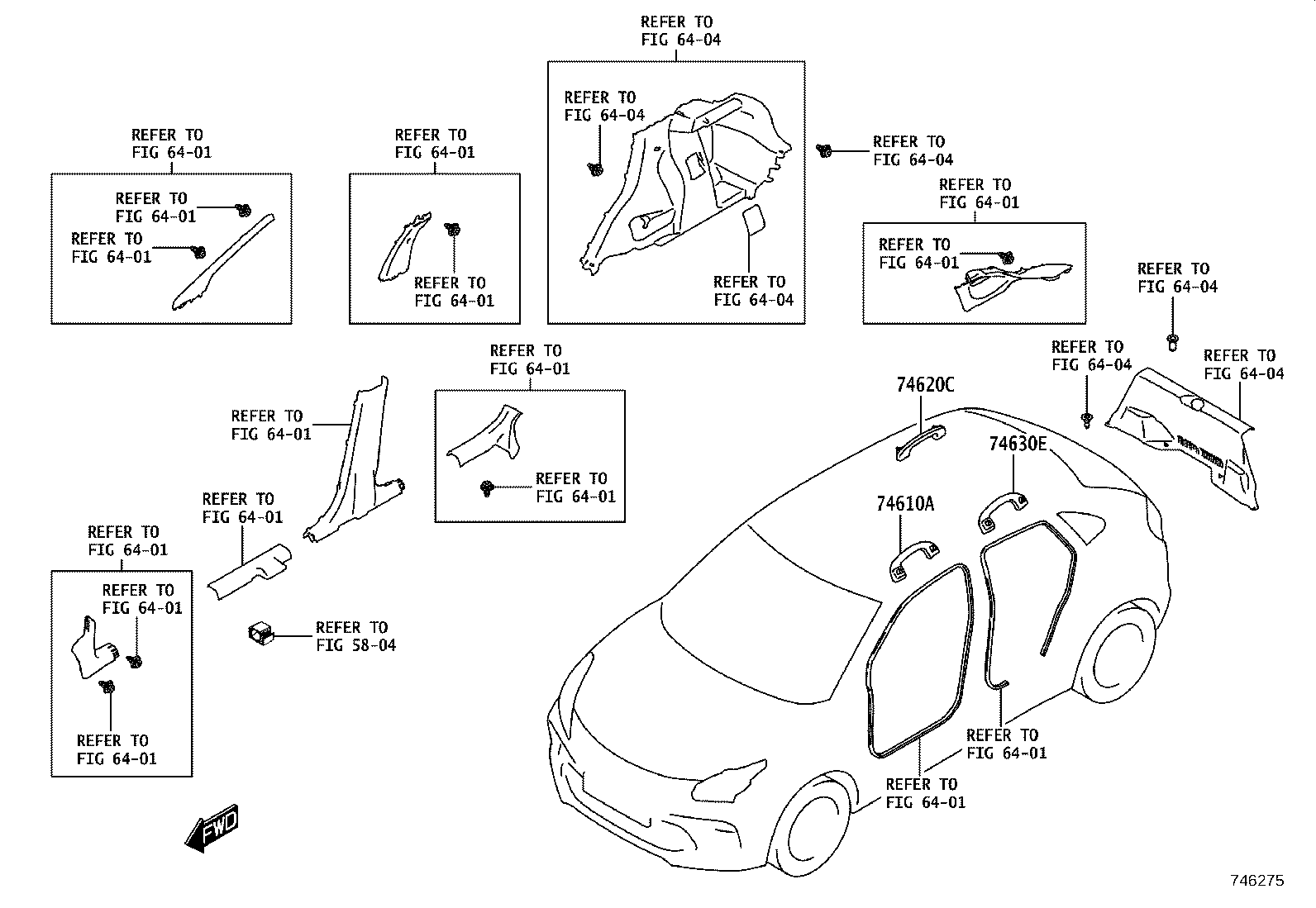

| 74610A | Grip Sub-assy, Assist |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
