Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

20 part groups · 5 illustrations

Illustrations

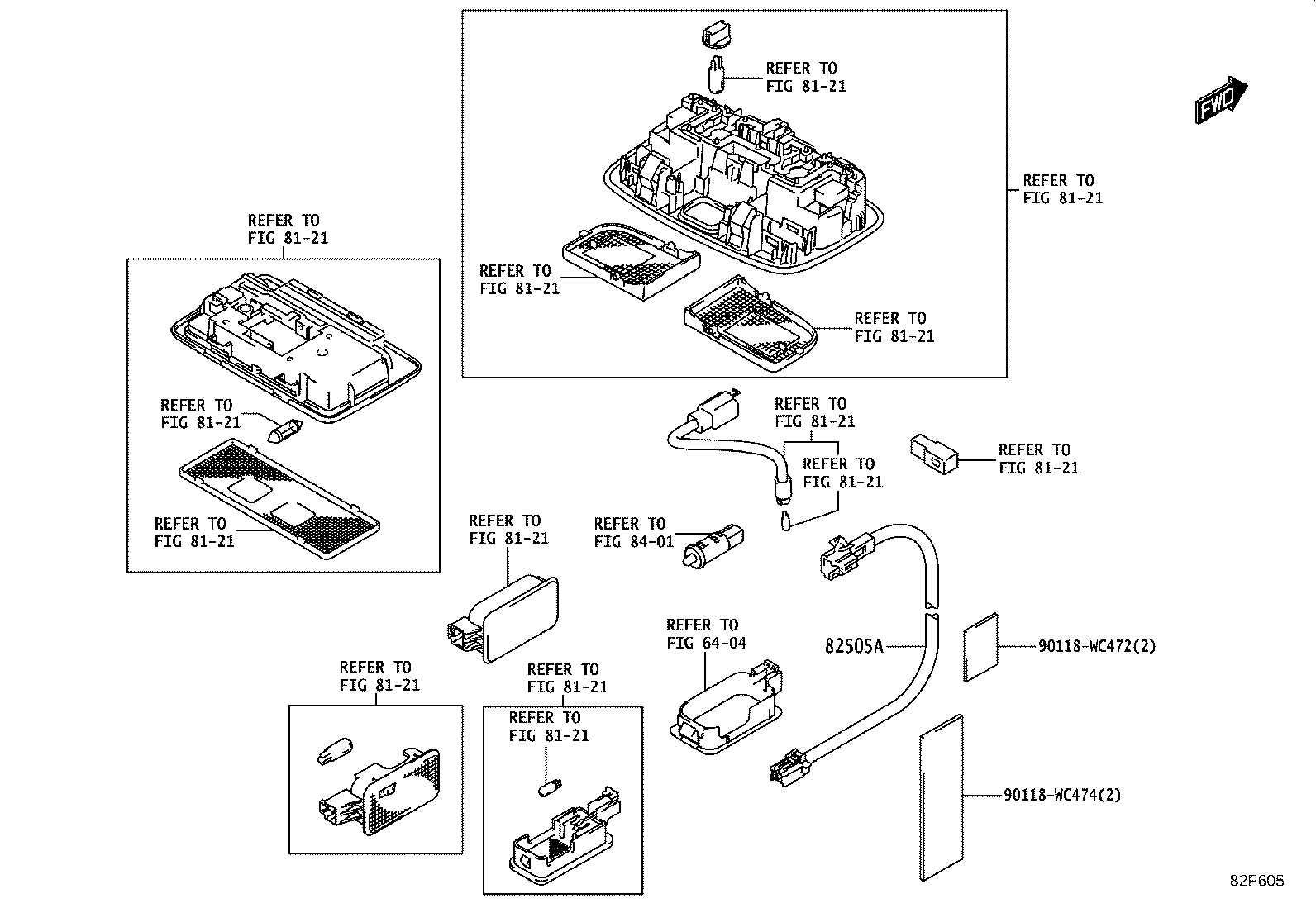

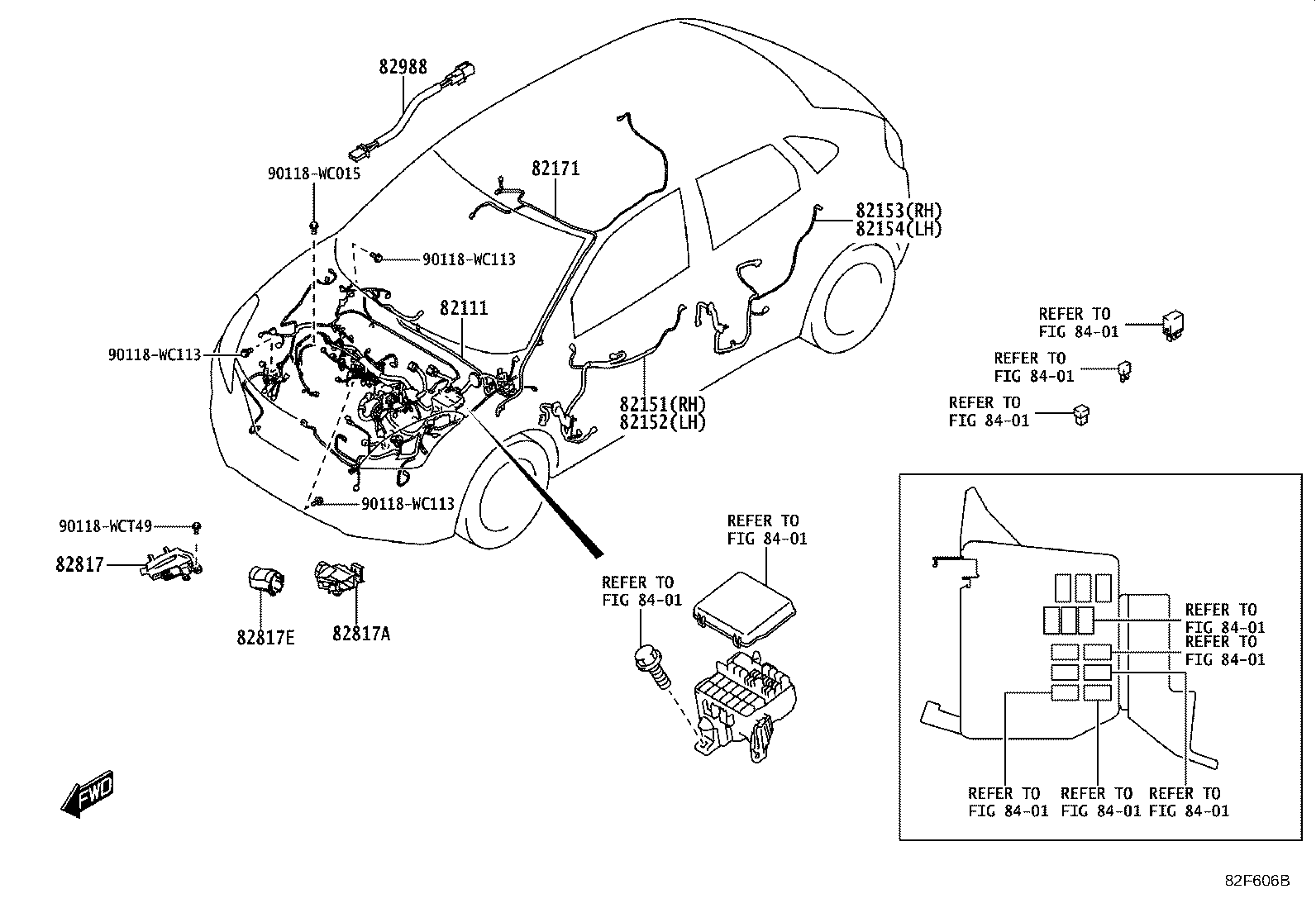

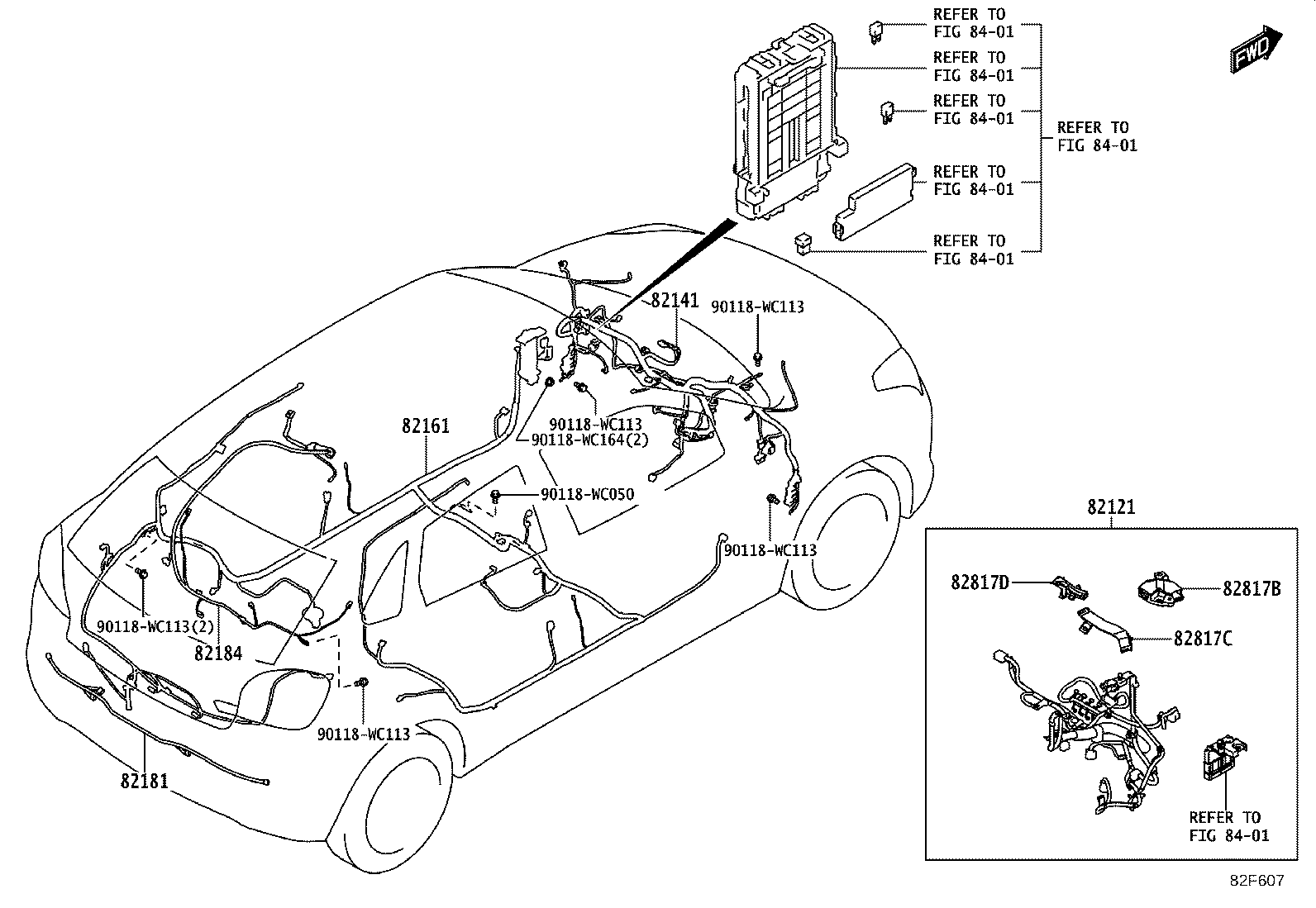

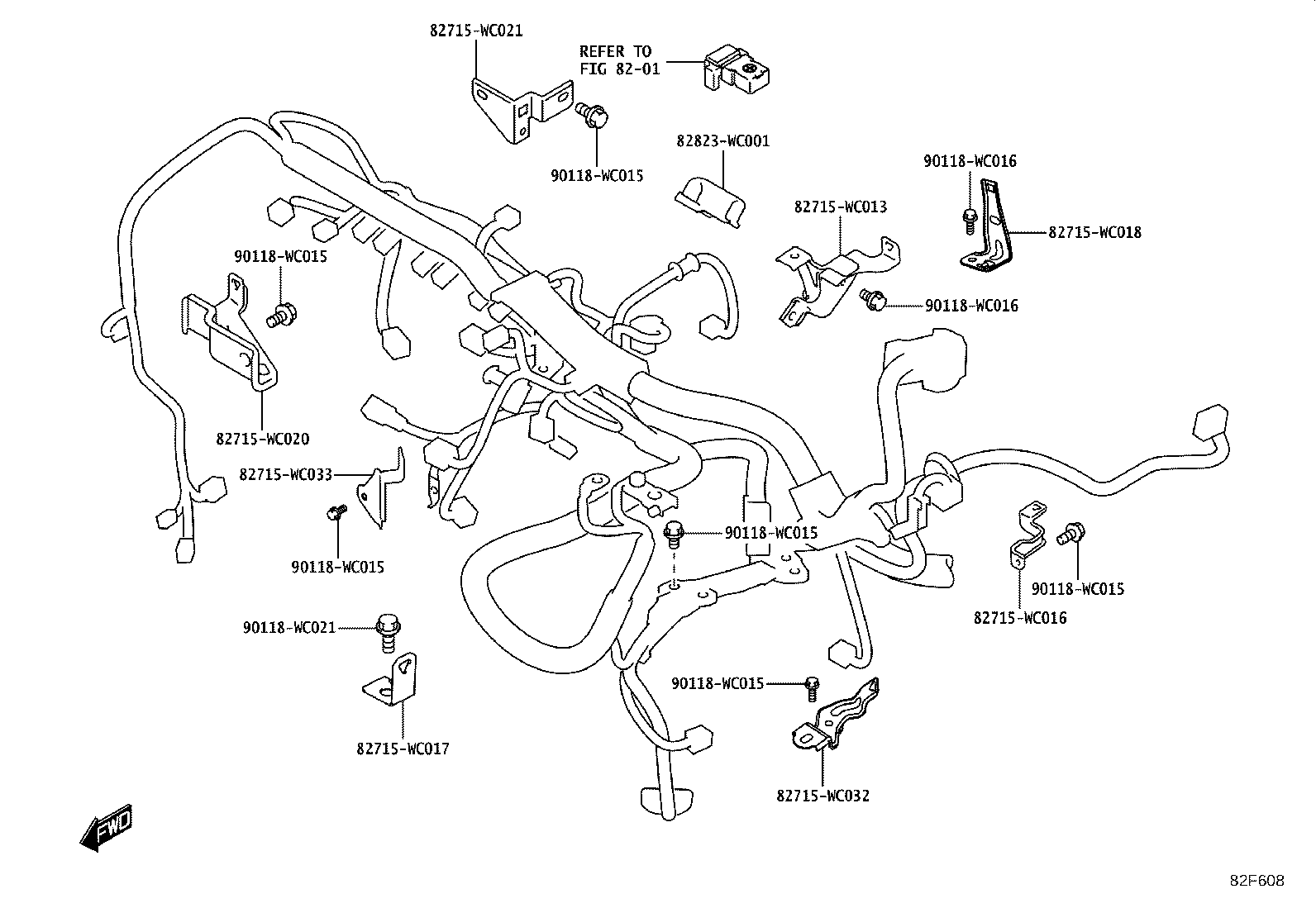

Figure 82F604 82F604 2022-03 → — Figure 82F605 82F605 2022-03 → — Figure 82F606B 82F606B 2022-03 → — Figure 82F607 82F607 2022-03 → — Figure 82F608 82F608 2022-03 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82280A Wire Assy, Battery TO Cowl Top Side
82505A Wiring Sub-assy, Front Door
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82988 Wire, Airbag Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
