Toyota Starlet
2022-03 → present · chassis K15B · catalogue 133320 · General
Supported model
Data version 2022-03
Meter
5 part groups · 3 illustrations
Part groups

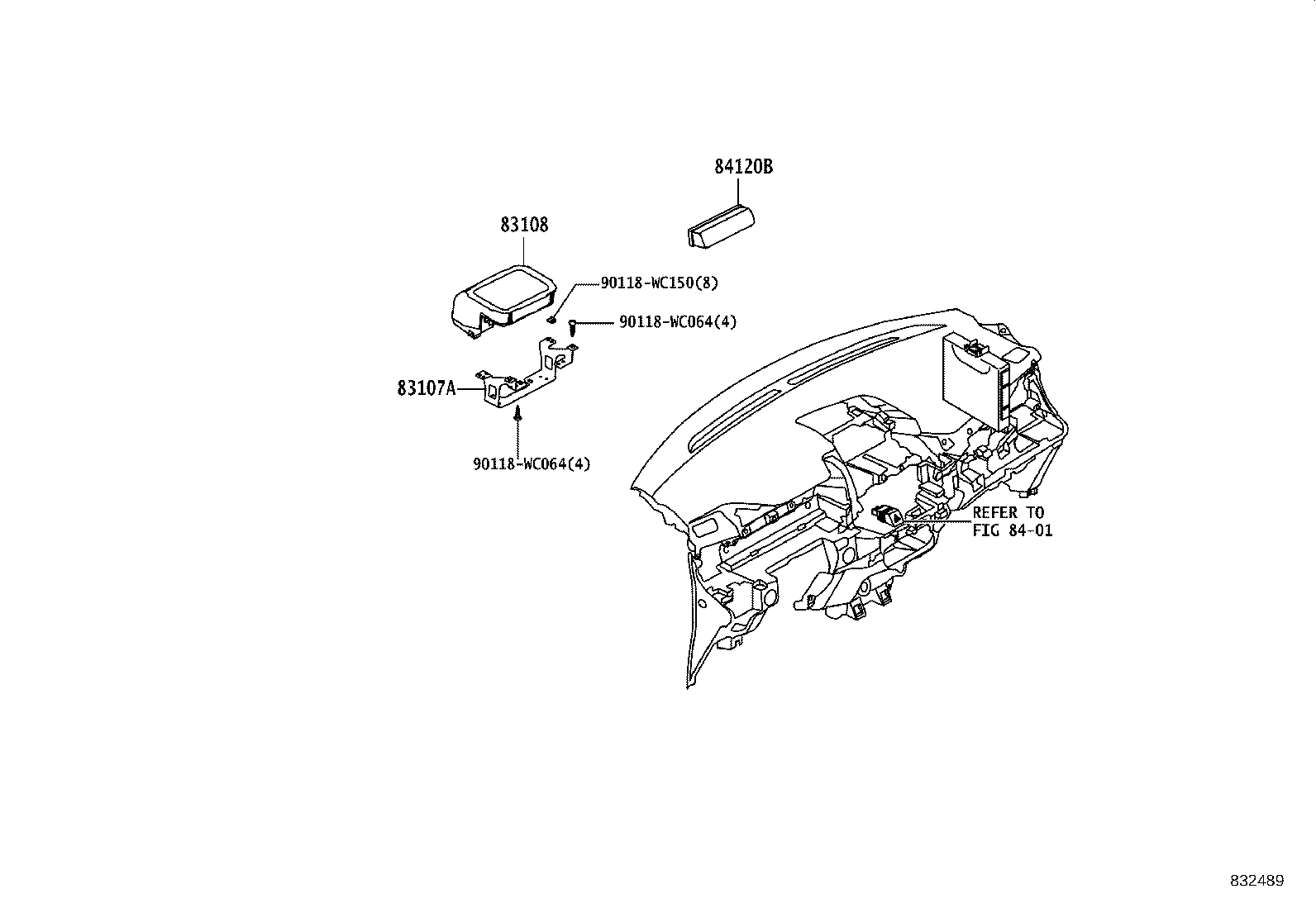

| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83107A | Bracket Sub-assy, Meter, NO.1 |
| 83108 | Mirror Sub-assy, Meter |
| 83138G | Glass, Combination Meter |
| 84120B | Cap, Head UP Display Switch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
