Factory parts data · Europe

Toyota Starlet

2022-03 → present · chassis K15B · catalogue 133320 · General

Supported model Data version 2022-03

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 3 illustrations

Illustrations

869261 2022-03 → —

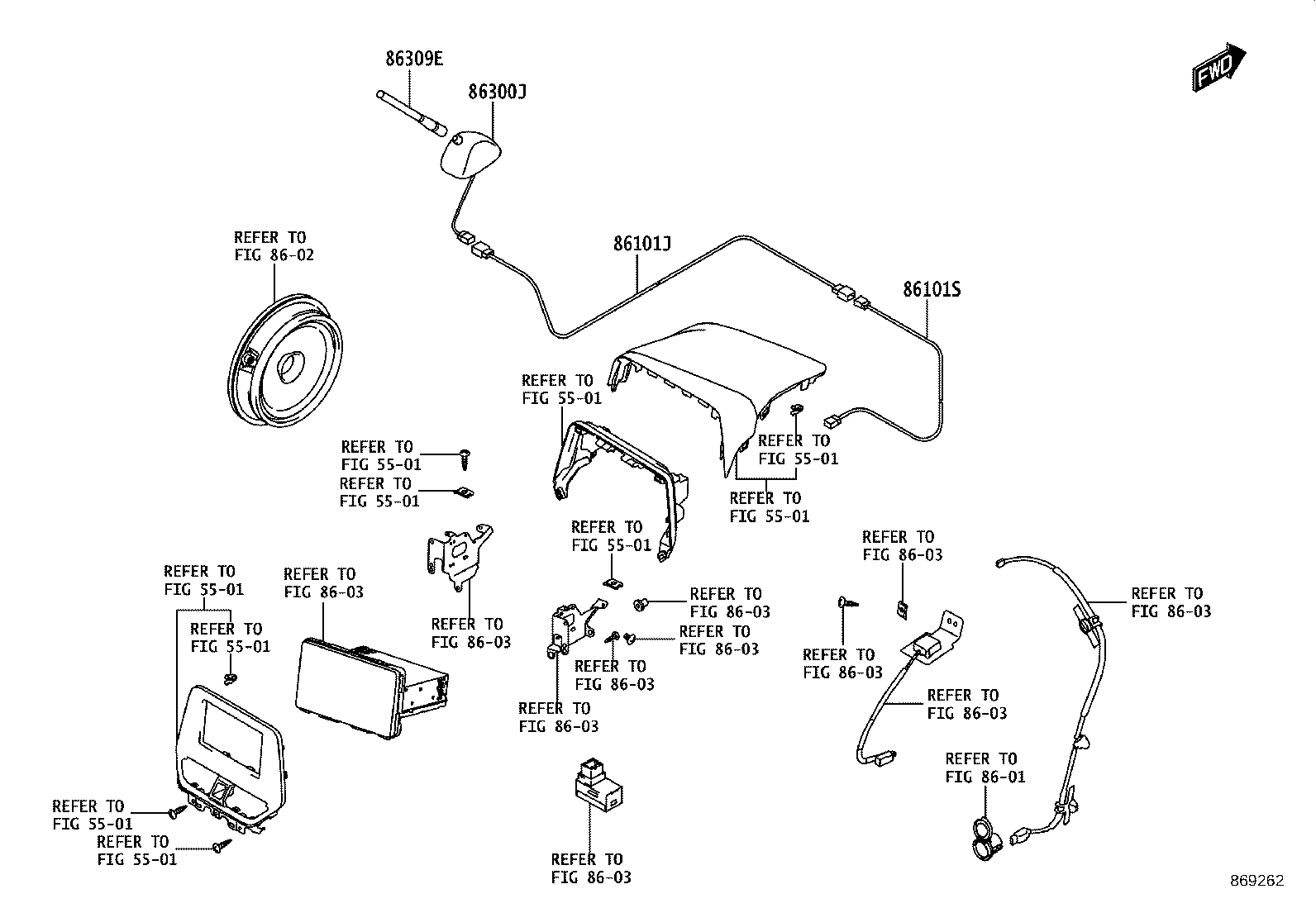

869262 2022-03 → —

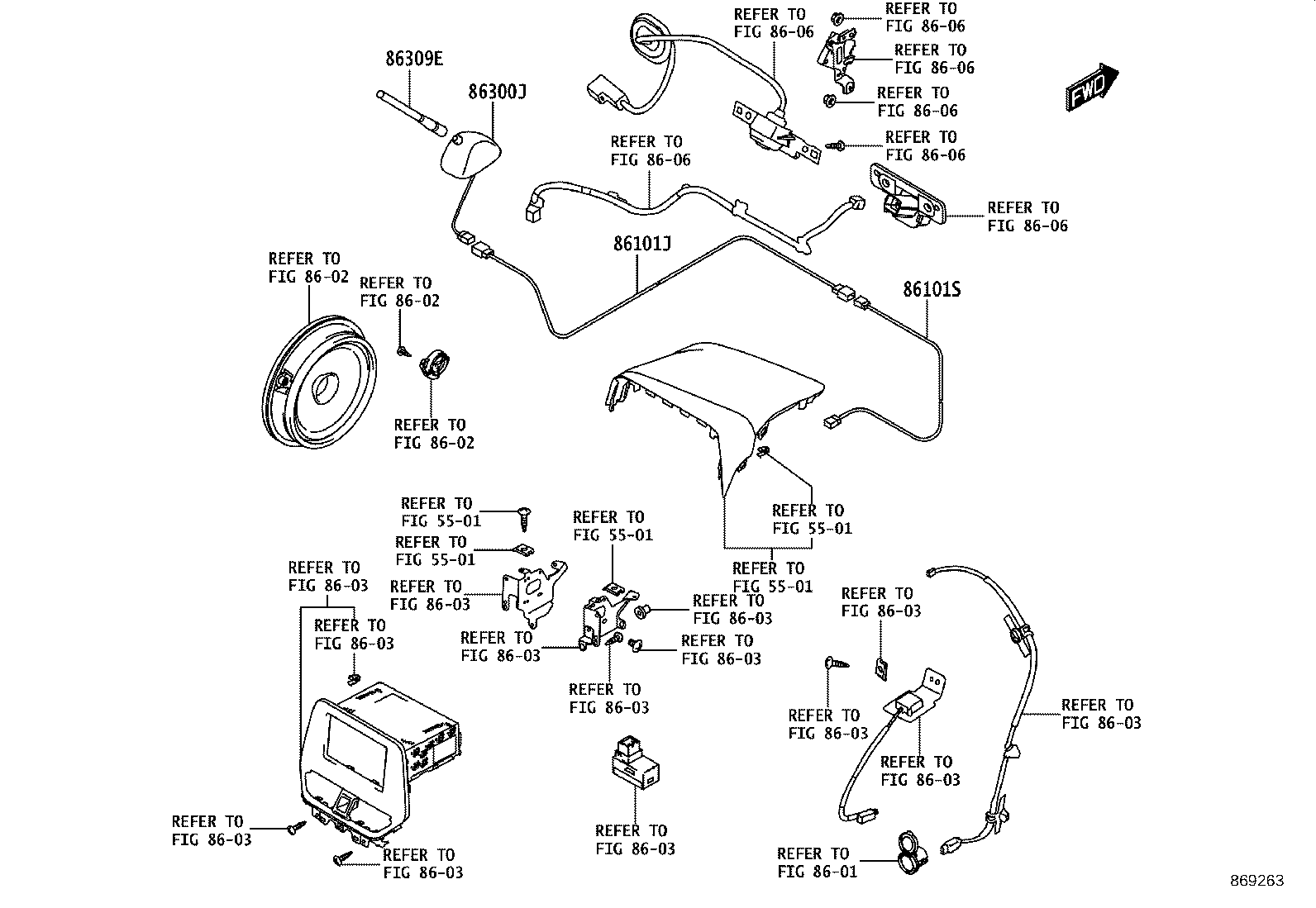

869263 2022-03 → —

Part groups

PNC	Description
86101J	Cord Sub-assy, Antenna, NO.2
86101S	Cord Sub-assy, Antenna
86300J	Antenna Assy, Roof
86309E	Pole Sub-assy, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
