Toyota Urban Cruiser
2020-10 → present · chassis K15BR-HS###X · catalogue 134310 · General
Supported model
Data version 2020-10
Mounting
6 part groups · 2 illustrations

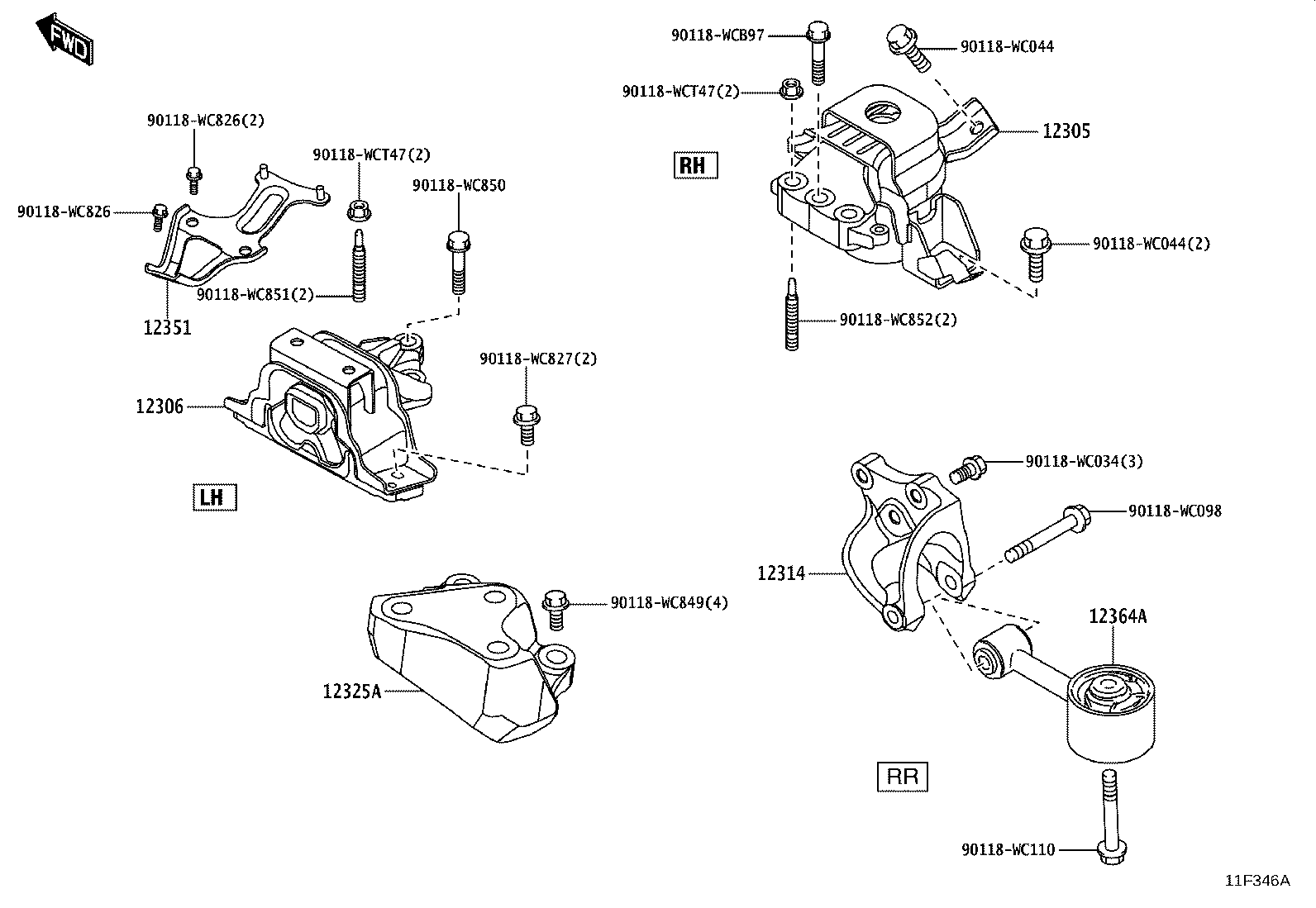

Part groups
| PNC | Description |
|---|---|
| 12305 | Insulator Sub-assy, Engine Mounting, RH |
| 12306 | Insulator Sub-assy, Engine Mounting, LH |
| 12314 | Bracket, Engine Lateral Control Rod |
| 12325A | Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) |
| 12351 | Damper, Engine Mounting |
| 12364A | Rod, Engine Lateral Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
