Toyota Urban Cruiser
2020-10 → present · chassis K15BR-HS###X · catalogue 134310 · General
Supported model
Data version 2020-10

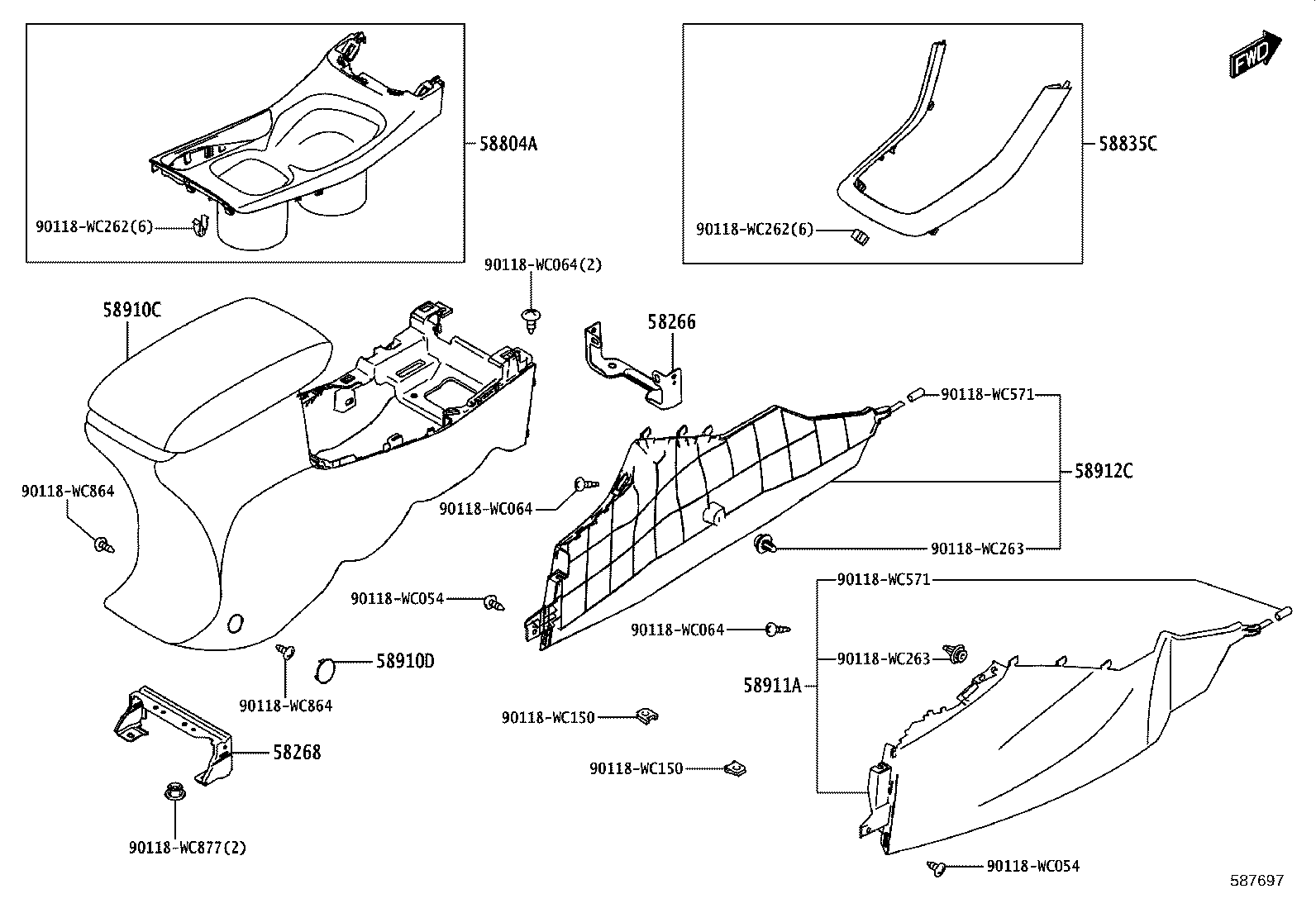

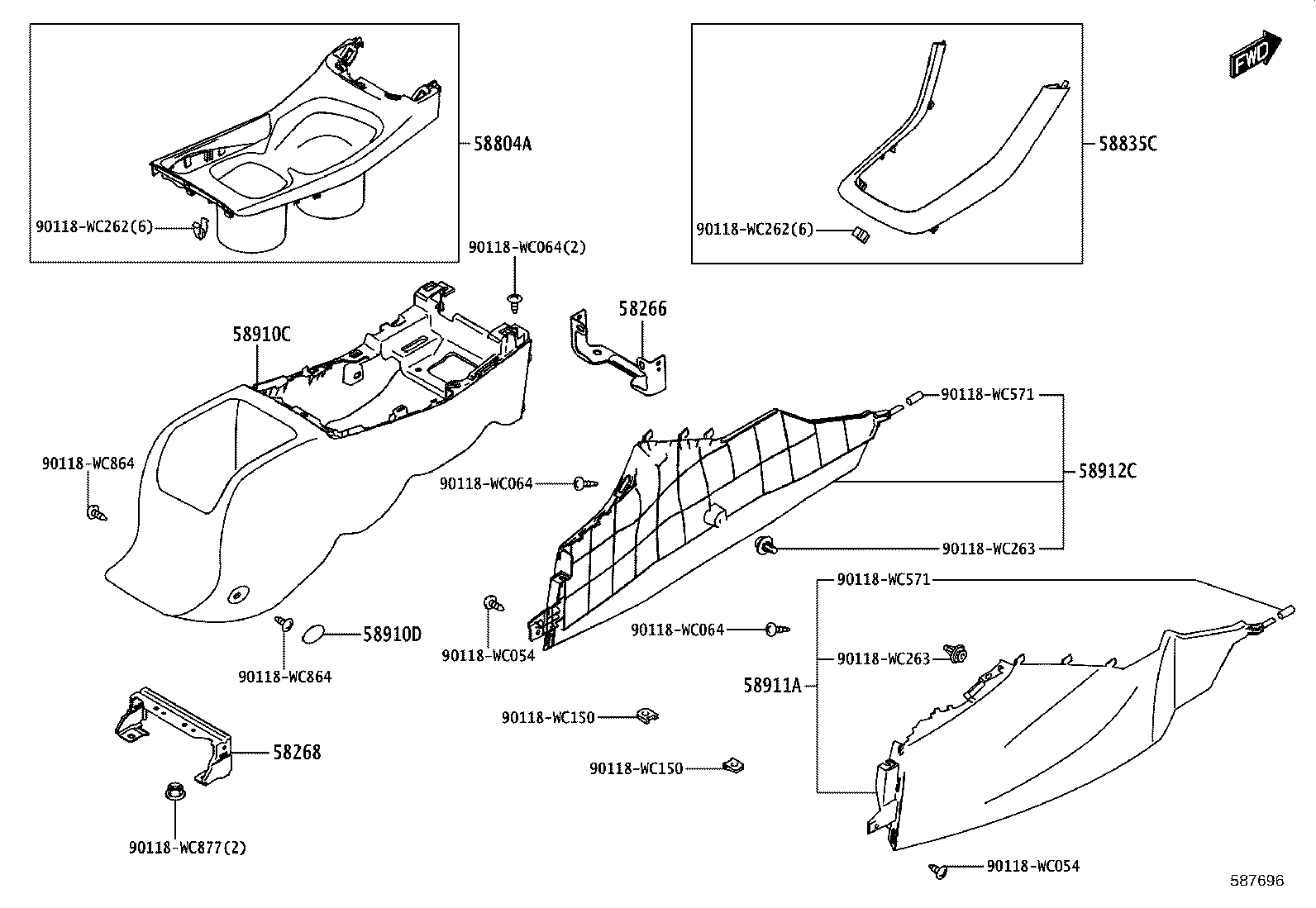

Console Box & Bracket
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58266 | Bracket, Console Box Support, Front |
| 58268 | Bracket, Console Box Support, Rear |
| 58804A | Panel Sub-assy, Console, Upper |
| 58835C | Ornament, Console Box |
| 58843 | Bezel, Shifting Hole |
| 58910C | Box Assy, Console, Rear |
| 58910D | Clip(FOR CONSOLE BOX) |
| 58911A | Panel, Box Side, NO.1 |
| 58912C | Panel, Box Side, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
