Factory parts data · Europe

Toyota Urban Cruiser

2020-10 → present · chassis K15BR-HS###X · catalogue 134310 · General

Supported model Data version 2020-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

4 part groups · 2 illustrations

Illustrations

868385 2020-10 → —

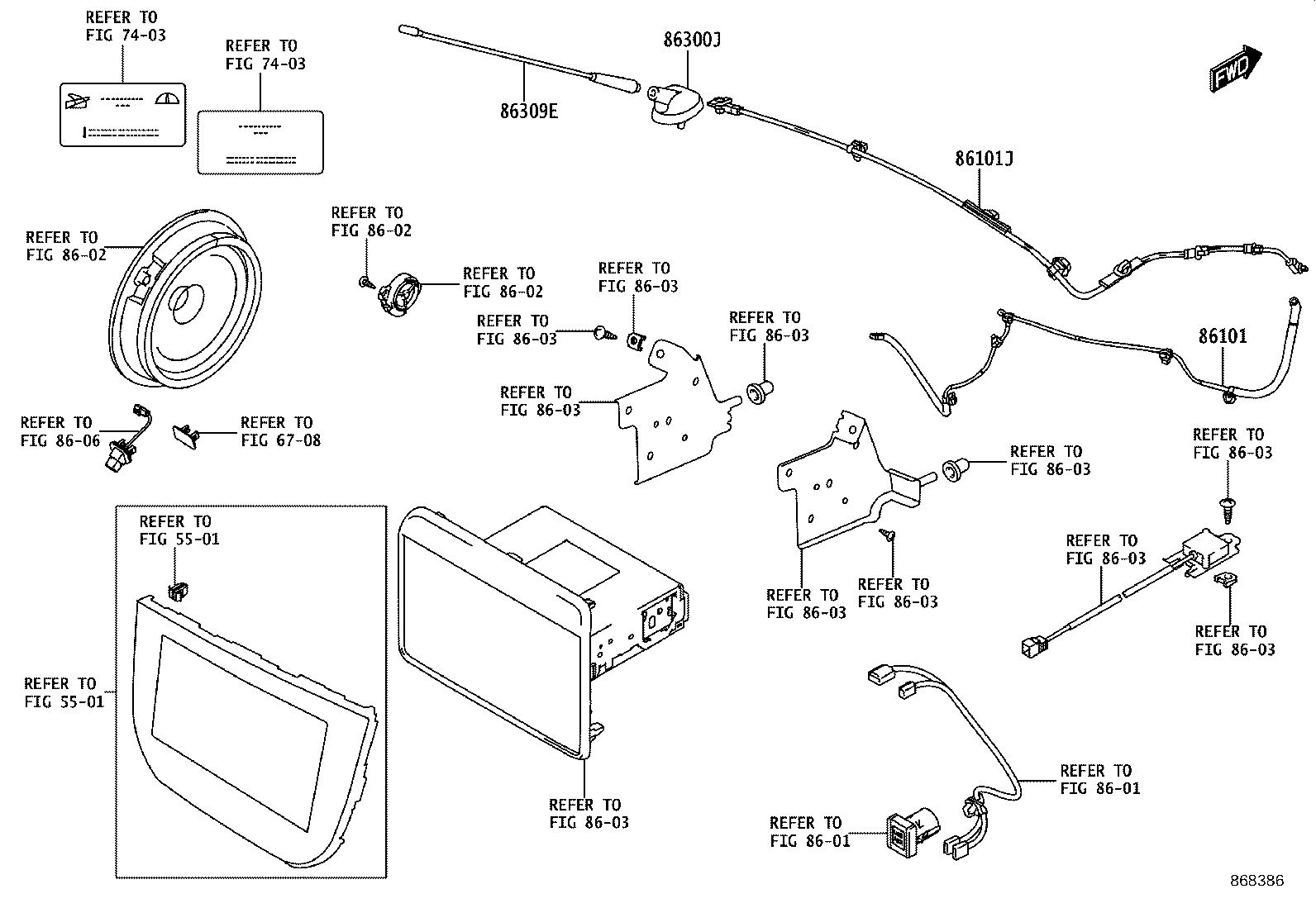

868386 2020-10 → —

Part groups

PNC	Description
86101	Cord Sub-assy, Antenna
86101J	Cord Sub-assy, Antenna, NO.2
86300J	Antenna Assy, Roof
86309E	Pole Sub-assy, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
