Toyota Urbancruiser Hyryder
2022-08 → present · chassis FG21###,4112#,FGB1### · catalogue 134320 · General
Supported model
Data version 2022-09

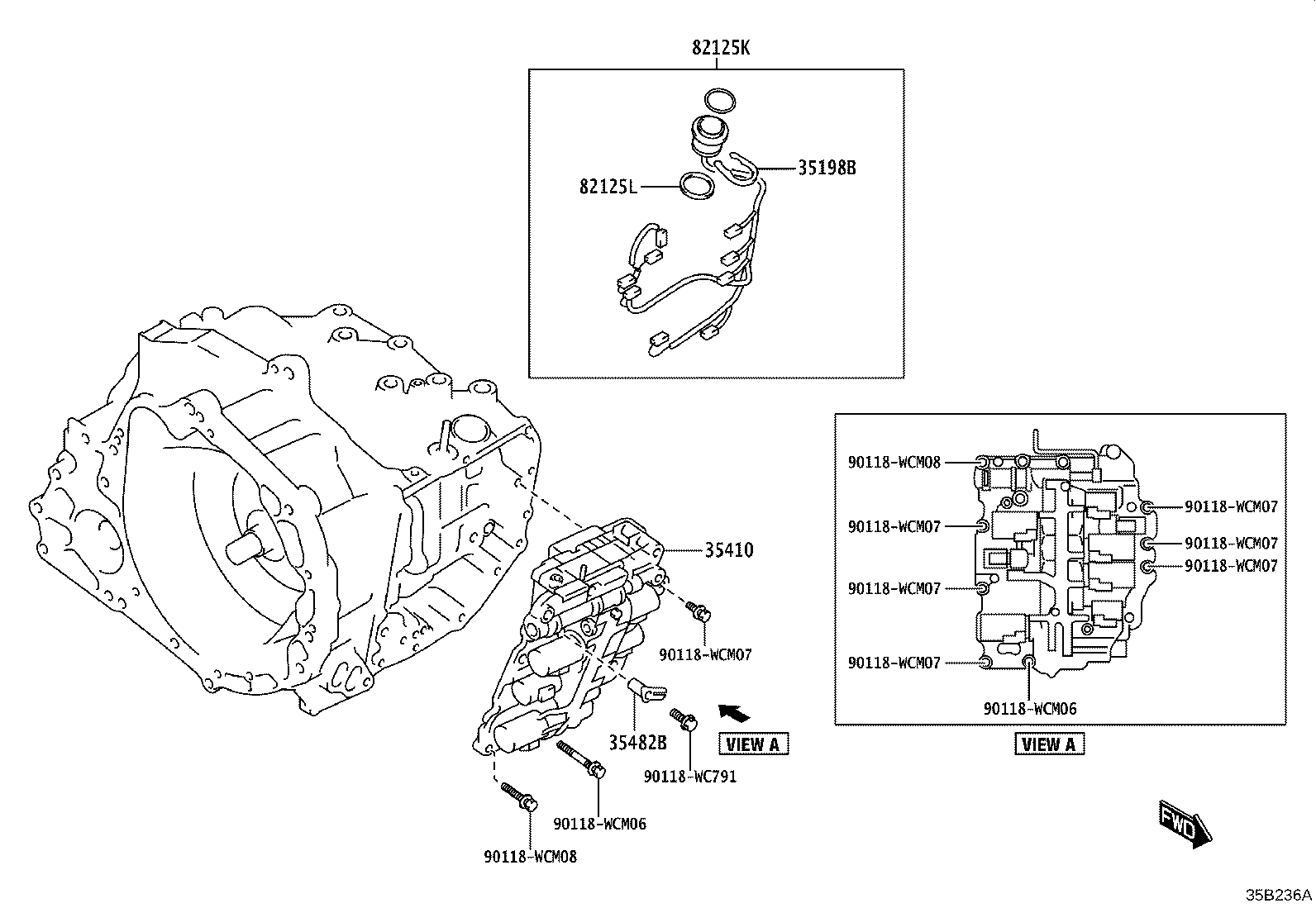

Valve Body & Oil Strainer (ATM)
6 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35198B | Bracket, Wire Harness Clamp |
| 35303 | Strainer Sub-assy, Oil |
| 35410 | Body Assy, Transmission Valve |
| 35482B | Clamp, Temperature Sensor |
| 82125K | Wire, Transmission |
| 82125L | Ring, O(FOR TRANSMISSION WIRE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
