Floor Side Member

16 part groups · 8 illustrations

Illustrations

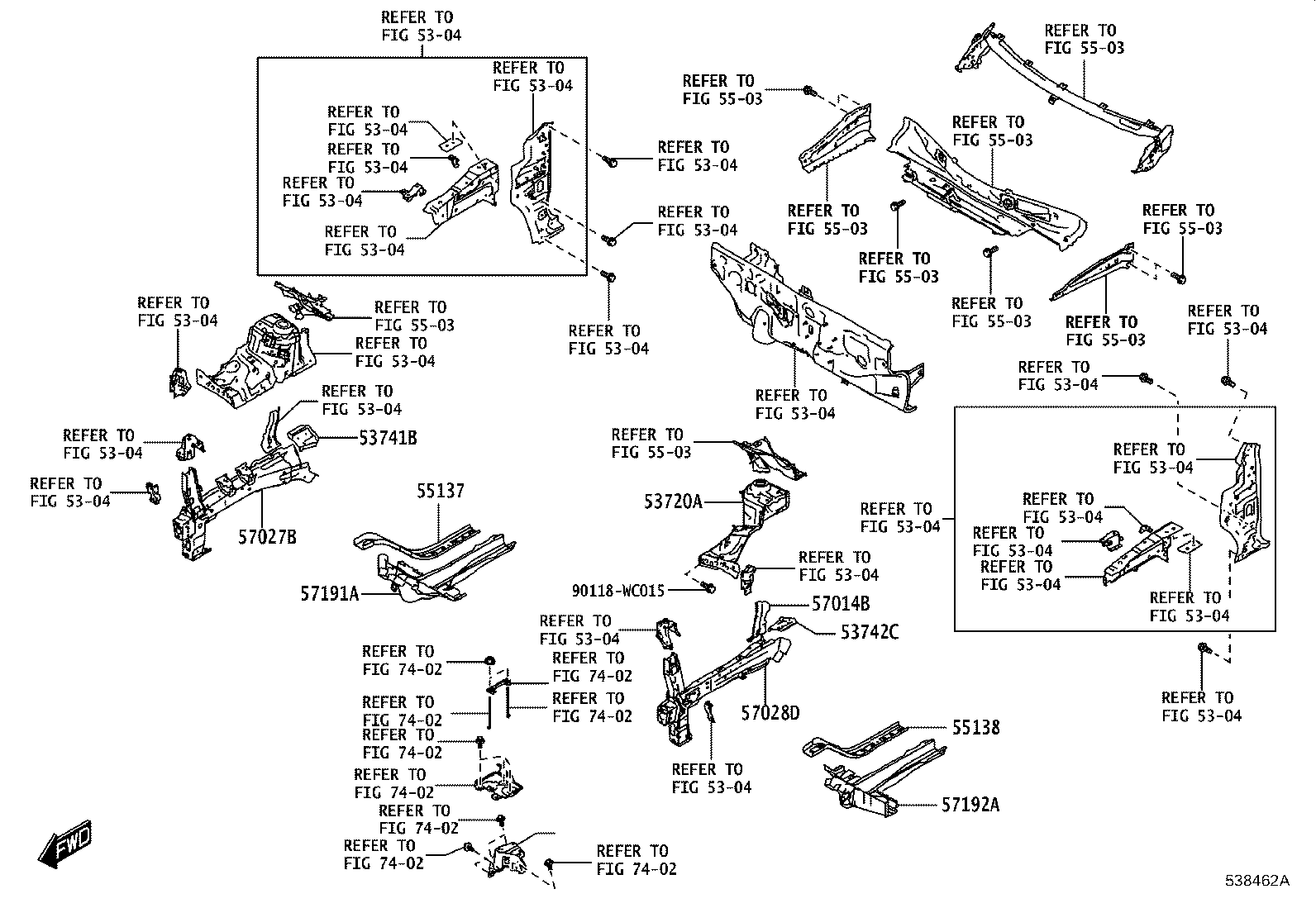

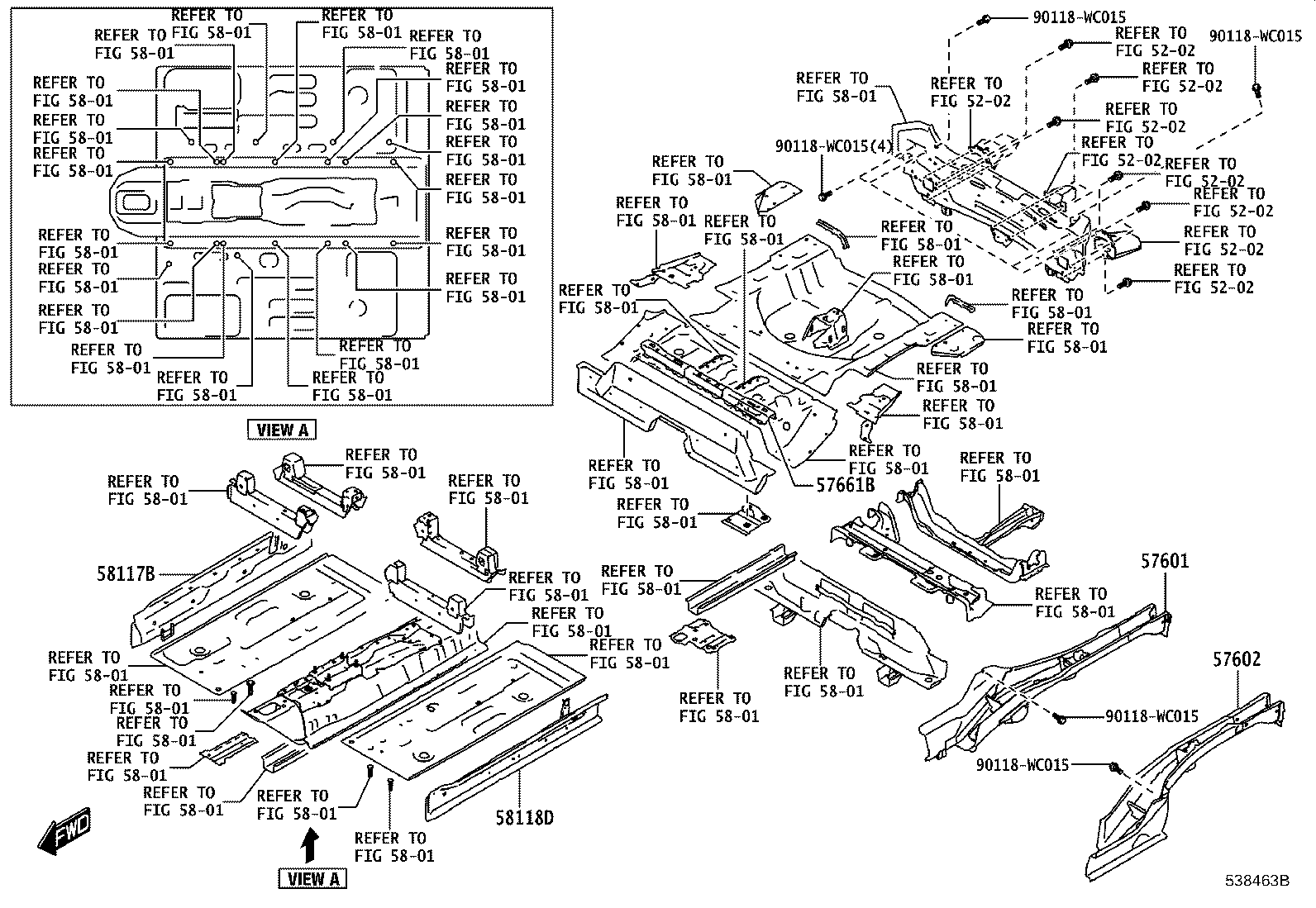

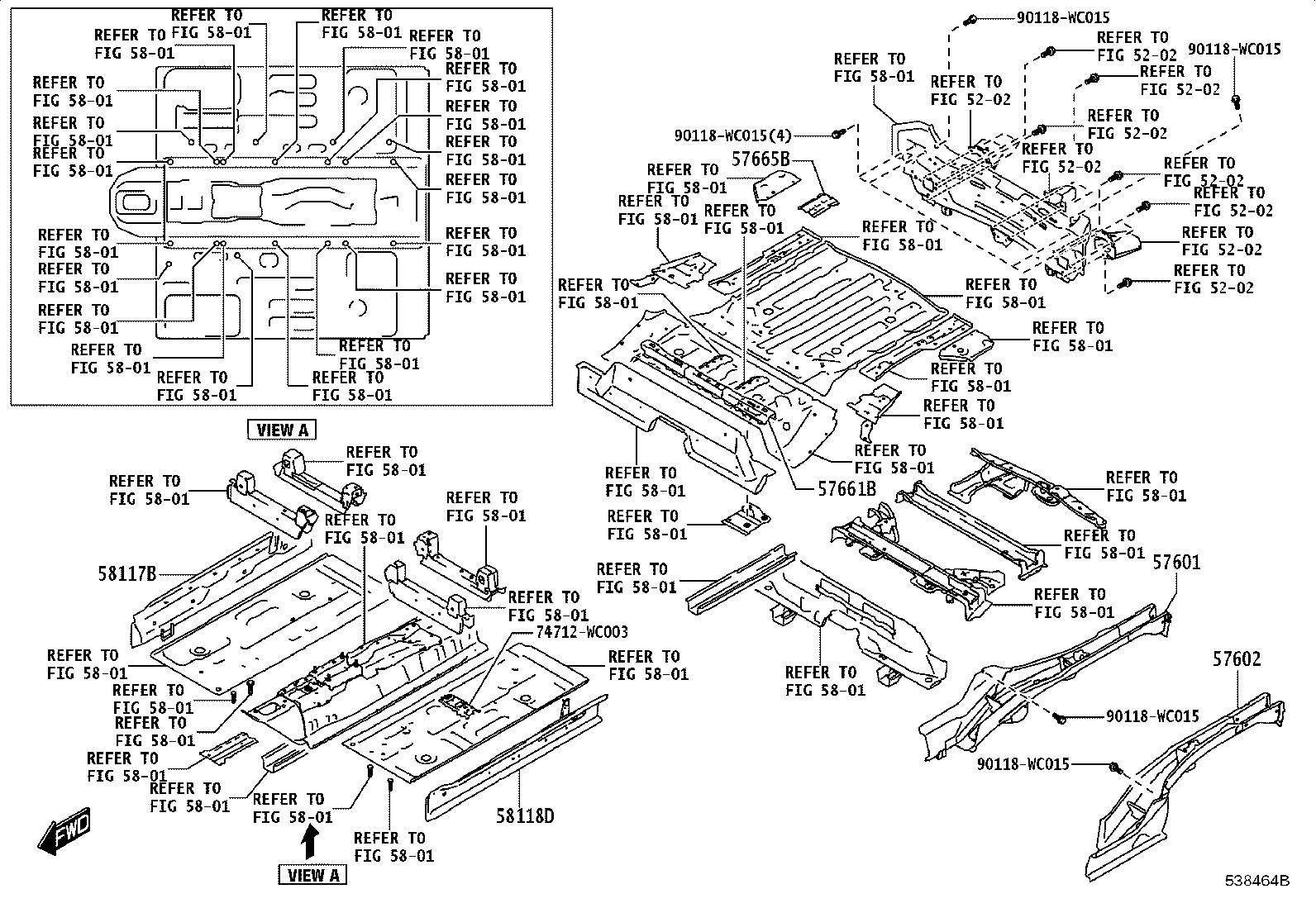

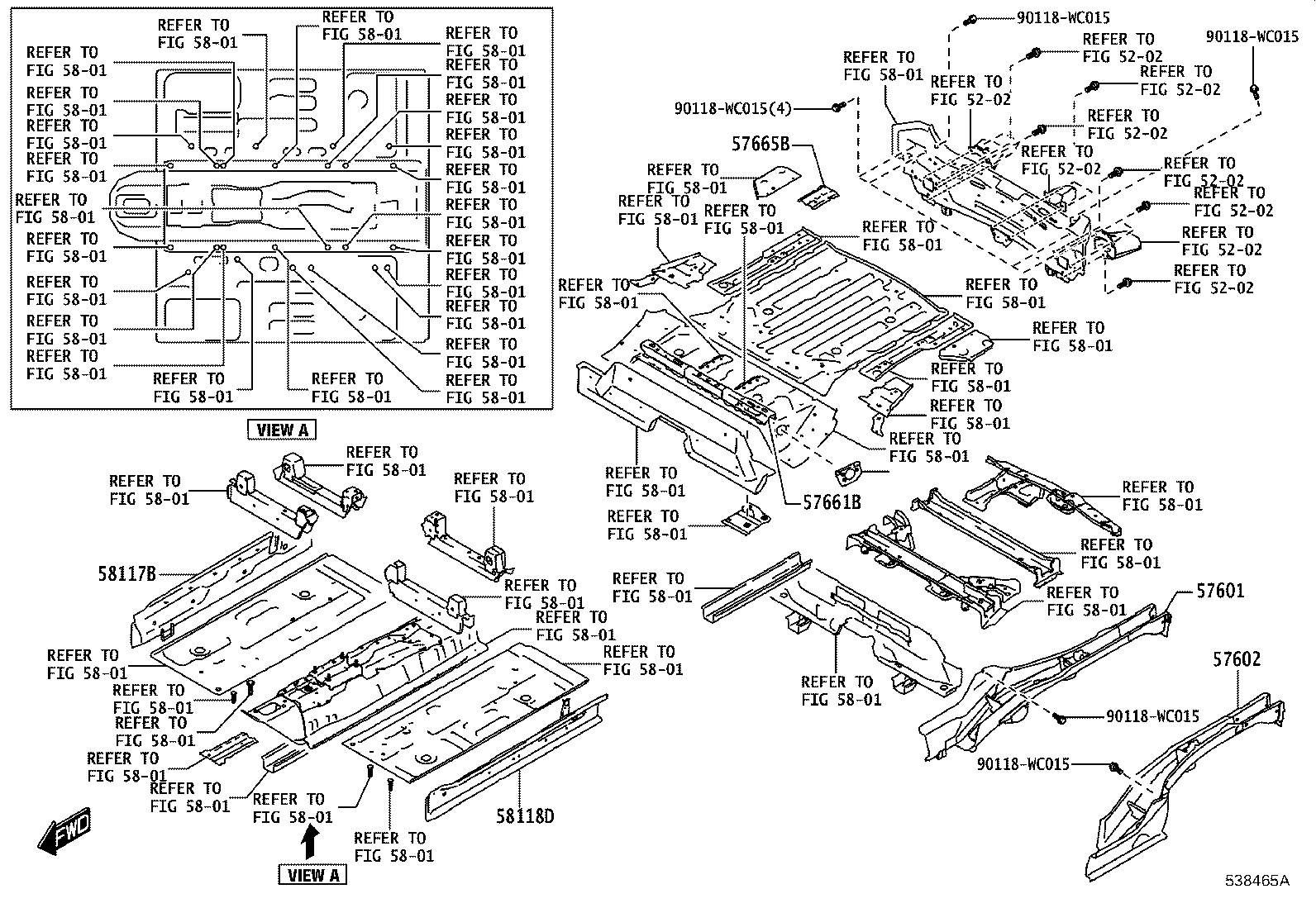

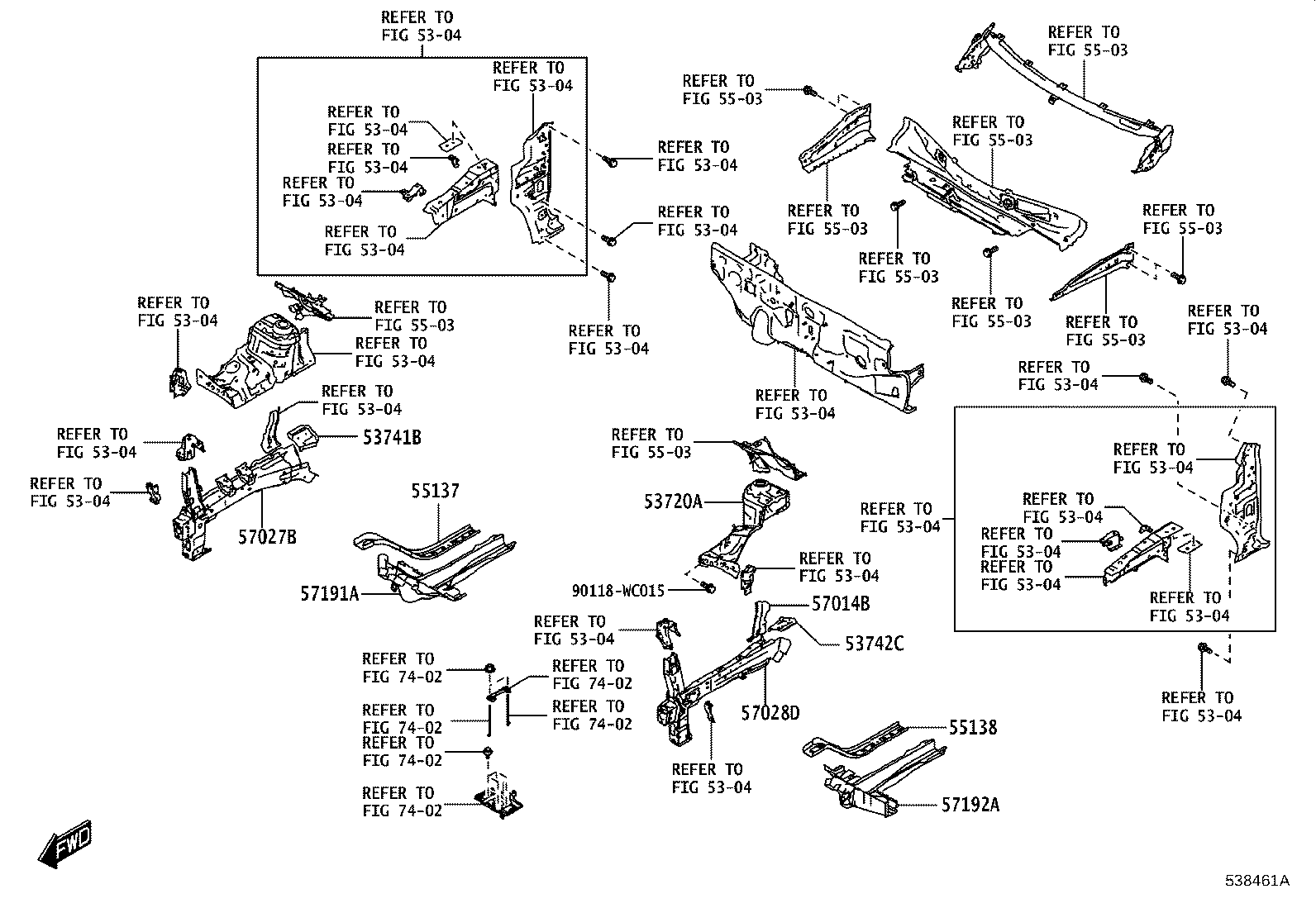

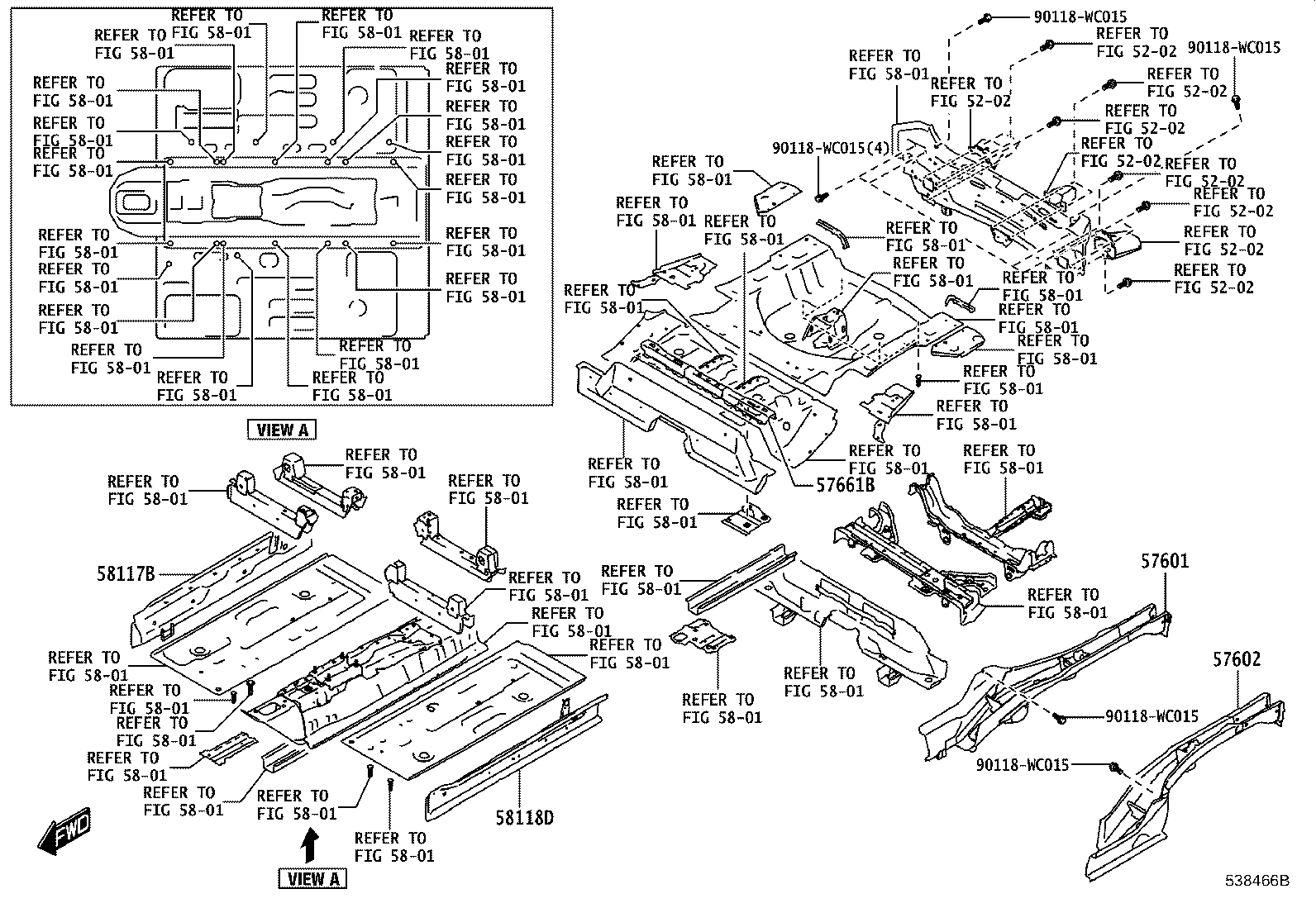

Figure 538460A 538460A 2022-08 → — Figure 538460A 538460A 2022-08 → — Figure 538461A 538461A 2022-08 → — Figure 538462A 538462A 2022-08 → — Figure 538463B 538463B 2022-08 → — Figure 538464B 538464B 2022-08 → — Figure 538465A 538465A 2022-08 → — Figure 538466B 538466B 2022-08 → —

Part groups

PNCDescription
53720A Apron Assy, Front Fender, LH
53741B Plate, Fender Apron Reinforce, RH
53742C Plate, Fender Apron Reinforce, LH
55137 Brace, Dash TO Frame, RH
55138 Brace, Dash TO Frame, LH
57014B Bracket Sub-assy, Front Side Member, LH
57027B Member Sub-assy, Front Side, Inner RH
57028D Member Sub-assy, Front Side, LH
57191A Member, Front Side, Inner Rear RH
57192A Member, Front Side, Inner Rear LH
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57661B Member, Rear Floor Cross, Front
57665B Reinforcement, Rear Floor Crossmember, NO.2
58117B Reinforcement, Front Floor Side, RH
58118D Reinforcement, Front Floor Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
