Toyota Urbancruiser Hyryder

2022-08 → present · chassis FG21###,4112#,FGB1### · catalogue 134320 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

16 part groups · 10 illustrations

Illustrations

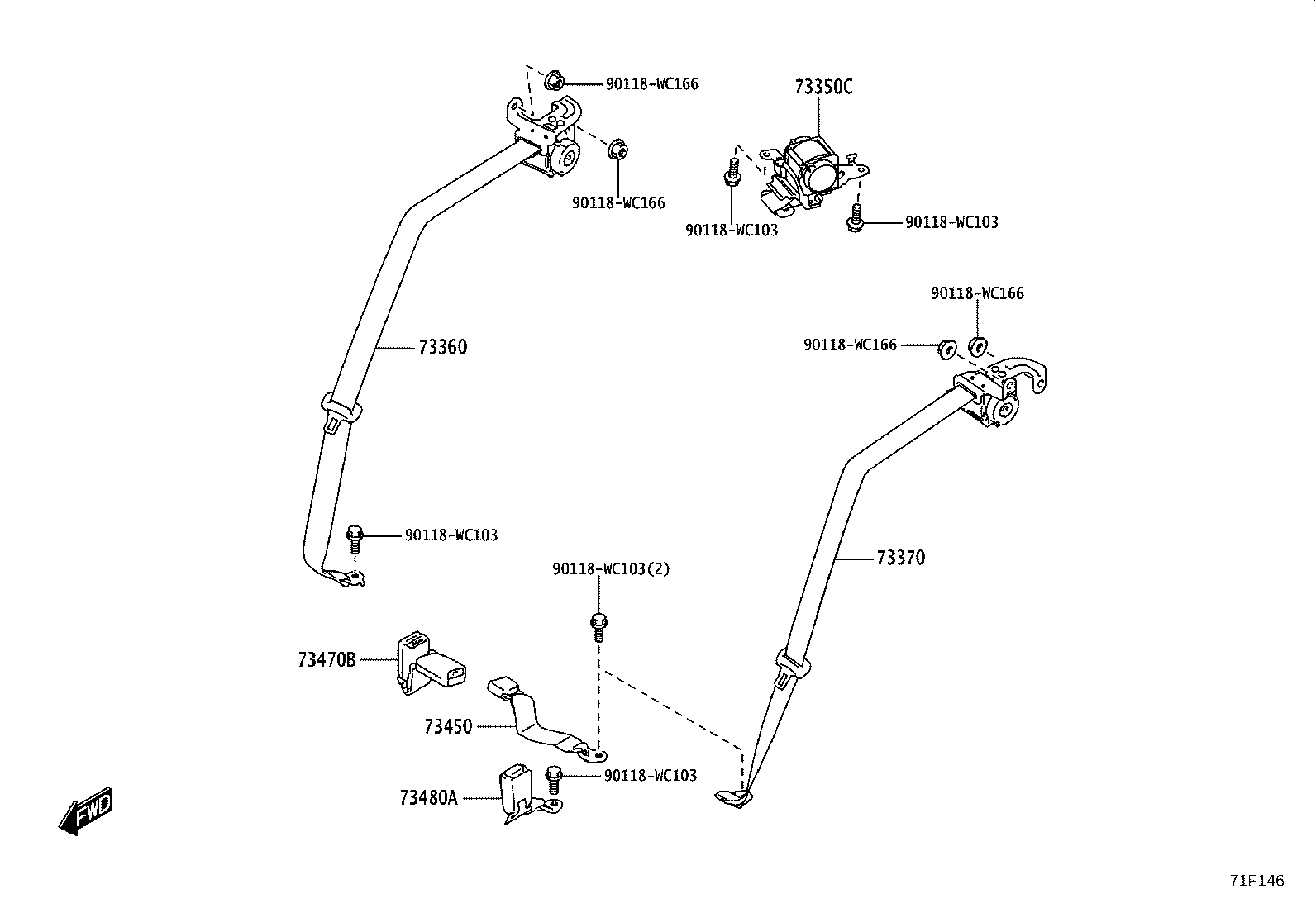

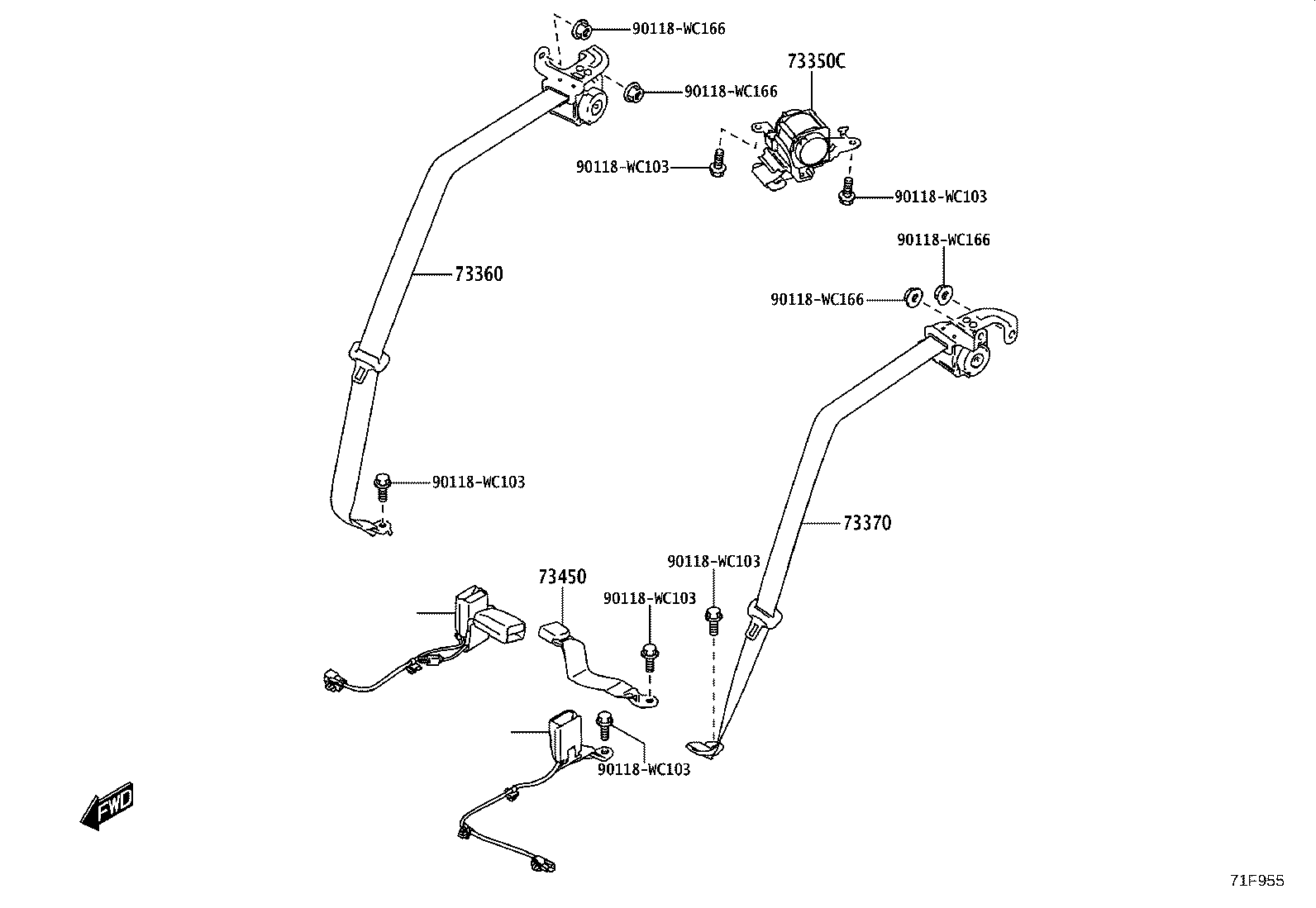

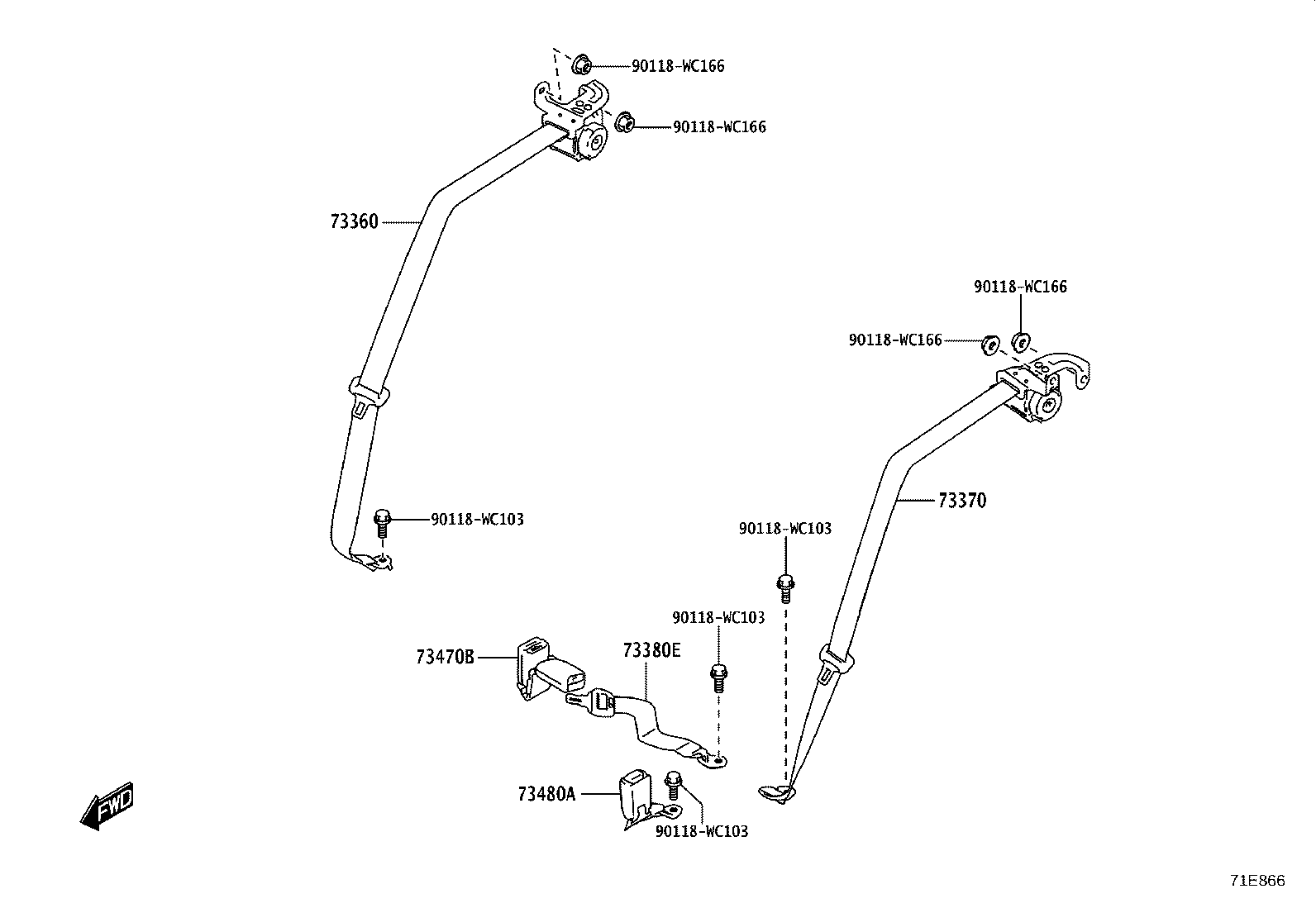

Figure 71E865 71E865 2022-08 → — Figure 71E866 71E866 2022-08 → — Figure 71F146 71F146 2022-08 → — Figure 71F146 71F146 2022-08 → — Figure 71F955 71F955 2022-08 → — Figure 71F955 71F955 2022-08 → — Figure 71F828 71F828 2022-08 → — Figure 71F829 71F829 2022-08 → — Figure 71F830 71F830 2022-08 → — Figure 71F831 71F831 2022-08 → —

Part groups

PNCDescription
66413F Cover, Rear Center Seat Belt, NO.1
66423E Cover, Rear Center Seat Belt, NO.2
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73252 Cover, Shoulder Belt Anchor Adjust, RH
73253 Cover, Shoulder Belt Anchor Adjust, LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73380E Belt Assy, RR Seat, Inner
73450 Buckle Assy, Rear Center Seat Belt
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480A Belt Assy, Rear Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
