Toyota Urbancruiser Hyryder

2022-08 → present · chassis FG21###,4112#,FGB1### · catalogue 134320 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 9 illustrations

Illustrations

Figure 84P396A 84P396A 2022-08 → — Figure 84P397 84P397 2022-08 → — Figure 84P398 84P398 2022-08 → — Figure 84P398 84P398 2022-08 → — Figure 84P399A 84P399A 2022-08 → — Figure 84P400 84P400 2022-08 → — Figure 84P400 84P400 2022-08 → — Figure 84P401A 84P401A 2022-08 → — Figure 84P402 84P402 2022-08 → —

Part groups

PNCDescription
89180 Sensor Assy, Yawrate

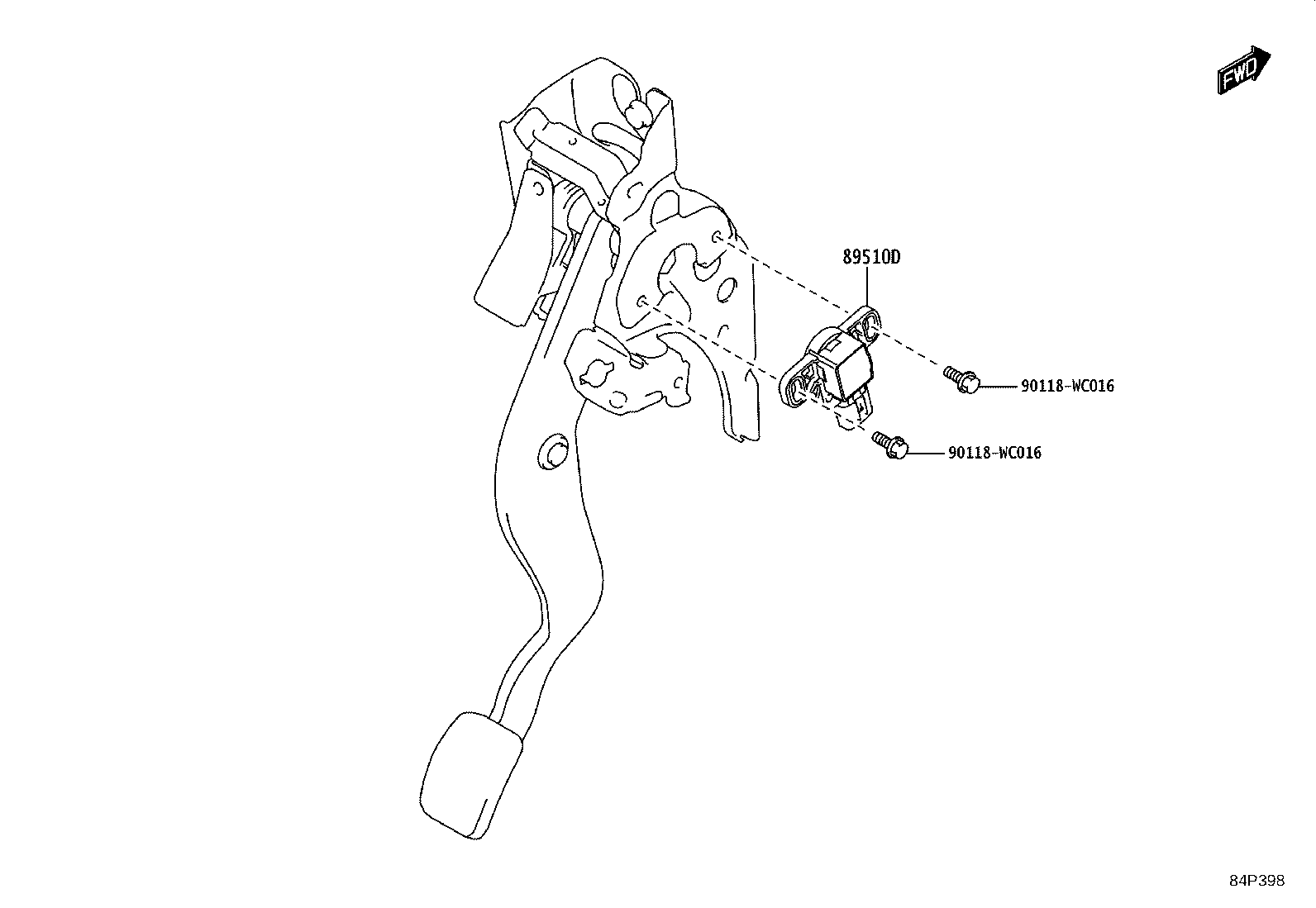

89510D Sensor Assy, Brake Pedal Stroke

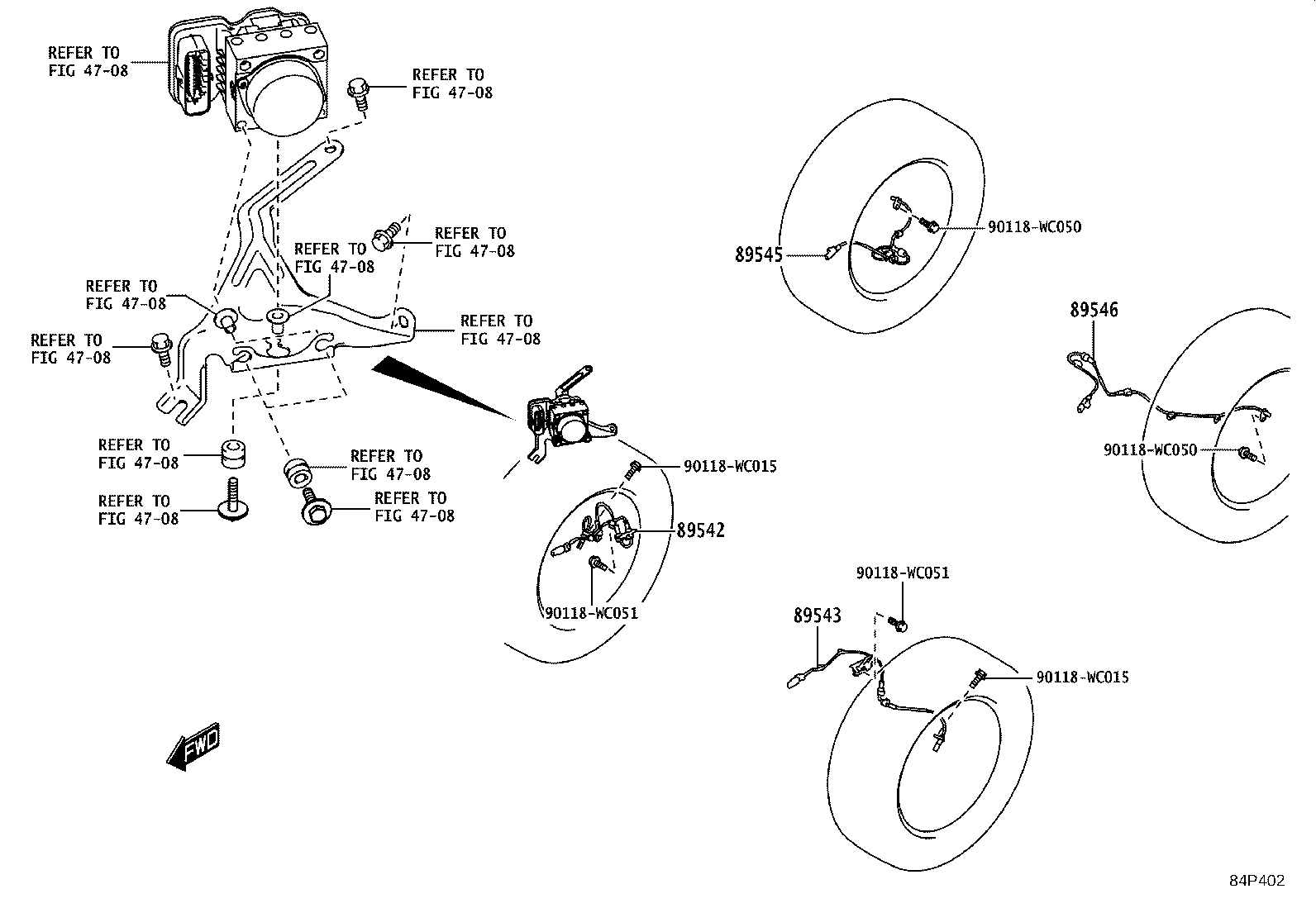

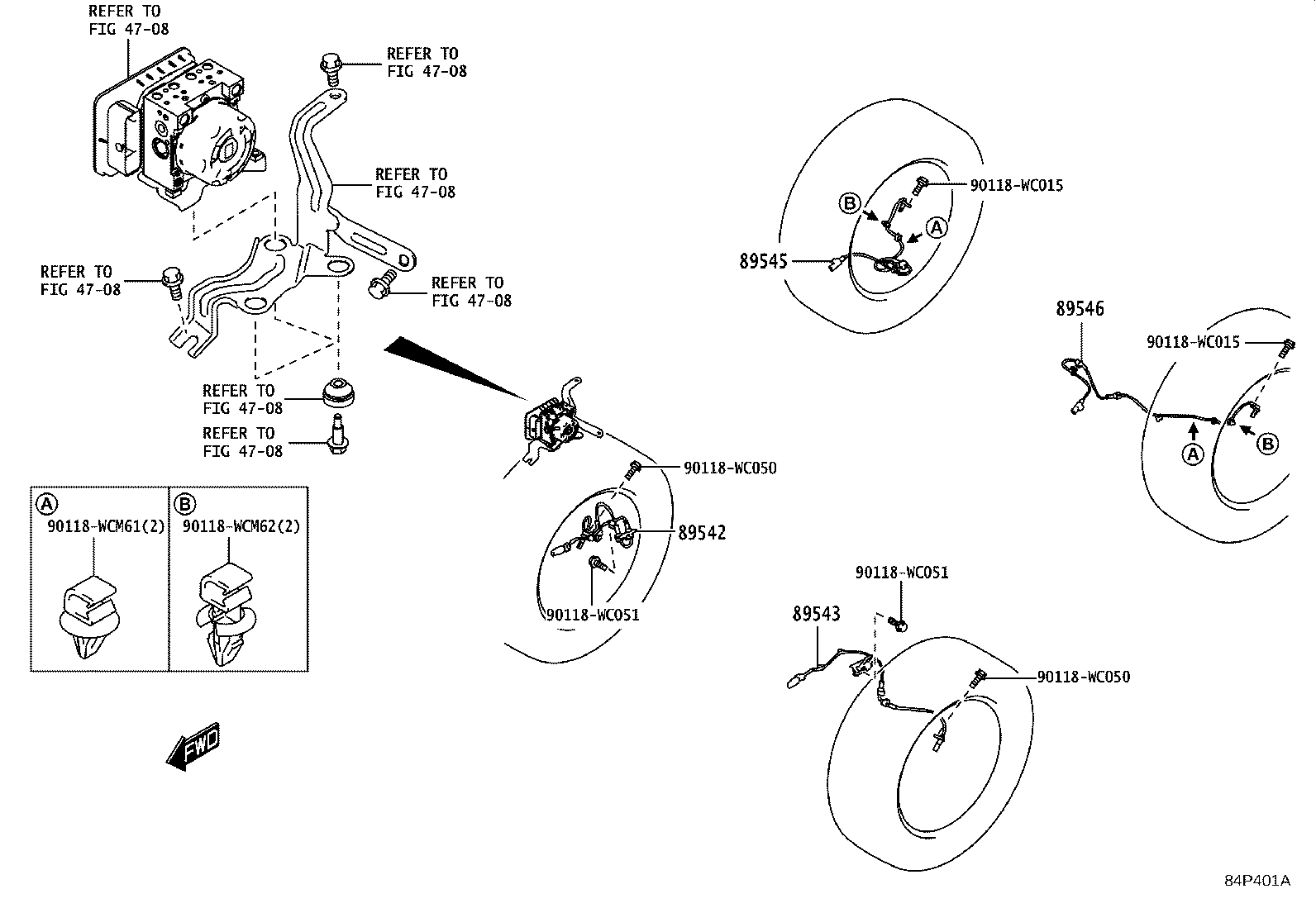

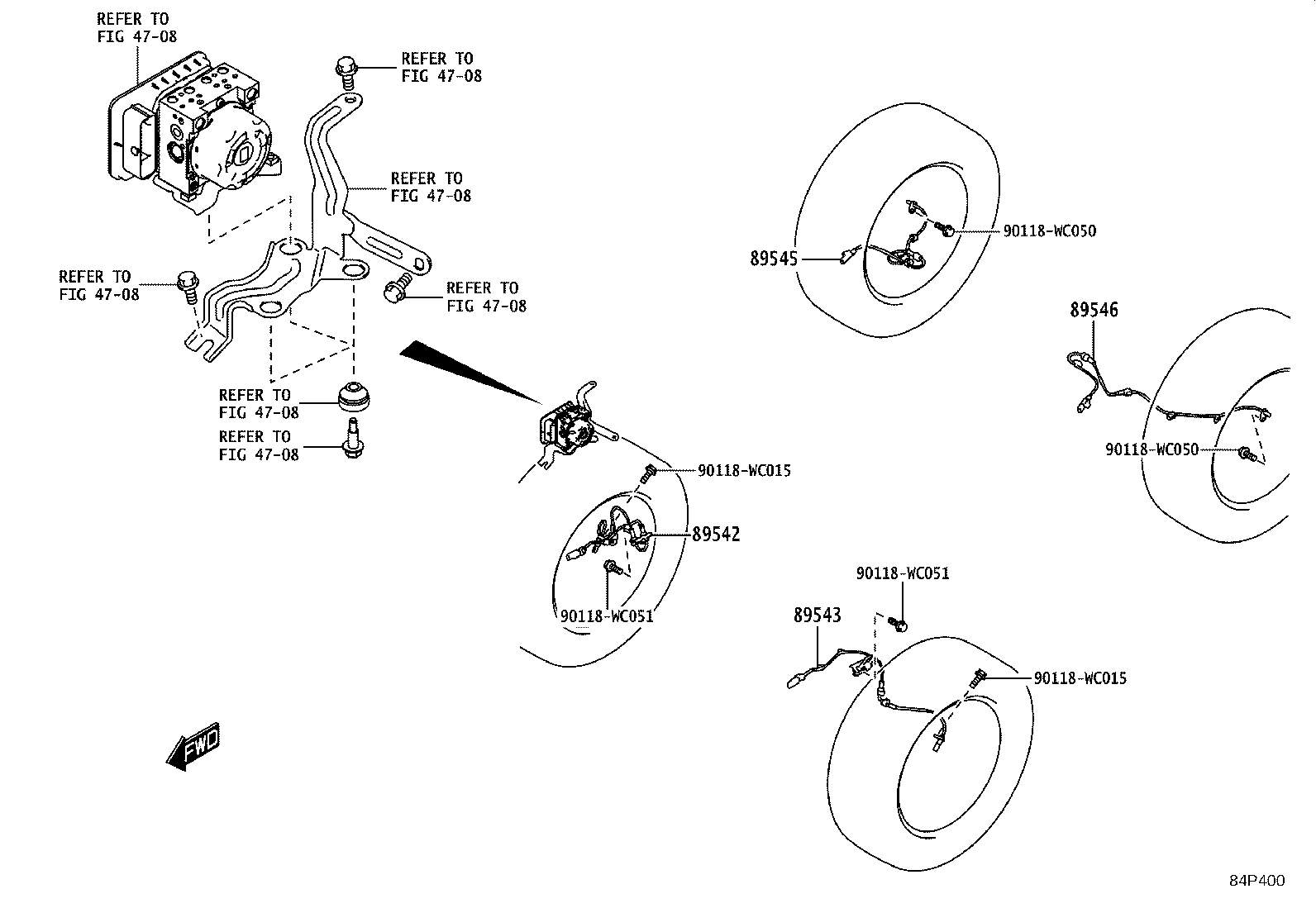

89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89630A Computer Assy, 4WD
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
